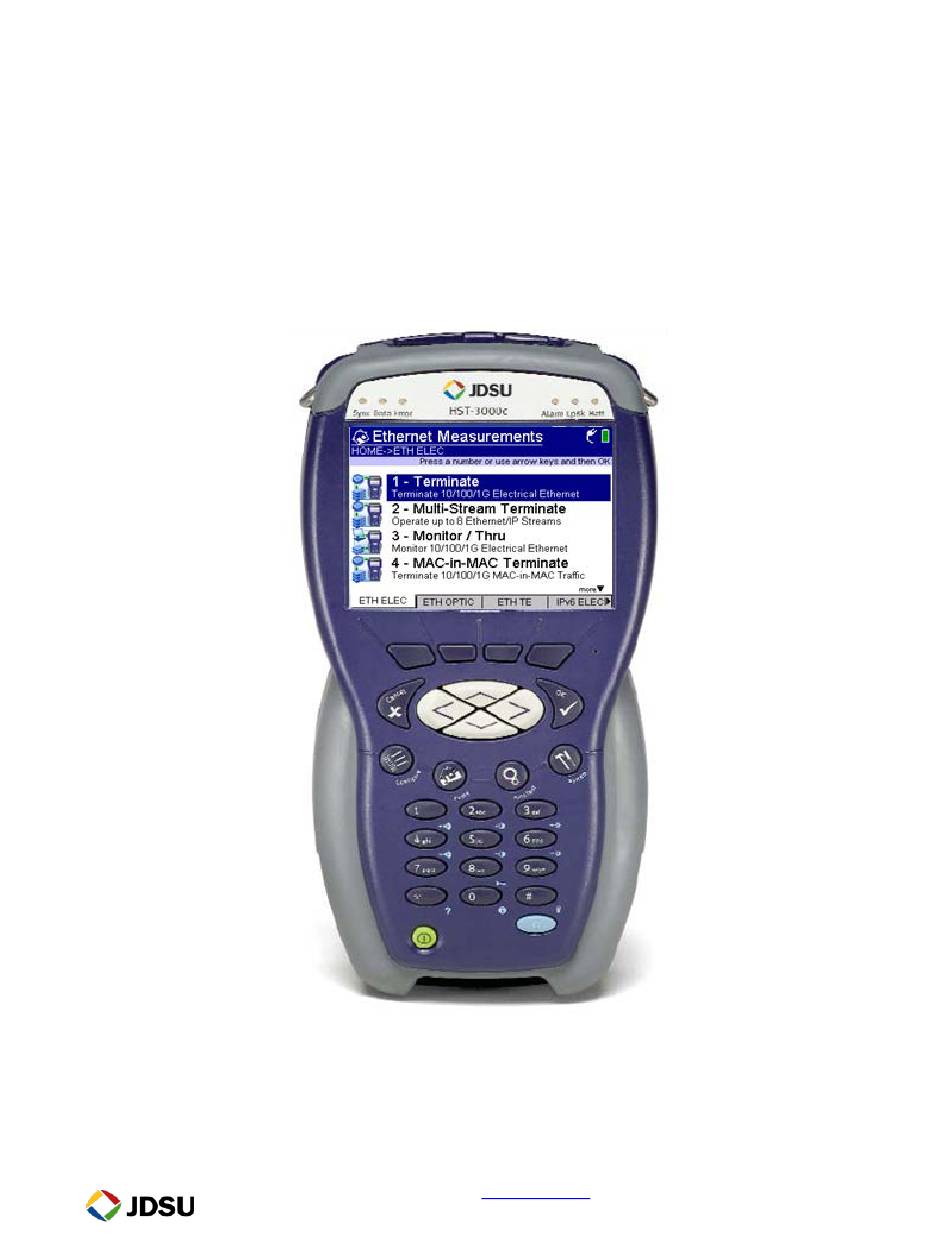

- Page 1 Page 1 of 4 JDSU HST-3000 SAMComplete RFC-2544 and Y.1564 Loopback Version 1.0 February 27, 2014 Technical Support tac@jdsu.com 855-275-5378...
- Page 2 (SIMs) to support Ethernet, T1/T3 and other access technologies. An Ethernet SIM is required for this test. The HST-3000 works in conjunction with a fiber cleaning and inspection kit to help turn-up and maintain Ethernet links. Menu selections are made from the HST-3000 front panel by using the keypad to select the option number or by using the arrow keys to scroll to the desired selection and pressing the OK key.
- Page 3 Page 3 of 4 User Interface: HST-3000 Loopback Use this procedure to set up an HST-3000 as a loopback device. Step Action Details Install SIM Install Ethernet Module on the HST-3000. Power On Press the green Power Key to turn on the HST-3000. Wait approximately 1 minute for the Base Unit software to load.
- Page 4 Press the Restart soft key to reset test results. Check LED Results Press the Right Arrow key until LED Results are displayed. A Green Signal Present LED indicates that the HST-3000 is receiving an optical signal from the near end Ethernet Switch. Green Sync Acquired and Link Active LEDs indicate that the HST-3000 has successfully connected to the near end Ethernet switch and the Ethernet link is active.
