LSI MegaRAID SCSI 320-0 Quick Hardware Setup Manual

Quick Hardware Setup Guide

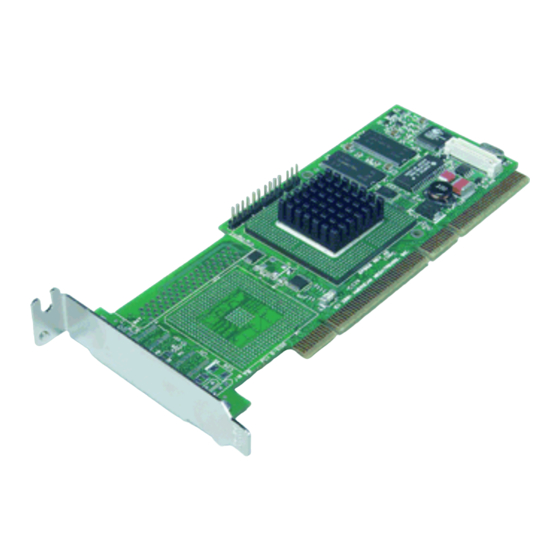

LSI Logic MegaRAID
SCSI 320-0 ZCR Controller
Thank you for purchasing the MegaRAID SCSI 320-0 ZCR
Controller. Please take a few minutes to read this Quick Hardware
Setup Guide before you install the MegaRAID SCSI 320-0. If you
need more information about any topic covered in this guide, please
refer to the other documents on your Universal Driver Suite CD.
Contents of the Universal Driver Suite CD
The Universal Driver Suite CD is packaged with the MegaRAID
SCSI 320-0. The CD contains utility programs, device drivers for
various operating systems, and the following documentation:
•
MegaRAID SCSI 320-0 Zero-Channel RAID Controller Hardware
Guide
•
MegaRAID Configuration Software User's Guide
•
MegaRAID Device Driver Installation User's Guide
•
Software license agreement and warranty registration card
Technical Support
If you need help installing, configuring, or running the MegaRAID
SCSI 320-0, contact LSI Logic Technical Support:
Phone Support: 678-728-1250 or 800-633-4545 #3
Web Site: http://support.megaraid.com/support/index.html
E-mail:
MegaRAID Controller Installation
Caution: Make a backup of your data before you change your
You must install the MegaRAID SCSI 320-0 in a system with an
LSI Logic 53C1030 chip and a specific ZCR (Zero-Channel RAID)
slot on the mainboard. Perform the following steps to install the
MegaRAID SCSI 320-0. Each step is explained more fully in the
following sections.
Downloaded from Arrow.com.
®
support@lsil.com
system configuration. Otherwise you may lose data.
®
Step Action
1 Unpack the MegaRAID SCSI 320-0.
2 Turn off the computer, remove the power cord, and remove the cover.
3 Check the MegaRAID SCSI 320-0 jumper settings.
4 Install the MegaRAID SCSI 320-0.
5 Replace the computer cover and turn the power on.
6 Run the MegaRAID BIOS Configuration Utility.
7 Install the operating system driver.
Step 1: Unpack the MegaRAID SCSI 320-0
Unpack and install the MegaRAID SCSI 320-0 ZCR Controller in a
static-free environment. Remove the MegaRAID SCSI 320-0 from
the anti-static bag and inspect it for damage. If it appears to be
damaged, or if the Universal Driver Suite CD is missing, contact
LSI Logic or your MegaRAID OEM support representative.
Step 2: Prepare the Computer
Turn off the computer and remove the power cord from the back of
the power supply. Remove the cover from the chassis. Make sure
the computer is disconnected from the power and from any
networks before installing the controller card.
Step 3: Check the MegaRAID SCSI 320-0 Jumpers
Make sure the jumper settings on the MegaRAID SCSI 320-0 are
correct. The jumpers are set at the factory, and you probably do not
need to change them. The following table lists the jumpers and
connectors on the RAID controller.
Item Description
J2 Dirty cache LED: This can be connected to an LED
on the computer enclosure. The LED will be lit when
data in the cache has not yet been written to the
storage device.
J3 Clears EPROM configuration data.
J4 Enables or disables the MegaRAID onboard BIOS.
Leave the BIOS enabled (no jumper).
J8 Battery backup board connector.

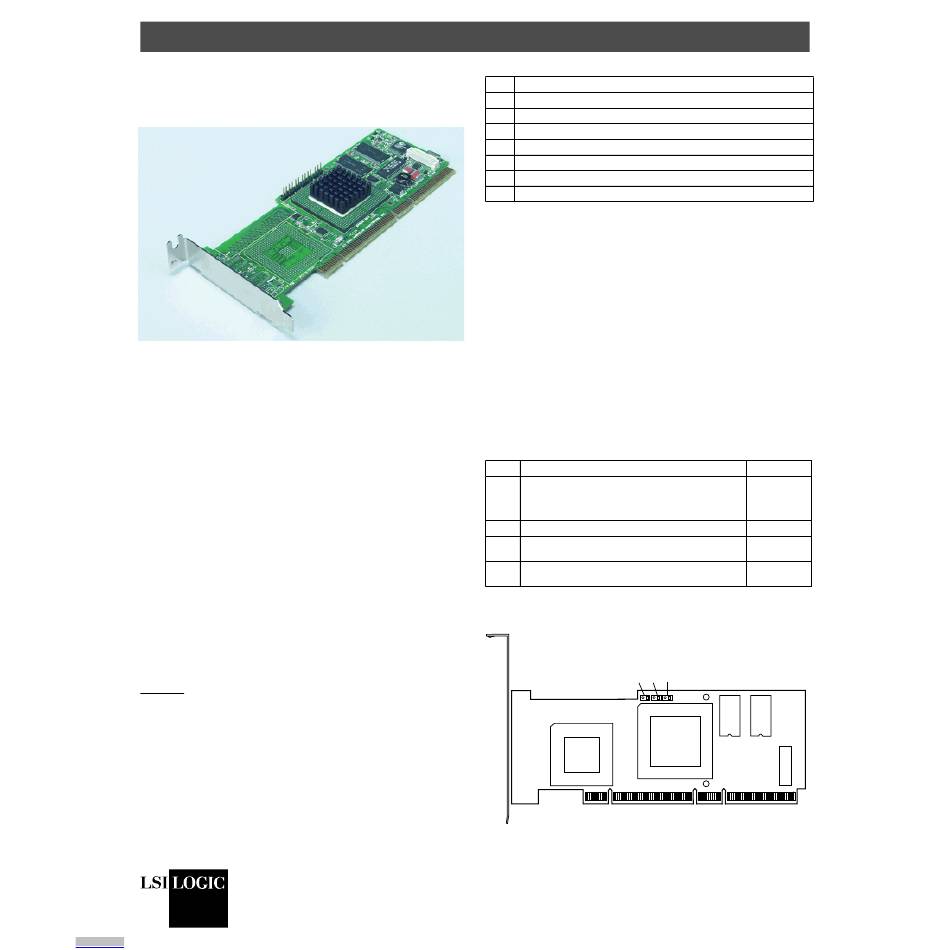

The following diagram shows the location of the jumpers and
connectors on the MegaRAID SCSI 320-0.
J2 J3 J4
Copyright © 2002-2003 by LSI Logic Corporation. All rights reserved.
Type
2-pin header
2-pin header
2-pin header
40-pin
connector
Optional Backup
J8
Battery Board
Connector
DB11-000011-02
