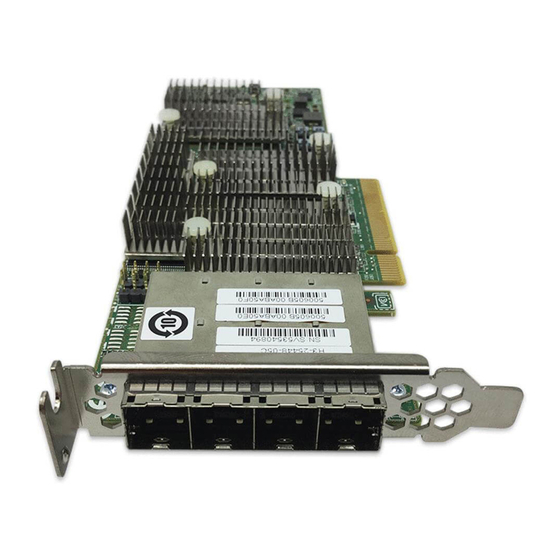

- Page 1 LSI® SAS 9206-16e PCI Express® to 6Gb/s Serial Attached SCSI (SAS) Host Bus Adapter User Guide Version 1.5 October 2014 DB15-000923-05...
- Page 2 800-372-2447 Avago Technologies, the A logo, LSI, Storage by LSI, and Fusion-MPT are trademarks of Avago Technologies in the United States and other countries. All other brand and product names may be trademarks of their respective companies. Data subject to change. Copyright © 2012–2014 Avago Technologies. All Rights Reserved.
-
Page 3: Table Of Contents
LSI SAS 9206-16e PCI Express to 6Gb/s SAS HBA User Guide Table of Contents October 2014 Table of Contents 1 Overview ..........................4 2 HBA Features . -
Page 4: Overview
3.0 8Gb/s host connectivity. The low-profile design of the SAS HBA includes a full-height bracket and low-profile mounting bracket that creates a universal fit for any server. The LSI SAS 9206-16e HBA is based on the Fusion-MPT™ architected LSI SAS 2308 controller that integrates the latest enhancements in PCIe 3.0 technology and 6Gb/s SAS technology. -
Page 5: Sas-2 Interface
The LSI SAS 9206-16e HBA provides two 4 M x 16-bit Flash ROMs for storing the firmware and the BIOS. The two LSI SAS 9206-16e HBA heartbeat LEDs, CR4B1 and CR5B1, blink green to indicate that the HBA is capable of general activity. -
Page 6: Physical Characteristics
Physical Characteristics The LSI SAS 9206-16e HBA is a 6.6-in. x 2.7-in., low-profile board. The component height on the top and bottom of the LSI SAS 9206-16e HBA is in accordance with the PCIe specification. The following figure shows the board layout. -
Page 7: Lsi Sas 9206-16E Hba Certifications And Safety Characteristics
Unpack the HBA, and inspect it for damage. Unpack the HBA in a static-free environment. Remove the HBA from the antistatic bag, and carefully inspect it for damage. If you notice any damage contact LSI or your reseller support representative. -
Page 8: Technical Support
HBA connectors. The LSI SAS 9206-16e HBA has four external x4 mini-SAS HD connectors. For external connections, use a cable with an external mini-SAS HD connector (SFF-8644) on one end (to connect to the HBA) and the appropriate connector to attach to the SAS or SATA devices on the other end. -
Page 9: Revision History
LSI SAS 9206-16e PCI Express to 6Gb/s SAS HBA User Guide Revision History October 2014 Revision History Version 1.5, October 2014 Made the following changes: Updated support information. Converted the book to the new template. Version 1.4, May 2013... - Page 11 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Broadcom Limited H5-25176-02...
