ddrum BETA PRO Manual

Drum sound module
Hide thumbs Also See for BETA PRO:

Advertisement

Quick Links

Download this manual See also: User Manual
EN
BETA PRO
Drum Sound Module
MS318
Drum Sound Module
WPW system

Advertisement

loading

Related Manuals for ddrum BETA PRO

Summary of Contents for ddrum BETA PRO

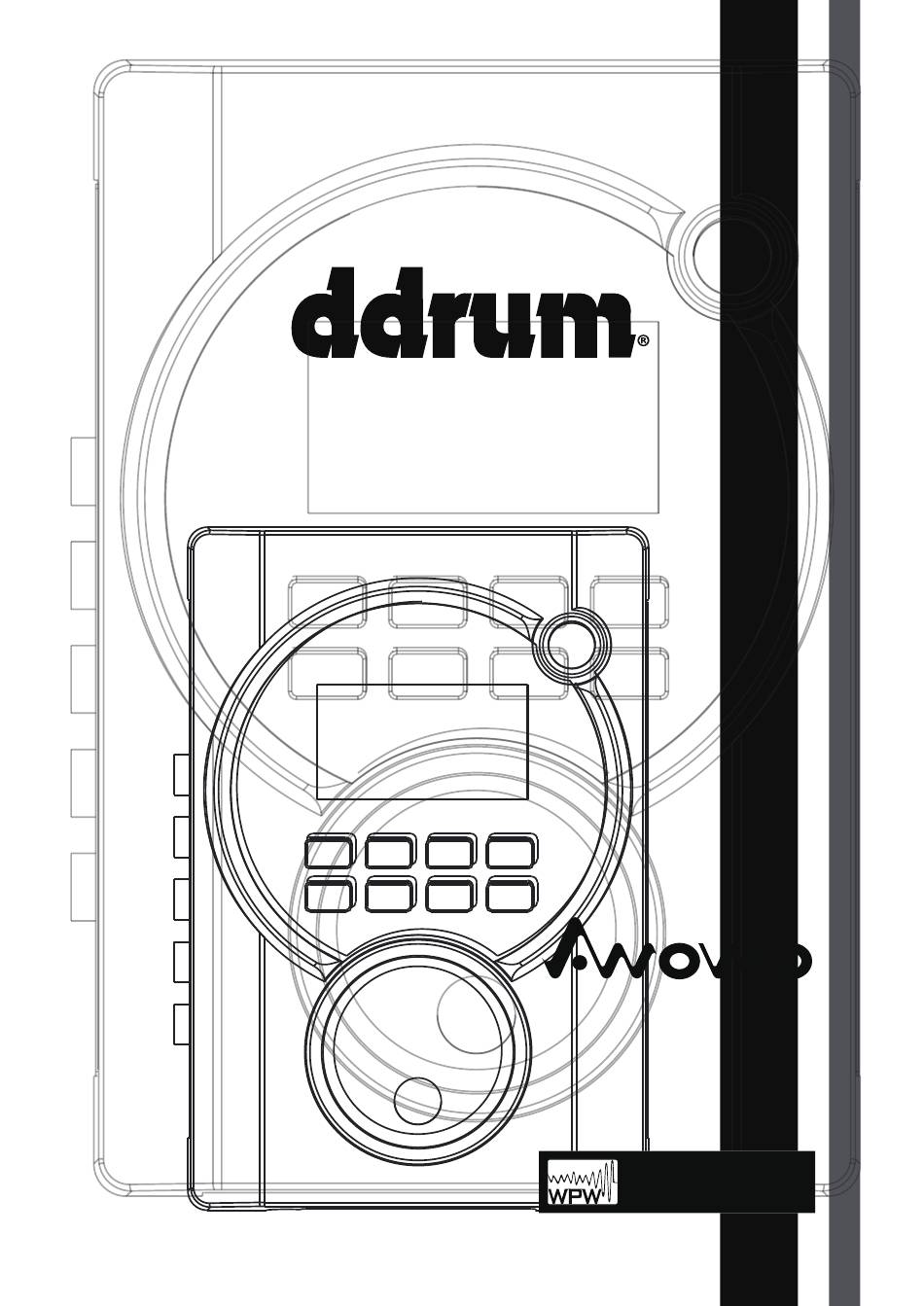

  • Page 1 BETA PRO Drum Sound Module MS318 Drum Sound Module WPW system...

  • Page 2: Operation Warning

    Operation Warning Warning & Caution Signs This sign indicates the risk of serious physical injury or even death. Please operate the machine according to WARNING instructions. This sign indicates the risk of serious physical injury and even death. Please operate the machine according to instructions.
  • Page 3 WARNING WARNING Please only use the adapter that is in- Please read the following instructions cluded with the unit. Make sure that before operation. the voltage of the socket matches the voltage indicated on the unit. Do not open or in any way modify the machine or adapter.
  • Page 4 WARNING CAUTION Always place the module and the If there are children in the household, adaptor in areas with good airflow. the adults should follow the safety precautions explained in the manual. When inserting or removing the power cable into/from the socket or the machine, always grab the plug instead of the cable.

  • Page 5: Power Supply

    Precautions Please read the following precautions aside from the safety in- structions Power Supply Additional Precautions • Do not share the power supply with other • During operation, please handle with care to electronics that can produce cable statics, for prevent any damage.
  • Page 6 3.5mm Stereo PHONES 3.5mm Stereo LINE IN 音樂播 手機 放器 1/4"(6.35mm) Stereo 1/4"(6.35mm) Stereo 1/4"(6.35mm) Stereo 2 zone 1/4"(6.35mm) Stereo / Mono 1 zone 1/4"(6.35mm) Stereo / Mono 1 zone...
  • Page 7 DC 9V1A (AC adaptor) Micro SD Page 42 CARD Micro USB USB connector (USB TO MIDI) MIDI 5-pin DIN MIDI OUT...
  • Page 8 ① ③ ⑦ ⑥ ⑤ ⑦ ③ ⑦ ⑦ ⑧ ⑥ ⑦ ⑤ ② ⑥ ②...
  • Page 9 ①- 1. p.11 ①. Power On / Off Switch power on / off ②- 1. ②. Knob Control Menu select & adjust the value ②- 2. p.12 Home Back to main page, save preset setting, default setting ③- 1. p.13 ③.

  • Page 10: List Of Commands

    List of Commands Home (drum kit) Drum kit (home) 01~17, U-1~U-4 Save preset Press and hold Reset )Press and hold 3~18 Volume 1. vol. 2. mode vol. 3~18. ch.vol. REC. REC. cancel (at loading) Song mode REC. Click mode REC. Playback Playback mute BGM (Song/ Click track)
  • Page 11 Playing along to songs. Song mode 1. Song no.01~99 2. Both/vocal/drum/none Song mode Vol. ×2 Play Click Click mode 1. 30~250 BPM 2. 9 kind of beats 3. vocal/click Click mode vol. ×2 Sensitivity Select user mode Custom drum kit Custom drum kit 1.
  • Page 12 On/ Off...
  • Page 13 Drum Kit (Home) ② ① ③ Rotate to select Drum Kit. 001~017 The sequence of preset: Starting with U-1~U-4 The following are user kits presets:...
  • Page 14 Home (Drum Kit): Save Preset: Press and hold the display will blink once when compeleted. Reset: ( Press and hold the display will blink once when compeleted.
  • Page 15 Display Hi-hat Channel 1~8 Drum kit Drum kit...

  • Page 16: How To Use

    How to use ① Press the button to select. ② Watch the change in the display. ③ Rotate knob to select or adjust. ② ① ③...
  • Page 17 Volume Adjust Select Display Volume (All drum) 1/18 Mode Volume (Tone) 2/18 3/18 Mode Volume(Hi-hat) Hi-hat...
  • Page 18 Mode Volume (Snare) 4/18 Mode Volume (Tom1) 5/18 Mode Volume (Tom2) 6/18 Mode Volume (Tom3) 7/18...
  • Page 19 Mode Volume (Crash) 8/18 Mode Volume (Ride) 9/18 Mode Volume (Kick) 10/18 Mode Volume (Effect 1) 11/18...
  • Page 20 Mode Volume (Effect2) 12/18 Mode Volume (Effect3) 13/18 Mode Volume (HH ctrl) 14/18 Mode Volume (Snare rim) 15/18...
  • Page 21 16/18 Mode Volume (Tom 1 rim) 17/18 Mode Volume (Tom 2 rim) 18/18 Mode Volume (Tom 3 rim)
  • Page 22 Mode Volume Song/ Click Mode Volume: ( ×2 Press( ) button in Song/ Click mode, press button twice to select mode volume. Playback BGM Volume: ×2 (Song/ Click will be recorded in BGM track.) Playback BGM Mute: Press button start playback, press button twice to select mode volume.
  • Page 23 REC. Three storage spaces are available. The capacity is 10,000 notes per space. Display Select (5s for select space or cancel) S1, S2, S3 Cancel REC. Stop REC.
  • Page 24 LINE IN will not be recording. music mobile player phone Song/Click Mode REC.: ( Press ( ) button to check status, (See Song/Click Mode in detail) press to select, press button start REC. (Song/ Click will be recorded in BGM track.) Important When in recording mode, you may want to use the click/ metronome to ensure the your playing is stable and in time.
  • Page 25 Playback Three storage space, capacity 10,000 notes per space. Display Select (5s for select space) S1, S2, S3 Playback Mute BGM Stop Playback...
  • Page 26 Playback BGM Mute: Playback Volume: Playback BGM Volume: ×2 (Song/ Click will be recorded in BGM track.) Playback Channel Volume: x3~10 (please see Volume Mode for detail) Press button start playback, press button to select volume mode, use to adjust. When playing a recording, each drum and click track volume can be adjusted separately.

  • Page 27: Song Mode

    Select Display Song Song Mode 01~12 Play Song: MIDI songs 13~99 press button repeatedly. percussion rhythm Vocal vocal+drum vocal drum no track Song Mode REC.: Press button to check status, press to select, press button start REC. (Song will be recorded in BGM track.)

  • Page 28: Click Mode

    Click Mode Play Click: press button repeatedly. Adjust Select Display Click Speed 30~250 9 kind of beats 2, 3, 3A, 4, 5, 6, 7, 8, 9 Vocal click vocal...
  • Page 29 Click Mode Volume: ×2 Press button into Click mode, press button twice to select mode volume,use adjust. Click Mode REC.: Press button to check status, press to select, press button start REC. (Click will be recorded in BGM track.) Important When in recording mode, you may want to use the click/ metronome to ensure the your playing is stable and in time.

  • Page 30: User Mode

    User Mode Select user mode p.31 Custom Drum Kit p.32 Range U-1~U-4 Adjust Confirm...

  • Page 31: Save Preset

    p.36 Sensitivity 18 / 34 靈敏度設定 (Hi-hat) Adjust Confirm press to leave user mode, all settings will be save as a preset. Save Preset: the display will blink once when compeleted.
  • Page 32 Select Display Adjust 1 / 36 Enter to setting screen 1 / 5 Enter to setting screen 2 / 5 Rotate 3 / 5 4 / 5 5 / 5 Enter to setting screen 1 / 5 2 / 5 Rotate 3 / 5 4 / 5...
  • Page 33 Select Display Adjust 1 / 5 Enter to setting screen 2 / 5 Rotate 3 / 5 4 / 5 5 / 5 Range (Hi-hat) Rotate Range (Snare) Rotate Range (Tom1) Rotate...
  • Page 34 Select Display Adjust Range (Tom2) Rotate Range (Tom3) Rotate Range (Crash) Rotate Range (Ride) Rotate...
  • Page 35 Select Display Adjust Range (Kick) Rotate Range (Effect1) Rotate Range (Effect2) Rotate Range (Effect3) Rotate...
  • Page 36 Select Display Adjust Range (HH ctrl) Rotate Range (Snare rim) Rotate Range (Tom1 rim) Rotate Range (Tom2 rim) Rotate...
  • Page 37 Select Display Adjust Range (Tom3 rim) Rotate Sensitivity (Hi-hat) Rotate Sensitivity (Snare) Rotate Sensitivity (Tom1) Rotate...
  • Page 38 Select Display Adjust 21 / 36 Sensitivity (Tom2) Rotate Sensitivity (Tom3) 22 / 36 Rotate Sensitivity (Crash) 23 / 36 Rotate 24 / 36 Sensitivity (Ride) Rotate...
  • Page 39 Select Display Adjust Sensitivity (Kick) Rotate Sensitivity (Effect1) Rotate Sensitivity (Effect2) Rotate Sensitivity (Effect3) Rotate...
  • Page 40 Select Display Adjust Sensitivity (HH ctrl) Rotate Sensitivity (Snare rim) Rotate Sensitivity (Tom1 rim) Rotate Sensitivity (Tom2 rim) Rotate...
  • Page 41 Select Display Adjust Sensitivity (Tom3 rim) Rotate Sensitivity (Clean) Rotate Sensitivity (Bell / Bow Edge exchange) Rotate Bell / Bow Edge exchange Rotate...
  • Page 42 Midi out On / Off Rotate Display : When you rotate the knob, the display screen will blink showing the levels.
  • Page 43 SD CARD 1. Create a directory: To display and search more convenient. You should name your directory less than 8 characters and using only English Alphabets and numbers. Filename Extension of the directory must be the “.drm”. For example: D001.drm, Rec001.drm... 2.
  • Page 44 Audio format: Must be 16bits, monophony, uncompressed .wav files, and sample rate can be from 22050Hz to 44100Hz 4. Use direction : i. Inse rt the SD(T F) Car d, a nd the displ ay will show SD On Song Click ii.
  • Page 45 (a.) If each column shows 6 blocks on the screen, This means the pad and rim sensors are in effect. (b.) If each column shows 3 blocks on the screen, This means Pad is in effect and the rim sensor is not.. (c.) If each column is empty, this means no sound option or effect.
  • Page 48 For more information please visit our website www.ddrum.com...
