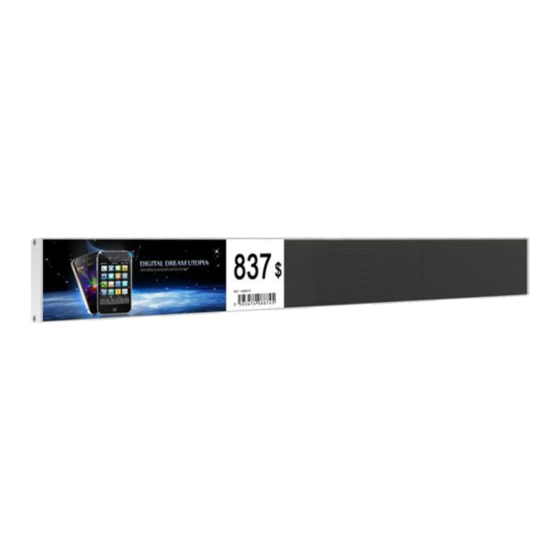

Prestigio PDSIK2CA Quick Start Manual

Shelf led display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SHELF LED DISPLAY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDSIK2CA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Prestigio PDSIK2CA

Summary of Contents for Prestigio PDSIK2CA

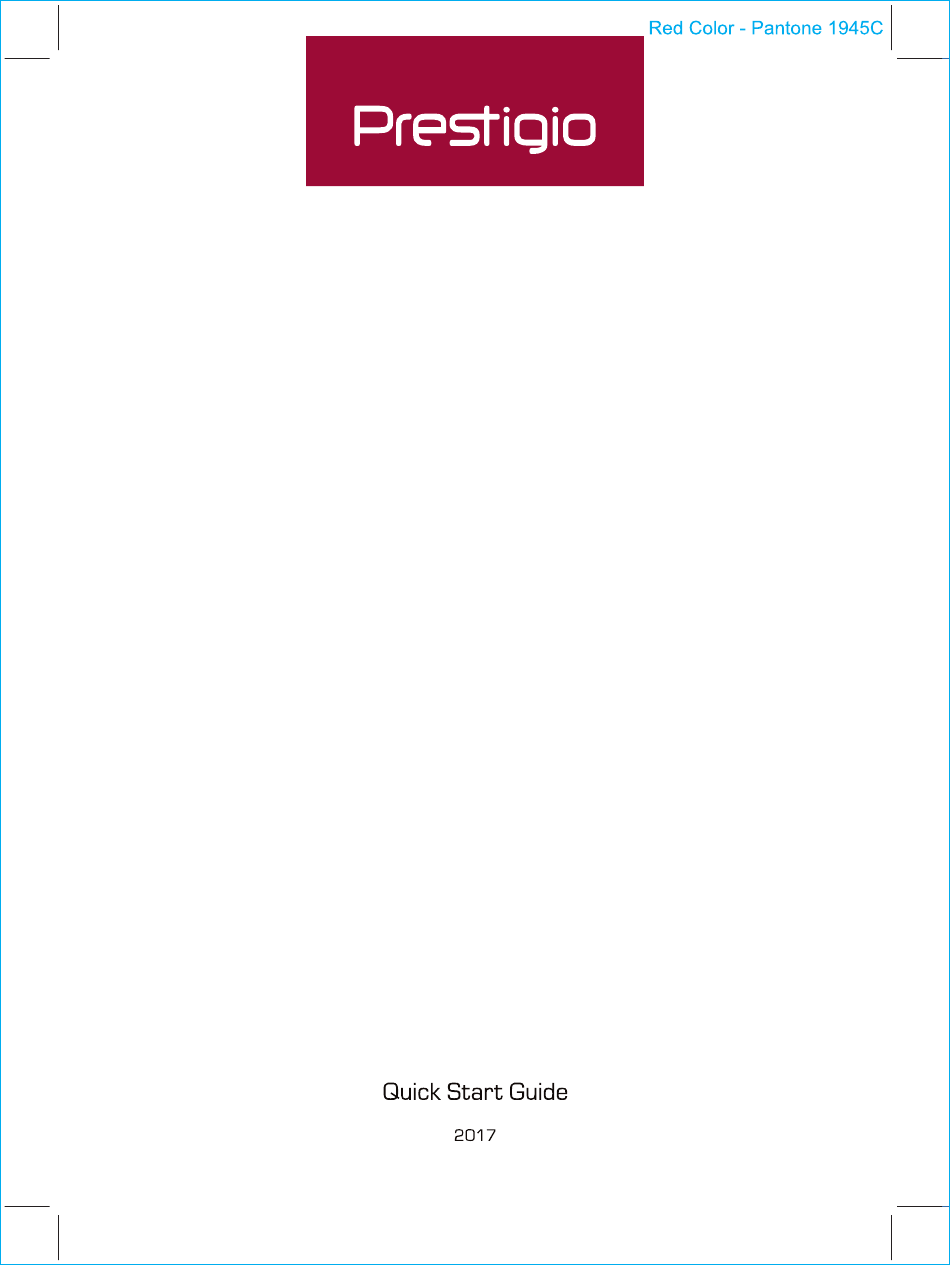

  • Page 1 SHELF LED DISPLAY...

  • Page 3: Table Of Contents

    Contents Chapter 1: Brief introduction for Shelf LED Display..................02 Chapter 2: Preface.............................02 2.1 Parameters for Shelf Displays....................................02 2.2 Screen and body and spare parts...................................03 2.3 Spare Parts............................................03 Chapter 3::Usage of Shelf LED Display......................04 Chapter 4: Notice and warning........................07 4.1 Steps for using Shelf Led Display....................................07 4.2 Daily maintenance..........................................07 4.3 Troubleshooting..........................................08 Chapter 5::Safety measures and safety tips....................08...

  • Page 4: Chapter 1: Brief Introduction For Shelf Led Display

    2. Preface Dear customers: Greeting! Thanks for choosing Prestigio's product. To secure your security when you operate our product and make no unexpected damage made to anyone or your property, please follow the safety instruction showed as below. Any faulty operation for not following the safety instruction may cause accident.

  • Page 5: Screen And Body And Spare Parts

    Prestigio Shelf LED display 2.2 Screen body and Spare parts 2.2.1 unit size for PDSIK2CA 300mm 60mm 300mm 2.2.2 unit size for PDSIK2CB 600mm 60mm 600mm 2.3 Spare parts Power supply: 200W; Signal cable: 1pcs, connect two units. Power cable: 1pcs, connect two units.

  • Page 6: Chapter 3::Usage Of Shelf Led Display

    Prestigio Shelf LED display clip connector power cable signal cable connection diagram 3. Usage of Shelf LED Display 3.1 Open the carton, please check the goods with product list. If any part of Shelf LED Display is missed, please contact us.
  • Page 7 Prestigio Shelf LED display B. Twist the magnet into the unit. C. Using connector to fix two units together with screws. D. Fix the side cover at both side with screws. E. Insert the power cable between units. EN - 5...
  • Page 8 Prestigio Shelf LED display F. Insert the signal cable between units. G. Power supply got two ports, one connect with power cable to the socket, another connect with unit. H. Connect the units with computer via network cable.* * ! PC Gigabit LAN port connection is mandatory.

  • Page 9: Chapter 4: Notice And Warning

    Prestigio Shelf LED display 4. Notice and warning 4.1 Steps of using Shelf LED Display 1. Turn on the computer first, then turn on the power for the units. Flicker is normal, it means the power on. 2. Turn off the power fist, then turn off the computer.

  • Page 10: Troubleshooting

    Treat problems according to the information given in your dealer for service. The problems are not always caused by malfunctions. Check the Electrostand again before having it serviced. As the Prestigio products are constantly updated and improved, your device's software and hardware may have a slightly different appearance or modified functionality than presented in this User manual.

This manual is also suitable for:

Pdsik2cb
