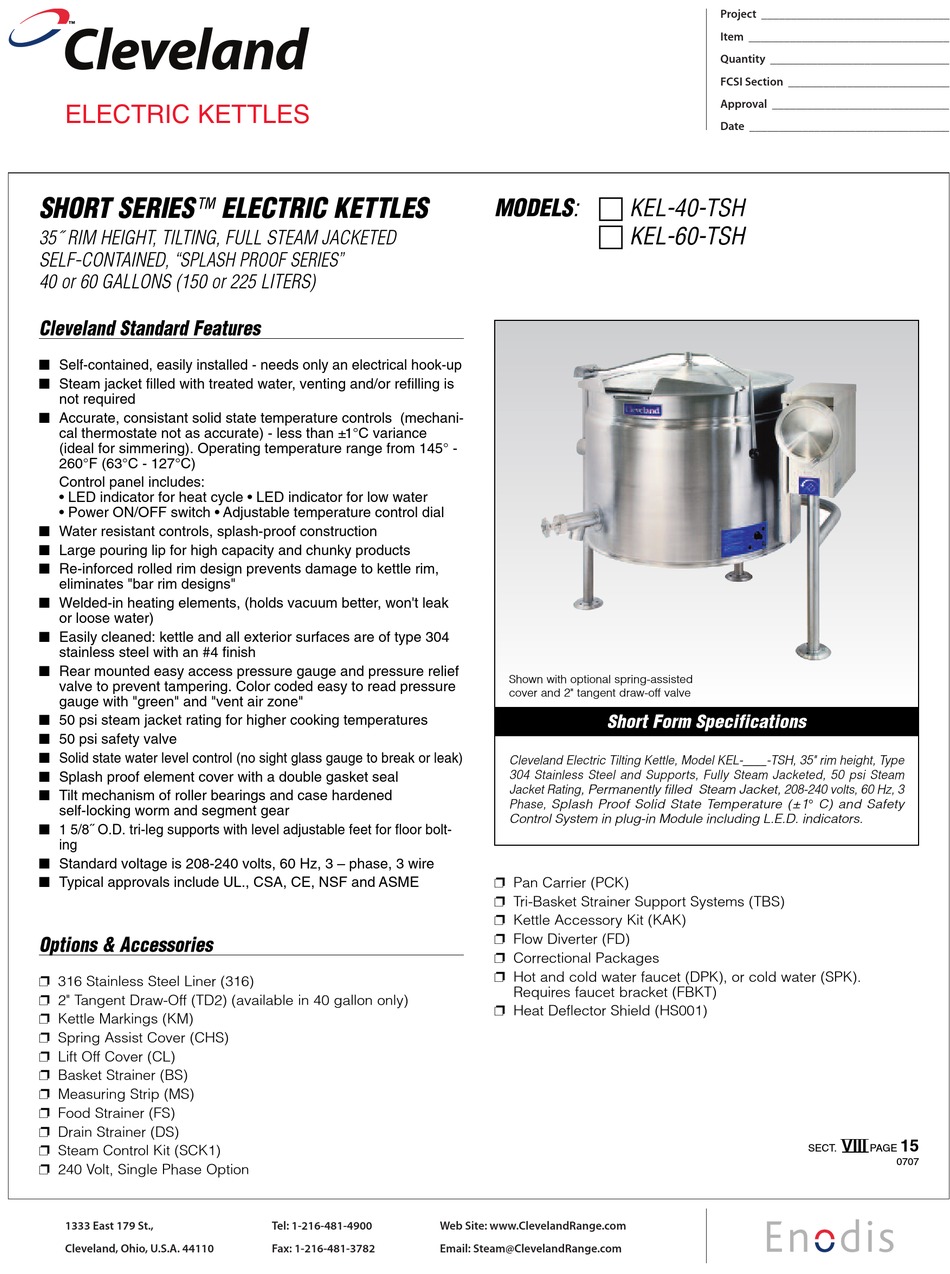

Cleveland KEL-40-TSH Specifications

™
Cleveland
ELECTRIC KETTLES
SHORT SERIES™ ELECTRIC KETTLES
35˝ RIM HEIGHT, TILTING, FULL STEAM JACKETED
SELF-CONTAINED, "SPLASH PROOF SERIES"
40 or 60 GALLONS (150 or 225 LITERS)
Cleveland Standard Features
I Self-contained, easily installed - needs only an electrical hook-up
I Steam jacket filled with treated water, venting and/or refilling is
not required
I Accurate, consistant solid state temperature controls (mechani-
cal thermostate not as accurate) - less than ±1°C variance
(ideal for simmering). Operating temperature range from 145° -
260°F (63°C - 127°C)
Control panel includes:
• LED indicator for heat cycle • LED indicator for low water
• Power ON/OFF switch • Adjustable temperature control dial
I Water resistant controls, splash-proof construction
I Large pouring lip for high capacity and chunky products
I Re-inforced rolled rim design prevents damage to kettle rim,
eliminates "bar rim designs"
I Welded-in heating elements, (holds vacuum better, won't leak
or loose water)
I Easily cleaned: kettle and all exterior surfaces are of type 304
stainless steel with an #4 finish
I Rear mounted easy access pressure gauge and pressure relief
valve to prevent tampering. Color coded easy to read pressure
gauge with "green" and "vent air zone"
I 50 psi steam jacket rating for higher cooking temperatures
I 50 psi safety valve
I Solid state water level control (no sight glass gauge to break or leak)
I Splash proof element cover with a double gasket seal
I Tilt mechanism of roller bearings and case hardened
self-locking worm and segment gear
I 1 5/8˝ O.D. tri-leg supports with level adjustable feet for floor bolt-
ing
I Standard voltage is 208-240 volts, 60 Hz, 3 – phase, 3 wire
I Typical approvals include UL., CSA, CE, NSF and ASME
Options & Accessories
Ë 316 Stainless Steel Liner (316)
Ë 2" Tangent Draw-Off (TD2) (available in 40 gallon only)
Ë Kettle Markings (KM)
Ë Spring Assist Cover (CHS)
Ë Lift Off Cover (CL)
Ë Basket Strainer (BS)
Ë Measuring Strip (MS)
Ë Food Strainer (FS)
Ë Drain Strainer (DS)
Ë Steam Control Kit (SCK1)
Ë 240 Volt, Single Phase Option
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: KEL-40-TSH
KEL-60-TSH

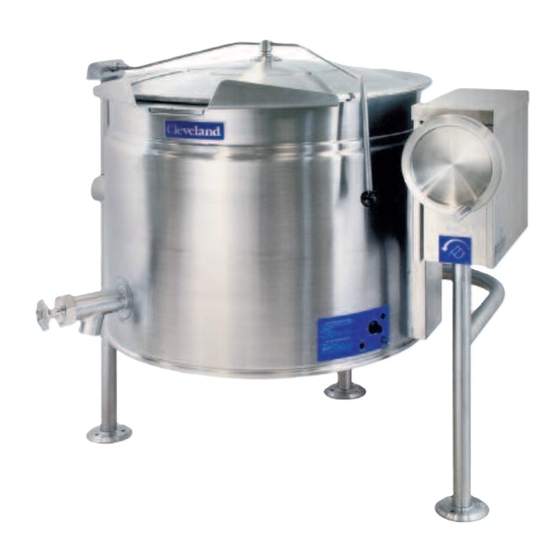

Shown with optional spring-assisted
cover and 2" tangent draw-off valve
Short Form Specifications
Cleveland Electric Tilting Kettle, Model KEL-____-TSH, 35" rim height, Type
304 Stainless Steel and Supports, Fully Steam Jacketed, 50 psi Steam
Jacket Rating, Permanently filled Steam Jacket, 208-240 volts, 60 Hz, 3
Phase, Splash Proof Solid State Temperature (±1° C) and Safety
Control System in plug-in Module including L.E.D. indicators.
Ë Pan Carrier (PCK)
Ë Tri-Basket Strainer Support Systems (TBS)
Ë Kettle Accessory Kit (KAK)
Ë Flow Diverter (FD)
Ë Correctional Packages
Ë Hot and cold water faucet (DPK), or cold water (SPK).
Requires faucet bracket (FBKT)
Ë Heat Deflector Shield (HS001)
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
VIII 15
SECT. PAGE
0707
