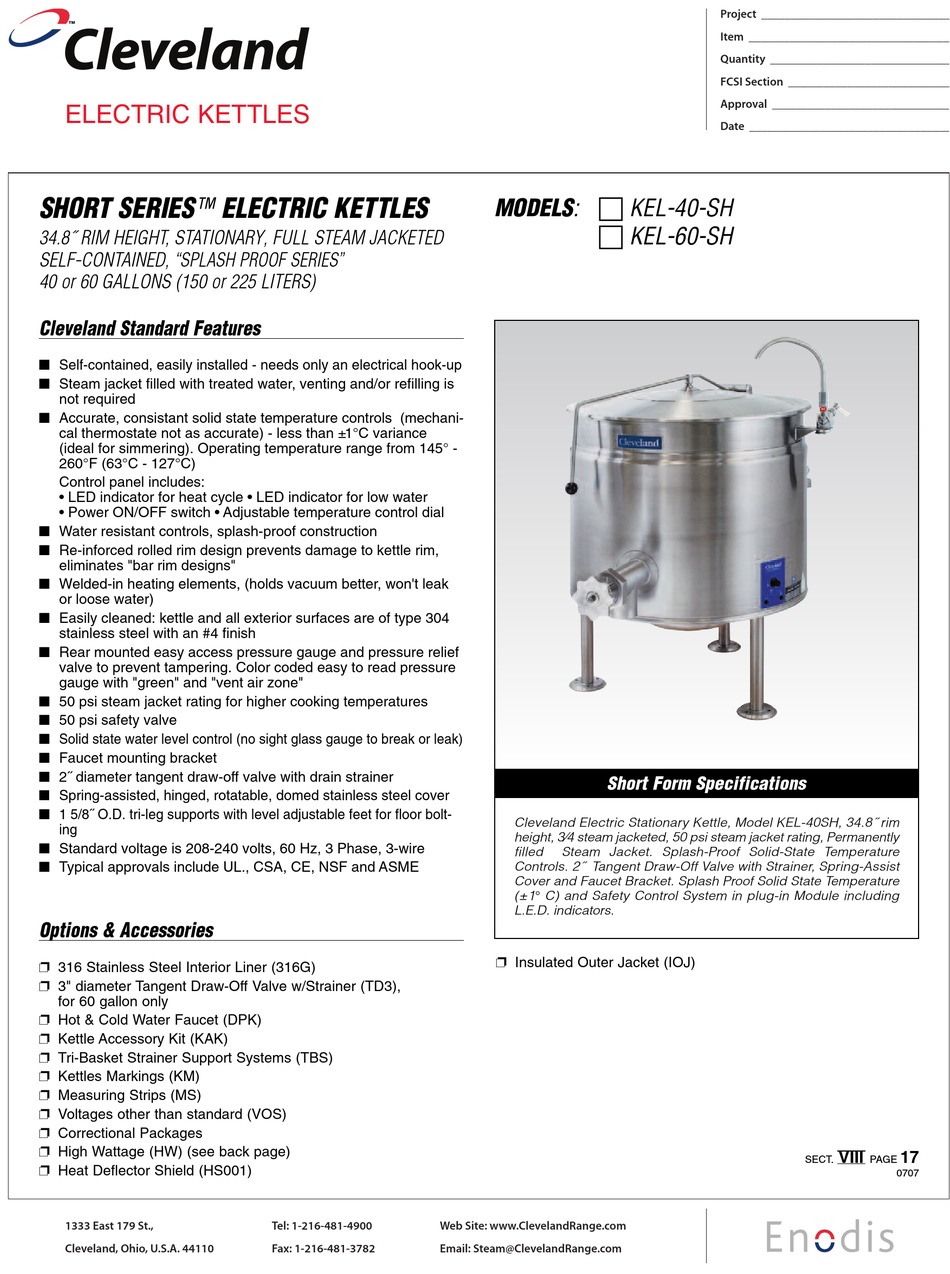

Cleveland KEL-40-SH Specifications

™
Cleveland
ELECTRIC KETTLES
SHORT SERIES™ ELECTRIC KETTLES
34.8˝ RIM HEIGHT, STATIONARY, FULL STEAM JACKETED
SELF-CONTAINED, "SPLASH PROOF SERIES"
40 or 60 GALLONS (150 or 225 LITERS)
Cleveland Standard Features
I Self-contained, easily installed - needs only an electrical hook-up
I Steam jacket filled with treated water, venting and/or refilling is
not required
I Accurate, consistant solid state temperature controls (mechani-
cal thermostate not as accurate) - less than ±1°C variance
(ideal for simmering). Operating temperature range from 145° -
260°F (63°C - 127°C)
Control panel includes:
• LED indicator for heat cycle • LED indicator for low water
• Power ON/OFF switch • Adjustable temperature control dial
I Water resistant controls, splash-proof construction
I Re-inforced rolled rim design prevents damage to kettle rim,
eliminates "bar rim designs"
I Welded-in heating elements, (holds vacuum better, won't leak
or loose water)
I Easily cleaned: kettle and all exterior surfaces are of type 304
stainless steel with an #4 finish
I Rear mounted easy access pressure gauge and pressure relief
valve to prevent tampering. Color coded easy to read pressure
gauge with "green" and "vent air zone"
I 50 psi steam jacket rating for higher cooking temperatures
I 50 psi safety valve
I Solid state water level control (no sight glass gauge to break or leak)
I Faucet mounting bracket
I 2˝ diameter tangent draw-off valve with drain strainer
I Spring-assisted, hinged, rotatable, domed stainless steel cover
I 1 5/8˝ O.D. tri-leg supports with level adjustable feet for floor bolt-
ing
I Standard voltage is 208-240 volts, 60 Hz, 3 Phase, 3-wire
I Typical approvals include UL., CSA, CE, NSF and ASME
Options & Accessories
Ë 316 Stainless Steel Interior Liner (316G)
Ë 3" diameter Tangent Draw-Off Valve w/Strainer (TD3),
for 60 gallon only
Ë Hot & Cold Water Faucet (DPK)
Ë Kettle Accessory Kit (KAK)
Ë Tri-Basket Strainer Support Systems (TBS)
Ë Kettles Markings (KM)
Ë Measuring Strips (MS)
Ë Voltages other than standard (VOS)
Ë Correctional Packages
Ë High Wattage (HW) (see back page)
Ë Heat Deflector Shield (HS001)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: KEL-40-SH
KEL-60-SH
Short Form Specifications
Cleveland Electric Stationary Kettle, Model KEL-40SH, 34.8˝ rim
height, 3⁄4 steam jacketed, 50 psi steam jacket rating, Permanently
filled Steam Jacket. Splash-Proof Solid-State Temperature
Controls. 2˝ Tangent Draw-Off Valve with Strainer, Spring-Assist
Cover and Faucet Bracket. Splash Proof Solid State Temperature
(±1° C) and Safety Control System in plug-in Module including
L.E.D. indicators.
Ë Insulated Outer Jacket (IOJ)
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
VIII 17
SECT. PAGE
0707
