DMP Electronics 464-263C Installation Sheet

464-263C CDMA Cellular Communicator

Description

The 464-263C CDMA Cellular Communicator provides a fully supervised alarm communication path over the CDMA network
for XR100/XR500 Series panels. The 464-263C is installed in the panel enclosure and powered by the panel, so no
additional enclosure, power supply or battery back-up is needed.

What is Included

The 464-263C includes the following:
• One Model 464-263C Cellular Communicator
• One Model 381-2, 18-inch Coax cable with SMA connector
• One 4-Wire LX-Bus harness
• One Model 383 Rubber Duck Antenna
• One PCB standoff

Compatibility

The 464-263C is compatible with XR100 and XR500 Series control panels when using version 212 or higher.
Note: The ACTIVATE CELL prompt will only display if a CDMA modem is installed. To perform the cellular activation process
from a keypad, the panel must be in contact with a Verizon owned tower.

Installation Safety

Ground Yourself Before Handling the Panel! To discharge
static, touch any grounded metal, such as the enclosure,
before touching the panel.
Remove All Power From the Panel! Remove all AC and Battery
power from the panel before installing or connecting any modules,
cards, or wires to the panel.

Installing the 464-263C

Align the 464-263C card 50 pin connector with the J6 connector
and press the card onto the connector while applying even
pressure to both sides of the board.
See Figure 1.

Connecting the Antenna

1. Position one of the supplied washers onto the 381-2 SMA
connector and push the threaded end through an enclosure
knockout.
2. Position the second washer onto the threaded end extending
through the knockout and secure the nut.
3. Attach the included 383 Antenna to the SMA connector.
See Figure 1.
4. Attach the opposite end of the 381-2 Coax to the SMA
connector on the 464-263C. See Figure 1.
Note: As an alternative, the antenna coax can be connected directly to the 464-
263C SMA connector when the coax enters the enclosure via conduit.
LX-Bus™ Expansion Capability
The 464-263C card also provides a 4-wire LX-Bus™ for the addition of any combination
of 100 protection zones and 100 relay outputs. Insert the harness connector into the
4-pin LX-Bus header on the bottom of the 464-263C Interface Card.
Note: Do not use shielded wire when using the LX-Bus. Do not connect
the wires from the 464-263C to panel terminals or the panel J22 header.
All devices installed on the 464 LX-Bus must be included in the panel
standby battery calculations.

Programming/Activation

Cellular Service is required before using the 464-263C for signal transmission.
The module comes ready for activation with SecureCom Wireless, LLC.
1. In Remote Link panel communication programming, select Cellular
Network as the Communication Type and select the Activate button.
See Figure 2.
A. In the Activate SIM/MEID window, enter the MEID number, found on
the 464-263C label.
B. Select the rate plan for the 464-263C. See Figure 3.
C. Select the Activate button at the bottom of the window.
2. After the 464-263C is installed at the site, use a keypad and enter the
panel's Diagnostics menu (2313).
A. Select ACTIVATE CELL by pressing a top row Select Key.
INST ALLA TION SHEET
XR100/XR500
Panel
J6 Interface Card
Connector
Zone Expansion
Harness Connector
Z5 GND Z6 Z7 GND Z8
18 19 20 21 22 23 24

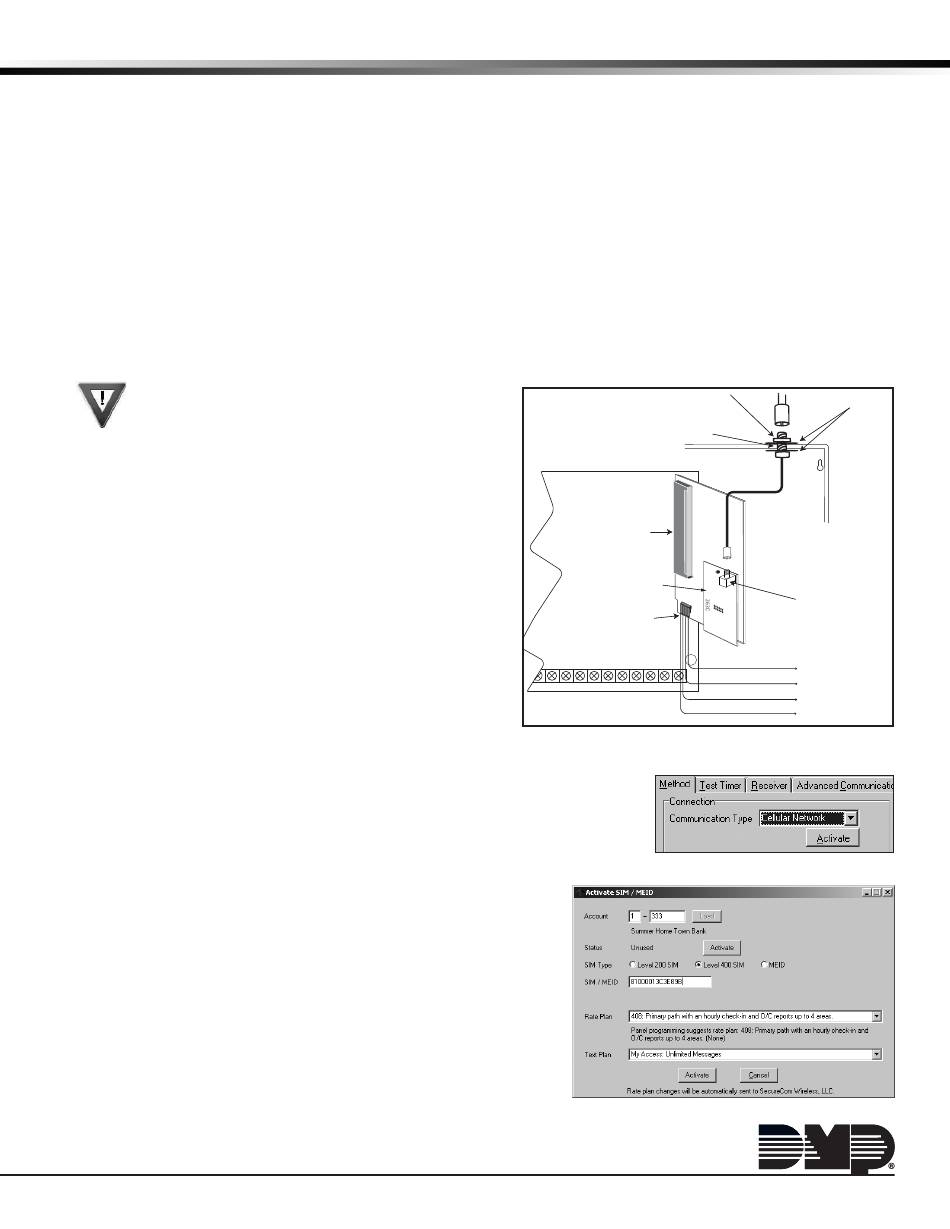

Figure 1: 464-263C CDMA Wiring
Figure 3: Remote Link Activation
Nut
Antenna
Connector
SMA
Connector
Model 381-2
Coax Cable
464-263C
from 263C
263C
Cell Module
SMA
Connector
To LX-Bus
Modules
Z9+ Z9- Z10+ Z10-
Red—Auxiliary Power
Yellow—Data In
25 26 27 28
Green—Data Out
Black—Ground
Figure 2: Remote Link Activation
Washers
