Instruction Manual
for Portable Compressors
English

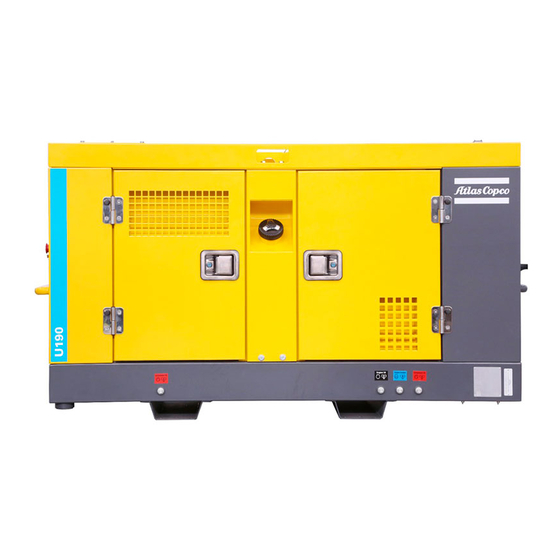

U190 PACE KD WUX
Engine Kubota V1505T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U190 PACE KD WUX and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas Copco U190 PACE KD WUX

Summary of Contents for Atlas Copco U190 PACE KD WUX

  • Page 1 Instruction Manual for Portable Compressors English U190 PACE KD WUX Engine Kubota V1505T...
  • Page 3 Instruction Manual for Portable Compressors U190 PACE KD WUX Original instructions Printed matter No 2960 1730 01 ATLAS COPCO - PORTABLE ENERGY DIVISION www.atlascopco.com 06/2019...
  • Page 4 Neglecting maintenance or making changes to the setup of the machine can result in major hazards, including fire risk. While every effort has been made to ensure that the information in this manual is correct, Atlas Copco does not assume responsibility for possible errors.

  • Page 5: Table Of Contents

    Table of content Preface 4.4.5 Pressure setting .......... 46 4.4.6 During operation ........47 Please read the following instructions carefully Safety precautions ........7 before starting to use your compressor. 4.4.7 Stopping ............. 47 Introduction ..........7 It is a solid, safe and reliable machine, built 4.4.8 Shutdown ...........
  • Page 6 system ............66 9.1.1 General torque values .........79 5.11.2 Topping up after limited quantity draining 9.1.2 Critical torque values .........79 from the cooling system ......67 Compressor / engine specifications ....80 5.11.3 Replacing the coolant .........68 9.2.1 Reference conditions ........80 5.11.4 Cleaning coolers .........68 9.2.2 Limitations ..........

  • Page 7: Safety Precautions

    To be read attentively and acted accordingly before towing, lifting, operating, performing maintenance or repairing the compressor. INTRODUCTION The policy of Atlas Copco is to provide the users of It is the responsibility of management to appoint Take necessary steps to keep unauthorized persons...

  • Page 8: General Safety Precautions

    GENERAL SAFETY PRECAUTIONS Care shall be taken to avoid damage to safety The manufacturer does not accept any liability for any valves other pressure-relief devices, damage arising from the use of non-original parts and The owner is responsible for maintaining the unit for modifications, additions or conversions made especially to avoid plugging by paint, oil coke or in a safe operating condition.

  • Page 9: Safety During Transport And Installation

    Never lift the unit over people or the towing vehicle. Unclip the safety break-away vehicle lights up, please contact Atlas Copco. residential areas. Lifting acceleration and retardation cable or safety chain. If the unit has no parking shall be kept within safe limits.
  • Page 10 The air line end connected to the outlet valve otherwise stated in the Atlas Copco Instruction relatively short times, about the need to wear must be safeguarded with a safety cable, attached Book (AIB).

  • Page 11: Safety During Maintenance And Repair

    20km/h or less when traveling straight ahead, and SAFETY DURING MAINTENANCE AND down equipment, do so with caution and use the appropriate protection, at least safety glasses, for travel according to the road surface conditions. REPAIR the operator as well as for any bystander. Do not 30 Be sure to fold up the caster before towing.

  • Page 12: Tool Applications Safety

    Atlas Copco or the 22 When using cartridge type breathing filter machine manufacturer. Ascertain that the equipment, ascertain that the correct type of selected lubricants comply with all applicable cartridge is used and that its useful service life is safety regulations, especially with regard to not surpassed.

  • Page 13: Specific Safety Precautions

    If the set pressure must be altered then use only When batteries are being charged, an explosive correct parts supplied by Atlas Copco and in - the minimum working temperature Tmin in °C gas mixture forms in the cells and might escape accordance with the instructions available for the (°F),...

  • Page 14: Leading Particulars

    Leading particulars GENERAL DESCRIPTION Engine Regulation The compressors U190 PACE is driven by a 4 The compressor is provided with a continuous The U190 PACE is silenced, single-stage, oil-injected cylinder in-line liquid-cooled diesel engine. pneumatic regulating system and a blow-off valve screw compressors, built for a nominal effective which is integrated in the unloader assembly.
  • Page 15 Frame and axles Serial number The compressor/engine unit is supported by rubber buffers in the frame. Bodywork The bodywork has openings at the shaped front and rear end for the intake and outlet of cooling air and hinged doors for maintenance and service operations. The bodywork is internally lined with sound- absorbing material.

  • Page 16: Main Parts

    Main Parts - 16 -...
  • Page 17 Reference Name Reference Name Alternator Regulating Valve AFce Air Filter (compressor element) Serial Number Air Filter (engine) Safety Valve Air Outlet Valves Vacuum Indicator Air Receiver Battery Compressor Element Control Panel Data Plate DPar Drain Plug air receiver DPcv Drain Plug compressor element DPoc Drain Plug compressor oil cooler DPosv...

  • Page 18: Compressor Regulating System

    COMPRESSOR REGULATING SYSTEM - 18 -...
  • Page 19 Reference Name AFce Air Filter (compressor element) Air Filter (engine) Air Filter Element Air Receiver/Oil Seperator Air Outlet Valve Bypass Valve Coupling Housing Compressor Element Control Panel Cooling Fan Drain Plug Engine Oil Cooler Oil Seperator Element Oil Stop Valve Oil Filter Compressor Safety Cartridge Scavenge Line...

  • Page 20: Air Flow

    AIR FLOW Air drawn through the air filter (AFce) into the compressor element (CE) is compressed. At the element outlet, compressed air and oil pass into the air receiver/oil separator (AR/OS). The check valve (CV) prevents blow-back of compressed air when the compressor is stopped. In the air receiver/oil separator (AR/OS), most of the oil is removed from the air/oil mixture.

  • Page 21: Oil System

    OIL SYSTEM The lower part of the air receiver (AR) serves as an oil tank. Air pressure forces the oil from the air receiver/oil separator (AR/OS) through the oil cooler (OC), the oil filter (OFc) and the oil stop valve (OSV) to the compressor element (CE).

  • Page 22: Continuous Pneumatic Regulating System

    CONTINUOUS PNEUMATIC REGULATING SYSTEM - 22 -...
  • Page 23 The compressor is provided with a continuous If the air consumption is less than the maximum air pneumatic regulating system and a blow-off valve, output, air receiver pressure increases and the which is integrated in the unloader assembly (UA). regulating valve supplies control air to throttle valve The blow-off valve is kept closed by receiver pressure to reduce the air output and holds air receiver pressure and opens by compressor element outlet pressure...

  • Page 24: Electric System

    ELECTRIC SYSTEM Circuit diagram (9829 3801 45) Reference Grid Name Fuse Fuse Fuse Battery Start Relay Fuel Level Sensor Starter Motor d5-e6 Control Module - Xc2003 Pressure Sensor - Inlet pressure Pressure Sensor - Vessel Pressure Battery Switch Emergency Stop LP Element Temperature AMBIENT Temperature Loading Valve...
  • Page 25 Circuit diagram Circuit diagram (9829 3801 45) Reference Grid Name Fuse Fuse Alternator Relay-starter Motor Glow Relay Relay Can Actuator Grid Heater Fuel Solenoid Valve Fuel pump - 25 -...
  • Page 26 Option circuit diagram (9829380198-01) - 15kva - 26 -...
  • Page 27 9829380198-02 - 15kva - 27 -...
  • Page 28 9829380198-03 - 15kva - 28 -...
  • Page 29 Option circuit diagram (9822108160-01) - 6kva - 29 -...
  • Page 30 9822108160-01 - 6kva - 30 -...
  • Page 31 9822108160-01 - 6kva - 31 -...

  • Page 32: Wire Harness

    WIRE HARNESS (1094 4377 02) - 32 -...

  • Page 33: Markings And Information Labels

    Service point. Electrocution hazard. Do not run the compressor when the Do not stand on outlet valves. Atlas Copco synthetic compressor oil. baffles are not in the right position. Start-Stop indication of switch. Atlas Copco mineral engine oil. Do not run the compressor with open Manual.

  • Page 34: Operating Instructions

    Operating instructions LIFTING INSTRUCTIONS Safety precautions The operator is expected to apply all relevant Safety precautions. When lifting transporting compressor in any way, the battery switch must always be in the “OFF” position. Locate the rear-end of the compressor upwind, away When lifting the compressor, the hoist has to be placed in such a way that the compressor, which must from contaminated wind-streams and walls.

  • Page 35: Starting / Stopping

    STARTING / STOPPING No external force may be applied to the air outlet valve(s), e.g. by pulling hoses BEFORE STARTING or by connecting equipment directly to the valve(s). 1. Before initial start-up, prepare battery for operation if not already done. See section Recharging a battery.

  • Page 36: Basic Operation Of The Machine

    CONTROL PANEL BASIC OPERATION OF THE MACHINE The compressor can be controlled in 4 different modes:  Local Operation Mode: locally at the Operating Panel,  Remote Operation Mode: via remote switch inputs located at the bottom of the Control panel, ...
  • Page 37 Reference Name Load button. Pressing this button will:  initiate the Auto Load function, or commands the compressor to load (depending on actual status).  command the compressor to switch to Not Loaded (when in Load). Measurements View button By pressing this button you can toggle between Measurements View and Main View.

  • Page 38: Overview Icons

    OVERVIEW ICONS Reference Name View, Overhaul, Auto load, Preset and Active operation mode indication Active compressor status Navigation, toggle between main view and engine view Engine information Vessel pressure indication or information text Alarm indication and compressor information Main View Indication VUE PRINCIPALE AVEC CHARGE Measuring View Indication...
  • Page 39 Block Mode Contact Atlas Copco. LED flashing: the diesel particulate Alarm filter urgently needs to be Active & not-acknowledged regenerated. Contact Atlas Copco. Shutdown Alarm. Regeneration of the diesel Alarm particulate filter is inhibited. Active & not-acknowledged Non- LED steady on: the regeneration of Shutdown Alarm.

  • Page 40: Possible Views

    POSSIBLE VIEWS Main View Measurements View Main view is the default view. In the main view the operator can view the most important information on MESURES the actual compressor operation, like: COMPRESSEUR CHARGÉ  Active Sequence HORLOGE TEMPS RÉEL 2015-09-29 14:10 ...
  • Page 41 Settings View Alarm View RÉGLAGES ALARMES ГОТОВ К НАГРУЗКЕ COMPRESSEUR CHARGÉ PRÊT À CHARGER - SURALIMENTATION 1000 PARAMÈTRES GÉNÉRAUX 7310 ECU NIVEAU D'HUILE BAS Расход топлива 4 л/ч 2000 ENTRÉES NUMÉRIQUES 7300 ECU NIVEAU D'HUILE TROP BAS Температура охлаждающей жидкости двигателя 87°C 2700 ENTRÉES CAPTEUR NAMUR ECU LISTE DM1 Температура...

  • Page 42: Starting

    STARTING The display will change to The display will change to During initializing all buttons/inputs/outputs/alarms are inactive. This view will be shown for about 2 seconds, after which the display will show the Main View. 1286h -- RÉGIME 0,0bar followed by The engine electronics (ECU) will be powered up.
  • Page 43 The display will change to The engine starts crancking, the display shows The display now shows 120s 0RÉGIME 800RÉGIME 324RÉGIME 1286h --RÉGIME 0,0bar 1286h 324RÉGIME 0,0bar 1286h 324 RÉGIME 0,0bar The engine cranks until 800 rpm is reached. After expiry of the engine resting time a new cranking sequence will start.
  • Page 44 The engine starts running at idle speed. The display When warming up temperature is reached within After warming up the machine is ready to be loaded shows 30 seconds the display will show and is waiting for a load command; the display shows 13°C 40°C 25°C...
  • Page 45 Press the load button, the display will show The engine will now run at maximum rpm, the display During loading the following display is shown will show (default display) MAIN VIEW MAIN VIEW LOADED BUILDING UP VESSEL PRESSURE 1286h 1650 RÉGIME 430 L/s 1286h 1424RPM...

  • Page 46: Pressure Setting

    2. Changing the pressure of a preset PRESSURE SETTING The operator can adjust the active preset as To change the pressure setting there are two By pressing the left or the right arrow button the follows. possibilities. operator will be notified to: 1.

  • Page 47: During Operation

    STOPPING DURING OPERATION Press the stop button. Open the air outlet valves to After cooling down the engine will stop and the The doors must be closed during avoid that part of the system will remain pressurized. display will show operation and may be opened for short After pressing the Stop button the display will show: periods only.

  • Page 48: Shutdown

    SETTINGS SHUTDOWN As long as there is an alarm icon in the middle of the bottom part of the view, all active acknowledged / un- When the machine is shutdown due to a critical alarm For buttons to be used see section Control panel. acknowledged alarms can be seen by pressing the or an emergency stop the display will show Alarm View button.
  • Page 49 Change Display Settings Set the AutoLoad Function Set Language Press the Settings View button Press the Settings View button Press the Settings View button  scroll to 1000 GENERAL SETTINGS  scroll to 1000 GENERAL SETTINGS  scroll to 1000 GENERAL SETTINGS ...

  • Page 50: Fault Codes

    AMBIENT TEMP ALARM INDICATION 7100 ECU DPF SOOT LOAD HIGH WARNING 7110 PLEASE FORCE DPF REGENERATION ! INHIBIT LOAD 7120 LOAD PREVENTION - HIGH DPF SOOT LOAD CONTROLLED STOP 7130 SOOT LOAD TOO HIGH - CALL ATLAS COPCO WARNING - 50 -...

  • Page 51: Emergency Stop

    EMERGENCY STOP The emergency stop button is only to be used in emergency situations; not for stopping procedures. When an emergency stop button (1) is pressed, power to all outputs is terminated, by the emergency stop itself (hardware) as well as by the software. When the emergency stop button (1) is pressed the operator can unlock the emergency stop by turning it counter clockwise...

  • Page 52: Generator (Option)

    GENERATOR (OPTION) Using switch (2) you can switch on the automatic control system. As soon as the generator is switched on, the automatic control system will continuously check for electric load in order to rev up the engine from idle to nominal speed only when needed. This saves fuel and reduces emissions.

  • Page 53: Maintenance

    If the compressor is going to be stored Service Paks minimize downtime and keep your without running from time to time, maintenance budget low. protective measures must be taken. Order Service Paks at your local Atlas Copco dealer. - 53 -...
  • Page 54 3002 6085 50 For the most important subassemblies, Atlas Copco has developed service kits that combine all wear parts. These service kits offer you the benefits of genuine parts, save administration costs and are offered at a reduced price, compared to individual components. Refer to the parts list for more information on the contents of the service kits.
  • Page 55 3002 6085 30 3002 6085 40 3002 6085 50 Clean oil cooler(s)/radiator Inspection by Atlas Copco service technician Check engine & compressor anti-vibration pads Check functioning of regulating valve Check electrical system cables for wear Check engine (minimum and maximum) speed...
  • Page 56 5. Gummed or clogged filters mean fuel starvation and reduced engine performance. 6. See section Oil specifications. 7. The following part numbers can be ordered from Atlas Copco to check on inhibitors and freezing point:  2913 0028 00 Refractometer ...

  • Page 57: Oil Specifications

    OIL SPECIFICATIONS PAROIL from Atlas Copco is the ONLY oil tested PAROIL releases excess heat efficiently, whilst It is strongly recommended to use Atlas and approved for use in all engines built into Atlas maintaining excellent bore-polish protection to limit Copco branded lubrication oils for both Copco compressors and generators.

  • Page 58: Compressor Oil

    Synthetic compressor oil PAROIL S COMPRESSOR OIL Liter US gal Order number 1630 0160 00 1630 0161 00 barrel 55.2 1630 0162 00 container 1000 1630 0163 00 Choose your compressor oil based on the ambient temperatures in the actual operating area. - 58 -...

  • Page 59: Engine Oil

    Synthetic engine oil PAROIL E ENGINE OIL Liter US gal Order number 1615 5953 00 1615 5954 00 barrel 55.2 1615 5955 00 container 1000 264.1 1630 0096 00 Synthetic engine oil PAROIL E Xtra Liter US gal Order number 1630 0135 01 1630 0136 01 barrel...

  • Page 60: Oil Level Check

    CHECK COMPRESSOR OIL LEVEL OIL LEVEL CHECK CHECK ENGINE OIL LEVEL Also consult the Engine Operation Manual for the oil specifications, viscosity recommendations and oil change intervals. For intervals, see Preventive maintenance schedule. Check engine oil level in accordance to the instructions in the Engine Operation Manual and if necessary, top up with oil.

  • Page 61: Oil And Oil Filter Change

    When operating in high ambient temperatures, in very dusty or high humidity conditions, it is recommended to change the oil more frequently. Never add more oil. Overfilling results in oil consumption. In this case, contact Atlas Copco. - 61 -...

  • Page 62: Topping Up The Compressor Oil

    TOPPING UP THE COMPRESSOR OIL 1. Stop the compressor and be sure that all pressure has been released by opening the filler plug (2) one turn. 2. Wait a few minutes until the oil level is constant (oil level gauge (1)). 3.

  • Page 63: Compressor Oil Flushing Procedure

    11. Collect all waste lubricant used during the Whenever aged oil is discovered, eg. when changing flushing process and dispose of it in accordance the oil separator, contact Atlas Copco Service dept. to with the applicable procedures for managing have your compressor cleaned and flushed.

  • Page 64: Coolant Specifications

    The use of the correct coolant is important for proper overheating and possible failure. heat transfer and protection of liquid-cooled engines. Atlas Copco's PARCOOL EG extended life coolant is Coolants used in these engines must be mixtures of the new range of organic coolants purpose-designed...

  • Page 65: Handling Parcool Eg

     A refractometer can be ordered from Atlas Copco the benefits of 5 years protection when its used on its with part number 2913 0028 00.

  • Page 66: Topping Up Without Draining From The Cooling

    TOPPING UP WITHOUT DRAINING FROM THE COOLING SYSTEM The quantity of PARCOOL EG Concentrate to be topped up can be estimated with the following formula and/or graph: Corrections concentrate in measured system towards 50% volume by using PARCOOL EG Concentrate Example: PN: 1604 8159 00 Liter...

  • Page 67: Topping Up After Limited Quantity Draining From The Cooling System

    TOPPING UP AFTER LIMITED QUANTITY DRAINING FROM THE COOLING SYSTEM The quantity of PARCOOL EG Concentrate to be topped up after draining a calculated volume from the cooling system, can be estimated with the following formula and/or graph: Corrections concentrate in measured system towards 50% volume by using PARCOOL EG Concentrate Example: PN: 1604 8159 00 Liter...

  • Page 68: Replacing The Coolant

    Clean by air jet in the direction of the arrow. operation temperature is reached. Turn off the engine and allow to cool.  From the Atlas Copco Instruction book, determine the amount of PARCOOL EG required.  Mix concentrate and water before filling.

  • Page 69: Battery Care

    ACTIVATING A DRY-CHARGED BATTERY MAKE-UP DISTILLED WATER BATTERY CARE  Take out the battery. The amount of water evaporating from batteries is Before handling batteries, read the largely dependant on the operating conditions, i.e. relevant safety precautions and act  Battery and electrolyte must be at equal temperatures, number of starts, running time between accordingly.

  • Page 70: Periodic Battery Service

     Keep the battery clean and dry. When a compressor element is due for overhaul, it needs to be done by Atlas Copco. This guarantees the  Keep the electrolyte level at 10 to 15 mm above use of genuine parts and correct tools with care and the plates or at the indicated level;...

  • Page 71: Adjustments And Servicing Procedures

    Adjustments and servicing procedures ADJUSTMENT OF THE CONTINUOUS PNEUMATIC REGULATING SYSTEM The working pressure is determined by the tension of the spring in the regulating valve (RV). This tension can be increased to raise the pressure and decreased by turning the adjusting wheel clockwise and anti- clockwise respectively.

  • Page 72: Air Filter Engine/Compressor

    MAIN PARTS CLEANING THE DUST TRAP AIR FILTER ENGINE/COMPRESSOR Remove dust daily. The Atlas Copco air filters are specially To remove dust from the dust trap squeeze the designed for the application. The use of vacuator valve (6) several times.

  • Page 73: Replacing The Air Filter Element

    REPLACING THE AIR FILTER ELEMENT New elements must also be inspected for tears or punctures before installation. Discard the element (4) when damaged. A dirty safety cartridge (3) is an indication of a mal- functioning air filter element. In that case replace the element and safety cartridge.

  • Page 74: Air Receiver

    SAFETY VALVE FUEL SYSTEM AIR RECEIVER PRIMING INSTRUCTIONS All adjustments or repairs are to be done by an authorized representative of the valve supplier, see section General safety Fuel leaked or spilled onto hot surfaces precautions. or electrical components can cause a fire. To help prevent possible injury, turn the “ON/OFF”...

  • Page 75: Problem Solving

    Choked air filter elements (AF). Remove and inspect elements. Clean or replace, if necessary. Regulating valve (RV) defective. Have regulating valve removed and inspected by an Atlas Copco Service representative. Blow down valve stuck in open position. Check and correct as necessary.
  • Page 76 Possible faults Corrective actions Regulating valve (RV) opens too late or its ball valve spring is broken. Have regulating valve removed and inspected by an Atlas Copco Service representative. Air leaks in regulating system. Check hoses and their fittings. Stop leaks; replace leaking hoses.
  • Page 77 Check and correct if necessary. Oil stop valve malfunctioning. Remove and inspect valve. Oil separator element (OS) clogged. Have element removed and inspected by an Atlas Copco Service representative. Alternator precautions 1. Never reverse the polarity of the battery or the alternator.

  • Page 78: Available Options

    Available options Cold start (-20°C) Aftercooler + water separator + bypass Generator 15kVA Inlet shut down + spark arrestor Tool box Non-return valve Additional fuel filter Lubricator Additional fuel tank - 78 -...

  • Page 79: Technical Specifications

    Technical specifications TORQUE VALUES GENERAL TORQUE VALUES CRITICAL TORQUE VALUES The following tables list the recommended torques applied for general applications Assemblies Torque value (Nm / lbf.ft) during assembly of the compressor. Compressor to frame: Bolts, elements/gear casing 46 (33.95) For hexagon screws and nuts with strength grade 8.8 Bolts, elements/support 80 (59.04)

  • Page 80: Compressor / Engine Specifications

    COMPRESSOR / ENGINE SPECIFICATIONS REFERENCE CONDITIONS Designation Unit U190 PACE Absolute inlet pressure 14.5 Relative air humidity Air inlet temperature °C °F Normal effective working pressure 10.5 152.3 The inlet conditions are specified at the air inlet grating outside the canopy. LIMITATIONS Designation Unit...

  • Page 81: Performance Data 1)

    PERFORMANCE DATA Designation Unit U190 PACE Engine shaft speed, normal and maximum - At pressure setting 5 (bar(g)) r/min 3000 - At pressure setting 7 (bar(g)) r/min 3000 - At pressure setting 10.5 (bar(g)) r/min 2200 Engine shaft speed, compressor unloaded r/min 1600 2) 6)
  • Page 82 Designation Unit U190 PACE Specific fuel consumption at 100% FAD g/m³ 28.73 lb/1000cu ft 1.79 Typical oil content of compressed air mg/m³ Engine oil consumption (maximum) Compressed air temperature at outlet valves °C °F Noise level - Sound pressure level (Lp), measured according to under free dB(A) field conditions at 7 m distance - Sound power level (Lw) complies with 2000/14/EC...

  • Page 83: Design Data

    DESIGN DATA Designation Unit U190 PACE Compressor Capacity of cooling system us gallon 2.24 Designation U190 PACE With filter change. Number of compression stages Engine Unit Designation Unit U190 PACE Unit U190 PACE Designation Make Kubota Capacity of compressor oil system Type V1505T...
  • Page 84 1) At reference conditions, if applicable, and at normal shaft speed unless otherwise stated 2) Free air delivery is measured according to ISO 1217 ed.3 1996 annex D Tolerance: +/- 5% 25l/s<FAD<250l/s +/- 4% 250l/s <FAD The international standard ISO 1217 British BSI 1571 part 1 corresponds to following national German DIN 1945 Part 1...

  • Page 85: Data Plate

    Data plate 1. Name of the manufacturer 2. Vehicle identification number 3. Model 4. Unit serial number 5. Working pressure 6. Engine power 7. Speed 8. Manufacturing year - 85 -...

  • Page 86: Disposal

    (for example sand, sawdust) and non-recyclable materials. dispose of it in accordance with applicable local Your Atlas Copco compressor consists for the most disposal regulations. Do not drain into the sewage part of metallic materials, that can be remelted in system or surface water.

  • Page 87: Dimension Drawing

    Dimension drawing (9829387701-01) Frame drain plug Frame water drain (3x) (2x) R729,2 R524,6  30(2x)   15(4x) 468,5 R488,3 R532,8 Lifting hole Hot Air Out Fuel filling cap Service Panel Control Panel G3/4 ball valve (3x) Air Inlet Emergency Stop 110 110 Oil cooler drain Vessel drain...
  • Page 88 (9829387701-02) If non service side placed near wall, please keep more than mm distance 2744 1080 Hot Air Out Air Inlet R756,3 1080 1135 567,5 567,5 1280 2642 Air Inlet Air Inlet - 88 -...

  • Page 89: Maintenance Log

    Maintenance Log Compressor ..................Customer ....................Serial number........................................Service hours Maintenance action Date By: initials - 89 -...
  • Page 90 - 90 -...
