Instinct
Kit Part Number
INSRKIT06
Each Kit Includes:

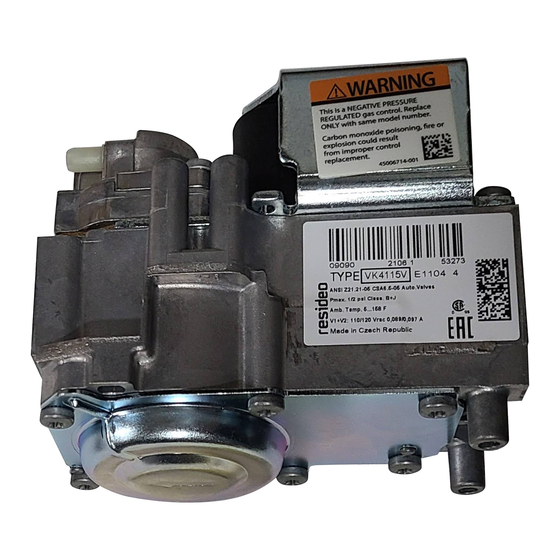

• Gas Valve
• Gas Valve O-Rings
Recommended Tools:
• Adjustable Wrenches
• Phillips Head Screwdriver
• Calibrated Combustion Analyzer
WARNING
!
Indicates a potentially hazardous situation which,
if ignored, can result in serious injury or substan-
tial property damage.
WARNING
!
For your safety, turn off electrical power supply
at service panel and allow unit to cool before pro-
ceeding to avoid possible electrical shock and
scald hazard. Failure to do so can cause severe
personal injury or death.
2019-40 Instinct Gas Valve Replacement
Revised 2/22/2021
Description
Gas Valve Replacement
NOTICE
Indicates special instructions on installation, operation
or maintenance, which are important to equipment
but not related to personal injury hazards.
WARNING
!
Failure to follow instructions below can result in
severe personal injury or damage if ignored.
•
Instructions are for a qualified installer/ ser-
vice technician only.
•
Read all instructions before proceeding.
•
Follow instructions in proper order.
Model
All Instinct
1
Advertisement
Table of Contents
Related Manuals for TriangleTube INSRKIT06
Summary of Contents for TriangleTube INSRKIT06

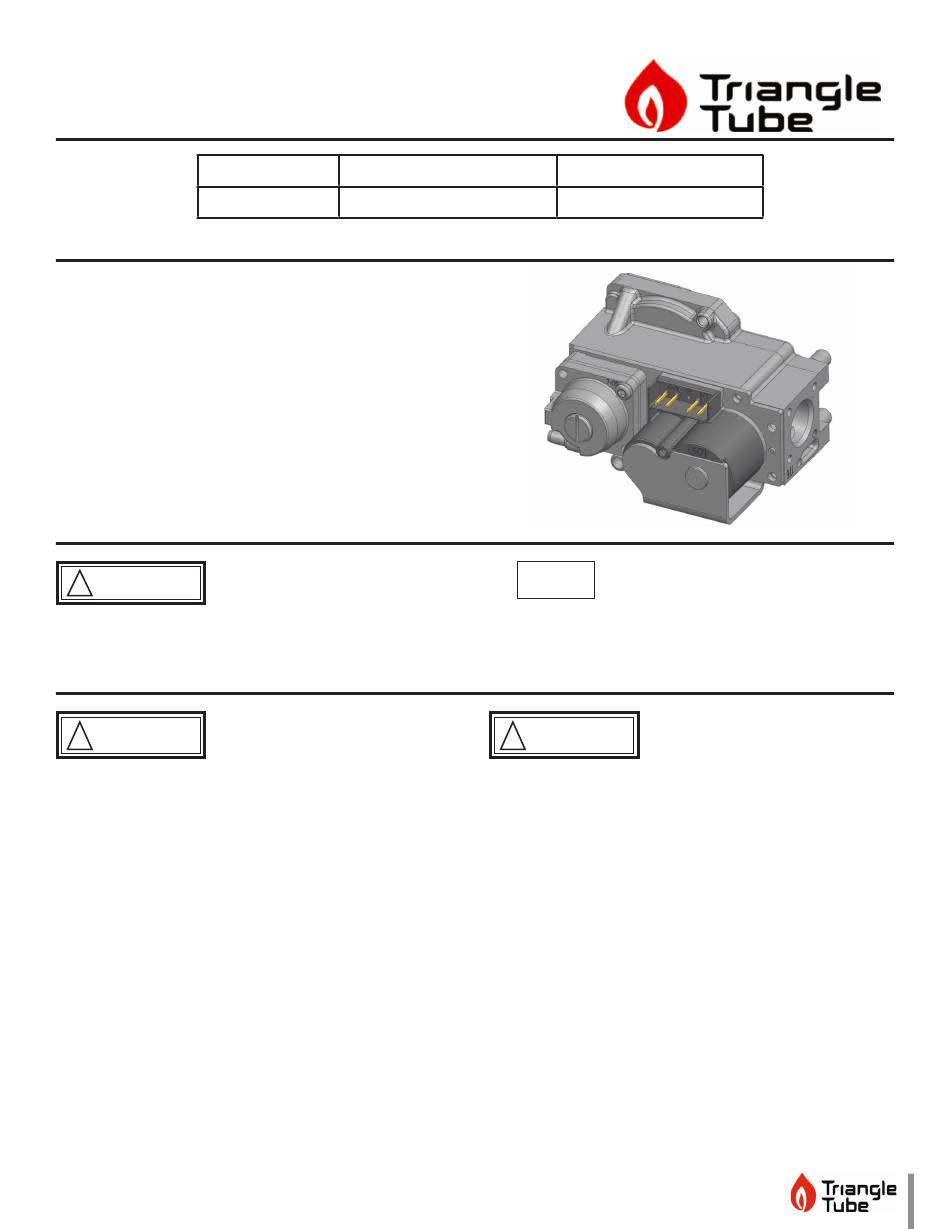

- Page 1 Instinct Gas Valve Replacement Kit Part Number Description Model INSRKIT06 Gas Valve Replacement All Instinct Each Kit Includes: • Gas Valve • Gas Valve O-Rings Recommended Tools: • Adjustable Wrenches • Phillips Head Screwdriver • Calibrated Combustion Analyzer NOTICE WARNING...
- Page 2 Instinct Gas Valve Replacement 1. Preliminary Instructions 1. Verify that the Gas Valve replacement kit is correct for the model of boiler. See table on page 1. 2. Carefully open and unpack the PARTS BOX from its shipping carton. 3. Carefully remove and check for any damage. NOTICE Do not proceed with installation and contact Triangle Tube right away if the gas valve is damaged in any way.
- Page 3 Instinct Gas Valve Replacement 9. Install new O-Rings in the opening on both sides of and low input firing rates and the burner is operating at op- the new Gas valve as shown in Fig. 4. timum conditions. Table 1: Recommended Combustion Settings Propane 110, 155 Range...
- Page 4 Instinct Gas Valve Replacement 2. Enter the installer access code “054” by using the follows: LEFT and RIGHT buttons to select a digit and the UP Counter-clockwise adjustment of the THROTTLE and DOWN buttons to change the digit. Press the SCREW at High Fire (100% firing rate): center button to enter the access code.
