Gas Valve Replacement Kit
Prestige Solo 399
Kit Part Number: PTRKIT112
Parts List (Fig. 1)
1. Honeywell Gas Valve VR4615V
2. Gas Valve/Supply Pipe O-ring
3. Gas Valve/Outlet Pipe O-ring
4. (8) - M5 Torx Head Screws.
5. Torx Key (not shown)
Recommended Tools:
1. Adjustable Wrench.
2. Phillips Head Screwdriver
3. Small Flat Head Screwdriver
W RNING
Indicates a potentially hazardous situation
which, if ignored, can result in serious
injury or substantial property damage.
W RNING
Failure to follow instructions below can result
in severe personal injury or damage if ignored.
Instructions are for a qualified installer/ser-
vice technician.
Read all instructions before proceeding.
Follow instructions in proper order.
W RNING
For your safety, turn off electrical power
supply at service panel before proceeding to
avoid possible electrical shock hazard.
Failure to do so can cause severe personal
injury or death.
4

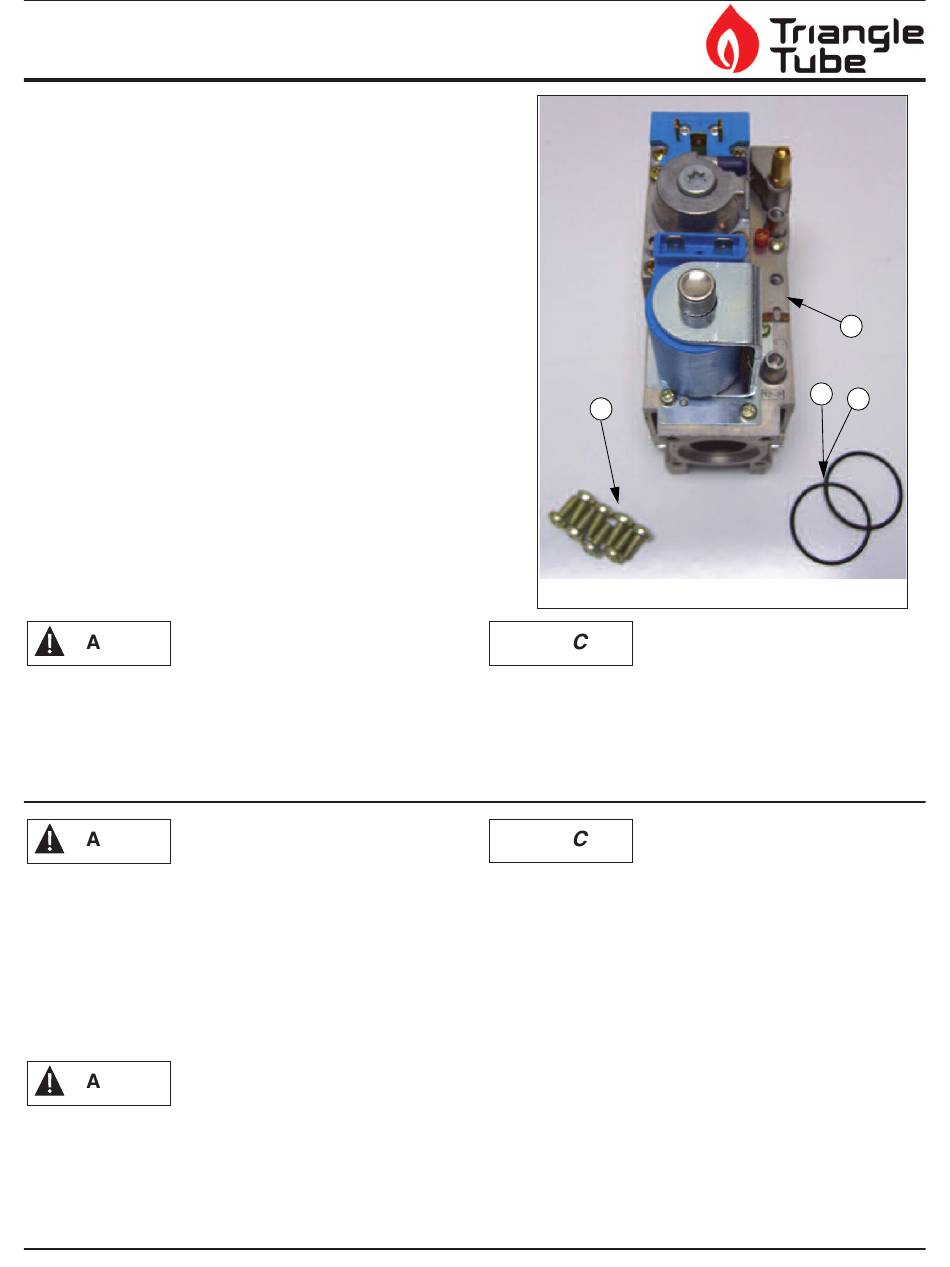

Fig. 1: Gas Valve Kit
NOTI E
Indicates special instructions on installa-
tion, operation or maintenance, which are
important to equipment but not related to
personal injury hazards.
NOTI E
This kit is designed for gas valve replace-
ment on the Prestige Solo 399 only equipped
with Trimax control.
1
1
2
3
