AM-4 Interface Module Kit
Kit Part Number: PSRKIT23
Description
The AM-4 is used whenever an external con-
trol is used to modulate the boiler with a 0 to
10V signal or to provide contacts for an
external alarm in the event the boiler enters
into a hard lock out.

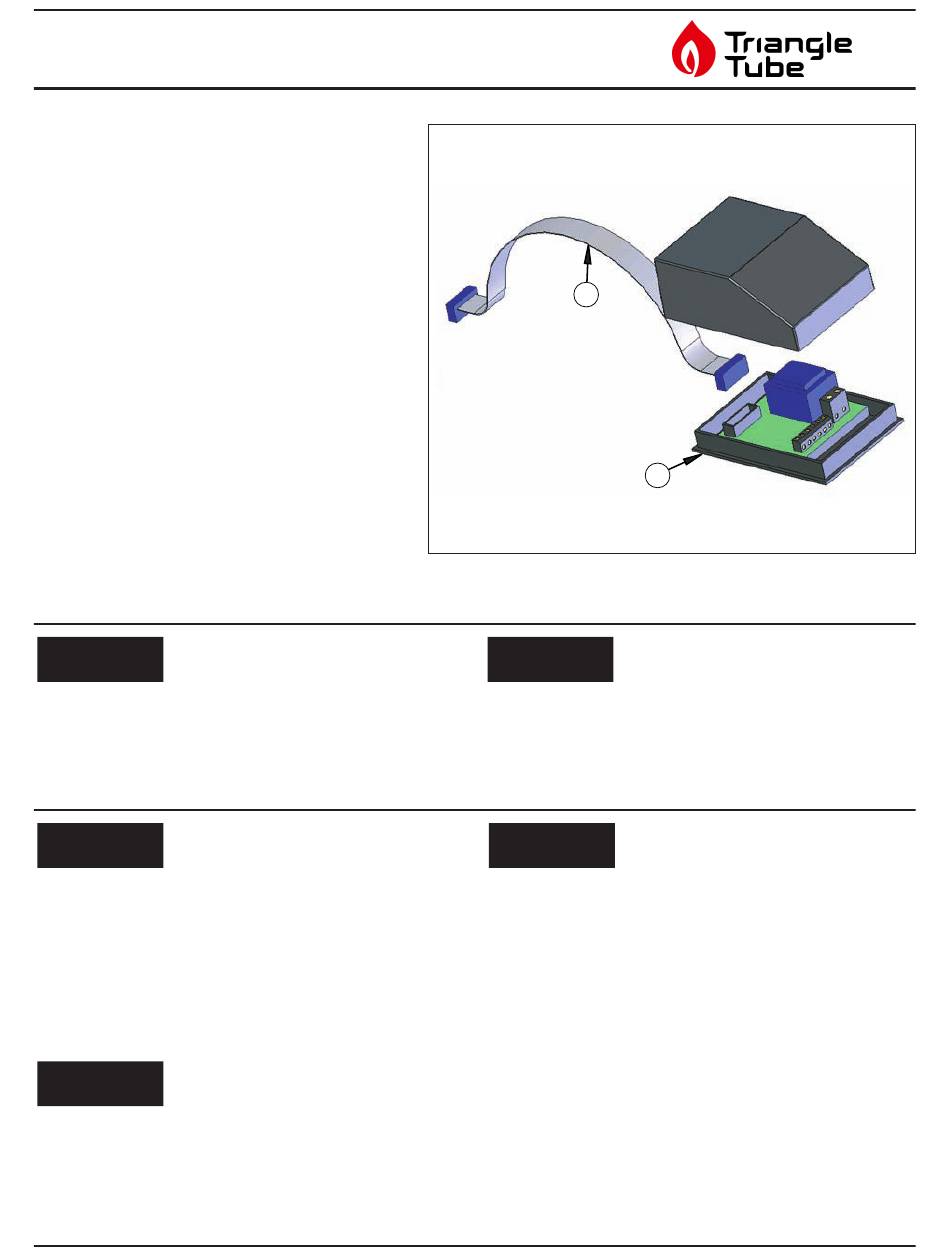

Parts List
1. AM-4 Interface Module
2. Ribbon Cable
3. (2) #10 x 3/4" screws
4. Terminal Block Tool
Recommended Tools
-
Phillips-head screwdriver
-
Flat-blade screwdriver
WARNING
Indicates a potentially hazardous situation
which, if ignored, can result in serious
injury or substantial property damage.
WARNING
Failure to follow instructions below can result in
severe personal injury or damage if ignored:
-
Instructions are for a qualified installer /
service technician
-
Read all instructions before proceeding
-
Follow instructions in the proper order.
WARNING
For your safety, turn off electrical power
supply at service panel and allow unit to cool
before proceeding. Failure to do so can cause
severe personal injury or death.
2
NOTICE
Indicates special instructions on installa-
tion, operation or maintenance, which are
important to equipment but not related to
personal injury hazards.
NOTICE
The following instructions will reference the
following Prestige installation manuals and
supplements:
Maintenance manual, Prestige Control
Supplement and Prestige Multiple Boiler sup-
plement. Ensure these manual and supple-
ments are readily available before proceeding
with the installation of the AM-4 interface
module.
1
1
Prestige
Installation
and
Advertisement
Related Manuals for TriangleTube PSRKIT23
Summary of Contents for TriangleTube PSRKIT23
- Page 1 AM-4 Interface Module Kit Kit Part Number: PSRKIT23 Description The AM-4 is used whenever an external con- trol is used to modulate the boiler with a 0 to 10V signal or to provide contacts for an external alarm in the event the boiler enters into a hard lock out.
- Page 2 AM-4 Interface Module Kit Mounting and Wiring AM-4 Module WARNING Electrical Shock Hazard. Turn off the power Ribbon Cable to the boiler before proceeding with the Plug installation of the AM-4 module. Failure to comply could result in severe personal injury, death, or substantial property damage.
- Page 3 AM-4 Interface Module Kit NOTICE 9. Replace the front jacket panel and secure with the 3 mounting screws along the upper edge. For additional information on revising the 10. Restore power to the Prestige and place back Prestige MCBA Control Module operational into service.
-
Page 4: Best Practices
AM-4 Interface Module Kit To Change a Parameter Setting After the activation code is entered press the PARA MODE button until the display shows . At Use the + or - button to change the value of the this point the installer can access the parameters display. - Page 5 AM-4 Interface Module Kit 0 TO 10 VDC EXTERNAL CAPACITY WITH Test / Verify Boiler and Control Operation PARAMETER 1. Refer to and follow the instructions given in the Prestige Installation manual to test operation of In this application the external boiler controller will the boiler and the MCBA control.
- Page 6 AM-4 Interface Module Kit AM-4 Alarm Wiring Test / Verify Alarm Contacts NOTICE The AM-4 module will close the alarm relay contacts on any hard lockout (manual reset required) of the Prestige MCBA control module. The AM-4 will not close the alarm contacts on a soft lockout (auto reset).
