Gas Valve Replacement Kit
Kit Part Number:PGRKIT01

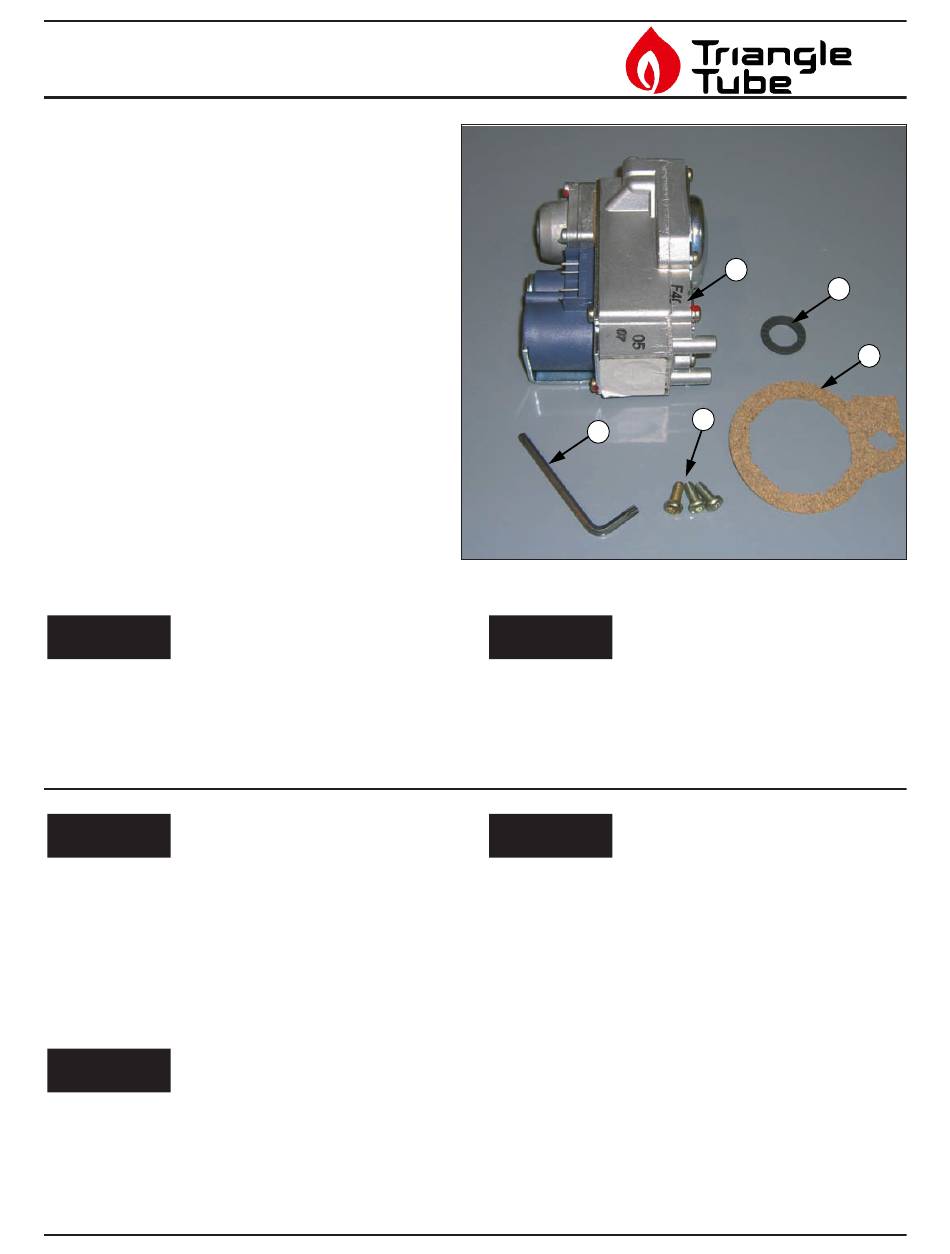

Parts List
1. Honeywell Gas Valve VK8115V
2. Gas Valve/Orifice Gasket
3. Torx Screws (3 pcs)
4. Venturi/Blower Housing Gasket
5. # 25 Torx Wrench.
Recommended tools:
A. Pipe Wrench.
B. Phillips Screw Driver.
C. Flat Blade Putty Knife.
D. # 25 Torx Wrench. (Furnished in Kit.)
WARNING
Indicates a potentially hazardous situation
which, if ignored, can result in serious
injury or substantial property damage.
WARNING
Failure to follow instructions below can result
in severe personal injury or damage if ignored.
•
Instructions are for a qualified installer/ser-
vice technician.
•
Read all instructions before proceeding.
•
Follow instructions in proper order.
WARNING
For your safety, turn off electrical power
supply at service panel before proceeding to
avoid possible electrical shock hazard.
Failure to do so can cause severe personal
injury or death.
5
NOTICE
Indicates special instructions on installa-
tion, operation or maintenance, which are
important to equipment but not related to
personal injury hazards.
NOTICE
This kit is designed for gas valve replace-
ment on the Delta Performance, Delta
Performance Plus, Modulating Delta and
Prestige 60, 110, 175, 250 and Prestige
Excellence products.
1
1
2
4
3
Advertisement
Table of Contents
Related Manuals for TriangleTube PGRKIT01
Summary of Contents for TriangleTube PGRKIT01
- Page 1 Gas Valve Replacement Kit Kit Part Number:PGRKIT01 Parts List 1. Honeywell Gas Valve VK8115V 2. Gas Valve/Orifice Gasket 3. Torx Screws (3 pcs) 4. Venturi/Blower Housing Gasket 5. # 25 Torx Wrench. Recommended tools: A. Pipe Wrench. B. Phillips Screw Driver.
- Page 2 Gas Valve Replacement Kit DELTA COMBUSTION HEATER INSTRUCTIONS 1. Turn power to the unit “OFF”. 2. Shut off gas supply to the inlet of the unit at the main manual shutoff valve. 3. Disconnect the gas supply piping to the Combination Heater.
- Page 3 Gas Valve Replacement Kit 12. Reconnect the rectifier plug to the gas valve NOTICE using the Phillips head screw. For propane installations a brass orifice is located inside the gas valve/orifice gasket. 13. Reattach air inlet elbow to the venturi. This orifice must be placed inside of the new gas valve/orifice gasket before reassembly.
- Page 4 Gas Valve Replacement Kit PRESTIGE BOILER INSTRUCTIONS: 7. Remove and save the two Torx screws attach- ing the venturi / gas valve assembly from the 1. Turn power to the unit “OFF”. blower housing. See Fig.3. Remove the venturi / gas valve assembly from the blower housing. 2.
- Page 5 Gas Valve Replacement Kit 13. Reconnect the rectifier plug to the gas valve NOTICE using the Phillips head screw. For propane installations a brass orifice is locat- 14. Reconnect the brass gas piping union connec- ed inside the gas valve/orifice gasket. This ori- tion.
- Page 6 Gas Valve Replacement Kit COMBUSTION TEST - PRESTIGE Counter-clockwise adjustment of the throttle screw at high fire: 1. It is recommended that the installer perform a O 2 decreases and C0 2 increases complete combustion check to ensure the fol- lowing combustion levels are met at high and Clockwise adjustment of the throttle screw at low inputs and the burner is operating at opti-...
