Exmark LAZER Z E Series Setup Instructions

Loose Parts

Use the chart below to verify that all parts have been shipped. Part numbers not shown are available on the dealer
extranet.
Dealer Pack
Part #
103-2106
1-603511
Literature Pack
Part #
—
—
Raise the Rollover Protection
System (ROPS)
1. Pull the knob and rotate 90° to the unlatched
position (see Figure 1).

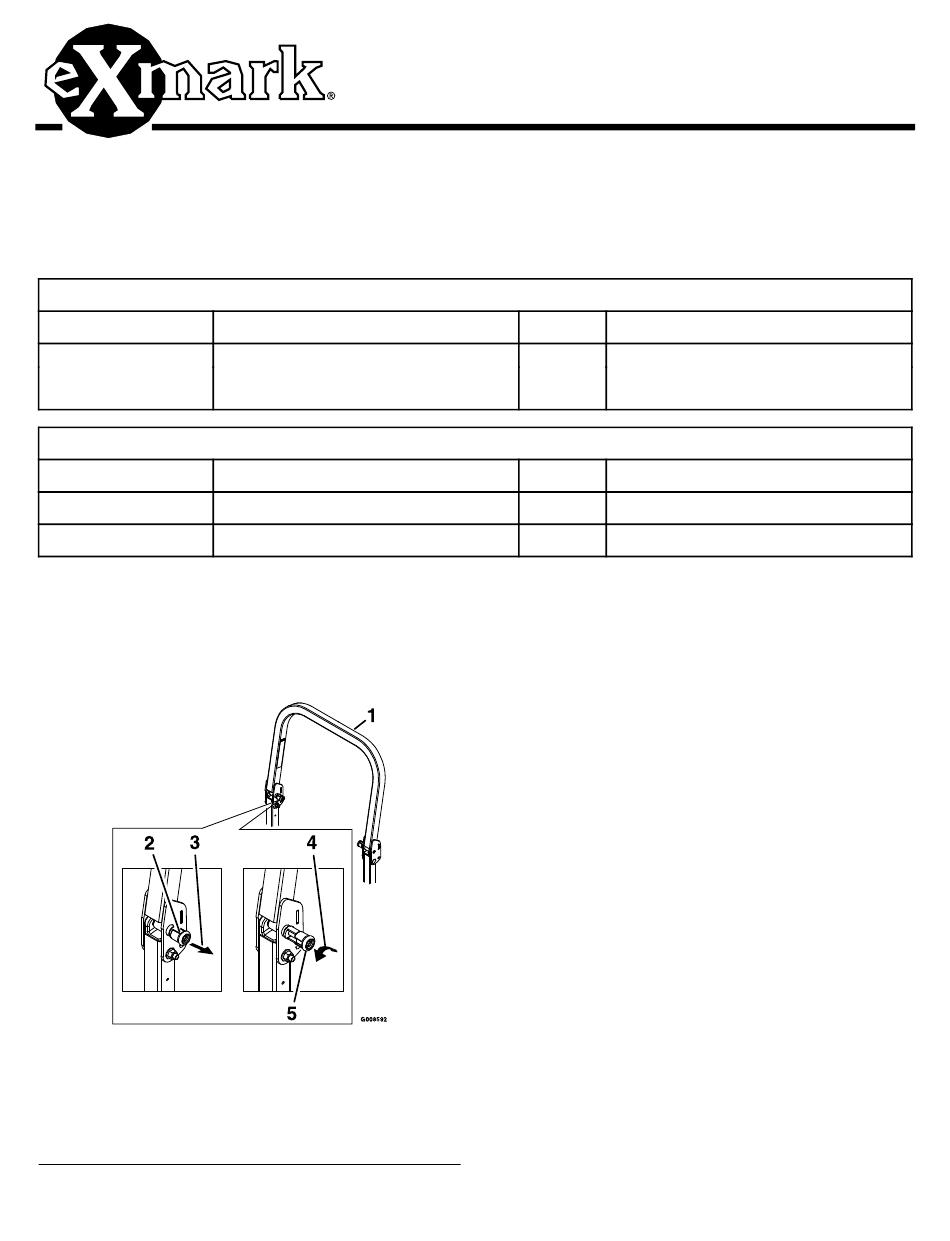

Figure 1
1. Roll bar upper hoop
2. Knob in "latched" position
3. Pull knob to unlatch
4. Rotate 90° to hold unlatched
5. Knob in "unlatched" position
© 2010—Exmark Mfg. Co., Inc.
P.O. Box 808
Beatrice, NE 68310
Description
Key, Exmark Logo
Key, Standard
Description
Manual, Operator's
DVD, Exmark Safety Video
LAZER Z
Qty.
Fill out the online warranty registration
1
form and place keys into literature
1
pack.
Qty.
1 Read before operating the machine.
1 View before operating the machine.
2. Raise and hold the upper hoop of the roll bar in the
upright position.
3. To lock the roll bar in the raised, operate position,
rotate the knobs 90° so that the tabs interlock
partially. Apply forward pressure to the roll bar hoop
and observe that the knobs return to the completely
latched position as shown in Figure 1.

Checking Tire Pressure

1. Check the tire pressure in the drive tires. Proper
inflation for drive tires is 13 psi (90 kPa).
2. Check the tire pressure in the front caster tires.
Proper inflation for drive tires is 13 psi (90 kPa).
3. Adjust if necessary.
E-SERIES
®
Setup Instructions
For Serial Nos. 920,000 & Higher
Use
Use
Part No. 4500-726 Rev. A
Printed in the USA.
All Rights Reserved
