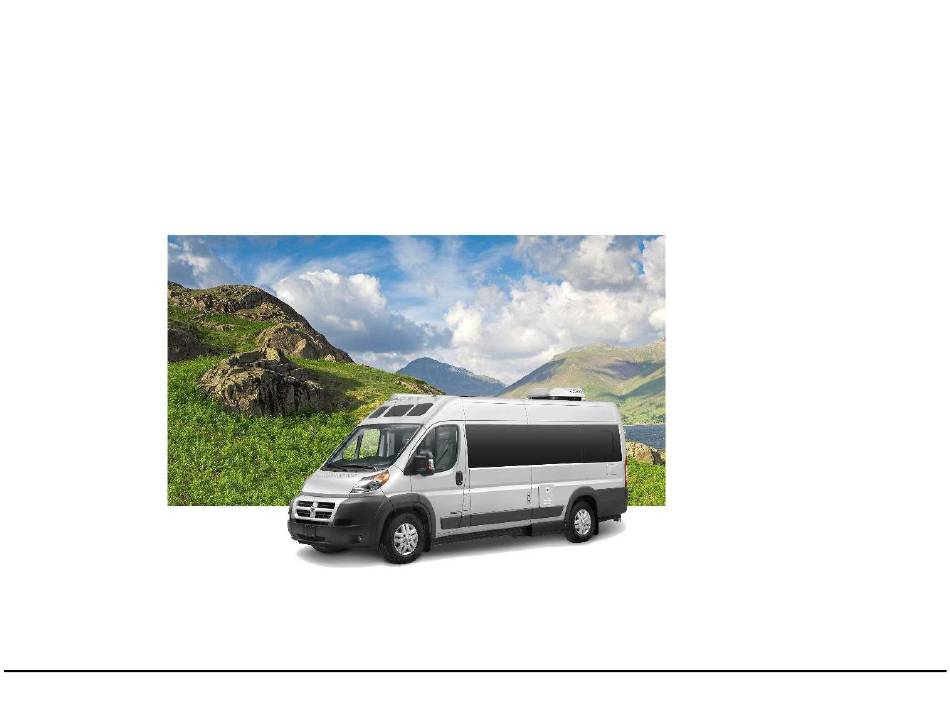

- Page 1 Owner’s Manual 2017 Simplicity © Erwin Hymer Group North America, Inc., R00...
-
Page 2: Table Of Contents
Contents Introduction to Your Simplicity ..........................................7 Disclaimer ................................................7 Copyright ................................................. 7 References ................................................8 Do’s and Don’ts ............................................... 8 Symbol Legend ..............................................8 Regulatory Warnings ............................................8 Information, Cautions and Warnings ........................................9 Before You Head Out ............................................11 Coming Home ................................................ - Page 3 Antenna and Cable Connections ........................................23 Refrigerator ................................................ 24 Oven ................................................... 24 Propane Cooktop .............................................. 25 Hot Water ................................................. 25 Outside Your Roadtrek ............................................26 Awning ................................................26 Driver’s Side Compartments ..........................................27 Exterior Shower ..............................................27 Optional Side Door Screen ..........................................27 Utilities ...................................................
- Page 4 Heating and Cooling .............................................. 30 Thermostat ................................................ 30 Air Conditioning ..............................................30 Propane Furnace ..............................................30 Electrical System ..............................................31 Coach Batteries..............................................31 Battery Disconnect Switch ..........................................31 Inverter Charger ..............................................31 Alternator Charger and Battery Isolator ......................................31 Optional Solar Panels ............................................31 On Board 120-Volt AC Power ..........................................
- Page 5 AC Breaker ................................................ 36 12 Volt Fuse Panel .............................................. 36 Alarms and Warnings ............................................. 37 Propane and CO Alarm ............................................. 37 Smoke Alarm ..............................................37 Fire Extinguisher ..............................................38 Maintenance ................................................39 Tires ................................................... 39 Cargo Carrying Capacity ........................................... 39 Owner Maintenance Checks ..........................................
- Page 6 AGM Battery ..............................................45 Registration ................................................45 Regulatory Notices ..............................................47 © Erwin Hymer Group North America, Inc., R00...
-
Page 7: Introduction To Your Simplicity
Introduction to Your Simplicity Congratulations on the purchase of your Roadtrek and welcome to the Erwin Hymer Group NA family. The information included in this manual is meant to help and guide you through the use of your vehicle so that you know how to properly use the many functions your Roadtrek has to offer. -
Page 8: References
All images used in this manual remain the property of Erwin Hymer Group NA. They are for illustrative purposes only and may or may not be representative of the upfits in your Roadtrek. Contact Erwin Hymer Group NA for alternate licensing arrangements if you want to use or distribute this manual commercially. -
Page 9: Information, Cautions And Warnings
Turn the TV off and stow it while the vehicle is in motion. The flat screen TV should not be stored inside the Roadtrek in cold temperatures. Remove it to reduce the chance of damage from the cold. Check the Owner's Manual for the TV for storage and operating temperatures. - Page 10 Battery Disconnect the inverter/charger prior to disconnecting the auxiliary battery. Generator The Roadtrek is supplied with an AC generator located underneath the engine. Never submerge the generator. Use a spotter when launching a boat or crossing streams. Waste Water Close the gray water gate valve before using the waste water system.
-
Page 11: Before You Head Out
Over time, the chlorine goes away and the microbes come out to play. To flush the tank, fill it using the fill port in the driver's side rear panel and open the fresh water tank drain under the tank at the rear of the Roadtrek. ... -
Page 12: Interior Living Space
If you turn everything off and you have solar panels, the panels will keep your coach batteries topped up while your Roadtrek is parked. If you don't have solar panels, it would be prudent to check your coach battery state of charge every month or so and charge them if necessary. If you don't turn everything off, even with solar panels, you will probably come back to dead batteries. - Page 13 If you load a large amount of weight into a cabinet, experience large swings in temperature or humidity, ride on bumpy roads at high speeds frequently, or sometimes as part of normal wear and tear, the cabinet hinges may go out of adjustment. You will know the cabinet is out of adjustment when it will not open with the button out, or not latch with the button in.
-
Page 14: Galley Cabinets
Galley Cabinets Immediately beneath the galley countertop there are drawers to the left and right of the food preparation surface to hold silverware and small cooking utensils. The center panel in front of the sink is fixed, and is not a drawer. Lights The oval ceiling lights are individually controlled and are turned on by tapping the lens area of a given light. -
Page 15: Tables
Tables The table can be set up to use either the front or rear lounge areas for dining, computer, gaming, or other recreational use. The table leg is stored in the closet to the left of the galley, next to the water heater. The leg keys into a T-nut fitting in the floor plate. To install the table leg in the floor plate, unscrew the T-nut all the way on the end of the table leg and insert the T-nut into the key in the floor plate. -
Page 16: Front Table Setup
Front Table Setup To rotate the front seats, Front lounge table lift up on the front inside This vehicle will not drive unless the front seats are locked and forward facing. corner trim Rear Table Setup Rear dining table Table top storage in back door ©... -
Page 17: Captain's Seats
Captain’s Seats The two captain's seats in the front of your Roadtrek are adjustable fore-and-aft by pulling up on the bar under the front of the seat, and will swivel when the inside corner is pulled up. Always return the seats to the forward-facing position when driving. They will lock into this position, and stay locked until the swivel tab is raised again. -
Page 18: Ventilation
Rear door curtain Ventilation Your Roadtrek is equipped with a ceiling mounted ventilation fan. The fan has a cover that must be raised by turning the large knurled knob. Raise the cover, then use the remote to the desired speed and temperature. -
Page 19: Sleeping Facilities
Sleeping Facilities Your Roadtrek has beds that can be configured as a king bed or two twin beds. Experiment with different configurations to find what works best for you. Forward Facing Power Sofa Forward facing sofa The sofa in twin configuration To make the sofa into a twin bed, use the sofa switch to lower the sofa. - Page 20 To make the king bed, lower the sofa, then retrieve the Move the ottoman cushions toward the center, and use the center board from under the driver’s side ottoman small backrest cushions to fill in the gaps and to hold the cushion ottoman cushions in place To make the sofa, remember to pull the seatbelts up through the sofa before raising it to a sitting position.
-
Page 21: Bathroom Facilities
Using the Toilet The bathroom in your Roadtrek contains a marine type toilet. To secure the doors once inside, use the inside latch. To flush the toilet, use your foot to press the foot pedal located at the bottom of the toilet, then release the foot pedal. -
Page 22: Shower
Outside Shower The outside shower is located on the driver's side, towards the rear wheel. See Outside your Roadtrek for more details on location. © Erwin Hymer Group North America, Inc., R00... -
Page 23: Appliances
Appliances TV and DVD Player The TV and DVD player are located in the rear lounge area on the passenger side. Both the television and the DVD player use 120 volt current, so the inverter, generator, or shore power must be on and available for them to work. They are supplied with remote controls. -
Page 24: Refrigerator
Refrigerator The refrigerator is an electric compressor model that runs on 12-volt DC power. When shore power is available, the inverter charger provides enough power to run the fridge without discharging the batteries. The refrigerator temperature control is inside the unit, on the right side of the freezer compartment. Please see the appliance manual for operation details. Push on the latch to open Thermostat is located inside fridge door... -
Page 25: Propane Cooktop
Propane cooktop Your Roadtrek is equipped with a propane fired tankless water heater. The heater has no tank and operates on demand. At low flows water may be hot, while at high flows water may be cooler. This is normal. When you turn on the water heater you will not hear it fire up. It only ignites when it senses a water demand. -
Page 26: Outside Your Roadtrek
Awning Your Roadtrek has a roll-up awning. The awning is extended with a manual crank. The awning has two support struts that must be used to support the awning while extended. These are secured to the two attachment points on the side of the Roadtrek. Refer to the awning manual for the proper way of securing the awning supports to the attachments. -
Page 27: Driver's Side Compartments
On the driver's side of your Roadtrek, there are three compartment doors to use as needed. With the cover removed, the manual dump and valve handles are visible. The small compartment aft has the macerator hose. See the HOWTO: Waste Water Dumping section to learn how these work. -
Page 28: Utilities
Utilities Just like your house, your Roadtrek has fresh water, electricity, waste water disposal, heating, and cooling systems. In the Roadtrek, these systems are self- contained and travel with you. Your vehicle should be reasonably level to allow normal operation of the system. -
Page 29: Water Pump
Water Pump To use the water in the tank, you need to turn on the water pump. See photo above for switch location. Waste Water Gray Tank Galley sink, bathroom sink and shower drain water drains into the gray water tank. The shower and sink have traps to prevent tank odors from entering the living space. -
Page 30: Heating And Cooling
• If your Roadtrek is parked on an incline, it is possible for condensate to leak into the living space. If this happens park in a more level location. Propane Furnace The furnace is controlled by the combination thermostat located above the rear bed. The furnace requires propane and 12 volt power. The furnace can be used without shore power or generator use. -
Page 31: Electrical System
Electrical System Coach Batteries The coach batteries in your Roadtrek are sealed AGM batteries. DO not attempt to open them. There is no user maintenance possible on these batterers. Battery Disconnect Switch The battery disconnect switch provides power to all 12-volt appliances, such as the water pump, the refrigerator, and so forth. -
Page 32: On Board 120-Volt Ac Power
The standard configuration includes a 2000 watt inverter. This inverter provides 120-volt AC (household current) for a few of the outlets in your Roadtrek; primarily the ones running the TV and the DVD player. It will run the microwave and the air conditioner. -
Page 33: Monitor Panel
12-volt light and other cabin appliances. This switch must be on for any of the 12-volt electrical devices to work. To avoid discharging the batteries when your Roadtrek is not in use, remember to turn off two switches: Monitor Panel •... -
Page 34: Inverter
Shore Power Shore power is the name for power supplied by a utility company that you plug into to provide power to your Roadtrek. See HOWTO: Shore Power for a concise guide to plugging in and unplugging from shore power. -
Page 35: Water Heater Switch
Water Heater Switch There is no water heater switch on the Roadtrek. The water heater is "instant on", so it only turns on when there is a demand for hot water. Tank and Charge Indicators To the right of the switches are the indicator lights for the battery charge level, the fresh water tank level, and the black and gray water tank levels. The battery disconnect switch has to be on for this display to work. -
Page 36: Distribution Panel
AC Breaker Flip the cover to the right and not the sticker under the cover with the identifying information on each breaker. When storing the Roadtrek for the winter, turn off the battery disconnect switch, the inverter and all circuit breakers in this panel 12 Volt Fuse Panel The 12-volt fuses are on the right side of the distribution panel with labels for each fuse on the inside cover. -
Page 37: Alarms And Warnings
Alarms and Warnings Propane and CO Alarm Your vehicle has been equipped with a combination propane leak and carbon monoxide detection device for your protection. It is located slightly above floor level next to the furnace and below the fridge. Be sure the detector is operating while using your vehicle. -
Page 38: Fire Extinguisher
Fire Extinguisher Your Roadtrek comes equipped with a dry chemical fire extinguisher suitable for all fires. Before every trip, check to see that the needle on the dial is in the green range. If not, replace the fire extinguisher. DO NOT test your fire extinguisher by discharging it - total discharge time is 8 to 12 seconds, so it will become rapidly depleted if you test it this way. -
Page 39: Maintenance
Maintenance Tires See the automotive chassis manufacturer's owner's manual and documents for tire warranty information. Inflation pressure information is on the sticker inside the galley cabinet door. The current RAM ProMaster® manual recommends checking tire pressures regularly, at least every other week and before a long trip. Tire rotation intervals depend on wear and other factors but tires should be rotated at least every maintenance interval, defined as every 40,000 km/24,000 miles. -
Page 40: When You Stop For Fuel Or Weekly
When You Stop for Fuel or Weekly Check engine oil level. Look for low or underinflated tires. Every Other Week Check tire pressure on all tires and your spare. At Least Monthly Check coolant level in the coolant recovery reservoir. ... -
Page 41: At Least Once A Year
Roadtrek. To prevent water from entering your vehicle, avoid spraying water directly into exterior vents or grills. Do not use a power washer to clean your Roadtrek because damage to the paint, removal of decals and water leaks will result. Hand washing or commercial car washes accommodating large vehicles are the best way to keep your Roadtrek clean and shiny. -
Page 42: Spare Tire Storage
The ProMaster® uses a spring-loaded positive locking mechanism to hold the spare tire in place. This can be quite difficult to engage on the side of the road. Roadtrek recommends that you have roadside service or that you place the flat inside the vehicle and stop at a nearby tire shop as soon as practical. -
Page 43: Obtaining Service
When your Roadtrek needs service, determine if the issue is with the Roadtrek upfits or the RAM ProMaster® chassis. For Roadtrek upfits, contact your dealer. Start with the service writer, then the service manager and finally, if you are unable to resolve your issues with the service department, contact the dealership managing partner or owner. -
Page 44: Specifications
B pillar (right side of the door frame, near the latch). This specification refers to the baseline Roadtrek upfits. Options and upgrades may change these specifications. This applies to Erwin Hymer Group NA upfits only. -
Page 45: Warranty
Purchaser and Dealer must comply. Please refer to your warranty information for a list of appliances that apply. AGM Battery The AGM batteries have a normal one year manufacturer’s warranty. Registration Please send the following form in or email the information to sales@gohymer.com when you purchase your Roadtrek. © Erwin Hymer Group North America, Inc., R00... - Page 46 © Erwin Hymer Group North America, Inc., R00...
- Page 47 Regulatory Notices If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration, (NHTSA) in addition to notifying Erwin Hymer Group NA. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
