210 Chevrolet Models Owner's Manual
Including
Limited Warranty Information

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Roadtrek and is the answer not in the manual?

Questions and answers

Douglas Jensen
July 28, 2025

2013 popular 210 Manual awning operation

0
Calvin D Whitman
April 6, 2025

where is the converter located on 2017 road trek simplicity

0

Related Manuals for Roadtrek Roadtrek

Summary of Contents for Roadtrek Roadtrek

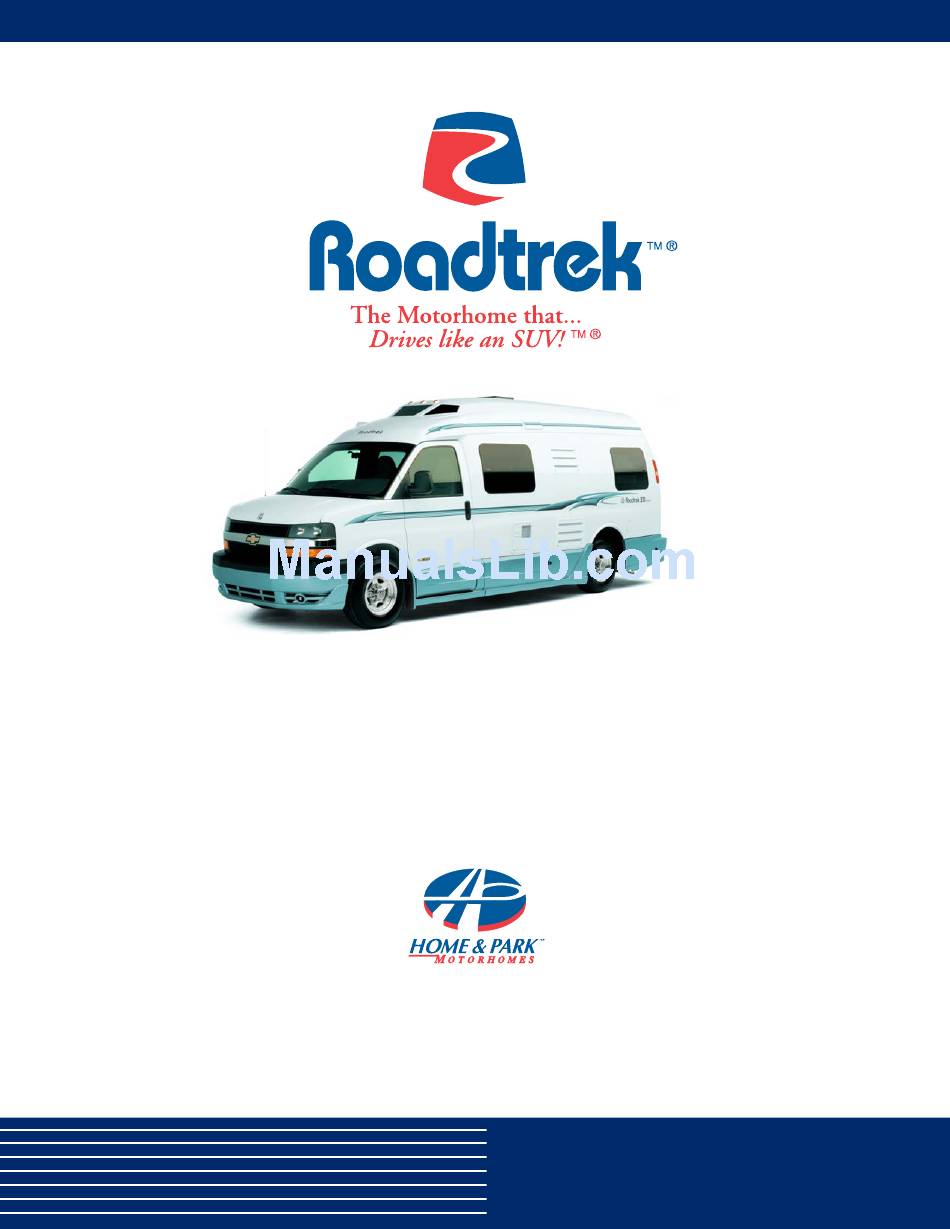

  • Page 1 210 Chevrolet Models Owner’s Manual Including Limited Warranty Information...

  • Page 3: Warnings And Cautions

    WARNINGS & CAUTIONS WARNINGS AND CAUTIONS This manual contains WARNINGS against operating procedures which could result in an accident or bodily injury. The manual also contains CAUTIONS against procedures which could result in damage to your vehicle. If you do not read the entire manual you may miss important information.

  • Page 4: Seat Belts

    All passengers must be seated in these seats only, with the seat belts fastened while the vehicle is in motion. The flat screen TV should not be stored inside the Roadtrek in temperatures below -4°F (-20°C) to reduce the chance of damage from the cold. The operating temperature of the monitor is recommended between 50°F and 104°F (10°C and 40°C) with a humidity range of 10% to 80%, non condensing.
  • Page 5 TV in the stored position. The flat screen TV (option TF) should not be stored inside the Roadtrek in temperatures below -4°F (-20°C). The operating temperature of the monitor is recommended between 50°F & 104°F (10°C – 40°C) with a humidity range of 10%-80%, non condensing.

  • Page 6: Obtaining Motorhome Service

    The solution to all your Roadtrek concerns starts with your Roadtrek Dealer Roadtrek Dealer Roadtrek Dealer The dealership should always be given the opportunity to resolve your concerns prior to contacting Home & Park Motorhomes If situation is not resolved...

  • Page 7: Table Of Contents

    Floor Plan & Appliance Location ________________________________________________________________________________ C-1 Fresh Water System ____________________________________________________________________________________________ C-1 Elevation (210-Popular Chevrolet) ________________________________________________________________________________ C-2 Floor Plan with Appliance Location (210-Popular Chevrolet) ____________________________________________________________ C-3 Elevation (210-Versatile Chevrolet) ________________________________________________________________________________ C-4 Floor Plan with Appliance Location (210-Versatile Chevrolet) __________________________________________________________ C-5...
  • Page 8 Obtaining Motorhome Service __________________________________________________________________________________ K-1 Roadtrek International Chapter FMCA / A Roadtrek Owners’ Club Membership Forms __________________________________ L-1 C C h h a a n n g g e e o o f f O O w w n n e e r r N N a a m m e e o o r r A A d d d d r r e e s s s s Form __________________________________________________________________________ L-2...

  • Page 9: Introduction

    This manual has been written to provide you with the information required to properly operate and maintain your new Roadtrek. After reading this manual, be sure to keep it in your vehicle as a reference. Your Roadtrek dealer will be glad to answer any further questions about the operation of your vehicle.

  • Page 10: Weight Ratings

    Gross Axle Weight Rating (GAWR): is the value specified as the load carrying capacity of a single axle system, as measured at the tire-ground interfaces. Towing Guidelines: Consult Chevrolet Owners Manual(s) for specific weighing instructions and towing guidelines including auxiliary brake requirements for any towed trailer or towed vehicle.

  • Page 11: Vehicle Specifications

    Water tank - fresh Water tank - grey Water tank - black D D o o c c N N o o : : 21906532-210C05 R R e e v v : : 02 Roadtrek 210 models 2005 STANDARD on Chevrolet 3500 MOTORHOME...

  • Page 12: Appliance Log

    APPLIANCE & ACCESSORY MANUFACTURER’S LOG Appliance Awning Battery - Auxiliary Battery - Auxiliary -Optional Dual Battery Isolator CO Detector Coffee Maker Distribution Panel DVD Player Fire Extinguisher Furnace Generator Heat Pump Inverter LP Gas Detector LP Gas Tank Macerator Pump Microwave oven Monitor Panel Power Roof Vent...

  • Page 13: Manufacturer Contact Information

    MANUFACTURER CONTACT INFORMATION: Component Awning Detector-carbon monoxide Detector - LP gas DVD Player Flat LCD T.V. Furnace (U.S.) Furnace (Canada) Generator (U.S.) Generator (Canada) Heat Pump Inverter/Charger LP Gas Tank Microwave (U.S.) Microwave (Canada) Oven-Microwave (210) Refrigerator (U.S.) Refrigerator (Canada) Roof Vent - Power Satellite Screens (for van doors)

  • Page 15: Daily Living

    CAPTAIN’S SEATS: To recline, pull up the recline control lever below the inboard armrest and lean back. To slide, pull up on the slide bar located on the front of the seat and slide the seat either forward or back, (see Picture B-P1a).

  • Page 16: Cloverleaf Dining Table

    CLOVERLEAF DINING TABLE: 210 Popular: The cloverleaf dining table is stored in the lower galley cabinet, (see Picture B-P3). Remove table leg from wardrobe, (see Picture B-P4) and place it in the floor base receptacle located in front of the lower galley cabinet. Place table top on top of table leg.

  • Page 17: Dinette Table

    DINETTE TABLE: The table leg is stored in the rear wardrobe closet, Popular model, (see Picture B-P4) Versatile model, (see Picture B-P4A). Remove the table leg and place in the floor base receptacle located at the rear on the floor. The table top is stored under the driver side rear bed cushion, (see Picture B-P6).

  • Page 18: Rear Twin Beds

    SLEEPING FACILITIES: REAR TWIN BEDS (210-Popular Model): To convert the dinette into twin beds: 1. Remove the table and leg from its receptacle and place the table under the driver side seat cushion and store table leg. 2. Place both back rest cushions on the floor vertically up against the seat base boxes or store if desired.

  • Page 19: Rear King Bed / Rear Queen Bed

    REAR KING BED / REAR QUEEN BED REAR KING SIZE BED (Popular Model)/ REAR QUEEN SIZE BED (Versatile Model): To convert the dinette into a King size bed or Queen size bed : 1. Remove the table and leg from its receptacle. 2.

  • Page 20: Front Lounge Seats

    FRONT LOUNGE SEATS: To convert the lounge seat into a single bed: 1. Swivel the passenger captain’s seat 90 degrees clockwise so that the backrest is toward the center aisle. Be sure all armrests are in an upright position, (see Picture B-P15). 2.

  • Page 21: Rear Privacy Doors

    WASHROOM AND PRIVACY AREA: FRONT AND REAR PRIVACY DOORS When privacy is required: Rear privacy doors: 1. Open the door on the rear wardrobe by pressing the push latch. 2. Release the plastic turn tab that secures the inner door found near the top inside door, (see Picture B-P18A).

  • Page 22: Toilet

    WASHROOM FACILITIES: TOILET: 1. Privacy is achieved by extending all privacy doors and closing the galley curtain. 2. The washroom is equipped with an automatic light that will illuminate when the door is in the open position, (see Picture B-P20). STAND-UP AISLE SHOWER: To set up the stand-up aisle shower: 1.

  • Page 23: Extra Counter Space

    EXTRA COUNTER SPACE: In order to provide additional counter space, your motorhome has the following three features: stove cover. sink cover, (cutting board). slide out shelf above the cutlery drawer. To raise the stove cover do the following: 1. The stove cover is fit so you just need to lift and secure using the thumb tab (see Picture B-P23).

  • Page 24: Driver Side Access Doors

    EXTERIOR ACCESS DOORS: DRIVER SIDE ACCESS DOORS: Behind the lockable middle access door, (see Pictures B-P27, 28 and 29) the following are found: 1. Sewage hose. 2. Grey water gate valve handle. 3. Black water gate valve handle. 4. Storage compartment. 5.

  • Page 25: L.p.g. (Liquid Propane Gas) Access Door

    L.P.G. (Liquid Propane Gas) ACCESS DOOR: Behind the L.P.G. access door, (integrated into the rear bumper, covered with a black plate, see Picture B-P31), the following are found: 1. L.P.G. fill valve. 2. L.P.G. tank shut off valve. 3. Portable barbecue connection. PASSENGER SIDE ACCESS DOORS: Behind the access door in front of the rear passenger tire, (see Picture B-P32) the slide out tray with auxiliary battery(s)

  • Page 26: Auxiliary Battery

    AUXILIARY BATTERY: The auxiliary battery(s) is located behind the access door in front of the rear passenger tire, (see Picture B-P34). It is recommended to check once a month, (see maintenance section). In order to access the auxiliary battery one must do the following: 1.

  • Page 27: Spare Tire Storage

    SPARE TIRE STORAGE: The spare tire is located in the storage area found under the passenger side rear bed, (see Picture B-P36A). Unless equipped with optional Continental Spare Tire Kit, (see Picture B-P37). Brace yourself for the weight of the tire, (40 kg / 80 lbs). The jack is located in the storage area found under the passenger side rear bed mounted on the outside wall, (see Picture B-P36).

  • Page 29: Fresh Water System

    FRESH WATER SYSTEM 210 Chevrolet D D o o c c N N o o : : 21906532-210C05 R R e e v v : : 02 C C o o p p y y r r i i g g h h t t © © H H a a n n m m a a r r M M o o t t o o r r C C o o r r p p o o r r a a t t i i o o n n 2 2 0 0 0 0 5 5...
  • Page 30 FLOOR PLAN & APPLIANCE LOCATION 210-Popular Chevrolet D D o o c c N N o o : : 21906532-210C05 R R e e v v : : 02 C C o o p p y y r r i i g g h h t t © © H H a a n n m m a a r r M M o o t t o o r r C C o o r r p p o o r r a a t t i i o o n n 2 2 0 0 0 0 5 5...
  • Page 31 FLOOR PLAN & APPLIANCE LOCATION S tove 210-Popular Chevrolet D D o o c c N N o o : : 21906532-210C05 R R e e v v : : 02 C C o o p p y y r r i i g g h h t t © © H H a a n n m m a a r r M M o o t t o o r r C C o o r r p p o o r r a a t t i i o o n n 2 2 0 0 0 0 5 5...
  • Page 32 FLOOR PLAN & APPLIANCE LOCATION 210-Versatile Chevrolet D D o o c c N N o o : : 21906532-210C05 R R e e v v : : 02 C C o o p p y y r r i i g g h h t t © © H H a a n n m m a a r r M M o o t t o o r r C C o o r r p p o o r r a a t t i i o o n n 2 2 0 0 0 0 5 5...
  • Page 33 FLOOR PLAN & APPLIANCE LOCATION 210-Versatile Chevrolet D D o o c c N N o o : : 21906532-210C05 R R e e v v : : 02 C C o o p p y y r r i i g g h h t t © © H H a a n n m m a a r r M M o o t t o o r r C C o o r r p p o o r r a a t t i i o o n n 2 2 0 0 0 0 5 5...

  • Page 35: Electrical System

    NOTE: INVERTER Your Owner’s Manual for RV612ULHW contains most of the essential information you need to enjoy the electrical conveniences of home while at RV parks or dry camping. However, we wish to highlight for you exactly how the charging portion of the inverter/charger works, in order to help avoid possible confusion: Supplying shore power or (optional) generator power enables RV612ULHW to charge the auxiliary battery (ies).

  • Page 36: 120 / 12V Inverter/Charger/Distribution Panel

    The generator is located and accessed on the underside behind the rear axle of your vehicle. CAUTION: When launching a boat, using your Roadtrek, it is important to know that a generator must not be submerged in water. This will permanently damage the generator. If you cannot launch without submerging the generator, an alternate method would be to use a boat launching service.

  • Page 37: Monitor Panel

    MONITOR PANEL: The monitor panel is located on the shelf above the passenger lounge seat,(see Picture E-P1). For location of porch light switch with optional armoire, (see Picture E-P1B). The monitor panel is used to provide the approximate fluid levels in the fresh, grey and black (holding) water tanks, the L.P.G.

  • Page 38: Auxiliary Battery And Isolator

    The operation switches for the fan and light are located on the face of the fan. WATER HEATER : The Roadtrek is equipped with a dual mode water heater. The water heater may be operated by 110V power or L.P.G. Please refer to the Suburban Owner’s Manual for complete operation instructions.

  • Page 39: Electrical System Schematics

    POTABLE WATER FILL CITY WATER INLET POTABLE WATER PUMP DRAIN OUTLET WATER HEATER WATER TANK HOLDING TANK WATER CLOSET LAVATORY SHOWER KITCHEN SINK 120V DISTRIBUTION PANEL INVERTER / CHARGER 12V FUSE BLOCK 120V SINGLE RECEPTACLE 120V DUPLEX RECEPTACLE 120V SPLIT DUPLEX RECEPTACLE SINGLE POLE SWITCH 2 POLE DBL THROW SWITCH 12V LIGHT FIXTURE...
  • Page 40 ELECTRICAL SYSTEM D D o o c c N N o o : : 21906532-210C05 R R e e v v : : 02 C C o o p p y y r r i i g g h h t t © © H H a a n n m m a a r r M M o o t t o o r r C C o o r r p p o o r r a a t t i i o o n n 2 2 0 0 0 0 5 5 E E - - 6 6...
  • Page 41 ELECTRICAL SYSTEM D D o o c c N N o o : : 21906532-210C05 R R e e v v : : 02 C C o o p p y y r r i i g g h h t t © © H H a a n n m m a a r r M M o o t t o o r r C C o o r r p p o o r r a a t t i i o o n n 2 2 0 0 0 0 5 5 E E - - 7 7...

  • Page 43: Safety System

    L.P.G. & SAFETY SYSTEM Your vehicle is equipped with an L.P.G. (Liquid Propane Gas) system which, when properly handled and maintained, will provide trouble and worry free operation of your L.P.G fueled appliances. L.P.G. fuel is stored in a liquid state under extremely high pressure. As fuel is used, L.P.G. passes from the top of the tank through the regulator into the gas lines and eventually to the appliances.

  • Page 44: L.p.g. Tank

    L.P.G. TANK: To open and close the tank use the manual tank shutoff valve located on the tank, accessible from behind the rear bumper. It is recommended to close the tank shutoff valve when the vehicle is not in daily use. Further, it is recommended to close the shutoff valve when the vehicle is in travel.

  • Page 45: L.p.g. Leak Detector

    L.P.G. LEAK DETECTOR: Your vehicle has been equipped with a L.P.G. leak detection device for your protection, (see Picture F-P1, Popular model, see Picture F- P1A, Versatile model). See “Floor Plan & Appliance Location” for location of the L.P.G. leak detector location.
  • Page 46 L.P.G. & SAFETY SYSTEM 210-Popular Chevrolet D D o o c c N N o o : : 21906532-210C05 R R e e v v : : 02 C C o o p p y y r r i i g g h h t t © © H H a a n n m m a a r r M M o o t t o o r r C C o o r r p p o o r r a a t t i i o o n n 2 2 0 0 0 0 5 5...
  • Page 47 L.P.G. & SAFETY SYSTEM 210-Versatile Chevrolet D D o o c c N N o o : : 21906532-210C05 R R e e v v : : 02 C C o o p p y y r r i i g g h h t t © © H H a a n n m m a a r r M M o o t t o o r r C C o o r r p p o o r r a a t t i i o o n n 2 2 0 0 0 0 5 5...

  • Page 49: Winter Mode Valve Position

    WINTER MODE VALVE POSITIONS: Tank selector valve must be in the interior tank position, (see Picture G-P1). WINTER USE: (Moderate Subfreezing Conditions, -10 The dual tank system allows you to use the fresh water system under moderate subfreezing conditions by allowing you to isolate and drain the exterior fresh water tank.
  • Page 50 Your Roadtrek is equipped with a water heater by-pass. valve. When it is in summer mode, all three valves will face the aisle, (see Picture G-P3). In winter mode, the water line valve is open and the valves at the water heater are closed, (see Picture G-P4).

  • Page 51: To De-Winterize

    To drain the exterior fresh water tank you must open exterior drain valve at the low point drain located below the drivers side front storage drawer compartment, (see Picture G-P5). Picture G-P5: Location of the exterior freshwater tank drain. TO DE-WINTERIZE: Repeat the steps in reverse order.

  • Page 52: Fresh Water Tanks

    FRESH WATER TANKS: One tank is located in the vehicle’s interior, the other tank is located on the vehicle’s exterior. The purpose of the dual tank system is to provide a separate fresh water system that can be used in moderate sub freezing conditions. The system can only function properly in either one of two modes.

  • Page 53: City Water Connection

    The fresh water tanks can also be filled through the city water inlet located behind the rear lockable driver side access drawer, for location, see the Daily Living section. The use of the city fill is not possible when in the winter operation mode.

  • Page 54: Waste Water Storage And Dumping System

    To disconnect the city water connection: 1. Turn off the external water source. 2. Open the sink faucet to relieve the pressure in the system, (failure to do so may result in an unexpected shower). 3. Ensure that the city water tank fill valve is closed, (see Picture G-P12). 4.

  • Page 55: Waste Water Tank Dumping

    Macerator manual crank handle Picture G-P15: Macerator Picture G-P16: Macerator pump located under center pump switch located on of vehicle. driver’s door post. Waste Water Tank Dumping: To dump the exterior black waste water tank: 1. Turn the battery disconnect switch to the “ON”position, if not already on, (located on the monitor panel). 2.

  • Page 56: Waste Water Tank Flushing

    Waste Water Tank Flushing: To flush the waste water tanks: 1. Ensure that both tanks are empty by checking the monitor panel. 2. Fill the black waste water tank by inserting a hose into the toilet, (be sure to step on the flush pedal, so the flapper door stays open to prevent toilet overflow) and the grey waste water tank using the sink.

  • Page 57: Potable Water System Sanitizing

    POTABLE WATER SYSTEM SANITIZING: NOTE: Water system must be in summer operation mode. Your potable water system should be sanitized if it is new, has not been used for a period of time, or may have become contaminated. To sanitize your system: 1.
  • Page 58 WATER SYSTEMS 210-Popular Chevrolet D D o o c c N N o o : : 21906532-210C05 R R e e v v : : 02 C C o o p p y y r r i i g g h h t t © © H H a a n n m m a a r r M M o o t t o o r r C C o o r r p p o o r r a a t t i i o o n n 2 2 0 0 0 0 5 5...
  • Page 59 WATER SYSTEMS 210-Versatile Chevrolet D D o o c c N N o o : : 21906532-210C05 R R e e v v : : 02 C C o o p p y y r r i i g g h h t t © © H H a a n n m m a a r r M M o o t t o o r r C C o o r r p p o o r r a a t t i i o o n n 2 2 0 0 0 0 5 5...

  • Page 61: Owner Maintenance

    FIBERGLASS MAINTENANCE: To maintain the original appearance and finish, your vehicle’s fiberglass running boards, roof and/or body must be waxed at least annually. If deterioration, such as tarnishing or chalking, should occur, apply a mild rubbing compound and wax to restore the original appearance. EXTERIOR WASHING: To prevent water from entering your vehicle, avoid spraying water directly into exterior vents or grills.

  • Page 62: Spring Start-Up

    SPRING START UP: After storage, reactivate your vehicle for use by reversing all the procedures that you performed to prepare it for winter storage. In addition, L.P.G. (liquid propane gas) system’s connections and fittings should be checked for possible leaks and all other systems and appliances should be operated to ensure satisfactory performance. TIRES: See the automotive chassis manufacturer’s owner’s manual and documents for tire warranty and recommended inflation pressures.

  • Page 63: At Least Twice A Year

    Have appliances tested and cleaned. Wax & polish and protect exterior surfaces. The above maintenance schedule is a recommendation only. Please refer to your Chevrolet Manual for details on the Chevrolet required maintenance schedule. Efficient economical vehicle performance will be enhanced by utilizing this recommended maintenance. It is strongly recommended that no repairs be made without appropriate training, tools and safety equipment.

  • Page 64: Aluminum Wheel Maintenance

    OWNER MAINTENANCE ALUMINUM WHEEL MAINTENANCE: Never clean your wheels when they are hot either from free standing in the sun, or from normal road use. Always clean wheels when they are cool to the touch of your hand. If you spray any type of cleaning agent, corrosive or not, they will stain a polished and chrome wheel and even some clear coated wheels.

  • Page 65: Limited Warranty Information

    See the General Motors Warranty Information booklet for details. For Chevrolet chassis sold through RV dealers, Home & Park uses the information on the completed Warranty Card to notify General Motors to restart the automotive (chassis) warranty in the Purchaser’s name as of the date of retail delivery.

  • Page 66: Limited Warranty Information

    All automotive service, maintenance and repairs are to be performed by any Chevrolet dealer. See the General Motors Warranty Information booklet for details. Such items are not warranted by Home & Park. Home & Park will...

  • Page 67: Home & Park Limited Motorhome Warranty

    (for example, as a demo or rental), whichever is earlier. This warranty shall be fulfilled at a Home & Park Dealer or authorized Roadtrek repair facility. For in transit emergency repairs, you may choose to deal with a non-authorized RV service facility. However all warranty repairs at non-authorized RV service facilities must be preauthorized by Home &...
  • Page 68 7. All claims must be submitted within 30 days of the date of repair. 8. Purchasers are responsible for presenting their vehicle to a Roadtrek Dealer as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time from date of authorization.

  • Page 69: Customer Assistance

    If these incentives weren’t enough, all Roadtrek Ambassadors referring more than 2 purchasing customers in a given year will be eligible for a draw to win the use of a new Roadtrek for a full year (mileage restrictions will apply).

  • Page 70: Roadtrek Club International

    ROADTREK CLUB INTERNATIONAL As a new Roadtrek owner, you are cordially invited to join our family of Roadtrek owners as members of the “Roadtrek Club International” . An owners’ club offers its members an opportunity to meet other people with...

  • Page 71: Roadtrek International Chapter Fmca / A Roadtrek Owners' Club Membership Forms

    E-mail Address ______________ Coach Manufacturer: Home & Park Motorhomes Model: ______ Roadtrek Year:_______ Length: ________License Plate Number: __________________ I have applied for membership in the Roadtrek International Chapter of the Family Motor Coach Association. ( ) If you are a former member, check here.

  • Page 73: C C H H A A N N G G E E O O F F O O W W N N E E R R N N A A M M E E O O R R A A D D D D R R E E S S S S Form

    CHANGE OF ADDRESS FORM D D o o c c N N o o : : 21906532-210C05 R R e e v v : : 02 C C o o p p y y r r i i g g h h t t © © H H a a n n m m a a r r M M o o t t o o r r C C o o r r p p o o r r a a t t i i o o n n 2 2 0 0 0 0 5 5 L L - - 2 2...
  • Page 74 CHANGE OF ADDRESS FORM D D o o c c N N o o : : 21906532-210C05 R R e e v v : : 02 C C o o p p y y r r i i g g h h t t © © H H a a n n m m a a r r M M o o t t o o r r C C o o r r p p o o r r a a t t i i o o n n 2 2 0 0 0 0 5 5 L L - - 3 3...

  • Page 75: Potential Customer Referral Card

    City Country Please send me a brochure and the name and address of my nearest dealer REFERRED BY: Roadtrek Vehicle Identification Number (last 8 digits only) PRINT Roadtrek Owner’s Name Optional PRINT Mailing Address: House/Building Number and Street Name (including St., Ave., Rd., Ct., etc.)
  • Page 76 CUSTOMER REFERRAL CARD Please contact Home & Park Motorhomes should you require additional customer referral cards. D D o o c c N N o o : : 21906532-210C05 R R e e v v : : 02 C C o o p p y y r r i i g g h h t t © © H H a a n n m m a a r r M M o o t t o o r r C C o o r r p p o o r r a a t t i i o o n n 2 2 0 0 0 0 5 5 L L - - 5 5...
  • Page 78 C C o o p p y y r r i i g g h h t t © © H H a a n n m m a a r r M M o o t t o o r r C C o o r r p p o o r r a a t t i i o o n n Printed In Canada ® “Home & Park” and “Roadtrek” are registered trademarks of J.J. Hanemaayer of which Hanmar Motor Corporation is a licensee and/or registered user...

This manual is also suitable for:

210 chevrolet210-popular chevrolet210-versatile chevrolet
