Roadtrek CS Adventurous Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual
CS Adventurous
Roadtrek, Inc.
PDF generated at: Fri, 10 Jul 2015 09:37:24 EDT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS Adventurous and is the answer not in the manual?

Questions and answers

Lorna Pettigrew
June 2, 2025

remove 3rd seat

0
3 comments:
Mr. Anderson
June 2, 2025

To remove the 3rd seat in a Roadtrek Adventurous:

1. Locate the seat attachment bolts under the seat.
2. Unbolt the seat using appropriate tools (e.g., socket wrench).
3. Disconnect any wiring if the seat has electrical components.
4. Lift and remove the seat from the vehicle.

This is a DIY project that others have done. Once removed, some users install custom cabinets or armoires in the space.

This answer is automatically generated

0
Lorna Pettigrew
June 2, 2025

@Mr. Anderson Where do the bolts come out once loosened. Will the floor be flush

0
Lorna Pettigrew
June 2, 2025

@Mr. Anderson I do not see the head of the bolt from under the van/camper. How do you remove the bolts?

0
Lorna Pettigrew
May 28, 2025

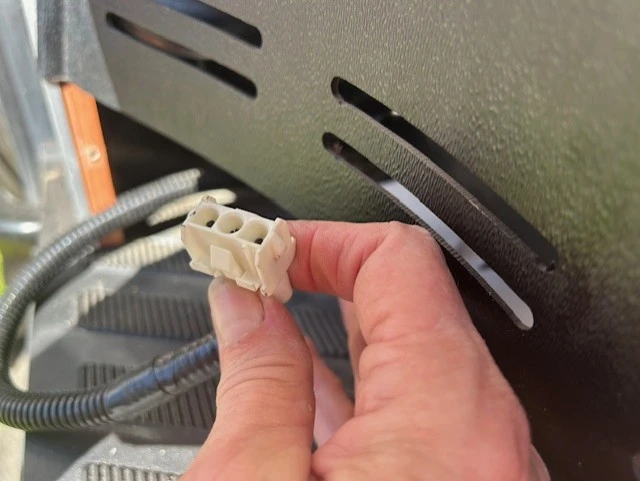

3 prong vertical cable under the black cover by the water valve is not connected to anything. What is this suppose to be connected to?I just filled the fresh water tank and found this cord/ cable 2018 cs adventurous roadtrek

User image 68379020df8d4
0
Marcia Kucharski
May 16, 2025

How to winterize when 2016 cs adventourus is in storage

0

Subscribe to Our Youtube Channel

Related Manuals for Roadtrek CS Adventurous

Summary of Contents for Roadtrek CS Adventurous

  • Page 1 Owner's Manual CS Adventurous Roadtrek, Inc. PDF generated at: Fri, 10 Jul 2015 09:37:24 EDT...

  • Page 2: Table Of Contents

    Contents Articles Introduction to your CS Adventurous Copyright Do's and Don'ts Before You Head Out Coming Home Interior Living Space Sleeping Facilities Bathroom Facilities Appliances Outside your Roadtrek Utilities Heating and Cooling Electrical System Monitor Panel Distribution Panel Alarms and Warnings...
  • Page 3 Spare Tire Storage Obtaining Service Specifications Warranty Registration Regulatory Notices HOWTO: Monitor Panel HOWTO: Setting Up Your Campsite HOWTO: Shore Power HOWTO: Potable Water Use HOWTO: Waste Water Dumping HOWTO: Propane System HOWTO: Cable and TV Reception HOWTO: Water System Winterizing HOWTO: De-Winterizing...

  • Page 4: Introduction To Your Cs Adventurous

    Introduction to your CS Adventurous Congratulations on the purchase of your Roadtrek and welcome to the Roadtreking family. The information included in this manual is meant to help and guide you through the use of your vehicle so that you know how to properly use the many functions your Roadtrek has to offer.

  • Page 5: Copyright

    • • Charge for this manual other than reasonable media and shipping costs. All images used in this manual remain the property of Roadtrek, Inc. They are for illustrative purposes only and may or may not be representative of the upfits in your Roadtrek.

  • Page 6: Do's And Don'ts

    Don't do it. Doing this can result in injury, severe damage, or death. Information, cautions, and warnings This table highlights some of the do’s and don’ts of your Roadtrek. This list is by no means complete. Please refer to the individual sections in the manual for more details.
  • Page 7 Do not block the air circulation in the area where the Propane Leak Detector is located. DETECTOR Battery disconnect switch must be in the “ON” position for the propane detector to function. PROPANE LEAK DETECTOR © 2015 by Roadtrek, Inc.
  • Page 8 AUXILIARY BATTERY Battery acid can burn your skin and damage clothing. Protective eye wear and gloves should be worn while handling batteries. Effective June 2010 all Roadtrek installed batteries are sealed AGM batteries that do no require the addition of water.
  • Page 9 LUG NUTS Sprinters with the optional alloy wheels have a set of lug nuts in the toolbox in the passenger footwell. These lug nuts must be used when mouting the steel-rim spare. © 2015 by Roadtrek, Inc.

  • Page 10: Before You Head Out

    Before You Head Out Before You Head Out Your new Roadtrek is ready to go with just a little bit of preparation. To prepare for your first trip, you should: • • Read this manual. • • Contact your dealer with any questions.

  • Page 11: Coming Home

    Coming Home Coming Home When you come home, there are a few maintenance tasks you should do to get your Roadtrek ready to go for next time. Refer to other sections in this manual for the procedures listed here. • On your way home, dump the gray and black tanks at a convenient facility. See the HOWTO: Waste Water Dumping section for a concise description of the procedure to do this.
  • Page 12 • • the inverter switch, either on the monitor panel with the standard inverter, or just to the left of it with the 2500 watt inverter • • the Webasto control switch back by the TV, if you have this option Battery disconnect switch Standard inverter switch © 2015 by Roadtrek, Inc.
  • Page 13 • • If you turn everything off and you have solar panels, the panels will keep your coach batteries topped up while your Roadtrek is parked outside, clear of snow, leaves, and so on. If you don't have solar panels, it would be prudent to check your coach battery state of charge every month or so and charge them if necessary.

  • Page 14: Interior Living Space

    Pushbutton latch closed Your Roadtrek is equipped with cabinet latches which prevent the door from opening while the vehicle is in motion. The pushbuttons on the cabinet latches toggle from latched (button in) to openable (button out) by pressing the button.
  • Page 15 Interior Living Space the cabinet. For this reason, Roadtrek recommends that you not store anything in the overhead cabinets that you wouldn't want to get hit over the head with. If you load a large amount of weight into a cabinet, experience large swings in temperature or humidity, ride on bumpy roads at high speeds frequently, or sometimes as part of normal wear and tear, the cabinet hinges may go out of adjustment.
  • Page 16 The instant hot water dispensing system is in the cabinet below and to the right of the galley sink. The replaceable filter is accessed inside this cabinet. On-demand hot water system filter CS galley with induction cooktop © 2015 by Roadtrek, Inc.
  • Page 17 The center panel is fixed, and is not a drawer. All these drawers have conventional non-locking knobs, and a friction closure mechanism to secure them while the Roadtrek is in motion. Make sure they are completely closed before driving. Tables There are front and rear tables to use either the front or rear lounge areas for dining, playing cards, or computer use.
  • Page 18 Interior Living Space CS Front table stowed Table legs stowed in wardrobe CS Rear table T-bolt attachment for table leg base © 2015 by Roadtrek, Inc.
  • Page 19 (driver's) side of vehicle, and slide the seat. The swivel lever for the rear seat is on the right (passenger) side of the base. Push it backward to release the lock and swivel the seat. Front seat swivel control Rear seat swivel control Rear seat fore and aft adjustment © 2015 by Roadtrek, Inc.
  • Page 20 The lights have LED bulbs, which use less power and are cooler than typical incandescent bulbs. Blinds The blinds on the side and back windows of the CS Adventurous Roadtrek have a partially opaque, "shade" window covering, and also a completely opaque, "dark" window covering. Pull the blinds down for the "shade"...
  • Page 21 Interior Living Space Shade window covering Opaque window covering © 2015 by Roadtrek, Inc.
  • Page 22 Interior Living Space Ventilation Your Roadtrek is equipped with a ceiling mounted ventilation fan. The fan has a cover that must be raised by turning the large knurled knob. Raise the cover, then use the remote to the desired speed and temperature.

  • Page 23: Sleeping Facilities

    Sleeping Facilities Sleeping Facilities Your Roadtrek has sleeping capacity for up to three people, one in the front of the vehicle with the optional front bed cushion, and two in the rear of the vehicle. Sofa Bed Sofa switch Sofa upright You can configure the rear bed as a King or Twin bed depending on your preference or requirements.
  • Page 24 When you raise the sofa put the seat belts back in position. To do this, open the back door of the vehicle and push the seatbelts through the sofa between the seat and back cushions. NEVER use the rear seats for passengers without seatbelts. © 2015 by Roadtrek, Inc.
  • Page 25 The side that goes toward the doors is relatively flat - this notch is the inboard side toward the back when the folding mattress is correctly oriented. • • Place the mattress so that it sits across both the front and second row captain seats. © 2015 by Roadtrek, Inc.
  • Page 26 Sleeping Facilities Notch in folding mattress for rear seat Passenger side folding belt mattress in place © 2015 by Roadtrek, Inc.

  • Page 27: Bathroom Facilities

    Bathroom Facilities Bathroom Facilities Your Roadtrek is equipped with a permanently enclosed bathroom that includes a sink and a stand up or sit down shower. Securing Bathroom Door The bathroom doors are secured by a latch and pin system. To secure the doors for driving: •...
  • Page 28 Inside latch and toilet paper holder The bathroom in your Roadtrek contains a marine type toilet. To secure the doors once inside, use the inside latch. To flush the toilet, use your foot to press the foot pedal located at the bottom of the toilet, then release the foot pedal. Do not use toilet paper which will clog your black water tank and waste water pump - use only paper which will disintegrate easily when it gets wet.
  • Page 29 • • Once ready, pull up on the knob located between the sink faucet handles to start the flow of water • • Adjust the water temperature as needed using the cold and hot water knobs on the sink faucet © 2015 by Roadtrek, Inc.
  • Page 30 • • Refasten the drain stopper in the center of the bathroom floor (this is important as it stops the content of the grey water from sloshing into the shower area while the vehicle is in motion) • • Dry the shower curtain with a towel or allow it to air dry before storing it © 2015 by Roadtrek, Inc.

  • Page 31: Appliances

    TV and Home Theatre System Your Roadtrek is equipped with a 120 volt TV and home theatre system with remote control for your enjoyment and viewing pleasure. In order to generate power to these appliances, you must turn on the inverter, connect to shore power, or run the generator if so equipped.
  • Page 32 Appliances Controlling the Rear Speakers The surround sound system offered in your Roadtrek allows you to control the rear speaker sound in your vehicle. Locate the speaker switch which can be found in the cabinet above the home theater system.
  • Page 33 See Heating and Cooling. Refrigerator The refrigerator in your Roadtrek is a 12 volt DC/120 volt AC compressor refrigerator that switches automatically between voltages. The temperature controls for the refrigerator are located across the top. See the operating manual for instructions on this appliance.
  • Page 34 Since the induction stovetop depends on magnetic material to produce heat, copper or aluminum cookware will not get warm. For instructions on how to use this appliance, please refer to the Inductive cooktop stove manual. Induction stove © 2015 by Roadtrek, Inc.

  • Page 35: Outside Your Roadtrek

    Awning switch above front passenger seat Your Roadtrek is equipped with an easy to use power roll up awning. To use the awning please follow these steps: • • Check for tree granches and other obstructions. • • Press the switch inside the passenger side front door, above the doorframe to extend the awning and lower the supports on each side.
  • Page 36 Step extended Your Roadtrek is equipped with a step that automatically extends when the side door is opened for easy entry and exit out of your vehicle. With the step switch on, the step will extend once when the door is open and remain extended even if the door is closed.
  • Page 37 The compartment behind the second door contains the waste water disposal hose, the gray water valve handle, the black water value handle, the waste water disposal pump cleaning knob, and the cable TV connection point. The compartment behind the third door contains the spare tire and the shore power connection point. © 2015 by Roadtrek, Inc.
  • Page 38 Fuel fill access Fuel fill access The fuel fill door is located directly behind the driver on the outside of the vehicle. To fill your Roadtrek with fuel; 1. 1. Open the driver side door 2. 2. Swing open the fuel fill cover 3.
  • Page 39 Rear door retaining strap Rear door magnet The rear doors of your Roadtrek have the ability to open all the way so they fold against the sides of the vehicle. To open the doors to their fullest extent; 1. 1. Open the door to 90 degrees 2.
  • Page 40 As an option, some Sprinter Roadtreks have a rear screen which will allow you to open the rear doors and get fresh air without bugs coming in. Look for this screen in the hanging wardrobe behind the bathroom in your new Roadtrek. It attaches to the rear door frame with a zipper and hook-and-loop fasteners.
  • Page 41 E-Trek without disturbing the top section. To remove and stow the screen, unzip it from the top down. Unzipping it from the bottom will not allow you to remove it from the doorframe surround. © 2015 by Roadtrek, Inc.
  • Page 42 Do not leave your pets unattended with the screen in place and the doors open. They may take themselves for a walk. The screen is not intended for use as a cargo net or any sort of restraint system. © 2015 by Roadtrek, Inc.
  • Page 43 Use the brass auxiliary key which came with your Roadtrek to unlock the compartment door. When finished, coil the hose back up so that it and the shower head fit inside the compartment.

  • Page 44: Utilities

    Utilities Utilities Just like your house, your Roadtrek has fresh water, electricity, waste water disposal, heating, and cooling systems. In the Roadtrek, these systems are self contained and travel with you. Fresh Water Fresh water is contained in the fresh water tank. To fill your fresh water tank, open the passenger side front door and look on the doorsill near the door handle for an orange plug.
  • Page 45 Utilities City Water Your Roadtrek can operate in either fully self-contained mode, or can be connected to a water supply such as a campsite's faucet. Campgrounds and municipalities vary greatly in supplied water pressure. Before connecting to external water supplies, purchase and install a pressure regulator inline with the water connection.
  • Page 46 • • Flush old water and any contaminants out of the water supply faucet. • • Connect your fresh water hose to the faucet. • • Attach your pressure regulator to the Roadtrek's city water connection. • • Attach a fresh water hose to the the pressure regulator.
  • Page 47 If it stays together, swells up, or clumps into a solid mass, it`s not safe and should be disposed of in the trash and not down the toilet. See HOWTO: Waste Water Dumping for a concise summary of how to operate your waste water system. © 2015 by Roadtrek, Inc.

  • Page 48: Heating And Cooling

    Standard Alde Hydronic System The Alde hydronic system provides hot water, coach heating, and engine preheating for your Roadtrek. Power is supplied by either shore power, power generated by the engine generator, heat from the engine, or propane. The Alde control unit is located on the driver's side of the coach, behind the cabinet to the left of the galley, facing the rear lounge/bed area.
  • Page 49 This protects the Alde plumbing only; you still need to winterize the remaining water system in your Roadtrek to prevent damage to the water lines and other components. You can also drain the system manually by turning the valve to the tripped position.
  • Page 50 Heating and Cooling Alde frost control valve in operating Frost control valve in tripped position Alde reset button position © 2015 by Roadtrek, Inc.
  • Page 51 It may take an hour or two for the pre-heat to be effective, depending on ambient temperatures. To prevent any engine heat from warming the cabin (as in hot climates), shut off the heat exchanger valve. © 2015 by Roadtrek, Inc.
  • Page 52 • • Frost protection - the last setting on the right is frost protection. In this mode the heater will operate to keep the the water in the boiler above freezing. This does not provide any protection for the pipes and faucets in the rest of the Roadtrek. To protect these, perform the winterization procedure.
  • Page 53 The Webasto unit is connected directly to the battery bank, and is not controlled by the battery disconnect switch. For this reason, please ensure the unit is turned off to avoid draining the batteries when the Roadtrek is not in use, or any time hot water and cabin heating is not needed.

  • Page 54: Electrical System

    Batteries The batteries in your Roadtrek are sealed AGM (absorbed glass mat) batteries. Do not attempt to open them. There is no user maintenance possible on these batteries except keeping them charged - you never have to add water to them.
  • Page 55 Positive jumper point, on driver's side of Coach batteries and negative jumper the engine. Red disc is pushed back to attachment point - brass stud protruding expose the contact. from side wall of engine compartment © 2015 by Roadtrek, Inc.
  • Page 56 The battery disconnect switch provides power to all 12 volt appliances, such as the water pump, the refrigerator, and so forth. This switch should be off when you are not using your Roadtrek, and on whenever you are driving or camping. The "Battery On"...
  • Page 57 There is no required maintenance for the engine generator. Note, however, that your vehicle's serpentine belt (the belt which drives the vehicle's alternator, water pump, power steering, etc.) will be different than the one for similar vehicles without the © 2015 by Roadtrek, Inc.
  • Page 58 The switchover from shore power to inverter is automatic - the inverter will sense the incoming shore power as soon as you plug it in. Solar controller in cabinet above galley © 2015 by Roadtrek, Inc.
  • Page 59 The outlets are powered either from the inverter or from shore power when connected. The outlets are protected by GFCI (ground fault circuit interrupters). All the outlets in your Roadtrek should have power if you are connected to shore power.
  • Page 60 If you are not getting power from an outlet, check and reset this button if needed by pushing it in. The one over the galley provides protection for outlets on the driver's side of the Roadtrek. The outlet behind the passenger side rear captain's chair provides GFCI protection for the TV and DVD player, so check it if your TV is not receiving power.
  • Page 61 Electrical System Optional Propane Generator Your Roadtrek may be equipped with a 2500 watt propane generator. This generator, when running, will power your air conditioner, microwave, and all other electrical appliances, plus charge your batteries. To start the generator, push START. Allow the generator to run for a couple of minutes before turning on heavy loads such as the air conditioner.

  • Page 62: Monitor Panel

    The monitor panel is located inside the side door, above the rear captain's seat. Power Sources Monitor Panel Battery disconnect switch The monitor panel controls two separate power sources; the 12 volt DC power and the 120 volt AC power via the inverter. © 2015 by Roadtrek, Inc.
  • Page 63 This switch must be on for any of the 12 volt electrical devices to work. Remember to turn off the battery disconnect switch (plus the optional 2500 watt inverter switch, if supplied) when your Roadtrek is not being used to avoid discharging the batteries.
  • Page 64 Your refrigerator will run on either 12 volt battery power or 120 volt inverter power, but because of the conversion loss in the 12 volt to 120 volt transformation it will use less electricity if the inverter is off and it is running on 12 volt power. © 2015 by Roadtrek, Inc.
  • Page 65 On the control panel, the top left switch is the patio lights switch. Press the top of the button to turn the lights on, and the bottom to turn them off. These are LED lights and use very little power. Patio light switch Water pump switch location with big Water pump switch location with inverter standard inverter © 2015 by Roadtrek, Inc.
  • Page 66 Press the button for each to see the display. These will give you an approximate reading, to the nearest third, of how much is in each tank. The four indicator lights for the battery are low, fair, good, and charging. Tank indicators Generator switch and hour meter © 2015 by Roadtrek, Inc.
  • Page 67 To stop the generator, first shut down all heavy loads, let the generator run for a few minutes to cool down, then press the bottom (STOP) end of the rocker switch. To see a concise guide to how to operate the controls on the monitor panel, go to HOWTO: Monitor Panel. © 2015 by Roadtrek, Inc.

  • Page 68: Distribution Panel

    Flip the cover down and note the sticker under the cover with the identifying information on each breaker. When storing the Roadtrek for the winter, turn off the battery disconnect switch, your inverter, and all circuit breakers in this panel.

  • Page 69: Alarms And Warnings

    The detector has a useful service life, beyond which it needs to be replaced. See Manufacturer’s Owner’s Manual for other operating instructions, or look for the sticker which is sometimes placed on the detector to see the replacement date. The detector may chirp if the coach batteries are running low. © 2015 by Roadtrek, Inc.
  • Page 70 Smoke Detector Fire Extinguisher Your Roadtrek comes equipped with a dry chemical fire extinguisher suitable for all fires. Before every trip, check to see that the needle on the dial is in the green range. If not, replace the fire extinguisher. DO NOT test your fire extinguisher by discharging it - total discharge time is 8 to 12 seconds, so it will become rapidly depleted if you test it this way.

  • Page 71: Maintenance

    Any adverse conditions should be brought to the attention of your dealer or qualified service technician for expert service advice as soon as possible. The owner maintenance checks are generally not covered by warranties and you may be charged for labor, parts and supplies used. © 2015 by Roadtrek, Inc.
  • Page 72 Sanitize by adding 1/2 cup chlorine bleach to the tank, fill with water, let sit for at least two hours, and drain. 1/2 cup vinegar added to the next tankful, which will also be drained before filling with fresh water for use, will help dissipate the chlorine smell. © 2015 by Roadtrek, Inc.
  • Page 73 Check lap and shoulder belts for wear and function. Replace any belts with frayed spots or that do not smoothly retract into their holders. Inspect appliance vents to ensure they are free from dirt, insects, spider webs and/or nests. © 2015 by Roadtrek, Inc.
  • Page 74 To prevent water from entering your vehicle, avoid spraying water directly into exterior vents or grills. Do not use a power washer to clean your Roadtrek - damage to the paint, removal of decals, and water leaks will result. Hand washing or commercial car washes accommodating large vehicles are the best way to keep your Roadtrek clean and shiny.

  • Page 75: Spare Tire Storage

    The alloy wheels on the Roadtrek use different lug nuts than the steel spare. There is an adapter in the tire change tool set which will fit these larger lug nuts and the standard lug nut wrench.
  • Page 76 • • Locate the jack handle (three pieces of steel tubing in the pouch) and the "banana" lever in the jack compartment. • • Locate the 19 mm - 3/4 inch wrench which came in the white box of Roadtrek accessories. Roadtrek recommends you keep this in the glovebox when not in use so that it will be readily available.
  • Page 77 Kneeling on the jack handle to secure it, use the wrench to loosen the long nuts on the two long bolts on either side of the tire carrier about a half inch or so. © 2015 by Roadtrek, Inc.
  • Page 78 You are compressing the tire, so the nuts will not get tight on the bolts like a metal-to-metal contact will. Repair or replace the flat spare tire at your earliest opportunity, and reinstall the good spare in the spare tire carrier. © 2015 by Roadtrek, Inc.

  • Page 79: Obtaining Service

    Obtaining Service Obtaining Service When your Roadtrek needs service, determine if the issue is with the Roadtrek upfits or the Sprinter Chassis. For Roadtrek upfits, contact your Roadtrek dealer. For chassis-related issues, contact Mercedes service. Advise the service writer that you have an extended 3500 van, rather than a "motorhome".

  • Page 80: Specifications

    For general chassis specifications, please refer to the Mercedes manual. For specifications relating to your vehicle, including occupancy, weight rating, tire size, inflation, and so on refer to the sticker on the driver's side B pillar (right side of the door frame, near the latch). This specification refers to the Roadtrek upfits. Roadtrek upfits only Total fresh water capacity (includes water heater) 21 gallons/ 125 liters...

  • Page 81: Warranty

    Roadtrek Motorhomes 5 Year Upfit Warranty Roadtrek Motorhomes warrants to the Purchaser that the Vehicle is free from defects in material and workmanship on the portion manufactured by Roadtrek Motorhomes, under normal use and service, for five (5) years, from date of purchase by the first Purchaser or the date the Vehicle was first put into service (for example, as a demo or rental), whichever is earlier.
  • Page 82 Roadtrek Motorhomes Limited Motorhome Warranty is void unless the following conditions are adhered to: 1. 1. Warranty Card on Vehicle must be completed by the Dealer and faxed to Roadtrek Motorhomes within 48 hours of date of retail delivery. When warranty applications are made and Warranty Card is not on file at Roadtrek Motorhomes, reimbursement of claim will be delayed until proof of original purchase is submitted to Roadtrek Motorhomes.
  • Page 83 Warranty 5. 5. Only parts and accessories and other material, available through Roadtrek Motorhomes are to be used in the performance of warranty service. Express shipping costs are not covered by this warranty policy. 6. 6. Warranty repairs performed a second time by a Dealer (due to incorrect or inadequate diagnosis, improper assembly or repair, or lack of proper testing when the original warranty repair was performed) are considered as shop comebacks and are not reimbursable.
  • Page 84 The intent of this extended warranty is to assure the new owner of a Roadtrek that it is worry free from manufacturer caused defects for the first five (5) years of use. The first owners of this unit can feel comfortable that Roadtrek is behind them for five (5) years.

  • Page 85: Registration

    Registration Registration Please send this form in or email the information to sales@roadtrek.com when you purchase your Roadtrek. © 2015 by Roadtrek, Inc.
  • Page 86 Registration References [1] mailto:sales@roadtrek. com © 2015 by Roadtrek, Inc.

  • Page 87: Regulatory Notices

    Regulatory Notices If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration, (NHTSA) in addition to notifying Roadtrek Motorhomes. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.

  • Page 88: Howto: Monitor Panel

    The monitor panel monitors your battery and tank status, and provides controls for all of the on-board utilities. © 2015 by Roadtrek, Inc.
  • Page 89 The battery disconnect switch turns the coach battery power off and on. When off, it prevents your coach batteries from being drained while the Roadtrek is not in use. The lights, the water pump, the fan, the refrigerator, even the igniters for the propane cooktop need 12 volt power from the batteries.
  • Page 90 Inverter Switch with 2500 Watt Inverter If your Roadtrek has the engine generator and 2500 watt inverter option, your inverter switch will be on its own smaller panel to the left of the main monitor panel. The switch has three positions: off in the middle position, power save auto in the top position, and power save off in the bottom position.
  • Page 91 On the control panel, the top left switch is the patio light switch. Press the top of the button to turn the lights on, and the bottom to turn them off. These are LED lights and use very little power. Patio light switch Water pump switch with standard Water pump switch with 2500 watt inverter inverter © 2015 by Roadtrek, Inc.
  • Page 92 These will give you an approximate reading, to the nearest third, of how much is in each tank. Roadtrek recommends that you keep a small amount of water in your gray and black tanks at all times. This will reduce the likelihood of material sticking to the inside of the tank.
  • Page 93 The hour meter keeps track of how many hours your generator has been running. This is important for servicing intervals such as oil changes, etc. See your Cummings/Onan generator service manual for details. There is a break-in oil change after the first 20 to 50 hours of use. © 2015 by Roadtrek, Inc.

  • Page 94: Howto: Setting Up Your Campsite

    What Do You Need To Hook Up? In a Roadtrek, the answer to this question is - a lot less than you think. Rather than slog through the setup ordeal that Class As and fifth wheels and other trailers go through, Class Bs are much more nimble. We travel light and can set up and pack up in minutes.
  • Page 95 Full hookup sites have a handy sewer dump right at your campsite. When your fresh water runs low, refill your fresh water tanks, dump your waste water holding tanks, and you're good to go, plus you can drive off anytime merely by stowing your electrical cord. © 2015 by Roadtrek, Inc.
  • Page 96 Once you're out there, don't look around for those big rigs who are dependent on hookups - they're all back in town. It's just you and nature, with the occasional backpacker. © 2015 by Roadtrek, Inc.
  • Page 97 How level is level? In general, if it's level enough to be comfortable for you, it's probably good enough for your plumbing. If you have a choice, it's better to have the front of the Roadtrek very slightly higher than the back for air conditioner condensate drainage. If you're not running your air conditioner, it doesn't matter.

  • Page 98: Howto: Shore Power

    Connecting To Shore Power Your CS Adventurous has a shore power cord, which is stored beneath the sofa. Plug the large yellow end of this cord into your shore power connection point directly in front of the driver's side rear wheel in the rear utility bay.
  • Page 99 Most RV parks and campgrounds have AC power of various voltages and amperages available at each site. The power will typically be in a pedestal with a cover that flips up. If you cannot find your power pedestal or you're not sure how to open it, ask the campground personnel. 50A outlet 30A outlet © 2015 by Roadtrek, Inc.
  • Page 100 The pedestal will also typically have individual breakers for the 15A, 30A, and 50A services. Many campgrounds turn off unused breakers so check that the breaker for the plug you will be using is turned on. Your Roadtrek is equipped with a 30 Amp cord. Most power pedestals have a 30 amp receptacle. © 2015 by Roadtrek, Inc.
  • Page 101 30 amps available. Although you are connected to a 50A service, you can only draw 30A; there is no advantage to connecting to a 50A service if a 30A service is available. © 2015 by Roadtrek, Inc.

  • Page 102: Howto: Potable Water Use

    HOWTO: Potable Water Use HOWTO: Potable Water Use Your Roadtrek can operate in either fully self-contained mode, or can be connected to a water supply such as a campsite's faucet. The city water connection is in the driver's side front access bay, to the left of the propane tank. Unscrew the white plastic protective cap and connect your clean hose to the water faucet and to a water pressure regulator attached to this connection point.
  • Page 103 The city water inlet connection is located in the front driver's side compartment, to the left of the propane tank. Roadtrek recommends that you use a dedicated single purpose potable-water hose. These are usually white in color. Buy a new one and use it only for filling your tanks and connecting to city water. View any hose lying around a campground with extreme skepticism, especially it there's a wastewater dump nearby.
  • Page 104 Make sure the black plastic handle is perpendicular to (across) the water line when your water system is in self-contained mode. © 2015 by Roadtrek, Inc.

  • Page 105: Howto: Waste Water Dumping

    Waste Water Discharge Pump Your Roadtrek is equipped with a waste water disposal pump to make dumping your tanks easier and cleaner. The macerator in this pump grinds up any solids in the system and pumps the resulting wastewater out to the dump station.
  • Page 106 • • Open the front two utility access bays behind the driver's door. This will expose the green waste water discharge hose. Support the bay covers in the open position by swiveling the support so that the long end points toward the Roadtrek's body.
  • Page 107 • Open the driver’s door and locate the waste water pump switch. It is a red pushbutton located on the driver's seat base. Waste water pump button on base of Open the dump hose valve driver's seat © 2015 by Roadtrek, Inc.
  • Page 108 • • There are two ways to secure the hose in the dump station waste receptacle four inch pipe. In the white box that came with your Roadtrek there is a rubber doughnut, which goes over the discharge nozzle and can be wedged into the waste receptacle to hold the waste water discharge hose in place.
  • Page 109 Tear open the packet and pour the contents into the black tank, and dispose of the packet in the trash. The contents of the powder packets can be irritating to your eyes and nose, so hold the packet low to the bowl and try to pour directly into the tank. © 2015 by Roadtrek, Inc.
  • Page 110 • • Turn the knob first in one direction and then the other to loosen the obstruction. • • Once the obstruction is loose, continue dumping by pressing the pump button again. Waste water pump manual crank knob © 2015 by Roadtrek, Inc.

  • Page 111: Howto: Propane System

    This valve must be closed whenever the vehicle is in motion in any case, not just in certain areas. Other bridges/tunnels/ferries ban vehicles with propane tanks entirely. Plan ahead and take an alternate route if passing through areas where vehicles with propane are prohibited. © 2015 by Roadtrek, Inc.
  • Page 112 If you close the main valve for an extended period of time it is possible for the distribution lines to fill with air. It may take a while for propane to fill the lines again. The fridge and water heater handle this automatically; for the stove you can hear the difference between propane and air. © 2015 by Roadtrek, Inc.
  • Page 113 The propane system has a high-pressure auxiliary BBQ takeoff. Locate the hose by reaching under the edge of the Roadtrek about halfway between the rear passenger tire opening and the side door. Pull the hose toward the back of the Roadtrek to release it from the channel it is stowed in.
  • Page 114 Venting unburned propane is a slightly more advantageous situation than a tank explosion, which is what this valve is designed to prevent. We recommend that you use only propane from certified LPG retailers. © 2015 by Roadtrek, Inc.
  • Page 115 Note the amount it takes to fill your tank. The 16 gallon tank in your Roadtrek will hold 12.8 gallons / 48 liters when completely empty and filled to the correct 80% full level. Subtract the amount you buy from this number, and you'll know how much was in the tank when you filled it.
  • Page 116 Propane tanks must not be placed or stored inside your vehicle. Propane tanks are equipped with safety devices which relieve excessive pressure by discharging gas to the atmosphere. The Roadtrek's propane tank is mounted outside the vehicle and will vent propane where it can dissipate; any tank inside the vehicle will vent into the passenger compartment, creating an explosive propane-air mixture inside the enclosed space, which also contains many potential sources of ignition.

  • Page 117: Howto: Cable And Tv Reception

    HOWTO: Cable and TV Reception Your Roadtrek comes with a home theatre system. This consists of a TV, a DVD player, the speaker system and the radio in the dash, along with a rooftop TV antenna and a cable TV connection.
  • Page 118 HOWTO: Cable and TV Reception TV antenna switch and power injector Rear speaker switch Over-the-air TV © 2015 by Roadtrek, Inc.
  • Page 119 Antenna booster/power injector (top button) connection To watch TV using the Roadtrek rooftop antenna: • • Have 120 volt AC power available (inverter on OR shore power plugged in OR generator running) • • Turn on TV and home theatre system •...
  • Page 120 Coaxial TV connecting wire with screw-on You need a length of coaxial TV cable to reach from the cable TV outlet to your Roadtrek's connection point. These are sold in electronic supply and camping supply stores and come in lengths of 25, 50, and 100 feet. The cable is typically sold as RG-59U or RG-6 with F-type connectors.
  • Page 121 Push the bottom button on the A-B switch in the cabinet above the TV. The bottom button connects your TV to the cable connection, and the top button connects it to the over-the-air signals from your rooftop antenna. © 2015 by Roadtrek, Inc.
  • Page 122 In the Surround position, the rear speakers (the speakers above the bed) will work with the TV/home theatre system. In the Off position the speakers are off. In the Automotive position, the speakers are connected to the dash radio. Rear speaker switch © 2015 by Roadtrek, Inc.

  • Page 123: Howto: Water System Winterizing

    (above 40 deg. F or above 4 deg. C) and the forecast is for temperatures just below freezing for a few hours at night with calm winds, then you don`t need to winterize. The heat in your Roadtrek is enough to keep the lines from freezing.
  • Page 124 • • 6. Lift the cushions and stowed rear table off the driver's side bench behind the wardrobe and loosen the screw securing the hinged cover. • • 7. Lift the cover up to expose the three bypass valves on the water lines, and the Alde frost protection valve. © 2015 by Roadtrek, Inc.
  • Page 125 Roadtrek • • 8. Turn the three black plastic handled valves so that they are all pointing toward the side of the Roadtrek. See photo above. © 2015 by Roadtrek, Inc.
  • Page 126 RV antifreeze emerges from the faucet. Then do the same thing with the hot handle. You will be filling the hot water reservoir with antifreeze, which takes approximately a gallon, so © 2015 by Roadtrek, Inc.
  • Page 127 Remove the plastic cover, and the city valve is inside the exposed opening on the left side of the side door step. Turn the handle horizontally to the parallel-to-the-line position (see photos above). The water pump will operate. Allow it to run about 20 seconds. Turn city water valve off (black plastic handle will be vertical). © 2015 by Roadtrek, Inc.
  • Page 128 Replace water pump filter. • • 20. This is the end of the regular winterization instructions - steps below are for Roadtreks with the optional Webasto units only. © 2015 by Roadtrek, Inc.
  • Page 129 There are two air ducts on the front side of the unit, near the top. There are also two white water lines coming back from the front of the Roadtrek, one on each side of the chassis centerline. Just before these lines get to the Webasto unit, there is a transverse white hose connecting them, with a valve on it.
  • Page 130 There may be other valves on the hot water line forward of the transverse (shunt) line - DO NOT TURN THESE VALVES. If your outside shower quits working, you turned the wrong valves. Go back to the middle of the winterization procedure and complete steps 10 through 19. © 2015 by Roadtrek, Inc.
  • Page 131 HOWTO: Water System Winterizing Winterizing using compressed air Roadtrek recommends against using compressed air for winterizing. Other methods of winterizing Roadtrek only recommends the winterizing method outlined above using RV antifreeze. © 2015 by Roadtrek, Inc.

  • Page 132: Howto: De-Winterizing

    1. 1. Check to be sure the fresh water tank drain valve is closed, then add the water/bleach mixture to the fresh water tank through the gravity fill. 2. 2. This is a good time to get some stuff for spring cleaning of your Roadtrek, so drive around for an hour. Let it sit for a couple more hours.
  • Page 133 If your CS Adventurous has the Webasto diesel-powered hot water system instead of the standard Alde water heater, perform this step and skip the following step beginning "Open the galley sink...". If your CS Adventurous has the Alde system, skip to the next step beginning "Lift the cushions...".
  • Page 134 (the differential). There are two air ducts on the front side of the unit, near the top. There are also two white water lines coming rearward from the front of the Roadtrek, one on each side of the centerline. Just before these lines get to the Webasto unit, there is a transverse white hose connecting them, with a valve on it.
  • Page 135 Turn the three black plastic valves so that they all face forward (see photo below). Push the blue button at the base of the Alde frost protection valve in, and turn the blue handle on top 90 degrees so that it is parallel to the water line - pointing forward (see photo below). © 2015 by Roadtrek, Inc.
  • Page 136 • • To help get rid of the residual chlorine smell, pour a cup of vinegar into the fresh water tank, fill, let sit for a few hours, run the faucets for a minute or so apiece, drain the tank to ground, and refill with fresh water. © 2015 by Roadtrek, Inc.
