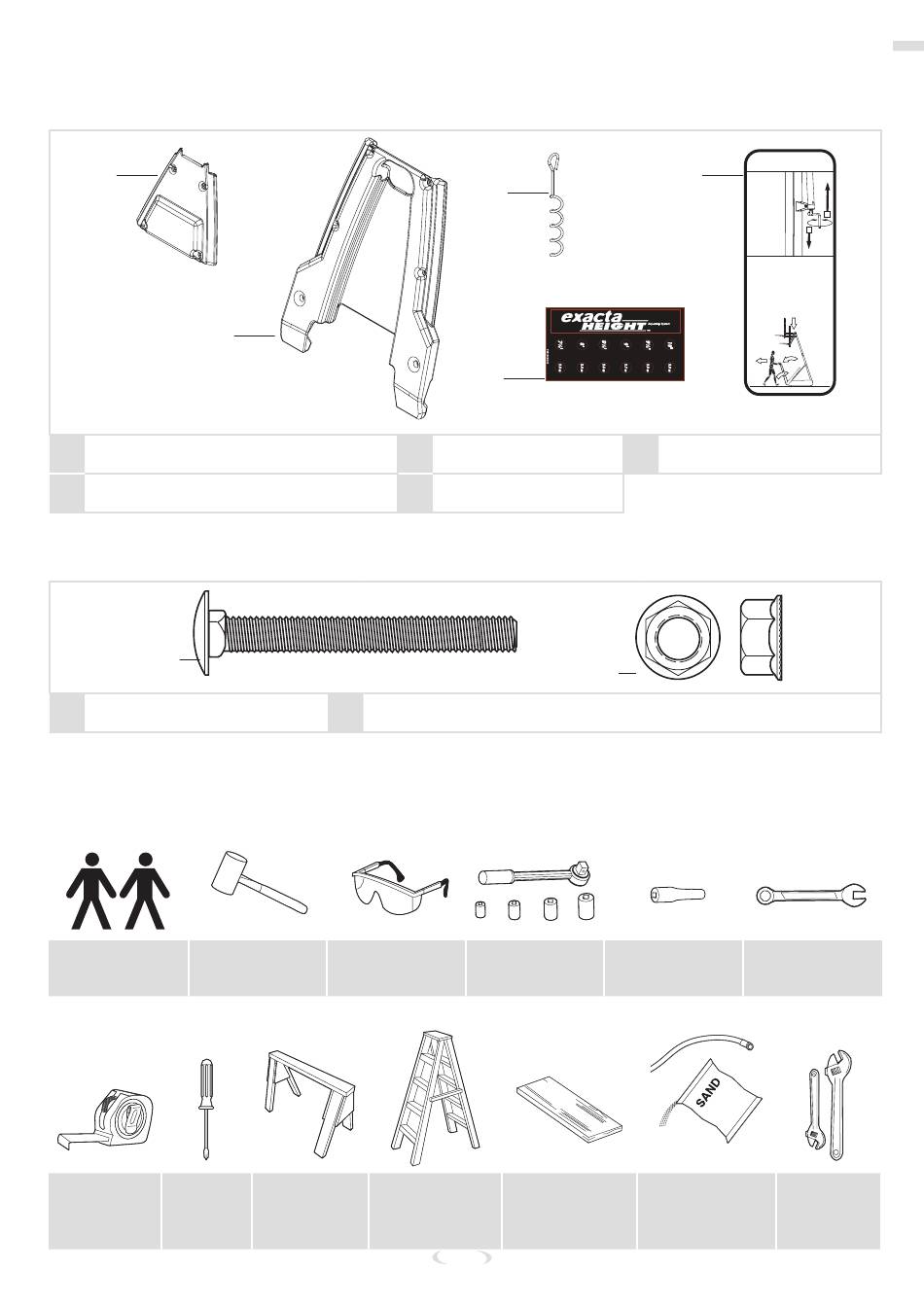

STADIUM PAD ASSEMBLY
#30
#29
29 Stadium Pad, Bottom (x1)
32 Label, Height Adjustment and Moving (x1)
KIT 7 – STADIUM PAD HARDWARE – AC00002
#P1
P1 Bolt, Carriage, 3/8-16x2.75L (x10)
Bolt, Carriage, 3/8-16 x 2-3/4
Tools & Materials for Assembly
2 Capable Adults
Phillips
Tape Measure Screwdriver
#3
30 Stadium Pad, Top (x1)
33 Label, Height Indicator
P2 Nut, Hex-Flange, 3/8-16 (x10)
206011
Mallet Safety Glasses
Sawhorse Step Ladder (8 ft.) Scrap Wood Board Sand/Garden Hose
#31
#33
#P2
Socket Wrench Socket Wrench
1/2", 9/16", 3/4"
9
Tools & Materials for Assembly
HEIGHT
ADJUSTMENT
#32
Rotate crank
handle to raise
and lower
backboard.
Do not over crank
handle beyond the
manufactured height
indicator range of
7-1/2 - 10 feet.
Damage may be
caused to the screw
B
jack's internal
adjustment
mechanism if
adjusted over 10 or
under 7-1/2 feet.
MOVING SYSTEM
1. Adjust basketball backboard height to
lowest postion.
2. Rotate handle forward until wheels
engage ground.
3. Move basketball system to desired location.
4. Rotate handle back to original position.
5. Check system for stability.
1
3 2
574090
LABEL AS APPROVED BY HUFFY SPORTS ENGINEERING
FOR OUTDOOR APPLICATION
31 Ground Stake (x1)
203041
NUT, HEX FLANGE, 3/ 8- 16
Wrench
Extension 1/2", 9/16", 3/4"
(OPTIONAL)
Adjustable
Wrenches
A
