Page 1

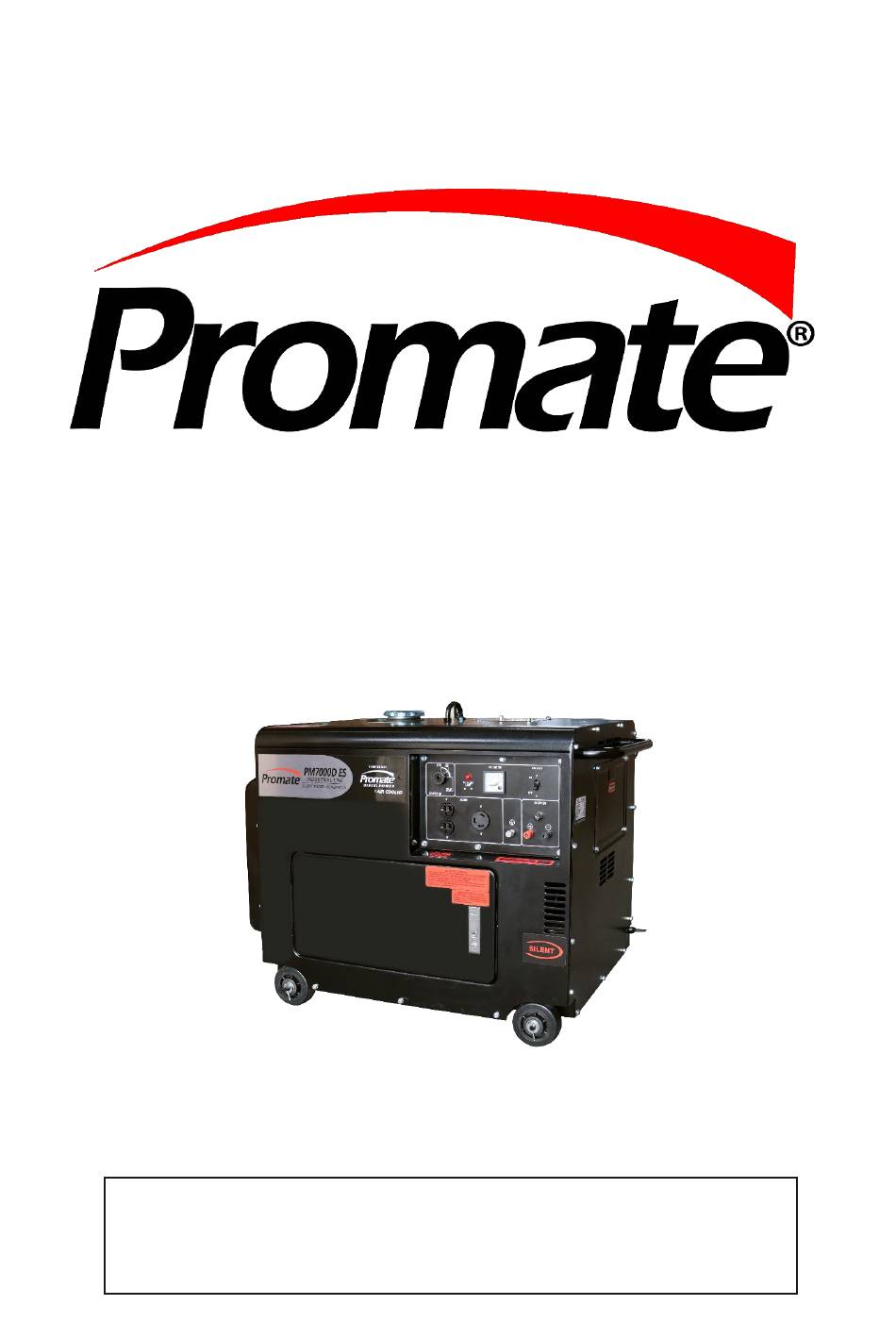

Operator Manual Air-cooled Diesel Generator IMPORTANT – Please make certain that persons who are to use this equipment thoroughly read and understand these instructions and any additional instructions provided prior to operation. Record the model and serial numbers of your Generator below: Model No._____________________ Serial No._______________________...
Due to constant efforts to improve our products, certain procedures and specifications are subject to change without notice, if you have any questions, please contact Promate Service. CONTENTS Safety Precautions...
Safety Precautions The electric power generated by the diesel engine of the generator can be used for many kinds of electric appliances. When handling it, please keep to the following matters. Please make sure you review each precaution carefully. EXHAUST PRECAUTIONS OTHER SAFETY PRECAUTIONS •...
Name of Parts Before Starting Before starting the engine. check the generator set on the place where it is flat by placing it horizontally. 3-1 Checking and selecting engine oil Oil filter cap / • The engine may be damaged if operated with Dipstick insufficient lube oil.
• When checking the oil level, make sure • Refuel in a well-ventilated area with the your engine is sitting level. If it is tilted, engine stopped. you may add either too much or too • Do not smoke or allow flames or sparks little oil.
Connect the wires to the battery terminals. If the engine does not start after 10 seconds, wait a while (for about 15 b. Then, a. First, seconds) before attempting to start connect connect again. the RED wire to BLACK the “+” wire to Battery the “-”...
5-3 Load Push down the decompression lever (C) (It will return automatically after To add load according to specified parameter. the engine starts) A.C application (1) Set AC breaker to "ON". Pilot lamp will illuminate, the speed of generator must reach rated speed [lever at top).
7.1 Periodic Checks and Maintenance Periodic checks and maintenance are very Shut off the engine before performing any important for keeping the engine in good maintenance. If the engine must run, make condition and durable. The mark (•) indicates sure the area is well ventilated. The exhaust that special tools and skills are required, you contains poisonous carbon monoxide gas.
7-1.1 Changing engine oil Remove the oil filler cap, remove the drain Never run the engine without the plug and drain the used oil while the engine element or with a defective element. is still warm. The plug is located on the bottom of the cylinder block.
Company set To order replacement parts and consumable forth in the owner's manual, or if the parts, please contact Promate Service (details product is used as rental equipment. below) and be ready with the following...
Model: Promate 7000D ES Silent Generator Exploded View NOTE: The structure presented in this parts catalog may be different somewhat from that of our updated products in future. Description Description Diesel Engine Assembly Right Side Plate Electric Alternator Assembly Fuel System...
Model: Promate 7000D ES Silent Diesel Generator Spare Parts List (2) Electric Alternator Assembly Part No. Description Qty. Part No. Description Qty. 5500T-02200 Electric Motor CB/810-1988 Round Nut M5 8KM.0341.01 Front Cover of Electric Motor 8KM.203.009 Bolt M5 (Locking Stator)
