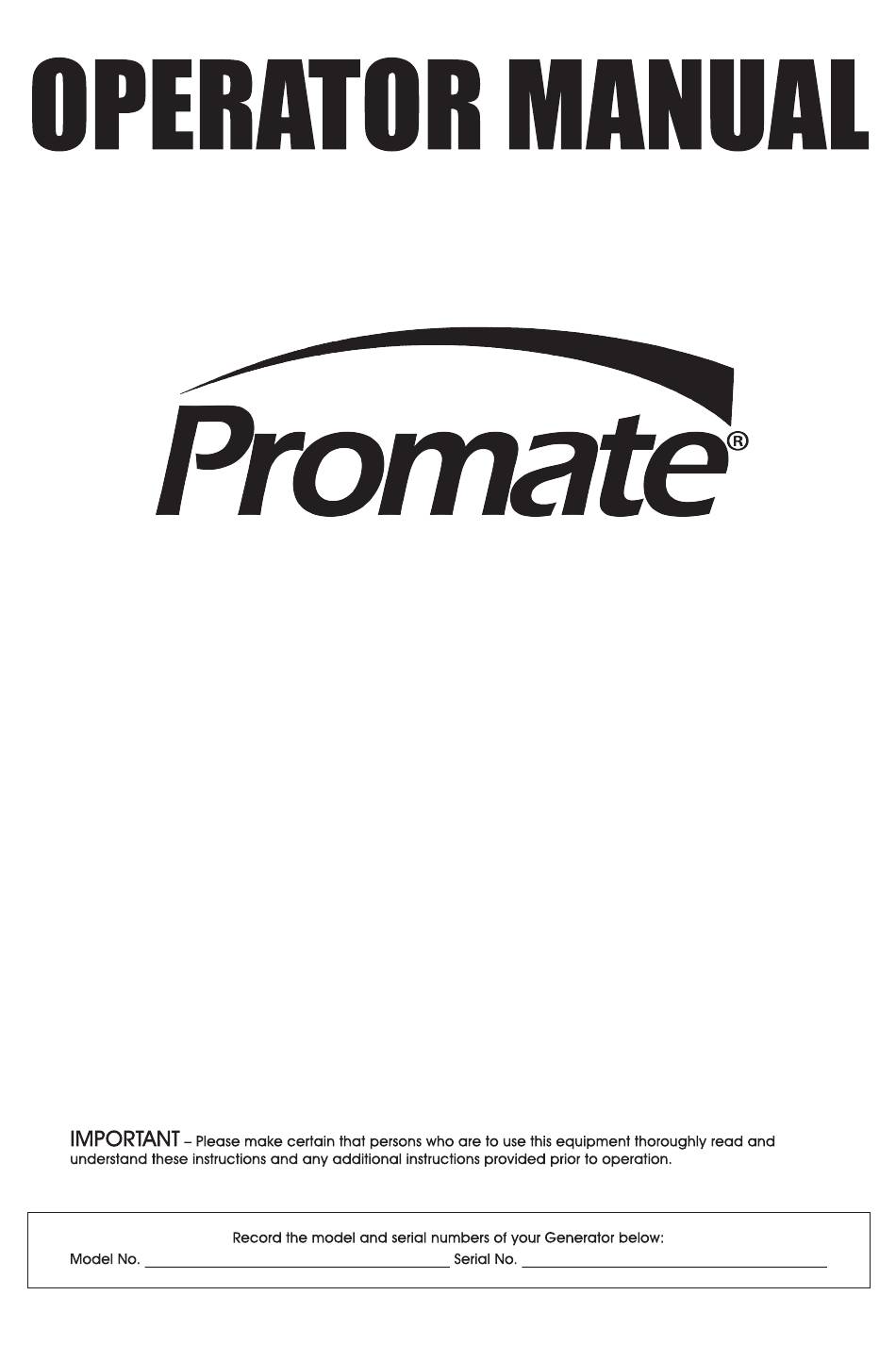

  • Page 1 Gasoline Generator PM 15000 ES-R...
  • Page 2 Thank you for purchasing a power generator. This manual covers operation and maintenance of your generators. All information in this publication is based on the latest production information available at the time of approval for printing. Pay special attention to statements preceded by the following words: WARNING Indicates a strong possibility of severe personal injury, loss of life and equipment damage if instructions are not followed.
  • Page 3 Check the accessories coming with yourgenerator (1)Owner'smanual (2)Wheel kits (3)Servicing tools (4)Battery Be sure to replenish with engine oil. (See page 09 for details)
  • Page 4 INSTALL THE WHEELS: A. Installing 4 wheel kits ③ ③ ① ① ④ ② ② ② a. Raise the generator,with hoist or with square bar . ③(engine b. Assemble 2 self-lock universal wheels① to bottom cross bar side) with screws②. c.
  • Page 5 B. Installing 2 wheel kit(optional) ④ ⑤ ⑩ ⑥ ⑨ ① ⑦ ③ ② ⑧ Assemble the rubber absorber⑧ to the leg⑩ by the nut⑨. Raise the generator with hoist or square bar c.Remove the nuts under the alternator and assemble the leg⑩ to bottom crossbar with the nuts .

  • Page 6: Table Of Contents

    Contents 1.SAFETY PRECAUTIONS ....................01 2.SPECIFICATIONS.....................05 3.COMPONENTS.......................06 4.PRE-OPERATION CHECKS..................08 5.OPERATING PROCEDURES..................14 6.WATTAGE INFORMATION..................22 7.MAINTENANCE SCHEDULE..................24 8.“HOW-TO” MAINTENANCE..................27 9.PREPARATION FOR STORAGE...................31 10.TROUBLE SHOOTING.....................32 11.WIRING DIAGRAM....................34...

  • Page 7: Safety Precautions

    1. SAFETY PRECAUTIONS Do not operate the generator near gasoline or gaseous fuel because of the potential danger of explosion or fire. Do not fill the fuel tank with fuel while the engine is running. Do not smoke or use open flame near the fuel tank. Be careful not to spill fuel during refueling.
  • Page 8 Operate the generator on a level surface. it is not necessary to prepare a special foundation for the generator. However, the generator will vibrate on an irregular surface, so choose a level place without surface irregularities. If the generator is tilted or moved during operation, fuel may spill and/or the generator may tip over, causing a hazardous situation.
  • Page 9 Keep children and all bystanders at a safe distance from work areas. It is absolutely essential that you know the safe and proper use of the power tool or appliance that you intend to use. All operators must read, understand and follow the tool/appliance owners manual.
  • Page 10 Safety symbols 1. Precautions that involve your safety 2. Start and run the generator outdoors. Do not run the generator in an enclosed area, even if doors or windows are open. 3. To reduce the risk of serious injury, avoid attempting to touch the hot surface.

  • Page 11: Specifications

    2 . SPECIFICATIONS Model PM15000ES-R Rated AC Output 12.0 kW@60HZ Surge AC Output 15.0 kW@60HZ 120 V/240 V Rated AC Voltage Single Phase Phase Voltage regulator Power Factor Engine Model KOHLER CH730 Engine Type Air cooling,4-stroke,V-twin cylinder,OHV Displacement 725cc Maximum output 23.5HP@3600rpm Ignition System Flywheel Magneto...

  • Page 12: Components

    3. COMPONENTS ENGINE...

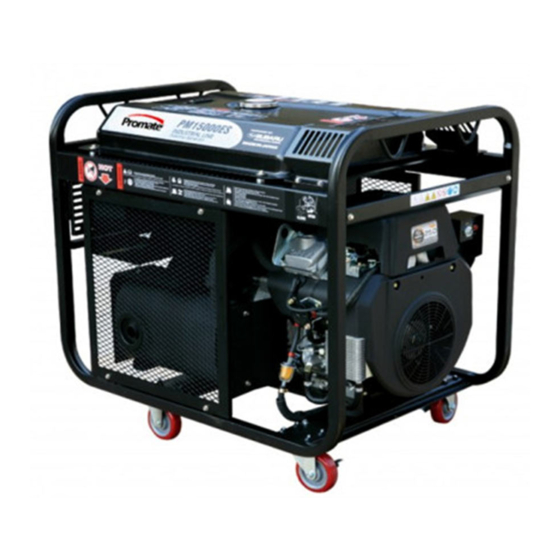

  • Page 13 General description of generator TANK CAP FUEL TANK CONTROL PANEL ELECTRIC STARTER COVER WHEELS BATTERY OIL FILLER ENGINE SWITCH SPARK PLUG MUFFLER OIL DRAIN PLUG...

  • Page 14: Pre-Operation Checks

    4. PRE-OPERATION CHECKS 4.1 CHECK ENGINE OIL To prevent extensive engine wear or damage, never run engine with oil level below or above operating range indicator on dipstick. Ensure engine is cool. Clean from oil Remove dipstick einsert dipstick int e s s completely down.
  • Page 15 Recommended engine oil: Use class "SE" (API classification) oilor a higher grade oil according to the table below. SAE 10W-30 is recommended for general, all-temperature use. If single viscosity oil is used, select the appropriate viscosity for the average temperature in your area. Single grade 10W-30 Multigrade...
  • Page 16 4.2 CHECK ENGINE FUEL WARNING Do not refuel while smoking or near open flame or other such potential fire hazards. Otherwise fire accident may occur. Checkfuellevelatfuelgauge. If fuel level is low, refill with unleaded automotive gasoline. Be sure to use the fuel filter screen on the fuel filter neck.
  • Page 17 Continuous operation time in normal use(75%rated load) PM15000ES-R Approx. 6.5hours WARNING Make sure you review each warning in order to prevent fire hazard. Do not refill tank while engine is running or hot. Close fuel cock before refueling with fuel. Be careful not to admit dust, dirt, water or other foreign objects into fuel Wipe off spilt fuel thoroughly before starting engine.
  • Page 18 Oil Pressure Switch Oil Sentry (Green) Spark Plug(s) Kill Flywheel Stator 22, 25 HP Smart- Trigger Ignition Module Assembly Spark Ignition Yellow on Analog Module Speed Brown Yellow SAMs Pink on Digital Advance 22, 25 HP SAMs Rectif er-Regulator Solenoid Shift Starter Rectif er-Regulator Oil Sentry Kill (Green) Connector...
  • Page 19 WARNING Death, personal injury and/or property damage may occur unless nstructions are followed carefully. Disconnect battery cables when charging battery. Use battery of specified capacity listed in the owner's manual. Turn the Starter switch to the "STOP" position when mounting or dismounting battery.

  • Page 20: Operating Procedures

    5. OPERATING PROCEDURES 5.1STARTING THE ENGINE [CAUTION] Check the oil level before each operations. (See page 6) Perform the specified Daily Inspection to see if it is in normal condition (a) Make sure the no-fuse circuit breaker is in the OFF position. The generator may be hard to start if a load is connected.
  • Page 21 NOTE: You might have to keep the starter running for at least 3 to 5 seconds, since the engine incorporates the mechanism in it where the ignition circuit is activated by the increase of hydraulic pressure. In the following occasion, two or three trials may be required for starting the engine: (1)The very first starting of a new generator.
  • Page 22 5.2 USING ELECTRIC POWER WARNING Make sure that the appliance is switched OFF before connecting it to the generator. Do not move the generator while it is running. Be sure to ground the generator if the connected appliance is grounded. Failure to ground unit may lead to electrical shock. CONTROL PANEL 120V/240V 60HZ NO-FUSE BREAKER...
  • Page 23 (1) AC APPLICATION (a) Ground the generator, using the ground terminal located at the panel. b Before starting the engine, check that the no-fuse breakers of the generator are turned off. (c) Connect the plugs of the appliances to the receptacles before starting the engine.
  • Page 24 Be sure that the total wattage of allappliances does not exceed the ratedoutput of the generator. WARNING TWIST To take power out from the TWIST LOCK RECEPTACLE, insert the plug into the receptacle, and turn it clockwise to the lock position. Be sure to ground the generator if the connected electrical device is grounded.
  • Page 25 Connecting to Domestic Circuit (House Wiring for PM15000ES-R) (a) When connecting a generator to a house wiring,generator output power must be taken from the 240V-4P receptacle or output terminal. (b) Install a transfer switch A transfer switch must be installed to transfer the load from the commercial power source to the generator.
  • Page 26 Utility high line House circuit breaker Meter box X W Y 120V appliance 240V appliance 120V X W Y appliance Transfer switch Generator 240V 4P-Receptacle (c)Operating the generator. Turn the house AC breaker off before starting the generator. Start the generator and warm it up. Turn the house AC breaker on.
  • Page 27 5.3 STOPPING THE GENERATOR In an emergency: STOP RUN To stop the engine in an emergency, turn the START O F F engine switch to the STOP position. S T A R In normal use: (a) Turn off the power switch of the electric equipment (b) TurntheACcircuitbreakertotheOFFposition.

  • Page 28: Wattage Information

    6. WATTAGE INFORMATION For single phase Some appliances need a "surge" of energy when starting. This means that the amount of electrical power needed to start the appliance may exceed the amount needed to maintain its use. Electrical appliances and tools normally come with a label indicating voltage, cycles/Hz, amperage (amps) and electrical power needed to run the appliance or tool.
  • Page 29 To determine the total wattage required to run a particular electrical appliance or tool, multiply the voltage figure of the appliance/tool by the amperage (amps) figure of same. The voltage and amperage (amps) information can be found on rating label which is normally attached to electrical appliances and tools. Applicable Wattage Applications PM 15000ES-R...

  • Page 30: Maintenance Schedule

    7. MAINTENANCE SCHEDULE 7 1DAILY INSPECTION Before running the generator, check the following service items: Safe surroundings Leakage of gasoline and engine oil Clean air cleaner element Enough gasoline Excessive vibration, noise Enough clean engine oil Loose or broken bolts and nuts PERIODIC MAINTENANCE Periodic maintenance is vital to safe and efficient operation of your generator.
  • Page 31 *Note 1 : Initial oil change and oil filter replacement should be performed after 20 hours of operation. Thereafter change oil every 50 hours and replace oil filter 200 hours. Before changing oil, check for a suitable way to dispose of old oil. Do not pour it down into sewage drains, onto garden soil or into open streams.
  • Page 32 7.2 SERVICING WORK Servicing work should only be carried out by personnel qualified for this purpose. All the works listed in the service plan are to be carried out in accordance with the operating and service instructions for the motor. We recommend that these works be carried out by an authorized service station.

  • Page 33: How-To" Maintenance

    8. "HOW-TO" MAINTENANCE 8.1 ENGINE OIL CHANGE Change engine oil every 50 hours. (for a new engine, change oil after 20 hour.) Oil drain plug (On both side) (A) When changing oil, stop the engine and loosen the drain plug. NOTE: Please use a container to load the used oil for protecting environment.
  • Page 34 8.3 SERVICING THE AIR CLEANER NOTE: Operating engine with loose or damaged air cleaner components could cause premature wear and failure. Replace all bent or damaged components. Paper element cannot be blown out with compressed air. 1. Remove precleaner from paper element. 2.
  • Page 35 8.4 CLEANING AND ADJUSTING SPARK PLUG NOTE: Do not clean spark plug in a machine using abrasive grit. Some grit could remain in spark plug and enter engine causing extensive wear and damage. Engine misfire or starting problems are often caused by a spark plug that has improper gap or is in poor condition.
  • Page 36 8.6 CHECKING CARBON BRUSH BRUSH HOLDER If the brush become excessively worn, its contact pressure with the slip ring changes and causes a roughened surface on the slip ring, resulting in irregular generator performance. Check the brush every 500 hours or if 10 to 5mm generator performance is irregular.

  • Page 37: Preparation For Storage

    9. PREPARATION FOR STORAGE The following procedures should be followed prior to storage of your generator for periods of 6 months or longer. Drain fuel from fuel tank carefully by disconnecting the fuel line. Gasoline left in the fuel tank will eventually deteriorate making engine-starting difficult. In order to remove the fuel in the carburetor, run the engine at no-load until it stops.

  • Page 38: Trouble Shooting

    10.TROUBLE SHOOTING When generator engine fails to start after several attempts, or if no electricity is available at the output socket, check the following chart. If your generator still fails to start or generate electricity, contact your nearest FIRMAN Generator dealer for further information or corrective procedures.
  • Page 39 10.3 Engine lacks power: Check air filter element. Clean or Dirty air filter. replace as needed Engine stored with out treating or Drain fuel and carburetor. Refuel with draining gasoline,or refueled with bad fresh gasoline. If problem continues, gasoline. contact your nearest authorized service center.

  • Page 40: Wiring Diagram

    11. WIRING DIAGRAM PM15000ES-R(60Hz)
  • Page 41 Model: PM15000ES-R...
  • Page 42 GASOLINE GENERATOR PARTS LIST Ref. No. Part No. Description Qty. Note Ref. No. Part No. Description Qty. Note 399451047 stator comp. 399411046 fuel cap assembly. 921300075 Flange bolt 399721026 fuel filter 921100111 Bolt M5X10 923400004 Spring washerM10 923400006 washerM10 399411020 Fuel meter 399411018 fuel tank...
  • Page 43 Model: PM15000ES-R (Optional: 2 wheel type)
  • Page 44 GASOLINE GENERATOR PARTS LIST Ref. No. Part No. Description Qty. Note Ref. No. Part No. Description Qty. Note 399411046 fuel cap assembly. 921100101 bolt M5X165 399721026 fuel filter 923100004 flat gasket5 921100111 Bolt M5X10 923100003 spring washer5 399411020 Fuel meter 399711112 Stud 399411018...
  • Page 48 Web: www.promate.com.ph SERVICE/PARTS SUPPORT TEL: (0063 2) 4281050 P/N:399741017 Rev02...
