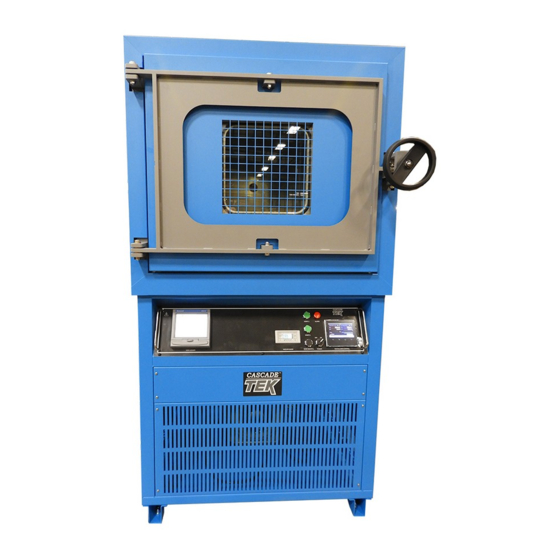

Cascade TEK SVO-10-VC-2P Installation And Operation Manual
  1. Manuals
  2. Brands
  3. Cascade TEK Manuals
  4. Oven
  5. SVO-10-VC-2P
  6. Installation and operation manual

Cascade TEK SVO-10-VC-2P Installation And Operation Manual

Vacuum control ovens
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Vacuum Control Ovens SVO-10-VC-2P SVO-10-VC-2HP
Installation and Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVO-10-VC-2P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cascade TEK SVO-10-VC-2P

Summary of Contents for Cascade TEK SVO-10-VC-2P

  • Page 1 Vacuum Control Ovens SVO-10-VC-2P SVO-10-VC-2HP Installation and Operation Manual...
  • Page 2 These ovens require permanent connect wiring (also known as hardwiring) to a power supply. Model Differences The SVO-10-VC-2P comes with 2 thermal platen shelves built into the oven chamber. • The SVO-10-VC-2HP comes with 2 high-performance thermal platen shelves built into •...
  • Page 3 The Part ID denotes the build type of the model. The manufacturer periodically releases new build types incorporating new features and refinements of existing ones. These units are built for Cascade TEK by Sheldon Manufacturing, INC, an ISO-certified manufacturer. P a g e...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS MODEL CERTIFICATIONS ............................7 Safety Certifications................................7 INTRODUCTION ................................ 9 Read this Manual ..................................9 Safety Considerations and Requirements ........................9 Contacting Assistance ................................ 10 Manufacturing Warranty ..............................10 Engineering Improvements..............................10 Vacuum Pump Options ................................ 11 Compressed Air Supply Required ............................
  • Page 5 Oven Cooldowns ................................. 58 OPERATOR MAINTENANCE ..........................59 Cleaning ....................................59 Maintaining Atmospheric Integrity ..........................60 Gaskets ....................................60 Electrical Components ............................... 60 Storage ....................................60 UNIT SPECIFICATIONS ............................61 Weight ...................................... 61 Dimensions ..................................... 61 Capacity ....................................62 Vacuum ....................................62 Temperature Performance ...............................
  • Page 6 TABLE OF CONTENTS P a g e...

  • Page 7: Model Certifications

    MODEL CERTIFICATIONS Model Certification and Compliance Statements AFETY ERTIFICATIONS 61010 Safety Certified Electrical, mechanical, and fire hazards The unit models in this manual are CUE listed by TÜV SÜD America as vacuum ovens for professional, industrial, or educational use in conditions in which no flammable, volatile, or combustible materials are being heated and the unit is being operated under an environmental air pressure range of 22.14 –...
  • Page 8 CERTIFICATIONS P a g e...

  • Page 9: Introduction

    INTRODUCTION Thank you for purchasing a Cascade TEK oven. We know you have many choices in today’s competitive marketplace when it comes to constant temperature equipment. We appreciate you choosing ours. We stand behind our products and will be here if you need us.

  • Page 10: Contacting Assistance

    Therefore, some changes, modifications, and improvements may not be covered in this manual. If your unit’s operating characteristics or appearance differ from those described in this manual, please contact your Cascade TEK dealer or customer service representative for assistance.

  • Page 11: Vacuum Pump Options

    INTRODUCTION ACUUM PTIONS SVO-10-VC platen ovens can be ordered with one of several vacuum pump types installed inside the oven utility cabinet. Pumps vary in evacuation flow rates and suitability for different baking or thermal cycle applications. Refer to the vacuum pump manufacturer manual included with the oven for specifications and compatibility with applications.

  • Page 12: Liquid Nitrogen

    INTRODUCTION IQUID ITROGEN The oven requires a supply of liquid nitrogen to chill the platen shelves. When chilling, LN is pulsed or flushed through the platens and expelled from the oven through a port located on the back of the oven as gas nitrogen.

  • Page 13: Receiving Your Oven

    6. Verify the correct number of accessory items has been included. 7. Carefully check all packaging for accessories before discarding. Included Accessories: SVO-10-VC-2P Leveling Feet SVO-10-VC-2HP Leveling Feet...

  • Page 14: Orientation Images

    RECEIVING RIENTATION MAGES SVO-10-VC-2P Platen 2 Platen 1 Door Latch Door Gasket Door Hasp Control Panel Oven Chamber Door Pump Cabinet 14 | P a g e...
  • Page 15 RECEIVING Back of Oven – SVO-10-VC-2P Vacuum Gauge Port Platen 1 GN out port 3/8” (9.5 mm) Platen 2 GN out port 3/8” (9.5 mm) Auxiliary Chamber Compressed Air Port Port (KF-25) ¼” (6.35 mm) Push Backfill Intake Port 3/8” (9.5 mm)

  • Page 16: Dimension Visuals

    RECEIVING IMENSION ISUALS SVO-10-VC-2P Depth: 48.0 inches (1219 mm) Height: 70.4 inches (1788 mm) Exterior Width: 38.8 inches (986 mm) Chamber Height: 24.5 inches (622 mm) Chamber Depth: 26.0 inches (660 mm) Interior Platen Chamber Width: 28.8 inches Platen Depth: 25.0...

  • Page 17: Record The Data Plate Information

    RECEIVING ECORD THE LATE NFORMATION Record the unit model number, serial number, part number, and part ID below for future reference. Customer Support needs this information to provide accurate help during support calls and emails. The data plate is located on the back, right side of the oven, above the compressed air inlet •...
  • Page 18 RECEIVING 18 | P a g e...

  • Page 19: Installation

    INSTALLATION ARDWIRE EQUIREMENT These ovens require permanent connect wiring (commonly known as hardwiring). Wiring to the power source must be performed by a qualified electrical technician. All other Installation steps may be performed by the operator. NSTALLATION ROCEDURES HECKLIST For installing the unit in a new workspace location. Pre-Installation ...

  • Page 20: Required Ambient Conditions

    INSTALLATION EQUIRED MBIENT ONDITIONS These units are built for use indoors, at room temperatures between 15°C and 35°C (59°F and 95°F), at no greater than 80% Relative Humidity (at 25°C / 77°F). The ambient temperature should not change by 2°C (3.6°F) or more during operation. Operating outside these conditions may affect the oven temperature performance.

  • Page 21: Power Source Requirements

    Switch or circuit-breaker: A wall switch or circuit-breaker must be used in the building installation to protect against overcurrent conditions. The recommended circuit-breaker for the wall power source for the SVO-10-VC-2P 60 • amps.

  • Page 22: Lifting And Handling

    INSTALLATION IFTING AND ANDLING The oven is heavy. Use appropriate lifting devices that are sufficiently rated for these loads. Follow these guidelines when lifting the oven: Lift the oven only from its bottom surface. • Doors, handles, and knobs are not adequate for lifting or stabilization. •...

  • Page 23: Remove The Platen Shipping Blocks

    INSTALLATION EMOVE THE LATEN HIPPING LOCKS The oven comes with shipping blocks installed in the chamber to prevent damage to the platen shelves during transit. The oven may ship with two large blocks or four small blocks on each platen. Leaving the blocks in place will create virtual leaks when the chamber is under vacuum and impact the temperature uniformity of the platens.

  • Page 24: Disengage The Vacuum Pump Locks

    INSTALLATION Note: The manufacturer recommends that this procedure be performed by a qualified electrical technician. The oven should remain disconnected from its power source throughout the procedure. ISENGAGE THE ACUUM OCKS The oven vacuum pump has four internal shipping locks on its base to cinch it to the floor of the electronics cabinet.

  • Page 25: Installation Cleaning

    INSTALLATION NSTALLATION LEANING The manufacturer recommends cleaning the platen shelves and oven chamber prior to putting the unit into operation. The unit was cleaned at the factory but may have been exposed to contaminants during shipping. • See the Cleaning topic in the Operator Maintenance section (see page 59) for more information •...

  • Page 26: Connect Gas Supplies And Gn Exhaust

    INSTALLATION ONNECT UPPLIES AND XHAUST 2. Connect a venting system to the 3/8” (9.5 mm) Gas Nitrogen out ports to safely remove expelled GN from the workspace if you will be chilling the platens with LN Ensure that both out ports are connected to the venting system.

  • Page 27: Vent The Vacuum Pump Exhaust

    INSTALLATION Note: Outgassed byproducts may be hazardous to or noxious for operating personnel. Vacuum pump exhaust should be vented to a location outside the workspace in a safe manner in accordance with all applicable laws, ordinances, and regulations. ACUUM XHAUST The oven comes with a vacuum pump installed in the electronics cabinet at the base of the oven.

  • Page 28: Verify The Oven Chamber Is Empty

    The oven may now be connected to a power supply that meets the requirements on page 21. Power Braid: Each oven comes provided with an integral 6-inch (150-mm) wire braid consisting of: SVO-10-VC-2P: Two 10-gauge hot wires – black, red •...

  • Page 29: Graphic Symbols

    GRAPHIC SYMBOLS The oven is provided with graphic symbols on its exterior surfaces. These identify hazards and the functions of the adjustable components, as well as important notes in the user manual. Symbol Definition Consult the user manual Consulter le manuel d'utilisation AC Power Repère le courant alternatif Potential shock hazard...
  • Page 30 SYMBOLS 30 | P a g e...

  • Page 31: Control Overview

    CONTROL OVERVIEW Temperature Limit Controller Temperature and Vacuum Controller Main Control Panel Temperature Limit Controller This screen controls the temperature safety cutoffs for the oven chamber and the shelf-heating platen shelves inside the chamber. The Oven Limit tab sets a high-temperature heating cutoff limit for the chamber walls •...
  • Page 32 CONTROL OVERVIEW Vacuum Gauge Display – Backfill Limit Shows the chamber pressure level in Torr and millitorr (mTorr). The gauge this display connects to measures the pressure of pure nitrogen (N ) and is used to control the automated backfill function. Backfilling is commonly done using N other inert gases.
  • Page 33 CONTROL OVERVIEW Temperature and Vacuum Controller Manually sets constant heating or chilling temperature setpoints for the platen shelves. • Manually sets a constant temperature setpoint (optional) for the oven walls heating. • Controls turning on the pump and placing the oven chamber under limited or full vacuum. •...
  • Page 34 CONTROL OVERVIEW Platen Temperature Tabs – Homepage Platen 1 current Platen 2 current temperature, 48.1°C. temperature, -30°C. 150°C entered on the -50°C entered on the setpoint button. setpoint button. Platen 1 heating to 150°C The N solenoid valve is at 100% power. approximately 80% open.
  • Page 35 CONTROL OVERVIEW Vacuum Control System Tab - Homepage ~760 Torr – Room atmosphere pressure at or near sea level Not Evacuating Chamber Evacuating PV: The present chamber pressure level, down to 1 Torr. SP (Setpoint) button: The Vacuum Control setpoint button. The oven pumps down to this target when the Pump Start and Vacuum Control functions are on.
  • Page 36 CONTROL OVERVIEW Note: Both vacuum functions can be manually turned on from the homepage by tapping the button or turned on as a profile step parameter. The button indicator disk changes from gray to green when turned on. Vacuum Control The Vacuum Control function dynamically adjusts the chamber vacuum valve to achieve and then maintain a pressure level between room atmosphere pressure and 1 Torr.

  • Page 37: Operation

    OPERATION Safe operation of the oven is dependent on the actions and behavior of the oven operators. Operating personnel must read and understand the Operating Precautions in this section prior to operating the oven. The operators must follow these instructions to prevent injuries and to safeguard their health, environment, and the materials being treated in the oven, as well as to prevent damage to the oven.
  • Page 38 OPERATION Nitrogen Hazards Cryogenic Hazards Liquid nitrogen (LN ) poses a significant, rapid onset frostbite hazard. Gas nitrogen (GN ) vented from the oven during platen chilling is also a significant frostbite hazard. L'azote liquide (LN ) présente un risque important de gelures d'apparition rapide. L'azote gazeux ) évacué...
  • Page 39 OPERATION Nitrogen Precautions Required PPE Ensure all oven operators have received training and that proper personal protective equipment • (PPE) for handling liquid nitrogen is on hand. Personnel handling liquid nitrogen containers must utilize personal protective equipment. • This includes personnel connecting the oven to an LN supply source.

  • Page 40: Theory Of Operation

    OPERATION HEORY OF PERATION Vacuum and Vacuum Automation Atmosphere is pumped out of the oven chamber through a pneumatic vacuum valve on the back of the oven and then exits through the roughing vacuum pump connected to the valve. The valve position is controlled by either the Full Vacuum or Vacuum Control functions.
  • Page 41 OPERATION Heating in a Vacuum In conventional ovens, powered elements transfer heat into the chamber air. The heated air then circulates by natural convection or blower fan action, surrounding the product on the shelves and gradually bringing it to temperature. In a vacuum oven, heat transfer takes place in part through infrared radiation.

  • Page 42: Put The Oven Into Operation

    OPERATION UT THE VEN INTO PERATION Perform the following procedures and steps to put the unit into operation after installing it in a new workspace environment.  Turn on the oven  Optional: Back up the oven controller. The manufacturer recommends backing up your oven controller •...

  • Page 43: Logging In And Out

    Tap the Logout icon in the Main Menu • Confirm Logout • End of Procedure Changing the Password The default oven password is ctek. The password may be changed using Watlow Composer™ software. However, Cascade TEK cannot recover a lost password. 43 | P a g e...

  • Page 44: File Export And Import

    OPERATION Note: A USB must be inserted into the USB-A drive on the control panel next to the main controller display screen to access the File Transfer menu. XPORT AND MPORT The manufacturer recommends exporting the controller software configuration when first putting the oven into use.

  • Page 45: Set The Temperature Cutoff Limits

    OPERATION ET THE EMPERATURE UTOFF IMITS Note: Test the temperature limit systems once per year for functionality. Set the temperature thresholds where the independent Temperature Limit circuitry cuts off heating or cooling of the oven chamber or platens. Failure to set the temperature limits voids the manufacturing warranty in the event of an overtemperature or under temperature event.

  • Page 46: Latch The Oven Chamber Door

    OPERATION ATCH THE HAMBER Ensure the oven door is securely latched before placing the chamber under vacuum. Position the door handle. Swing the handle wheel all the way to the left, until it is facing forward. • Secure the chamber door. Turn the handle wheel clockwise (to the right) until the tongue of the handle wheel •...

  • Page 47: Pump Down The Oven Chamber

    OPERATION OWN THE HAMBER Note: Perform a Full Vacuum pump down of the chamber for at least 10 minutes when first putting the oven into operation in a new location to verify the vacuum supply system integrity. Operator Must be Present: An operator must always be present to observe the vacuum gauge pressure display decreasing while the oven is drawing a vacuum to ensure the system is sealed.
  • Page 48 OPERATION Option 2 – Manual Vacuum Control Pumps down the oven chamber to a setpoint between room pressure and 1 Torr. Entering a vacuum level setpoint. Turning on the vacuum pump and then the Vacuum Control function. The oven then pumps down to the vacuum level setpoint. Procedure Steps 1.
  • Page 49 OPERATION Option 3 – Launch a Heating Profile The Vacuum Control or Full Vacuum functions may be programmed to automatically turn on and off as part of an automated heating profile recipe. Vacuum level setpoints are set as part of each step when the Vacuum Control function is active.

  • Page 50: Backfilling The Chamber

    OPERATION ACKFILLING THE HAMBER Atmosphere is restored to the chamber in two stages. Stage 1: Automatic Partial Backfill The oven automatically closes the vacuum valve and partly backfill the oven chamber to approximately 600 Torr when one of two trigger events takes place. Manual Backfill Trigger The oven partially backfills the chamber whenever both the vacuum functions have been manually turned off.

  • Page 51: Connect To The Liquid Nitrogen Supply

    OPERATION ONNECT TO THE IQUID ITROGEN UPPLY The oven manufacturer recommends waiting to connect an LN supply to the oven until just before launching a temperature process that requires chilling. This helps minimize LN hazards in the workspace. See page 39 for a list of precautions for handling LN when connecting the supply to the oven.

  • Page 52: Manually Setting Constant Temperature Setpoints

    OPERATION ANUALLY ETTING ONSTANT EMPERATURE ETPOINTS Constant temperature setpoints run the oven or platens at steady state temperatures and are manually set and adjusted by the oven operator. Reminder: The manufacturer recommends fully vacuuming down the oven chamber before heating or chilling.

  • Page 53: Temperature Profiles Overview

    OPERATION EMPERATURE ROFILES VERVIEW Please see the Profile Programming Manual document for instructions on how to program automated recipe profiles. This manual comes included with the oven and provides illustrated explanations for all major functions and programming steps. You must be logged on to the main controller to create or edit profiles. See page 43. Backup: The manufacturer recommends exporting profiles as a backup using the USB-A port next to the main controller on the front of the control panel.
  • Page 54 OPERATION Launch Option 1: Start Button Launch Profile 1 or Profile 2 may be launched using the mechanical Start buttons on the oven control panel. Start 1 launches automated heating recipe Profile 1. • Start 2 launches automated heating recipe Profile 2. •...

  • Page 55: Overriding Profile Step Vacuum Settings

    OPERATION VERRIDING ROFILE ACUUM ETTINGS The Vacuum Control and Full Vacuum functions can be turned On or Off on the Homepage while a profile is running. This temporarily changes the profile vacuum settings for the current profile step. When the profile reaches the next programmed step, the Vacuum Functions will revert to the settings of that profile step.

  • Page 56: Temperature Limit Cutoff Active

    OPERATION EMPERATURE IMIT UTOFF CTIVE Limit activations are persistent, protective interruption of heating or chilling in the affected temperature control system — either the platens or the oven. Always identify and correct the cause of a temperature limit activation before restoring heating or chilling. Platen 1 Temperature 150.1°C Platen 2 Temperature -70°C Hight Limit Set Point 150°C...
  • Page 57 OPERATION Clearing an Active Limit Cutoff The oven and platen temperatures must be back within the Limit bounds — between the high and low limits — before a Limit interruption can be cleared (canceled). Alarm Message: This alert window appears the first time a button is tapped during a Limit cutoff.

  • Page 58: Data Ports

    OPERATION ORTS Front of Unit Control Panel USB A Ports The USB ports located on the front control panel access the Main and High Limit controllers and can be used for the following: Exporting and importing heating profiles from the controller •...

  • Page 59: Operator Maintenance

    OPERATOR MAINTENANCE Warning: Disconnect the unit from its power supply prior to maintenance or service. Avertissement: Avant d'effectuer toute maintenance ou entretien de cet appareil, débrancher le cordon secteur de la source d'alimentation. LEANING If a hazardous material or substance has spilled in the unit, immediately initiate your site Hazardous Material Spill Containment protocol.

  • Page 60: Maintaining Atmospheric Integrity

    MAINTENANCE AINTAINING TMOSPHERIC NTEGRITY Periodically, inspect the door latch, trim, catch, and gasket for signs of deterioration. Failure to maintain the integrity of the door system shortens the lifespan of the unit. ASKETS The door gasket is a low-wear item. It typically only needs to be replaced due to being cut or nicked. The risk of this type of damage can be significantly reduced by opening the door to 130°, keeping it well out of the way of shelves or sample trays being removed from or inserted into the chamber.

  • Page 61: Unit Specifications

    All indications are average values, typical for units produced in the series. We reserve the right to alter technical specifications at all times. EIGHT Model Shipping Weight SVO-10-VC-2P 1824 lb / 828 kg SVO-10-VC-2HP 1824 lb / 828 kg IMENSIONS...

  • Page 62: Capacity

    SPECIFICATIONS APACITY Model Cubic Feet Liters 10.6 300.1 SVO-10-VC-2P 10.6 300.1 SVO-10-VC-2HP ACUUM Operational Vacuum Range* torr mbar 720 to < 10 mTorr @ 150°C 910.5 to <0.0319 @ 150°C *Pump dependent. Chamber Pressure Display Range torr mbar 1100 to 0.1 mTorr 1466 to 0.001...

  • Page 63: Temperature Performance

    -5.1°C per minute* Platens *Platen chilling rates may vary based on your LN supply delivery configuration. OWER Model AC Voltage Amperage Frequency SVO-10-VC-2P 220 – 240 50/60 Hz SVO-10-VC-2HP 220 – 240 50/60 Hz 63 | P a g e...
  • Page 64 SPECIFICATIONS 64 | P a g e...

  • Page 65: Replacement Parts List

    3450755 Ordering Parts and Consumables Parts may be ordered from Cascade TEK by calling 1-888-835-9250. Please have the model, part, and serial numbers and Part ID of the unit ready, as Customer Support will need this information to match your unit to its correct part.
  • Page 66 Corporate Headquarters Cascade TEK Solutions, LLC 2010 Century Center Blvd, Suite 21 Irving, Texas 75062 support@cascadetek.com cascadetek.com 1-888-835-9250 1-971-371-4096...
