Note:
During measurements the status bar is displayed.
3.1 Measurement of resistance of earth connection and equipotential
bonding (2P)
The measurement complies with the requirements specified in the norm EN 61557-4
(U<24 V, I>200 mA for R≤10 Ω).

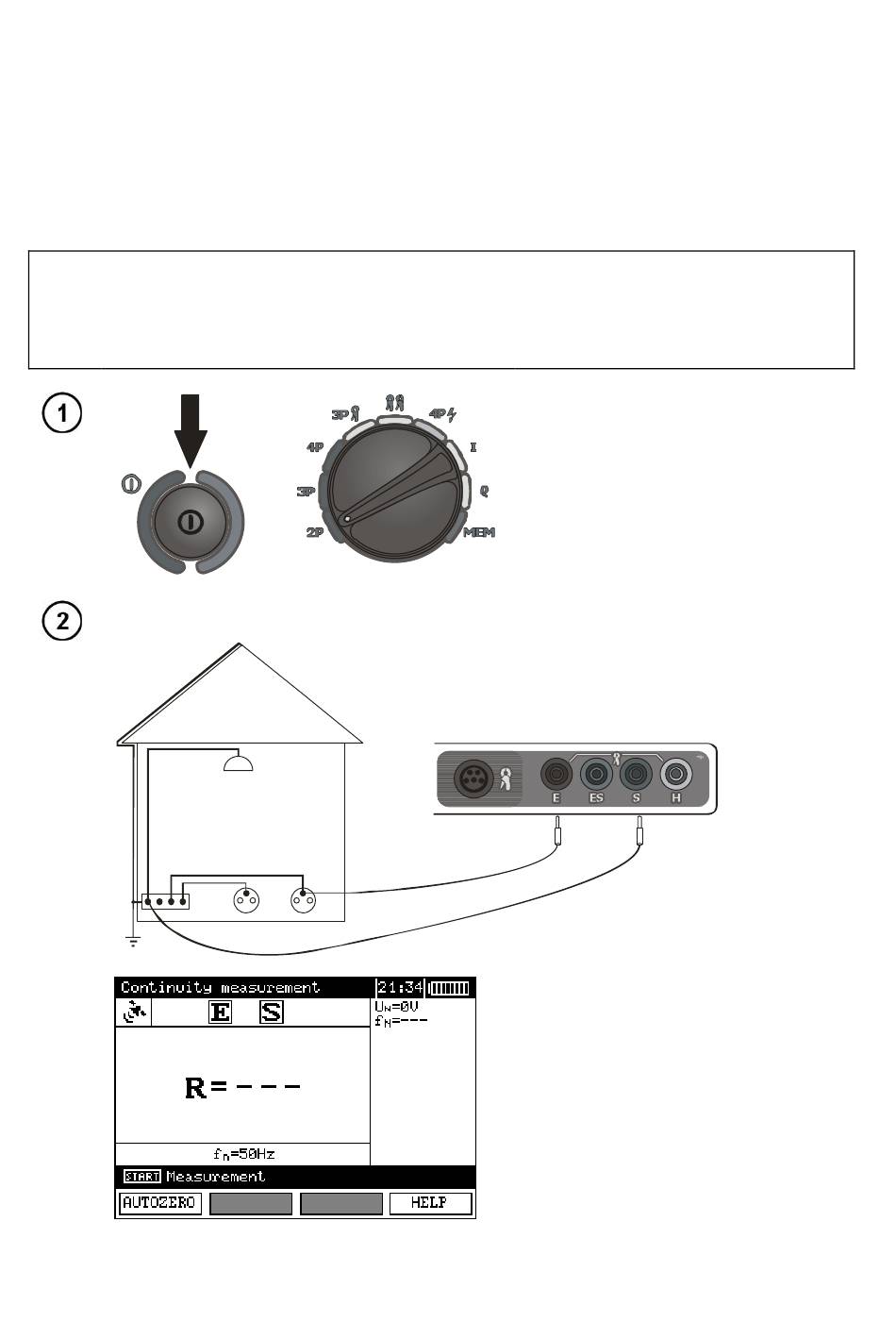

Connect the object being measured to the terminals S and E of the meter.
3

Measurements

MRU-200 ● MRU-200-GPS – USER MANUAL
Note:
Turn the meter on.
Set the rotational
function selector at 2P.
The meter is ready for measurement.
The auxiliary display shows the value
of the interference voltage and its fre-
quency. The setting bat shows the
mains frequency set in the MENU.
15
