1.2.4 IO Port

Mark 1: 2 × 15 IO Jumper
1)
Mark 19: 2 × 14 IO Jumper
2)

1.2.5 Interface

Mark 2: MIC Test Jumper for external MIC
1)
2) Mark 3: UART /LOG Test Jumper.

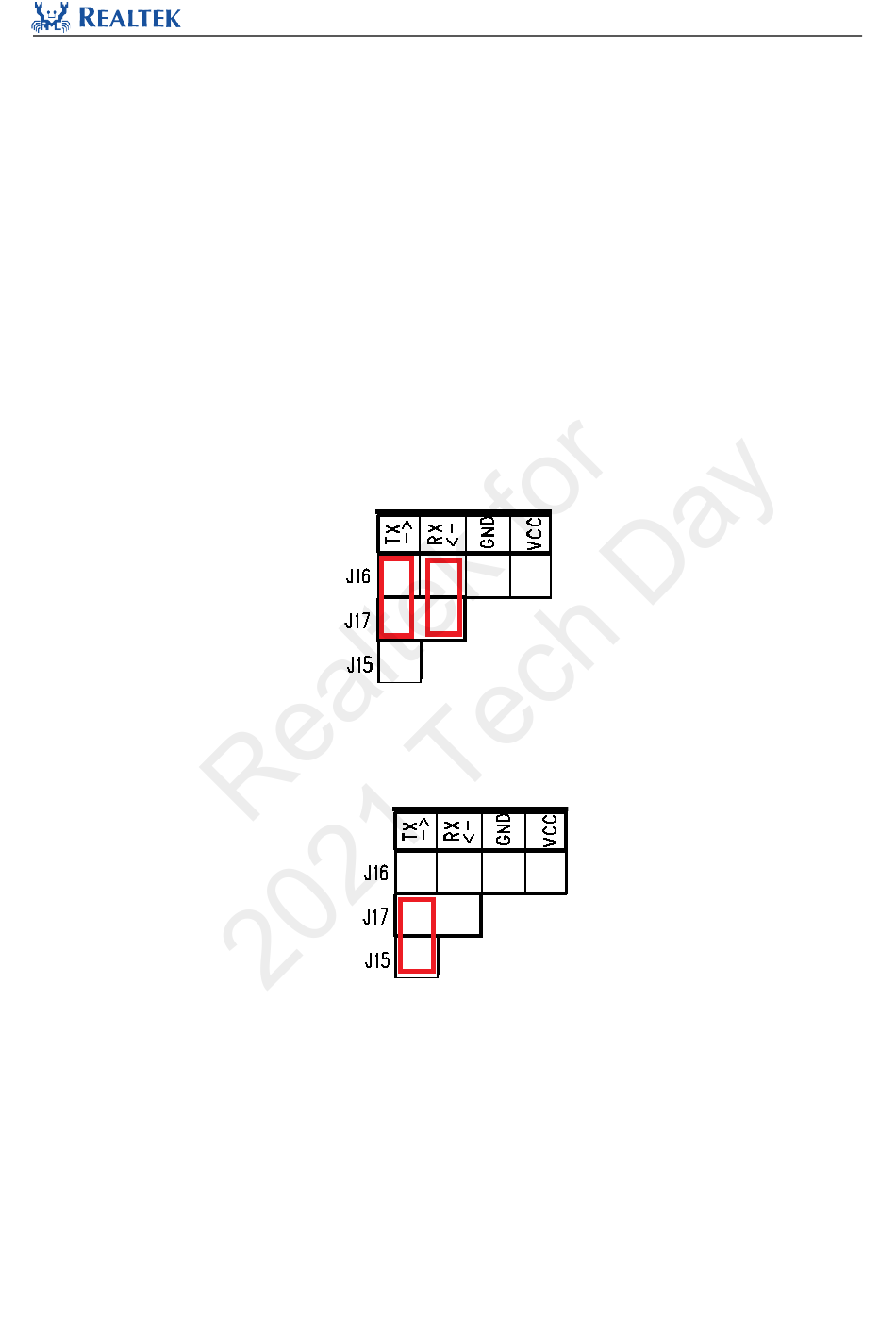

a) Connection of Jumper for HCI UART Test is shown in figure 1-5:
b) Connection of Jumper for Log Test:
3) Mark 6: G-sensor, which is a 6-axis motion sensor, is powered by VDD_DEV. Thus, J6 need be connected
when G-sensor is required.
Copyright 2021 Realtek Semiconductor Corporation. All Rights Reserved.
Figure 1-5 Connection of HCI UART Jumper
Figure 1-6 Connection of LOG
9
