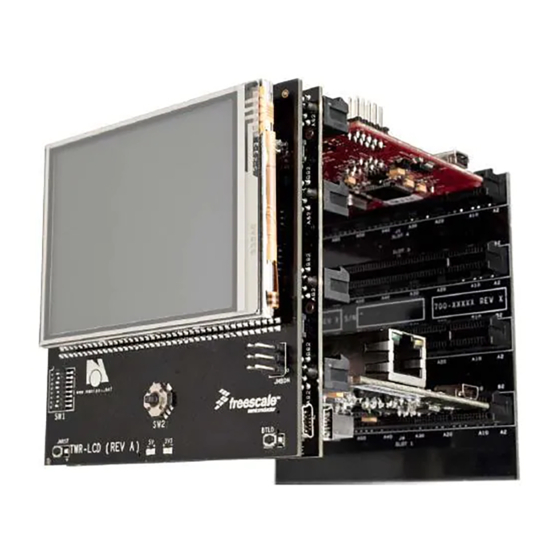

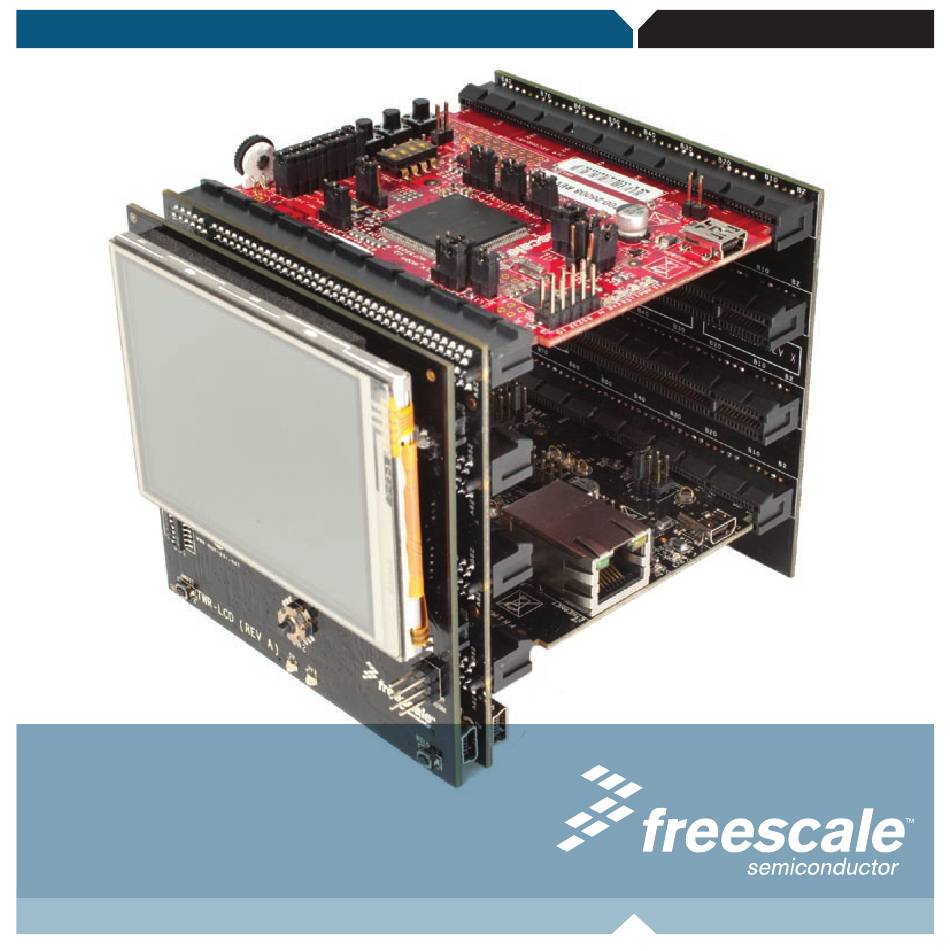

- Page 1 Quick Start Guide for TWR-LCD TOWER SYSTEM TWR-LCD Graphical LCD module...
- Page 2 TOWER SYSTEM Get to know the TWR-LCD 3.2” QVGA TFT LCD Display JM128 BDM Header Configuration Settings (SW1) 5-way Navigation Switch Reset Push Button Bootloader Push Button Power LEDs Touch Panel Isolations Switches (SW5) A Side Expansion Port Piezo B Side Expansion Port...
- Page 3 TOWER SYSTEM How to attach the TWR-LCD module STEP Locate the “functional” Note: Once the TWR-LCD module is affixed to the “functional” Elevator, it will Elevator in the be difficult to remove. Removal of the assembled Tower Kit. TWR-LCD module is not recommended.
- Page 4 TWR-LCD Freescale Tower System The TWR-LCD module is part of the Freescale Tower System, a modular development platform that enables rapid prototyping and tool re-use through reconfigurable hardware. Take your design to the next level and begin constructing your Tower System today.
- Page 5 Step-by-step installation instructions STEP Follow the In this Quick Start Guide, you will learn how to set up the TWR-LCD module on-screen menu and run the default GUI demonstration. Explore the features of the GUI demo, by selecting the menu items with the...
- Page 6 TOWER SYSTEM TWR-LCD Jumper Options The following is a list of all the jumper options. The *default* installed jumper settings are shown in bold with asterisks. Configuration Option Setting Description Settings DIP 1 DIP 2 (PS2) (PS0) Not a valid setting Enables SPI communication mode to the LCD Display.
- Page 7 Quick Start Guide for TWR-MCF5225X Quick Start Guide for TWR-LCD TOWER SYSTEM TOWER SYSTEM North (Up) Indicates North signal to onboard MCU East (Right) Indicates East signal to onboard MCU 5-way 5-way Navigation South (Down) Indicates South signal to onboard MCU...
- Page 8 • Exandable to additional Tower MCUs over EBI or SPI • microSD card for memory expansion • Piezo buzzer for audible feedback To learn more about the TWR-LCD and other modules within the Tower System, go to www.freescale.com/tower. To become a member of the online Tower Geeks community, go to www.towergeeks.org. Freescale, the Freescale logo and CodeWarrior are trademarks or registered trademarks of Freescale Semiconductor, Inc.
