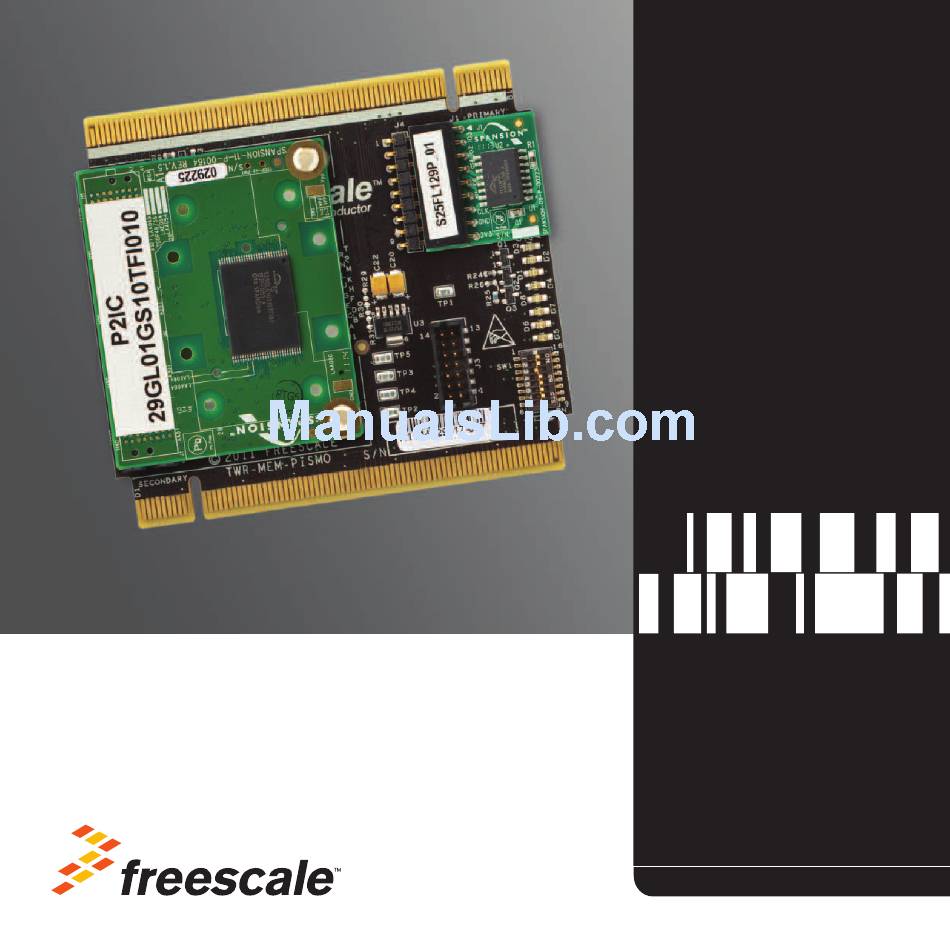

- Page 1 Quick Start Guide TWR-MEM-PISMO PISMO2 Memory Module TOWER SYSTEM...
- Page 2 Multi-I/O Flash Module TWR-MEM-PISMO Freescale Tower System The TWR-MEM-PISMO module is part of the Freescale Tower System, a modular development platform that enables rapid prototyping and tool re-use through reconfigurable hardware. Take your design to the next level and begin prototyping with the Tower System today.
- Page 3 TOWER SYSTEM TWR-MEM-PISMO Features • Expandable memory platform compatible with the Freescale Tower System • Included Spansion 1 Gb GL-S MirrorBit Eclipse flash PISMO2 module • Included Spansion 128 MB MirrorBit SPI multi-I/O flash module • CLPD supports a variety of FlexBus and LPC bus interfaces • PISMO2 memory socket supporting: 16-bit ADM memory 6-bit ADP memory Burst NOR memory 4/8-bit eMMC • Selectable I/O voltage for the PISMO2 interface (1.8 or 3.3 volt) • MIO SPI connector supporting Spansion multi-I/O SPI...
- Page 4 Visit freescale.com/TowerPISMO for example projects for select Attach the included Spansion Tower System controller modules. 1 Gb GL-S MirrorBit Eclipse flash PISMO2 module to the PISMO2 socket on the TWR-MEM-PISMO. Ensure that the keyed connector is securely connected. Attach the included Spansion 128 MB MirrorBit SPI multi-I/O flash module to the 9-pin header. Ensure that the Pin 1 indicator...
- Page 5 TOWER SYSTEM TWR-MEM-PISMO Jumper Options The following is a list of all jumper options. The default installed jumper settings are shown in white text within the black boxes. Switch Option Setting Description FlexBus External Bus Interface SW1 - Memory Dip 1 Interface Type LPC External Bus Interface Muxed: Data Line Is Shared with Address Line SW1 - Address/...
- Page 6 Quick Start Guide Jumper Options (continued) The following is a list of all jumper options. The default installed jumper settings are shown in white text within the black boxes. Switch Option Setting Description SW1 - For Future Use Dip 7 SW1 - For Future Use Dip 8 CPLD Interfaces the Controller at 3.3 volts CPU Voltage I/O CPLD Interfaces the Controller at 1.8 volts CPLD Interfaces the PISMO2 Memory at 3.3 volts MEM Voltage CPLD Interfaces the PISMO2 Memory at 3.3 volts...
-
Page 7: Example Configuration
TOWER SYSTEM Example Configuration The following is a list of example settings for a subset of the supported Tower System Controller Modules. Controller SW1 Setting (0-On, Description Module 1-Off) 1-2-3-4-5-6-7-8 8-bit Non-Muxed FlexBus 0-1-0-0-0-0-0-0 (Primary Side Only) TWR-K60N512 0-0-1-0-0-0-0-0 16-bit Muxed Flexbus (Primary Side Only) 8-bit Non-Muxed FlexBus 0-1-0-0-0-0-0-0 (Primary Side Only) TWR-MCF5225X 0-0-1-0-0-0-0-0 16-bit Muxed Flexbus (Primary Side Only) 8-bit Non-Muxed FlexBus 0-1-0-1-0-0-0-0 (Primary+Secondary) -
Page 8: Warranty
Visit freescale.com/support for a list of phone numbers within your region. Warranty Visit freescale.com/warranty for complete warranty information. For more information, visit freescale.com/Tower Join the online Tower community at towergeeks.org Freescale and the Freescale logo are trademarks of Freescale semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. All other product or service names are the property of their respective owners. © 2011 Freescale Semiconductor, Inc. Document Number: TWRPISMOGSG REV 0 Agile Number: 926-78665 Rev A... - Page 9 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Freescale Semiconductor TWR-MEM-PISMO...
