Freescale Semiconductor MC33493MOD Series Quick Start User Manual

Kit

This document provides first information to use MC33696 tools.

Last update:

V1.1: Note for FCC

Important:

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Note: the manufacturer is not responsible for any radio or TV interference caused by unauthorized

modifications to this equipment. Such modifications could void the user's authority to operate the

equipment.

OVERVIEW

MC33493MODxxx operation requires:

An MC33493MODxxx RF Module with attached Printed antenna

A DEMO9S08RG60 MCU board

An RS232 cable

A PC with RS232 port, CD player and Hyper Terminal.

A 9V Battery

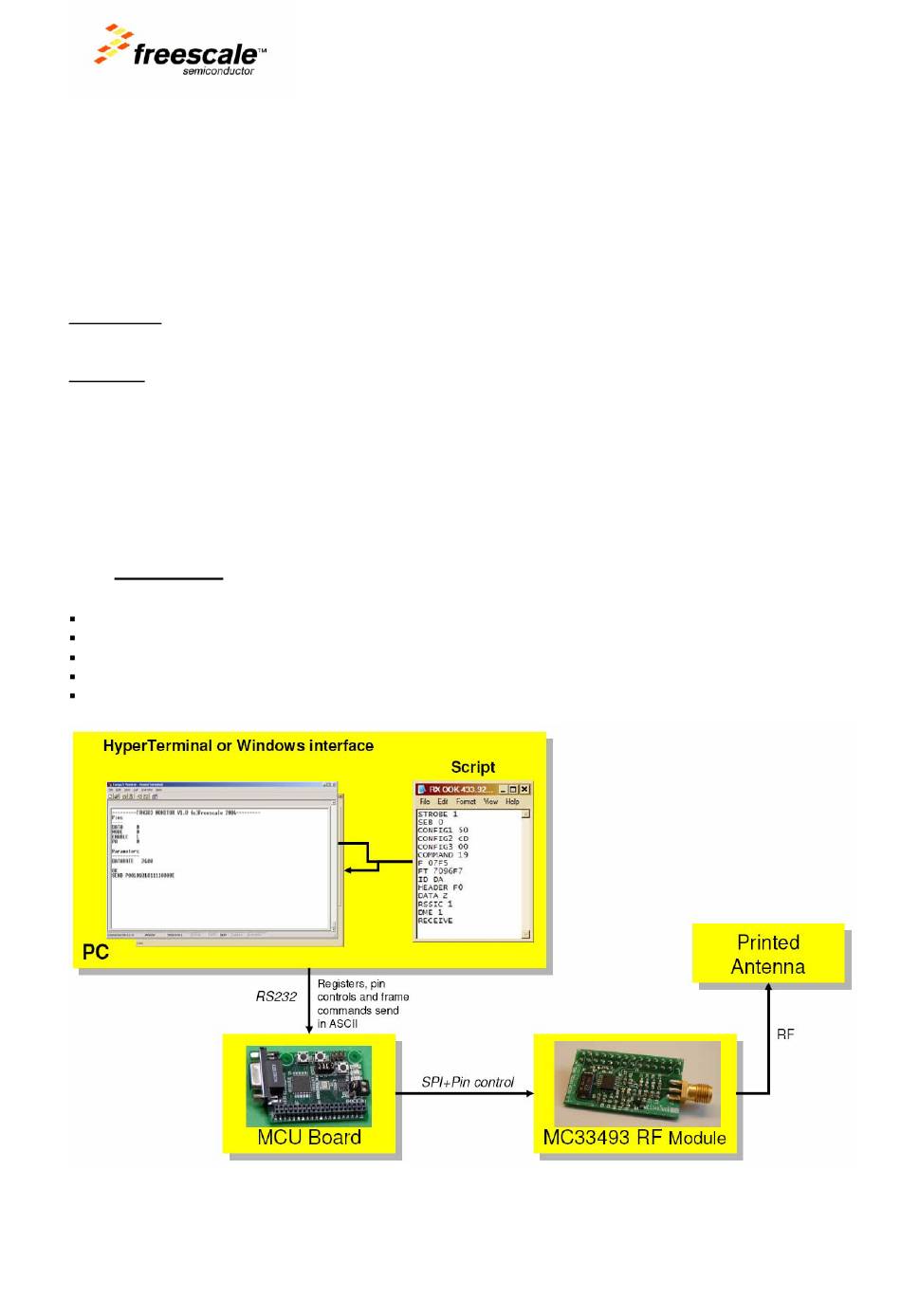

The operation of MC33493 is done by sending with Hyper Terminal a script to the MCU board that will

configure MC33493 in a defined configuration.

Laurent GAUTHIER-TSPG-MCD-ARC

MC33493MODxxx KIT

Quick Start User Guide

MC33493MODxxx Quick Start Guide

Last update: February 5, 2007

Page 1

Table of Contents

Do you have a question about the MC33493MOD Series and is the answer not in the manual?

Page 1 MC33493MODxxx Quick Start Guide Last update: February 5, 2007 MC33493MODxxx KIT Quick Start User Guide This document provides first information to use MC33696 tools. Last update: V1.1: Note for FCC Important: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 2 MC33493MODxxx Quick Start Guide Available script files: standby configuration continuous CW transmission continuous 4.8kHz OOK transmission continuous 4.8kHz FSK transmission LAUNCHING THE KIT Plug the RF Module on the MCU board Connect the MCU board to the PC using the RS232 cable Launch HyperTerminal using the proper xxx.ht file according to available COM port Connect the 9V battery Screen on HyperTerminal receives status of MC33493 Registers and Pin levels...
