This document provides first information to use MC33696 tools.
Last update:
V1.1: Note for FCC
Important:
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Note: the manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user's authority to operate the
equipment.
1
OVERVIEW
MC33696MODxxx operation requires:
An MC33696xxx RF Module with attached Printed antenna
A DEMO9S08RG60-SP MCU board
An RS232 cable
A PC with RS232 port, CD player and Hyper Terminal.
A 9V Battery

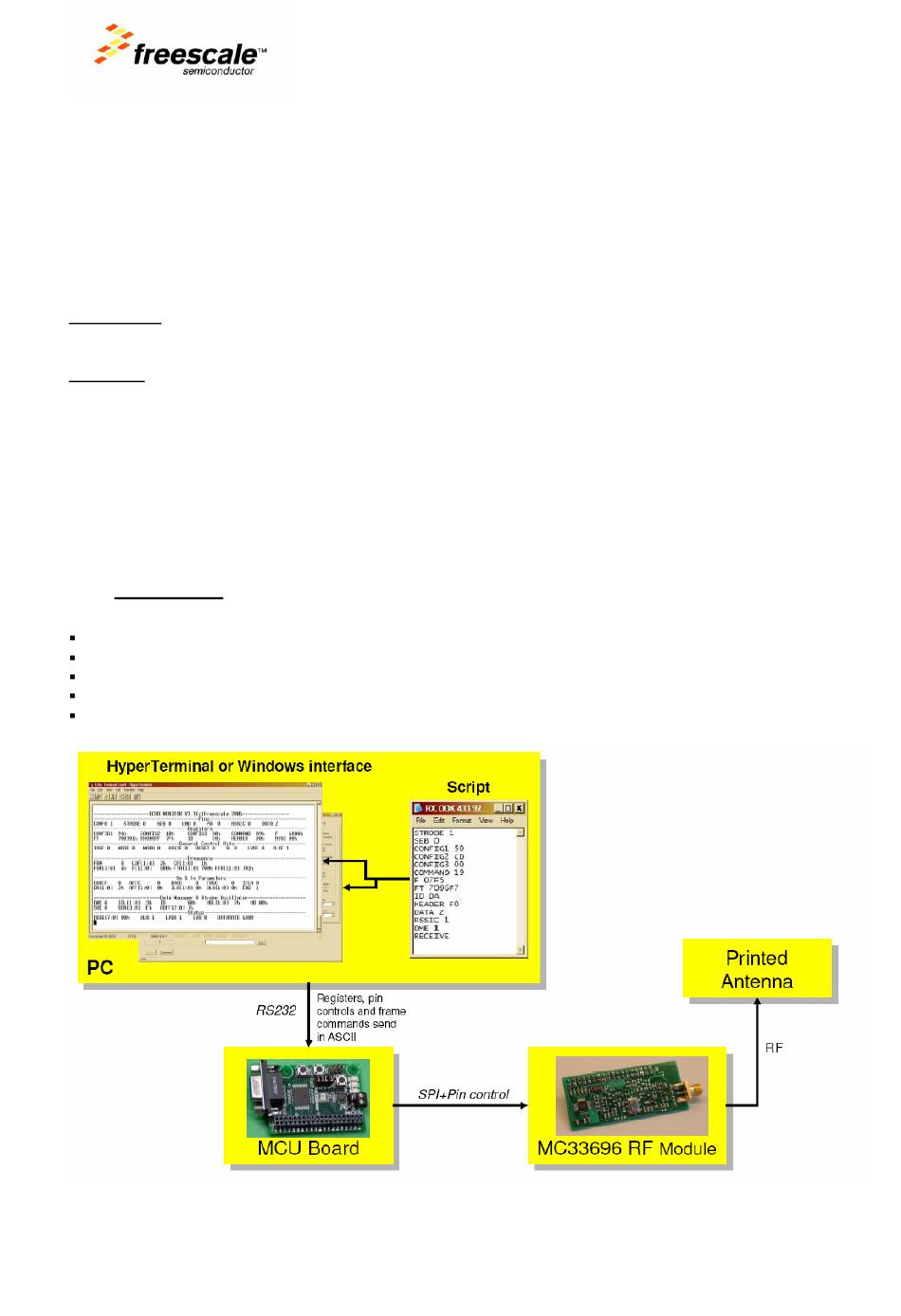

The operation of MC33696 is done by sending with Hyper Terminal a script to the MCU board that will
configure MC33696 in a defined configuration.
Laurent GAUTHIER-TSPG-MCD-ARC
MC33696MODxxx KIT
Quick Start User Guide
MC33696MODxxx Quick Start Guide
Last update: February 5, 2007
Page 1
Advertisement
Table of Contents
Related Manuals for Freescale Semiconductor MC33696MOD Series
Summary of Contents for Freescale Semiconductor MC33696MOD Series
- Page 1 MC33696MODxxx Quick Start Guide Last update: February 5, 2007 MC33696MODxxx KIT Quick Start User Guide This document provides first information to use MC33696 tools. Last update: V1.1: Note for FCC Important: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 2 MC33696MODxxx Quick Start Guide Available script files: standby configuration continuous CW transmission continuous 4.8kHz OOK transmission continuous 4.8kHz FSK transmission 1 frame transmission using ID and HD 1 frame reception using ID and HD LAUNCHING THE KIT Plug the RF Module on the MCU board Connect the MCU board to the PC using the RS232 cable Launch HyperTerminal using the proper xxx.ht file according to available COM port Connect the 9V battery...
- Page 3 MC33696MODxxx Quick Start Guide At the end: “Receive Mode Active” indicates that the kit is waiting for data. If an RF signal is transmitted using another kit or an RF generator properly configured (433,92MHz, Pulse modulation at 4800bps), then the screen will be filled with received data: 3.2 Configuration in Transmit mode With the mouse, click on “Transfer/Send text file”...
- Page 4 MC33696MODxxx Quick Start Guide At the end: “Sending square wave” indicates that the kit is sending a continuous modulation Laurent GAUTHIER-TSPG-MCD-ARC Page 4...
