Fm - Fixed Motion / Fms - Fixed Motion Slider Evolve1-Fm (Single); Evolve1-Fms (Single); Evolve2-Fm (Dual); Evolve2-Fms (Dual) - Fellowes ESI Evolve Assembly And Operation Instructions Manual

Evolve1-FM Evolve2-FM Evolve3-FM Evolve1-FMS Evolve2-FMS Evolve3-FMS

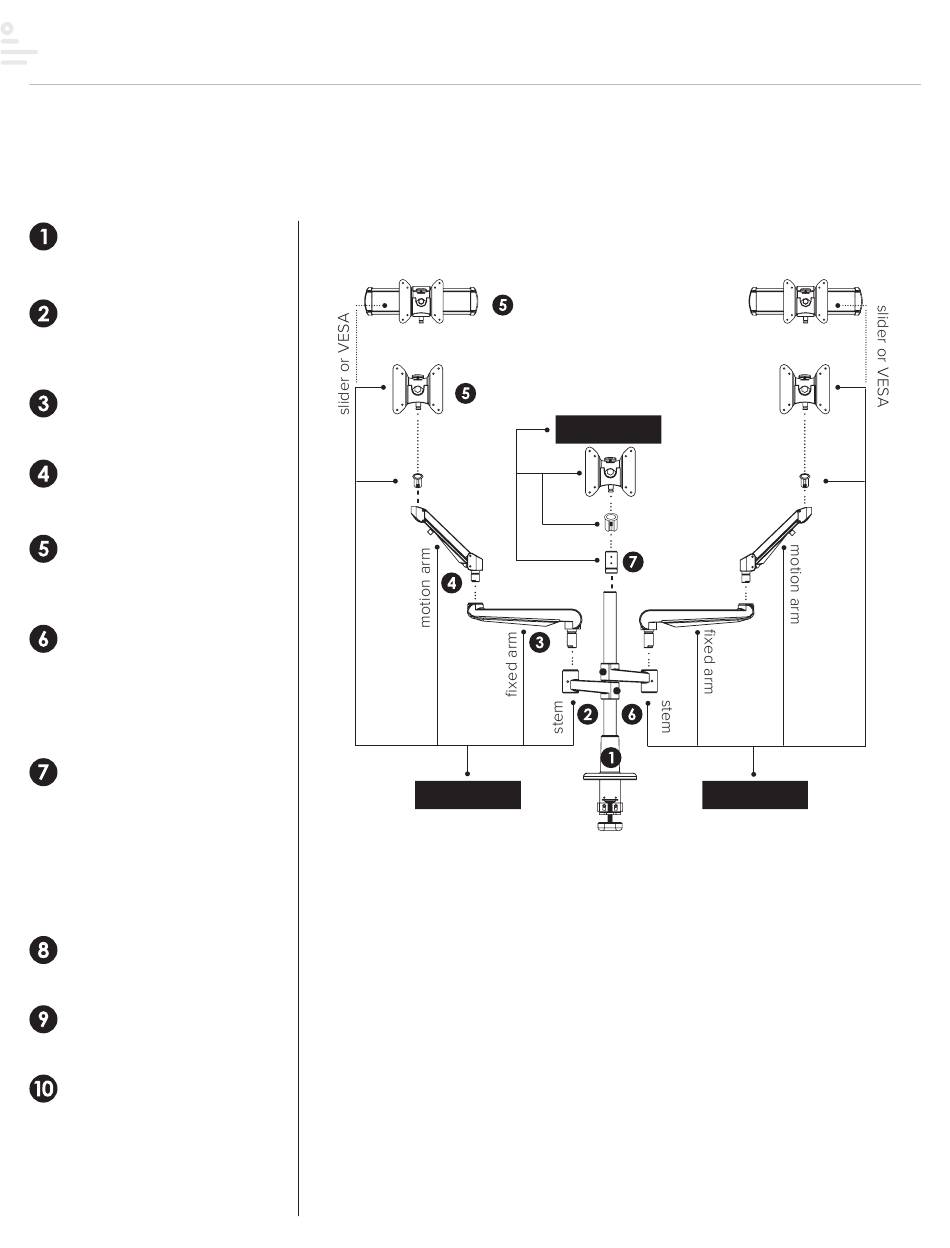

More complete instructions for part assembly can be found on the page numbers listed below.
This may include, but is not limited to, screws, adjustment knobs, bushings and surface protection.
Pole mount (PG. 10)
Secure pole mount to
worksurface.
Stem arm (PG. 13)
Slide stem arm over pole
and secure in place with the
5mm Allen key.
Fixed arm (PG. 14)
Insert fixed arm to stem arm.
Motion arm (PG. 15)
Insert motion arm to fixed arm.
Vesa or Slider (PG. 17)
Attach small bushing to VESA or
slider. Insert VESA or slider to
motion arm.
Dual (PG. 13)
For dual display configurations,
reverse the second stem
armon the pole. Then, repeat
configuration on second stem
arm.
Triple (PG. 13)
For triple display configurations,
reverse the second stem arm on
the pole, then add a third stem
arm.
(PG. 16) Attach reducer bushing
to VESA and insert VESA to third
stem arm.
VESA plate (PG. 18)
Attach VESA plate to back of
monitor.
Quick release (PG. 18)
Attach displays using the quick
release feature.
Tension (PG. 17)
Adjust tension on motion arm.
Adjust tension on VESA and/or
slider.
Completes Evolve3-FMS assembly
Completes Evolve3-FM assembly
small
bushing
BUILD 1ST
Completes Evolve1-FM assembly
or
Completes Evolve1-FMS assembly
or
BUILD 3RD
VESA
reducer
bushing
Completes Evolve2-FM assembly
Completes Evolve2-FMS assembly
small
bushing
BUILD 2ND
or
9
