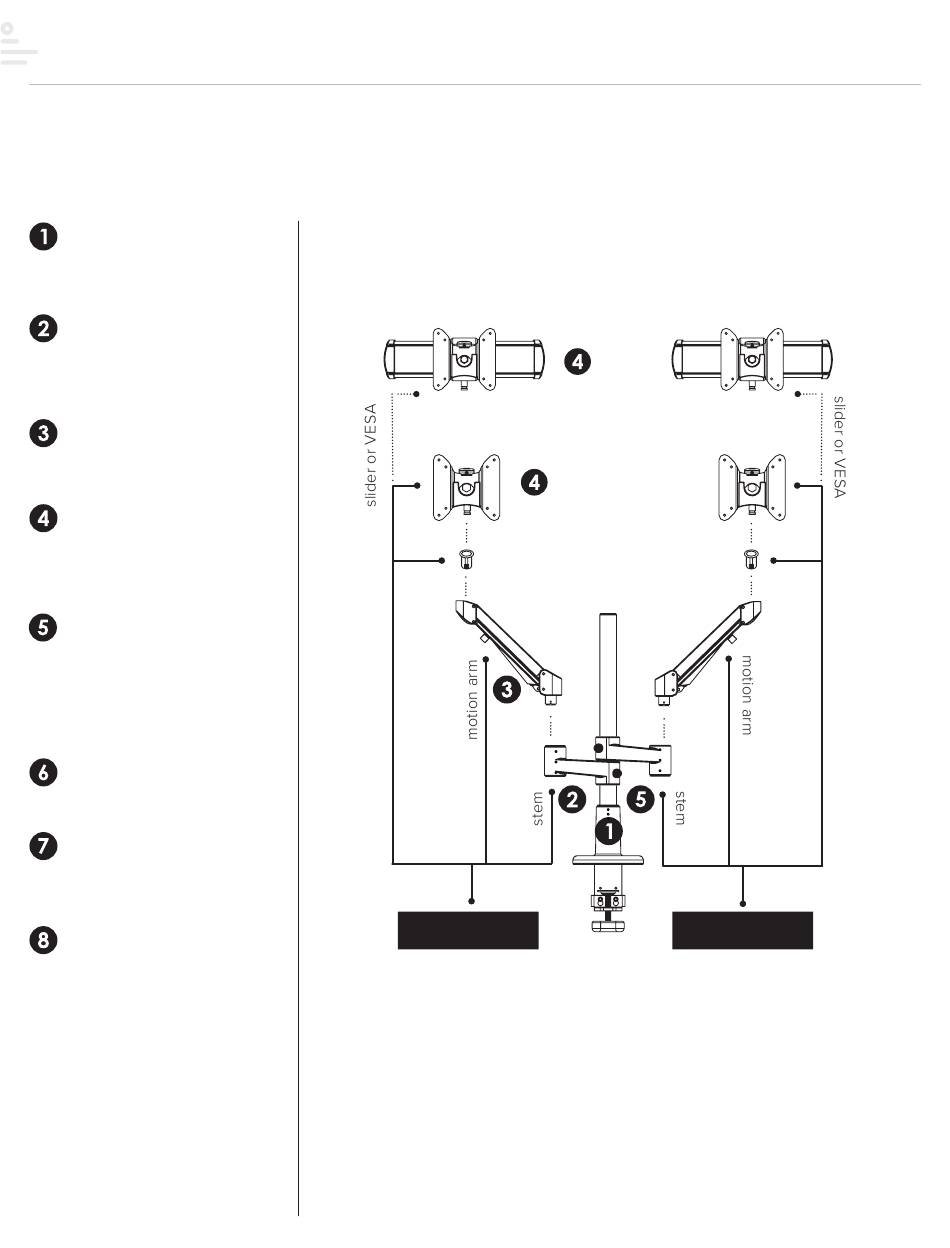

Evolve1-M Evolve1-MS Evolve2-M Evolve2-MS
More complete instructions for part assembly can be found on the page numbers listed below.
This may include, but is not limited to, screws, adjustment knobs, bushings and surface protection.
Pole mount (PG. 10)
Secure pole mount to
worksurface.
Arm stem (PG. 13)
Slide stem arm over pole
and secure in place with the
5mm Allen key.
Motion arm (PG. 14)
Insert motion arm to arm stem.
VESA or slider (PG. 17)
Attach reducer bushing to vesa
or slider. Insert VESA or slider to
motion arm.
Dual (PG. 13)
For dual display configurations,
reverse the second arm stem
on the pole. then, repeat
configuration on second stem
arm.
VESA plate (PG. 18)
Attach VESA plate to back of
monitor.
Quick release (PG. 18)
Attach displays using the quick
release feature.
Tension (PG. 19)
Adjust tension on VESA
or slider.
Small
bushing
BUILD 1ST
Completes Evolve1-M assembly
or
Completes Evolve1-MS assembly
Small
bushing
BUILD 2ND
Completes Evolve2-M assembly
or
Completes Evolve2-MS assembly
7
