Evolve1-FF Evolve2-FF Evolve3-FF Evolve1-FFS Evolve2-FFS Evolve3-FFS

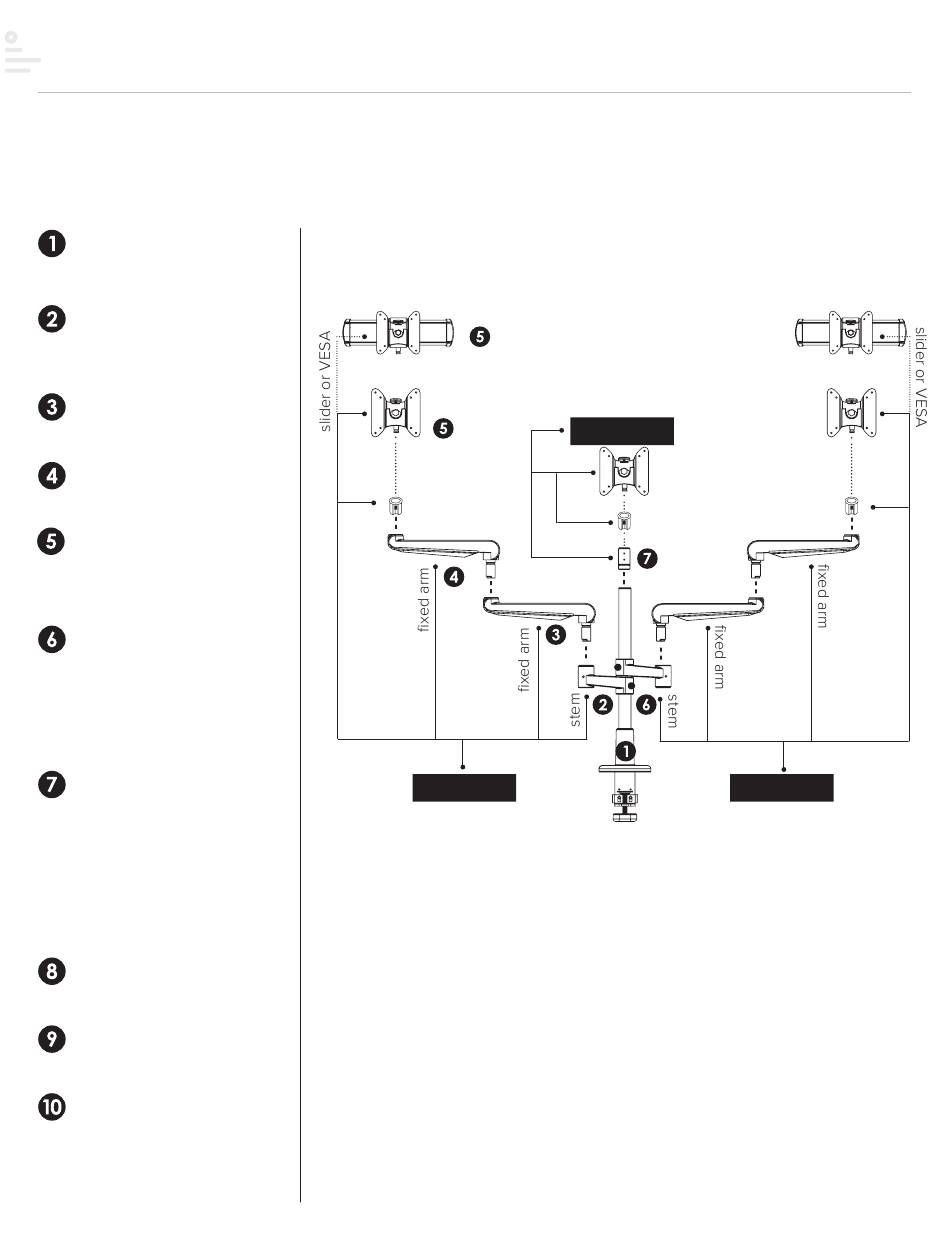

More complete instructions for part assembly can be found on the page numbers listed below.
This may include, but is not limited to, screws, adjustment knobs, bushings and surface protection.
Pole mount (PG. 10)
Secure pole mount to
worksurface.
Stem arm (PG. 13)
Slide stem arm over pole
and secure in place with the
5mm Allen key.
Fixed arm (PG. 14)
Insert fixed arm to stem arm.
Fixed arm (PG. 15)
Insert fixed arm to fixed arm.
VESA or slider (PG. 17)
Attach reducer bushing to VESA
or slider. Insert VESA or slider to
fixed arm.
Dual (PG. 13)
For dual display configurations,
reverse the second stem arm
on the pole. then, repeat
configuration on second stem
arm.
Triple (PG. 13)
For triple display configurations,
reverse the second stem arm on
the pole, then add a third stem
arm.
(pg. 16) Attach reducer bushing
to vesa and insert vesa to third
stem arm.
VESA plate (PG. 18)
Attach VESA plate to back of
monitor.
Quick release (PG. 18)
Attach displays using the quick
release feature.
Tension (PG. 19)
Adjust tension on VESA and/or
slider.
8
Completes Evolve3-FFS assembly
Completes Evolve3-FF assembly
reducer
bushing
BUILD 1ST
Completes Evolve1-FF assembly
or
Completes Evolve1-FFS assembly
or
BUILD 3RD
VESA
reducer
bushing
stem
Completes Evolve2-FF assembly
Completes Evolve2-FFS assembly
reducer
bushing
BUILD 2ND
or
