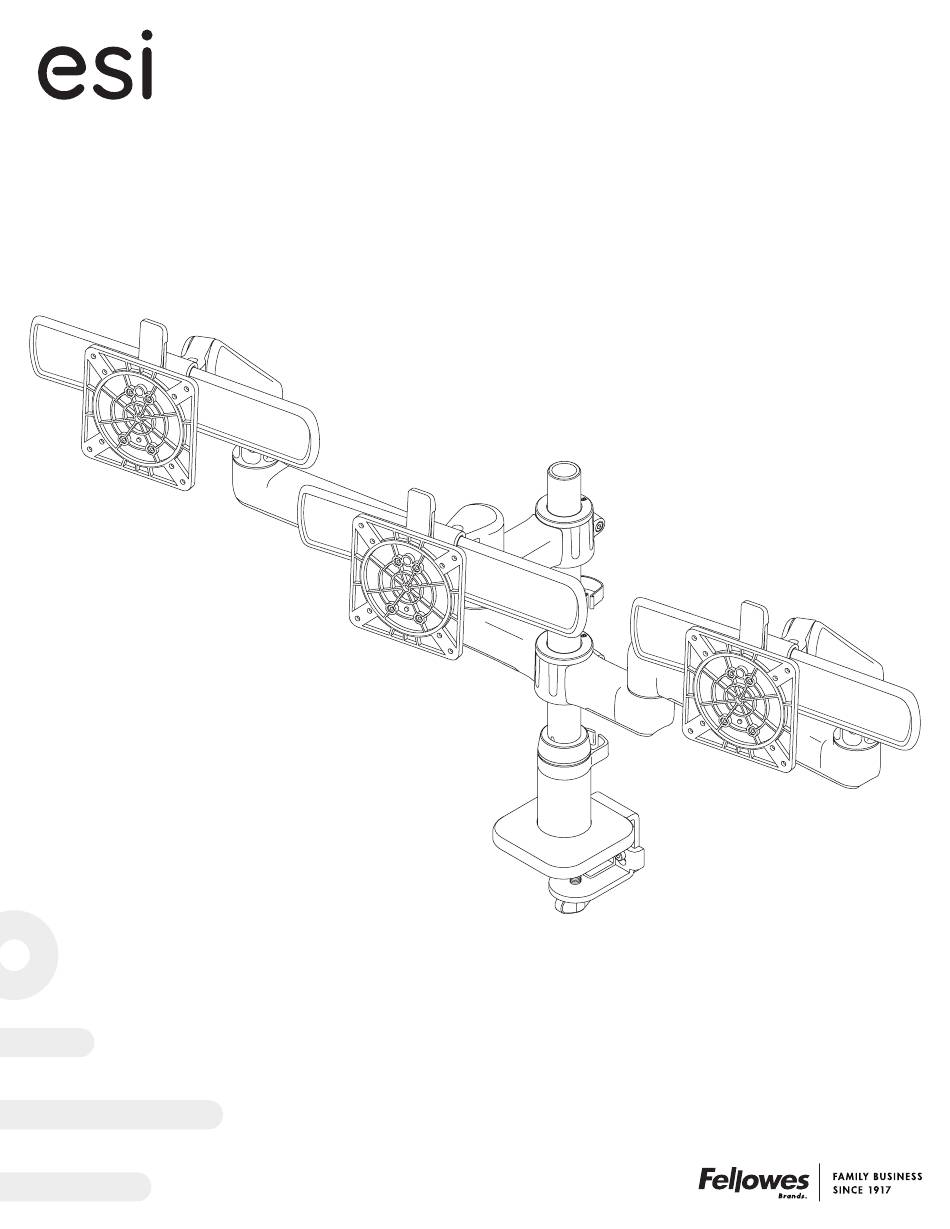

- Page 1 Kata EX3-FMS ™ installation instructions triple fixed+motion+slider monitor arm Model# KATAEX3-DC-FMS-___ Model# KATAEX3-GM-FMS-___ ___ = SLV, BLK or WHT...
-
Page 2: Components And Tools
KataEX3-FMS Components and tools Caution • Hand tighten screws only. Do not use power tools. Please review these instructions before beginning the installation. Use the illustrations below to check that all the components needed for your installation were provided with your order. Do not discard the packaging until the product works to your satisfaction. Components and tools clamp or grommet mounting: clamp mounting only:... - Page 3 KataEX3-FMS Assembly Follow either step #1a for clamp mounting or step #1b for grommet mounting. All other steps apply to both mounting methods. Step #1a: attach base assembly to worksurface — clamp mounting The thickness of the worksurface must be between 0.5" and 2.1". To mount the clamp flush against the worksurface, the thickness must be no more than 1.5".
- Page 4 KataEX3-FMS Assembly Step #2: assemble slider mounts IMPORTANT: When assembling the slider mounts, the groove on the slider bars must be at the bottom. • Slide the VESA mount assembly onto the slider bar. Center the assembly on the slider bar. •...
- Page 5 KataEX3-FMS Assembly Step #4: install fixed-motion monitor arm assemblies • Monitor arm assemblies are installed by fitting the tabs on the end of the arm stems into slots on the connection sleeve, as shown in the top left illustration below. —...
- Page 6 KataEX3-FMS Assembly Step #6: install stubby monitor arm assembly • Remove the locking ring from the second connection sleeve and install the sleeve about one-third down from the top of the post. Tighten the screw securely. • Install the monitor arm onto the connection sleeve by sliding its tabs into the center two slots on the sleeve. •...
- Page 7 KataEX3-FMS Assembly Step #7: attach VESA plates to monitors • Remove each VESA plate from its VESA mount by (1) pushing forward the tab at the top and (2) lifting upward. — TIP: Practice re-installing the VESA plate before attaching it to the monitor. This will make step #8 easier. •...
- Page 8 KataEX3-FMS Assembly Step #9: remove cable management covers • To remove the cover from the motion arms, slide the cable cover upward. • To remove the cover from the fixed arms, arm stems and stubby arm, slide the cable cover out. motion arm stubby arm fixed arm...
- Page 9 KataEX3-FMS Assembly Step #11: organize cables and cords • Capture the cables and cords with the cable covers. Slide the cable covers as shown to attach them to the monitor arms. • Snap the cable clips onto the post and into the recessed groove above the base. •...
- Page 10 KataEX3-FMS Assembly Step #12: make any necessary adjustments There are seven possible ways to change the position of the monitors to maximize the efficiency and comfort of the working environment. Refer to the illustration on the following page. 1. Monitor position on slider —...
- Page 11 KataEX3-FMS Assembly head adapter monitors not shown behind slider Page 11...
- Page 12 ESI’s option, of the product or any defective part. Costs (such as installation, labor fees or express shipping) incurred due to replacement of products are not covered under warranty. IN NO EVENT SHALL FELLOWES, ITS AFFILIATES, SUBSIDIARIES, RELATED ENTITIES OR THEIR RESPECTIVE OFFICERS, DIRECTORS, OR EMPLOYEES, BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, EXEMPLARY, OR SPECIAL DAMAGES.
