Eaton XV-303-2 Series Manual

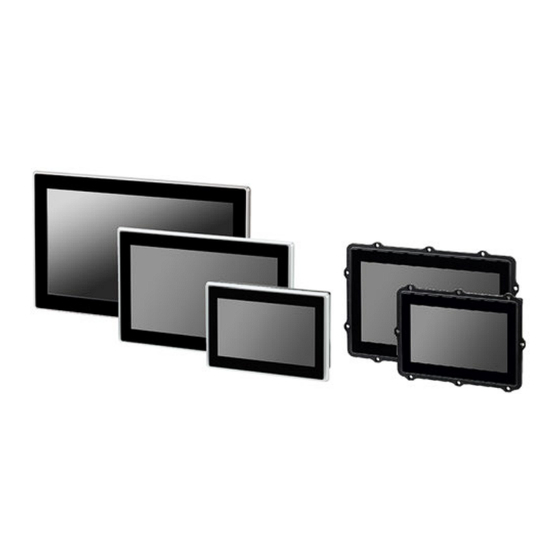

Multi-touch display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
08/24 MN048031EN

Manual

XV-303/XV-313-...-2. (L) multi-touch display
Manual


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XV-303-2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton XV-303-2 Series

Summary of Contents for Eaton XV-303-2 Series

  • Page 1: Xv-303/Xv-313

    08/24 MN048031EN   Manual   XV-303/XV-313-...-2. (L) multi-touch display Manual  ...

  • Page 2: Company Information

    No part of this manual may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, micro-filming, record- ing, or otherwise, without the prior written permission of EATON. Subject to alteration.

  • Page 3: Before Starting With The Installation

    DANGER! Hazardous electrical voltage! Before starting with the installation   Installation requires qualified electrician desktop devices and portable devices only when   the housing is closed. Disconnect the power supply of the device.     Measures should be taken to ensure the proper Secure against retriggering  ...

  • Page 5: Table Of Contents

    1.3.3 Optional features Operating and indication elements Interfaces to peripheral devices What the different parts of the part number mean Accessory devices Nameplate Support 1.10 Conditions for Underwriters Laboratories Inc. (UL) listing 1.11 Marine approvals XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 6 Rear (wall) mounting XV-313 Preparing the device for operation 3.4.1 Functional earthing XV-303/XV-313-...-2. (L) multi-touch display 49 3.4.2 Power supply - electrical connection Commissioning Initial commissioning Running the XV300 External connections Layout of interfaces SD card XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 7 A.1.2.2 XV-313 Rear (panel) mounting A.1.2.3 Mounting surrounds for rear (panel) mounting A.1.3 General data A.1.4 Port and interface specifications A.1.5 Information on the power supply A.1.6 Approvals and declarations Further usage information Alphabetical index XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 8: About This Documentation

    Please send any comments, recommendations, or suggestions regarding this doc- ument to: DocumentationEGBonn@eaton.com 0.1.1 List of revisions The following significant amendments have been introduced since previous issues: Publication Keyword Modification date 04/2024 New edition ✓   XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 9: Target Group

    Incomplete operator manual copies Working with individual pages taken out from the operator manual may lead to bodily injury and property damage due to missing safety information. Always work with the latest and full document. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 10: Legal Disclaimer

    – especially if the XV-303/XV-313-...-2. (L) multi-touch display is com- missioned and maintained by unqualified personnel and/or the XV300 is used improp- erly. Eaton assumes no liability for any damages resulting from cases such as these. 0.1.4 Device designations and abbreviations...

  • Page 11: Writing Conventions

    Risk of personal injury warning. DANGER Warns of hazardous situations that result in serious injury or death. WARNING Warns of the possibility of hazardous situations that could result in serious injury or even death. DANGER! Dangerous Electrical Voltage! XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 12: Additional Information For Use

    0.1.5.2 Additional information for use Documents (such as manuals) are listed after the icon together with the cor- responding name and Eaton number. Publication title For identifying the Eaton publication code XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 13 0.1 About this documentation External Internet addresses. The corresponding pages will be opened in a separate browser window when you click on the icon.They will be shown after the icon. Destination address XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 14: Description

    The unit's memory can be expanded with SD cards (accessories) SD card slot for SD / SDHC memory cards   Linux Operating System   Comprehensive basic configuration with integrated interfaces 1.1.2 Options   Additional integrated Ethernet interface   Integrated Control (PLC) XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 15: Notes

    HMI-PLC, as well as section Approvals and declarations in the appendix.   Prohibited uses, actions, etc. It is strictly prohibited to use the device in order to implement safety- relevant functions (in the sense of personal and machine protection). XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 16: Device Models - Versions And Part Nos

    Three widescreen display sizes: 7.0", 10.1" or 15.6" widescreen   Device bundles with visualization software and/or control software licenses. Additional integrated interface   Second Ethernet port (10/100 Mbit/s) for use as a communication interface Device models with PLC functionality XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 17 Tab. 2: Enclosure versions for front mounting Front with plastic bezel Service side with optional interfaces Fig. 1: XV-303-70-.. Fig. 2: XV303-70-C00-A00-2B Fig. 3: XV-303-10-.. Fig. 4: XV-303-10-B00-A00-2B     Fig. 5: XV-303-15-.. Fig. 6: XV-303-15-C00-A00-2B XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 18 Sheet thickness of the installation panel d = 2 mm (0.08") ± 0.1mm (0.004") Tab. 3: Enclosure versions for rear (panel) mounting Front side with aluminum mounting frame Service side with optional interfaces Fig. 7: XV-313-70-.. Fig. 8: XV-313-70-B00-A00-2C Fig. 9: XV-313-10-.. Fig. 10: XV-313-10-C00-A00-2C XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 19: Operating And Indication Elements

    Detects when the controls shown on the display are being actuated. Operation based on touch gestures. ② SD card slot Slot for SD card ③ CTRL button The specific function depends on the software being used XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 20: Interfaces To Peripheral Devices

    SUB-D plug 9-pole, not galvanically isolated, UNC nuts for interlocking ⑦ SUB-D plug 9-pole, not galvanically isolated, UNC nuts for interlocking Optional interfaces ⑧ Ethernet 2 (eth1) RJ-45 socket, 8-pole, 2 LEDs (CAT5e/6), LAN1, 10/100 Mbps XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 21: What The Different Parts Of The Part Number Mean

      Standard version, Type XV-313 sheet thickness of the installation panel d = 1.5 mm (0.059") ± 0.1mm (0.004") Type XV-313 sheet thickness of the installation panel d = 2 mm (0.08") ± 0.1mm (0.004") XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 22: Accessory Devices

    A variety of accessories are available for XV300 multi-touch displays.   SD card   Accessories NOTICE Only use original accessories. Order accessories through your supplier or through the EATON online catalog Eaton.eu/ecat Example: article no. Catalog Number 181638 MEMORY-SD-A2-S SD memory card with min. 1 GB 139807 MEMORY-SD-A1-S SD memory card with min.

  • Page 23: Nameplate

    Layout of ports/interfaces and controls Fig. 12: Example for a nameplate 1.9 Support To get fast and effective support, make sure to always provide Customer Service with the following information from the nameplate:   Part-No.   Serial-No XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 24: Conditions For Underwriters Laboratories Inc. (Ul) Listing

    SmartWire-DT master interface must be externally protected against overcurrent and short circuit by means of:   Miniature circuit-breakers 24V , rated operational current 2 A, tripping char- acteristic Z   Or a 2 A fuse XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 25: Marine Approvals

    EATON ZB4-102-KS1) Location class interface Installation EMC B Power supply Place noise filter EMC A No additional installations   Please refer to the following as well → Section "Conditions for marine approval", page 39 XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 26: Safety Regulations

    The personnel responsible for installation, operation, maintenance, and repairs must have the necessary qualifications for the work they will be performing. They must be appropriately trained and/or briefed and be informed of all hazards and risks asso- ciated with the device. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 27: Device Documentation

    XV300. Additional parts of the documentation and information for the XV300, including the installation instructions, can be found at the Eaton Download Center - Documentation and at the product pages on the Internet Eaton.com/documentation Eaton.com/XV300...

  • Page 28: Device-Specific Hazards

    Make sure that the device is not exposed to dangerous impacts and other types of dangerous mechanical shock. Do not operate the device in hazardous (classified) locations unless it is mounted correctly. De-energize the device before disconnecting plug connections. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 29 The cables being used must be assembled and terminated as required by the port/interface description in this document. When wiring the XV300 multi-touch display, follow all instructions regarding how to wire the corresponding port/interface. All general Directives and standards must be complied with. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 30 NON-GALVANICALLY-ISOLATED INTERFACES The XV300 may be damaged by potential differences. The GND terminals of all bus modules must be connected. Do not connect the connector to the XV300 or disconnect it without first de-energizing the system. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 31 UV LIGHT Plastics will become brittle when exposed to UV light. This artificial aging will reduce the XV-303/XV-313-...-2. (L) multi-touch display unit's lifespan. Protect the XV300 unit from direct sunlight and other sources of UV radiation. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 32 The USB ports (USB host and USB device) on the XV300 multi-touch display are intended exclusively for maintenance work. WARNING The device should only be run with safety extra-low voltage (func- tional extra-low voltage with protective separation). The power transformer must conform to the relevant standards. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 33 ICE/EN 6100−6-4. These products can cause radio interference in domestic environments. In this case, the party operating the products must implement appropriate radio interference suppression measures. CAUTION Installation requires qualified electrician XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 34: Installation

    The SD card slot is located on the side of the XV300. Make sure to take the space required to remove the SD card into account. Fig. 13: Space required to remove the SD card XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 35: Temperatures

    Inclination from vertical: ⍺ ≦ ± 45° at operating temperature ≦ 45°C (113°F) possible (if using natural convection) Storage / Transport -20 – + 60 °C (-4 – +140 °F) Humidity Relative humidity 10 - 95 % Condensation non-condensing XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 36: Aeration And De-Aeration

    Ambient temperature with natural convection: ϑ 0°C (32°F) ≦ T ≦ 50°C (122°F) The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the XV-303/XV-313-...-2. (L) multi-touch display as necessary for design verification in accordance with IEC EN 61439.

  • Page 37: Criteria For The Installation Position

    XV-313-70-..: e = 182.7 mm ±0.1 (7.193" ±0.004), f = 126.8 mm ±0,1 (4.992"±0.004) XV-303-15-..: e = 255.7 mm ±0.1 (10.07"±0.004), f = 165.8 mm ±0.1 (6.528" ±0.004) α α √ √ Fig. 16: Mounting position XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 38: Technical Conditions For Acceptance By Underwriters Laboratories Inc. (Ul)

    The devices must be installed in a suitable fire protection enclosure that provides protection against the spread of fire. The torque used to tighten the screw terminals on the plug-in connection for the sup- ply voltage must not exceed 0.6 ... 0.8 Nm (5 ... 7 lb-in). XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 39: Conditions For Marine Approval

    Integrate a radio interference suppression filter into the wiring. Depending on the output, the following filters can be used:   XT-FIL-1 radio interference suppression filter for 24 V DC supply up to 2.2 A (Eaton article no. 285316)   XT-FIL-2 radio interference suppression filter for 24 V DC supply up to 12 A (Eaton article no.
  • Page 40 3. Installation 3.1 Prerequisites for the location of use   a separate line to the filer's PE connection. Depending on the current consumption or configuration, several filters may be used as well. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 41: Unpacking And Checking The Equipment Supplied

    Accordingly, make sure to protect the XV-303/XV-313-...-2. (L) multi-touch display from mechanical loads that exceed the scope of the unit's intended use. The XV300 should only be transported in its original packaging after being packed properly. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 42: Mounting

    Check the gasket for damage and make sure it is resting correctly inside the enclosure groove. Missing parts or damage If you notice anything wrong, please contact your distributor or Eaton Service +49 (0) 180 5 223822 (de,en) XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 43: Front Mounting Xv-303

    Pre-install the holding brackets using the set screws. Check that the gasket is in its correct position and pre-install the holding brackets Peripheral gasket in the rim Sponge rubber round cord, Material NBR/PVC Black, closed outer skin, diameter 3 mm (0.12") XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 44 6. Check that the device is in its correct, centered position and that the gasket is in contact all around; adjust if necessary. 7. Tighten the set screws in a criss-cross sequence: with a torque of ≦ 0.1Nm (0.86 lb-in) XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 45: Rear (Wall) Mounting Xv-313

    R 3.5 ±0.1 mm (R 0.14 ±0.004") M4 x 12 156 ±0.5 mm (6.14 ±0.02") 182.7 ±0.1 mm (7.19 ±0.004") 199 ±0.5 mm (7.83 ±0.02") Fig. 19: Dimensional drawing for mounting XV-313-70-.. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 46 2. Center the XV-313 in the mounting cutout. 3. Use washers and M4 nuts to fasten the XV-313 to all the weld studs on the sheet in such a way that there is zero clearance Fig. 21: Mounting XV-313 XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 47: Preparing The Device For Operation

    Do not expose the XV300 multi-touch display to direct thermal radia- tion from heating appliances. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 48 Current consumption at 24 V DC: 19.1 W for basic device + 2.5 W for USB module fuse Yes (fuse not accessible) Potential isolation Electrical current 7.0" display 10.1" display 15.6" display ≦ 0.6 A ≦0.75 A ≦ 0.9 A 1.0 A²s 1.0 A²s 1.0 A²s XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 49: Functional Earthing Xv-303/Xv-313

    Ring-cable ferrule for M4 Internal diameter = 4.3 mm External diameter ≦ 8 mm Conductor length ≦ 350 mm Tightening torque 1.3 Nm (11.5 lb-in) Functional earth   Fig. 22: Screwing the functional earth conductor onto the enclosure XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 50: Power Supply - Electrical Connection

    = 24 V DC (19.2 - 30 V DC SELV) = ... 0.6 - 0.8 Nm (5 - 7 lb-in) 0 V +24 V DC Fig. 23: Connecting the screw terminals on the Plug connector MSTB 2.5/3-ST-5.08 XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 51 (SELV) set forth in IEC 60950 and – in connection with the UL listing – the requirements for a low-voltage source set forth in UL 61010-2-201. The XV-303/XV-313-...-2. (L) multi-touch display is now ready to run on 24 V XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 52: Commissioning

    The XV300 unit will boot up. The XV300 multi-touch display does not come with any runtime soft- ware for visualization or PLCs installed. The corresponding software packages can be used to install the required runtime software on the XV300 unit. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 53: Initial Commissioning

    Reducing the level of brightness will increase the display back- light's lifespan. Follow the instructions in the following section if your XV300 until will not boot up and/or if an error message appears: → Section "Faults", page 64 XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 54: External Connections

    5. External connections 5. External connections With their ports, Eaton's XV300 multi-touch display make it possible to connect a vari- ety of peripheral devices and components. DANGER STRAY CURRENTS Large equalizing currents between the functional earthing system and the ground system of different devices may result in fire or in mal- functions due to signal interference.

  • Page 55: Layout Of Interfaces

    SUB-D plug 9-pole, not galvanically isolated, UNC nuts for interlocking ⑦ SUB-D plug 9-pole, not galvanically isolated, UNC nuts for interlocking Optional ⑧ Ethernet 2 (eth1) RJ-45 socket, 8-pole, 2 LEDs (CAT5e/6), LAN1, 10/100 Mbps   XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 56: Sd Card

    Push the SD card into the SD card slot all the way to the stop. Pull the SD card out of the SD card slot. Store the SD card in its case in order to protect it. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 57: Usb Interfaces

    5. External connections 5.3 USB interfaces 5.3 USB interfaces Eaton's XV300 multi-touch display units feature ports that can be used to connect USB peripheral devices supported by the XV300 unit's hardware and operating sys- tem. CAUTION When using commercially available peripheral devices (e.g., with the...

  • Page 58: Ethernet 1, Ethernet

    Protect the RJ45 plug-in connection from strong vibrations.   Protect the RJ45 plug-in connection from tensile forces at the socket. To commission the communication between the XV300 and the device, follow the description for the connected device. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 59: Serial Interfaces For Communication With Plcs Or Devices

    2.5 m 115200 Bit/s 57600 Bit/s 10 m 38400 Bit/s 15 m 19200 Bit/s 30 m 9600 Bit/s When preparing connections, ensure that the cable shield has a low impedance connection with the connector housing. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 60: Rs-485 Com2

    1200 m Possible baud rates 9600 Bit/s   19200 Bit/s   38400 Bit/s   57600 Bit/s   115200 Bit/s When preparing connections, ensure that the cable shield has a low impedance connection with the connector housing. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 61 The bus segment must be terminated at both ends. There must not be more than two terminations per bus segment. Running the bus segment without the right termination may result in transmission errors.   Fig. 29: Bus segment with four nodes XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 62: Can1 Interface For The Canopen Protocol, J1939 Protocol, Etc

      108 … 132 Ohm Capacitance per unit length     < 60 pF/m Core cross-section 100 m 0.25 mm With a max. cable length of 250 m 0.34 mm 500 m 0.75 mm   XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 63 The bus segment must be terminated at both ends. There must not be more than two terminations per bus segment. Running the bus segment without the right termination may result in transmission errors. Fig. 30: CAN bus segment with four nodes XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 64: Faults

    Calibrate the touch functionality; The touch is not calibrated correctly. please refer to the Linux system description   The touch is disabled. Switch on XV300. Enable the touch functionality; please refer to the Linux system description XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 65: Maintenance

    The internal battery used to back up the real-time clock is maintenance-free and is sized for a backup time of normally 10 years at 25° C (77°F) when de-energized, provided the corresponding ambient conditions are met. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 66: Repairs

    7. Maintenance 7.2 Repairs 7.2 Repairs For repairs, please contact your vendor or Eaton's Technical Support. CAUTION DESTRUCTION The XV-303/XV-313-...-2. (L) multi-touch display should only be opened by the manufacturer or by an authorized center. Operate the XV300 until only with the enclosure fully closed and sealed.
  • Page 67 Accordingly, make sure to protect the XV-303/XV-313-...-2. (L) multi-touch display from mechanical loads that exceed the scope of the unit's intended use. The XV300 should only be transported in its original packaging after being packed properly. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 68: Disposal

    Lithium BR-2330/GNU, 3V, 255 mAh, Weight (g): 3.7 SVHC Substance: ethylene glycol dimethyl ether Substance weight (%): 2-4 Materials used in the packaging Packaging Material Outer packaging Cardboard Inner packaging Cardboard Plastic bag: polyethylene (PE) XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 69: Appendix

    Appendix Appendix A.1 Technical data A.1.1 Data sheets A.1.2 Dimension and weight specifications A.1.3 General data A.1.4 Port and interface specifications A.1.5 Information on the power supply A.1.6 Approvals and declarations A.2 Further usage information XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 70: Technical Data

    1 Slot for 1 SD-card 7.0" XV-303-70-C00-A00-2B EP-401362 Integrated interfaces: 2 x Ethernet 100/10, 1 x USB host, XV-303-10-C00-A00-2B 10.1" EP-401366 1 x USB device, 1 x RS-485, 1 x RS-232, 15.6" XV-303-15-C00-A00-2B EP-401369 1 x CAN XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 71 2 x Ethernet 100/10, XV-313-10-C00- d = 1.5 mm (0.059") ± 0.1mm (0.004") 10.1" 1 x USB host, 401374 A00-2C 1 x USB device, 1 x RS-485, 1 x RS-232, 1 x CAN PLC function   XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 72: Dimension And Weight Specifications

    Fig. 31: Dimensions for 7.0" front mounting devices in mm (inches) Width x Height x Depth 196 mm x 135 mm x 51 mm (7.72" x 5.31" x 2.01") (without plug) Weight 0.74 kg (1.63 lbs) XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 73 Fig. 32: Dimensions for 10.1" front mounting devices in mm (inches) Width x Height x Depth 269 mm x 174 mm x 58 mm (10.59" x 6.85" x 2.28") (without plug) Weight 1.13 kg (2.49 lbs) XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 74 Fig. 33: Dimensions for 15.6" front mounting devices in mm (inches) Width x Height x Depth 401.7 mm x 254.9 mm x 67.6 mm ±0.2 (15.9" x 10.04" x 2.661" ±0.008 ) (without plug) Weight 3.25 kg (7.17 lbs) XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 75: Xv-313 Rear (Panel) Mounting

    Fig. 34: Dimensions for 7.0" rear (panel) mounting devices in mm (inches)XV-313-..-...-A00-.. Width x Height x Depth 209 mm x 151 mm x 51 mm (8.23" x 5.94" x 2.01") (without plug) Weight 0.8 kg (1.76 lbs) XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 76 ⌀ 7.5 mm (⌀ 0.30") R 3.2 mm (R 0.13") x 1.5 mm (0.059") 170 mm (6.69") 254.4 mm (10.02") 282 mm (11.10") Fig. 35: Dimensions for 10.1" rear (panel) mounting devices in mm (inches)XV-313-..-...-A00-.. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 77 Fig. 36: Dimensions for 10.1" rear (panel) mounting devices in mm (inches)XV-313-..-...-A11-.. Width x Height x Depth 282 mm x 190 mm x 58 mm (11.10" x 7.48" x 2.28") (without plug) Weight 1.21 kg (2.67 lbs) XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 78: Mounting Surrounds For Rear (Panel) Mounting

    Fig. 37: Installation panel for XV-313-10-..   R 3.9 ±0.1 mm (R 0.15 ±0.004") M4 x 12 170 ±0.5 mm (6.69 ±0.02") 255.7 ±0.1 mm (10.07 ±0.004") 272 ±0.5 mm (10.71 ±0.02") Fig. 38: Installation panel for XV-313-70-.. XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 79: General Data

    Cooling Fanless CPU and system cooling, natural convection-based passive cooling Back-up of real-time clock     Battery (lifespan) Non-maintained   normally 10 years at 25° C (77°F) Backup (time at zero voltage) Operating System Linux XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 80 344.23 mm x 193.54 mm XV-303-15-.. Contrast ratio (Normally)     normally 850:1 XV-303-70-.., XV-313-70-..   XV-303-10-.., XV-313-10-.. normally 500:1 XV-303-15-.. Brightness Normally 400 cd/m2 Backlight dimmable via software Lifespan of backlight Normally 50000 h at 25 °C XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 81: Port And Interface Specifications

      SUB-D plug 9-pole, not galvanically isolated, RS-485 UNC nuts for interlocking   SUB-D plug 9-pole, not galvanically isolated, RS-232 UNC nuts for interlocking   SUB-D plug 9-pole, not galvanically isolated, UNC nuts for interlocking XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 82: Information On The Power Supply

    Current consumption at 24 V DC: 19.1 W for basic device + 2.5 W for USB module fuse Yes (fuse not accessible) Potential isolation Electrical current 7.0" display 10.1" display 15.6" display ≦ 0.6 A ≦0.75 A ≦ 0.9 A 1.0 A²s 1.0 A²s 1.0 A²s   XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 83: Approvals And Declarations

    Electrical accessories - Circuit-breakers for overcurrent DIN EN 60898-1:2006-03 protection for household and similar installations   EN 50178_x Electronic equipment for use in power installations   Programmable controllers: Equipment requirements and IEC/EN 61131-2 tests Mechanical 15g /11ms IEC/EN 60068-2-27 XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...
  • Page 84 Inclination from vertical: ⍺ ≦ ± 45° at operating temperature ≦ 45°C (113°F) possible (if using natural convection) Storage / Transport -20 – + 60 °C (-4 – +140 °F) Humidity Relative humidity 10 - 95 % Condensation non-condensing XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 85: Further Usage Information

    Enter "XV300" into the search box and the catalog will take you directly to the cor- responding product group in the Automation, Control and visualization section. Eaton.com/documentation Eaton.com/ecat Product information For up-to-date information, please consult the product page on the Internet. Eaton.com/xv300 XV-303/XV-313-...-2. (L) multi-touch display  08/24 MN048031EN  Eaton.com...

  • Page 86: Alphabetical Index
