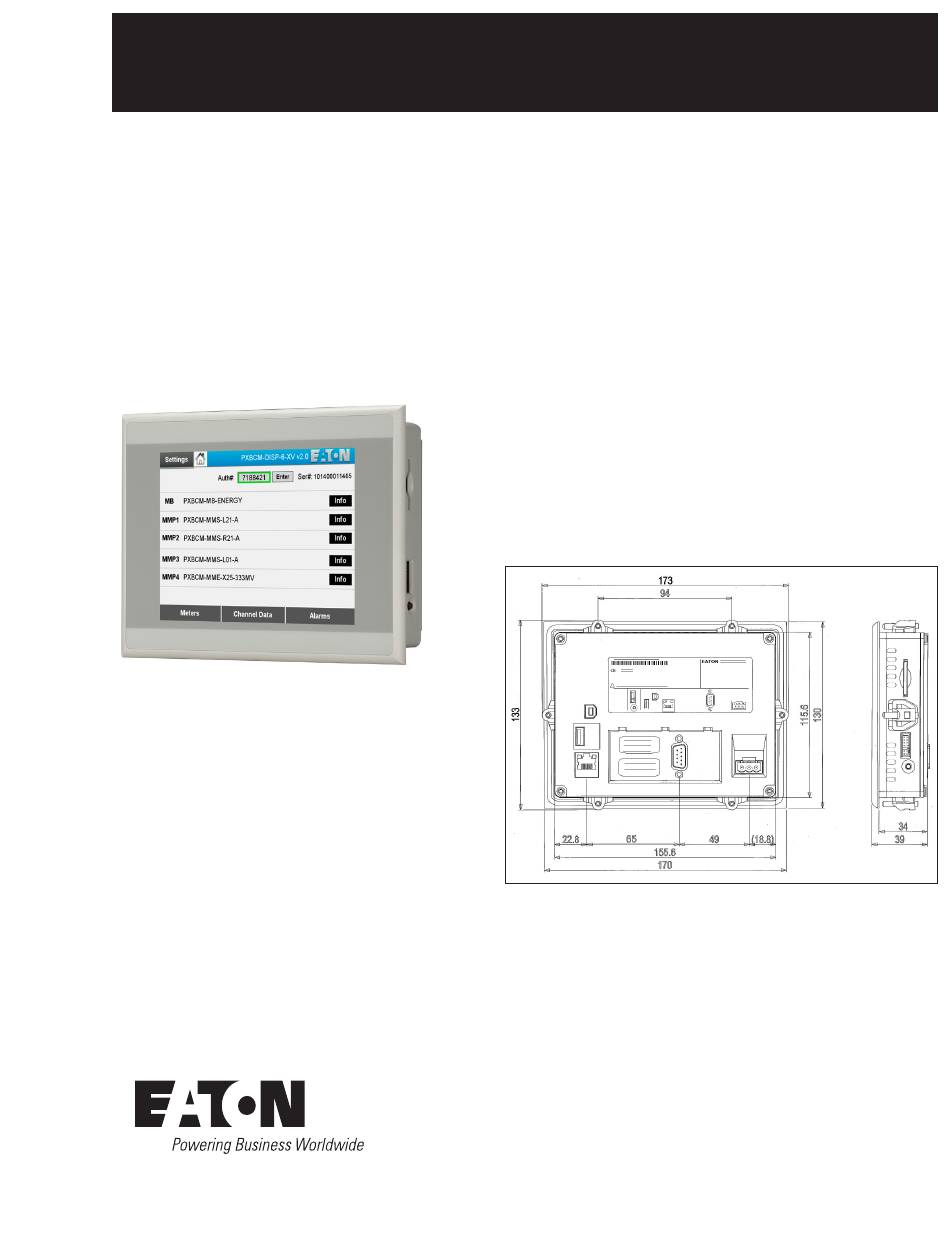

Technical Data TD150031EN
PXBCM meter color touchscreen
display quick start guide
For detailed information concerning the operation and features avail-
able in the PXBCM meter display - 6" color touchscreen (PXBCM-
DISP-6-XV or PXBCM-DISP-6-TM-XV), please refer to PXBCM meter
color touchscreen display features (IB150023EN) or PXBCM meter
tenant meter touchscreen display features (IB150030EN) available on
the Eaton website (www.eaton.com/meters).

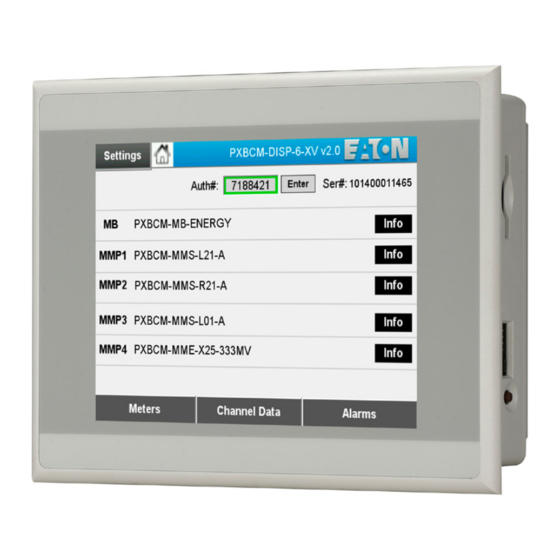

Figure 1. Color touchscreen display for PXBCM series meter.

Technical information

640 x 480 pixel backlit VGA touch screen display.
Power: 24 Vdc input.
Effective November 2020
Supersedes June 2019

Display measurements

Height: 5.24 in. (133 mm);
Width: 6.81 in. (173 mm);
Depth: 1.54 in. (39 mm);
Weight: 1.32 lb (600 g);
Cutout dimensions: 4.61 in. x 6.18 in.(117 .0 x 157 .0 mm).

Ratings

Front bezel IP rating: IP65;
Operating temperature: 0 ~ 50°C (32 ~ 122°F);
Storage temperature: -20 ~ 60°C (-4 ~ 140°F);
Ambient humidity: 10% ~ 90% RH (0 ~ 40°C [32 ~ 104°F]),
10% ~ 55% RH (41 ~ 50°C [105.8 ~ 122°F]).
Figure 2. Dimensions of the PXBCM meter display - 6" color
touchscreen (PXBCM-DISP-6-XV).
