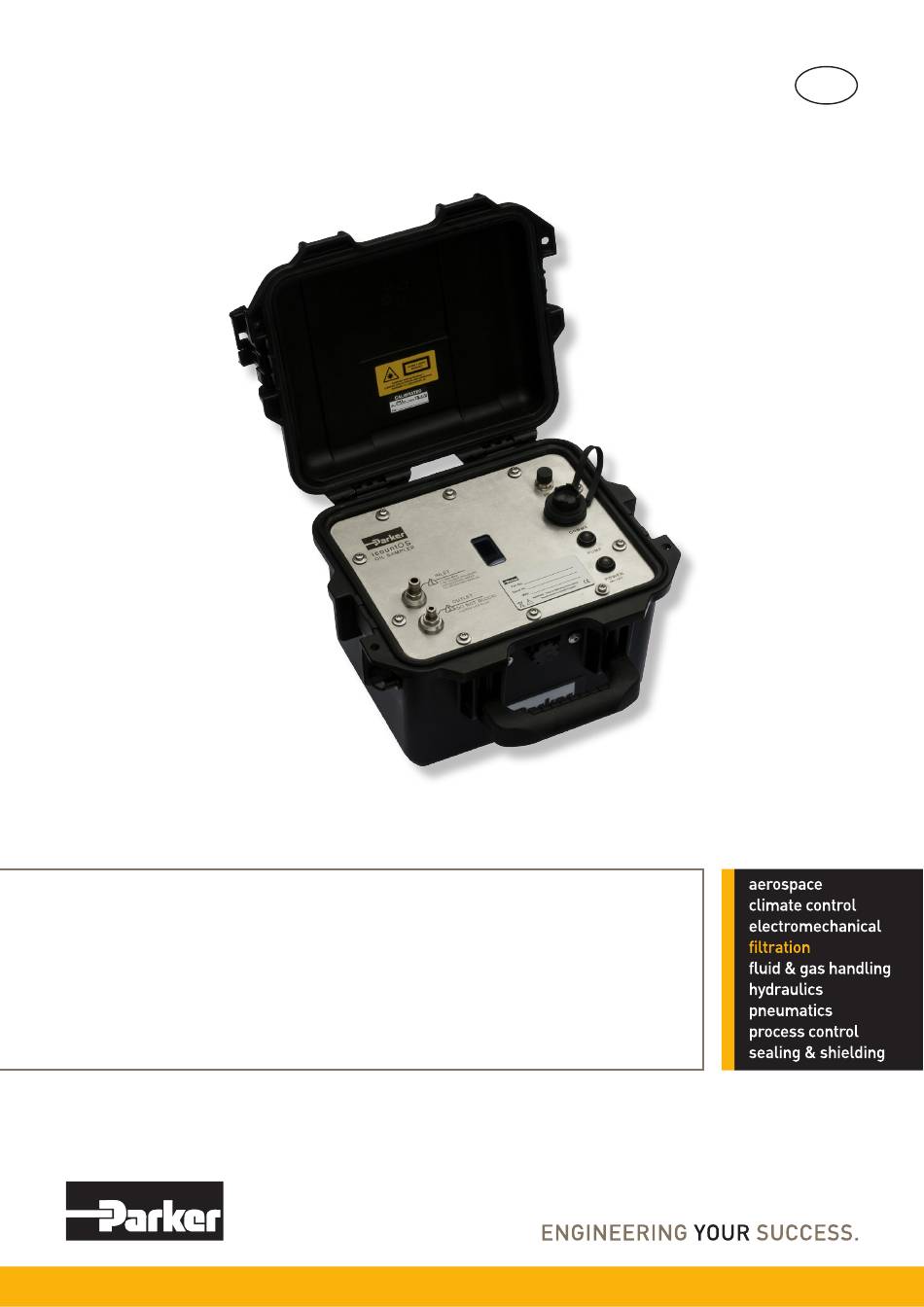

- Page 1 Oil Sampler Manual DD0000013_EN Rev 5 © 2016, Parker Hannifin Manufacturing Ltd www.parker.com...
-
Page 2: Table Of Contents
Removing the hose fittings ................21 High pressure connection setup ................22 Assembling the PRV and hose fittings ............22 Removing the PRV and hose fittings .............23 icountOS Web Interface ................. 24 Home page ....................24 Unit Status page – ISO .................24 Unit Status page – NAS ................25 Data Log page .....................25... -
Page 3: About This Manual

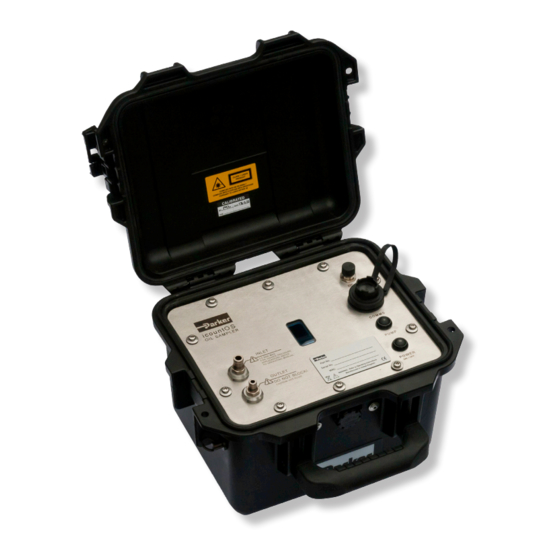

High Performance Resin case. With its Vortex valve allowing ® ® pressure release without letting in water and its soft handle, icountOS has been designed with customers in mind, offering durability, functionality and future customisation options. Durable HPX case Vortex... -
Page 4: Symbol Glossary
Please read the operating instructions before use and refer to this Handbook whenever appropriate during use. Before operating the icountOS ensure all electrical connections, hoses and fittings are securely fitted to the appropriate standards. Check all hoses and fittings for wear and or damage. If replacements are required please order new parts using the Accessory Part Numbers on the Ordering Information section (page 29). -
Page 5: Laser Information
Exclusion of Liability Parker has made every endeavour to ensure the accuracy of the content of this document, however errors cannot be ruled out. Consequently, we accept no liability for such errors as may exist or for any damage or loss whatsoever which may arise as a result of such errors. -
Page 6: Ec Declaration Of Conformity
IP24 1HP United Kingdom Product(s): The following icountOS* (Oil Sampler) product ranges come under this certificate approval:- Product part number with a prefix of iOS* and 9406** The Product(s) described above are in conformity with the essential requirements of the following directives:... -
Page 7: Product Identification Labels
Conformity marking of product by notified body IP Address Contamination Standards See the Parker ‘Guide to Contamination Standards’ (DD0000015) – available on your CD. This publication makes available industry-recognized cleanliness specifications for both hydraulic fluid and fuel samples. icountOS Oil Sampler Manual... -
Page 8: Introduction
In contrast to other Parker particle counters (such as the CM20, LCM20, ACM20 or MCM20), the icountOS allows the user to set the duration of the test and frequency of the measurements taken. The results are reported immediately, but also stored in the unit’s internal memory and may be downloaded later for analysis by third-party applications (such as Microsoft Excel). -
Page 9: Benefits
On-board memory capable of storing in excess of 250,000 test results ■ ■ Flexible data exporting – as XML, CSV and TXT files ■ ■ Modular design for easy servicing ■ ■ On-board high quality pump and motor. ■ ■ icountOS Oil Sampler Manual... -
Page 10: Product Features
Place the unit on a stable surface with easy access to the controls and visual access to the Results display. CAUTION: Do not open the icountOS when it is raining without providing separate protection against the rain. Take care not to drop the unit. This type of damage is not covered by the Warranty. -
Page 11: Dimensions
2.5 bar Pump Flowcell maximum maximum input input pressure pressure to to PRV icountOS 10 bar Check Valve OUTPUT WARNING: For input pressures over 2.5 bar, please use the Pressure Reduction Valve (ACC6NN027) – see page 13. icountOS Oil Sampler Manual... -
Page 12: The Results Display Screen
MTD(C) (i.e. Medium Test Dust (Calibrated)), the Unit ID and the IP address. See ‘Configuration page’ on pages 26–27. See the Parker ‘Guide to Contamination Standards’ (DD0000015) – available on your CD. Channel sizes (4, 6 and 14µ in this case). Alternates with a display of alarm limit settings. -
Page 13: Pressure Reducing Valve (Prv)
See page 22 ‘High pressure connection setup’ for details on fitting and removing the PRV. WARNING: Particular care is required to connect your icountOS unit to a high pressure system application. Please contact Parker Hannifin if you require further advice. -
Page 14: Technical Specifications
Power requirements Supplied by an internal battery and/or an external power supply. Parker recommend that the battery is put through a full discharge/full recharge cycle every three months. Please contact Parker for advice or if in doubt. Certification... -
Page 15: Software Default Settings
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The unique product identifier is the serial number. icountOS Oil Sampler Manual... -
Page 16: Connections
Connections Electrical connections Only use the Parker Hannifin-supplied power supply with the icountOS. Check that you have the correct mains plug for your region. ACC6NN040 ACC6NN041 ACC6NN042 CAUTION: The performance of the power supply is only valid when using the region- specific Parker supplied Power Supply Cable (ACC6NN040/041/042). -
Page 17: Communication Connections
Communication connections The RJ45 LAN connection cable uses IP68-rated cables and a robust connection interface. CAUTION: Ingress Protection (IP) is only valid when using the Parker Hannifin supplied RJ45 LAN connection cable (ACC6NN028). Connecting/Disconnecting Remove dust cap from icountOS Remove the RJ45 dust cap... -
Page 18: Stand-Alone Or Network Setup
No Network or Laptop connection available See Electrical See Hydraulic connections set up connections set up (page 16) (low pressure, page 20–21; high pressure, page 22–23) Press switch Press switch Pump on, test starts POWER PUMP Results displayed Parker Hannifin Corporation... -
Page 19: Connecting To A Network Or Laptop
ID is changed (see page 26, ‘Configuration page’ item 5), then use that name. Loading may take a few seconds. The TCP/IP parameters are automatically configured using DHCP. The Home page appears for the device. See ‘icountOS Web Interface’, page 24. icountOS Oil Sampler Manual... -
Page 20: Low Pressure Connection Setup
Low pressure connection setup We recommend that the icountOS is positioned in a safe, stable area, as close as possible to the system output and only the hose fittings provided are used. CAUTION: The correct connection methods and safety standards must be applied when fitting the icountOS onto a pressure system. -
Page 21: Removing The Hose Fittings
To remove (Ø 4mm) hose, To avoid fluid leaking after use, fit the OUTLET Close the unit press down the connector sleeve and blanking plugs (ACC6NN033) pull the hose out. icountOS Oil Sampler Manual... -
Page 22: High Pressure Connection Setup
High pressure is defined for this unit as more than 2.5 bar, with a maximum of 350 bar. We recommend that the icountOS is positioned in a safe, stable area, as close as possible to the system output and only the hose fittings provided are used. -
Page 23: Removing The Prv And Hose Fittings
To remove (Ø 4mm) hose, To avoid fluid leaking after use, fit the Close the unit OUTLET press down the connector sleeve and blanking plugs (ACC6NN033) pull the hose out. icountOS Oil Sampler Manual... -
Page 24: Icountos Web Interface
Web Interface Home page Product description Key features Register the product at www.parker.com/unlock Unit Status page – ISO The Unit Status page is a list of current values for various parameters for the connected icountOS unit. Last result used ISO reporting standard. -
Page 25: Unit Status Page - Nas
• TXT format • CSV (Comma Separated Variables) • XML (eXtended Markup Language) Clear data logging memory List of the five last samples taken Memory usage. Note that once memory reaches capacity, old data is overwritten without warning. icountOS Oil Sampler Manual... -
Page 26: Configuration Page - Iso
(default = 60 seconds) Data logging interval – the interval that test results are stored / displayed by icountOS (default = 60 seconds) Unit ID name (see page 19) Enter characters A-Z and numbers 0-9 only. -
Page 27: Configuration: Set Date And Time Page
Configuration: Set Date and Time page Set the date, in the format dd/mm/ yyyy Set the time, in the format hh/mm (use the 24-hour clock) Confirm the selected date and time. icountOS Oil Sampler Manual... -
Page 28: Contact Us Page
Contact Us page Contact address Contact telephone Contact email. Parker Hannifin Corporation... -
Page 29: Reference
Reference Ordering information The icountOS is supplied with an ACC6NN029 Accessory Kit, including a Power Supply electrical connection of your choice (i.e. with a UK, EUR or US plug). Fluid type Calibration Connection Options IOS1220EUR Mineral Online No options IOS1210EUR... - Page 30 Low Pressure Hoses (4mm and ACC6NN031 6mm), 1.5m Packing Box ACC6NN032 Blanking plugs (4mm and ACC6NN033 6mm) High Pressure Hose. ACC6NN034 (1m) For use with PRV only. ACC6NN037 (2,5m) Verification Fluid SERMISC067 Lid seal pack (x5) ACC6NN036 Parker Hannifin Corporation...
-
Page 31: Recalibration And Servicing
Condition Monitoring Service Centre safely for recalibration and servicing. If the original box is not available, a box with the correct packing material is available from Parker Hannifin as Part Number ACC6NN032. icountOS Oil Sampler Manual... -
Page 32: Addendum
Addendum PC Wireless Communication Connection Switch the icountOS unit on and allow it to go through the screen boot-up sequence, then switch on the icountOS Wireless (Button illuminates). Connecting computer (Windows XP or 7) Ensure the computer wireless device is enabled. -
Page 33: Windows Xp Instructions
Windows XP Instructions Via your desktop, select the Wireless network icon to launch the Wireless Network Connection window. Locate and select for the icountOS unit (identified as the icountOS serial number). Connect Select connect. The icountOS should now be connected. Close all windows. -
Page 34: Windows 7 Instructions
Via your desktop, select the Wireless network icon to launch the Wireless Network Connection window. Locate and select the icountOS unit (identified as the icountOS serial number) Right click and Connect. The icountOS should now be connected. Close all windows. -
Page 35: Smart Device Communication Connection
Please remember to turn the wireless switch OFF when you have finished your testing as it will drain the battery charge if left on. All functionality including data results downloading can be performed wirelessly. icountOS Oil Sampler Manual... -
Page 36: Wireless Information
Note: The manufacturer is not responsible for any radio or TVinterference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Parker Hannifin Corporation - I -... - Page 37 This subsection does not apply for the geographical area Norway Implemented within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. - II - icountOS Oil Sampler Manual...
- Page 38 EN62075:2008 Person is responsible for marking this declaration: Yang Hongliang Product Manager of International Business TP-LINK TECHNOLOGIES CO., LTD . South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P. R. China Parker Hannifin Corporation...
- Page 39 Oil Sampler Manual...
- Page 40 Tel: +27 (0)11 961 0700 NZ – New Zealand, Mt Wellington parker.southafrica@parker.com Tel: +64 9 574 1744 www.parker.com © 2016 Parker Hannifin Corporation. All rights reserved. European Product Information Centre (24-hour) DD0000013_EN Rev 4 Freephone: +00800 27 27 5374...
