RK 11-1669
T-handle Vacuum Gauge Kit
For 900 and 1000 Turbine Series Filters
Instruction Part Number 14396 Rev -
Overview:
T-handle vacuum gauges available
to monitor filter condition. As a
filter slowly becomes clogged with
contaminates, restriction (resistance
to flow) increases. Because of this
restriction, more air is mixed with
fuel and less fuel is delivered to the
engine (fuel de-gassing). This will
result in loss of power and eventually
stall the engine.
Installing a T-handle Vacuum Gauge
in your fuel system gives you a
visual monitor of your filter condition.
Excessive resistance on the gauge
means it's time to change the filter.
Contact Information:
Parker Hannifin Corporation
Racor Division
P.O. Box 3208
3400 Finch Road
Modesto, CA 95353
phone 800 344 3286
209 521 7860
fax 209 529 3278
racor@parker.com
www.parker.com/racor
www.parker.com/racorproducts

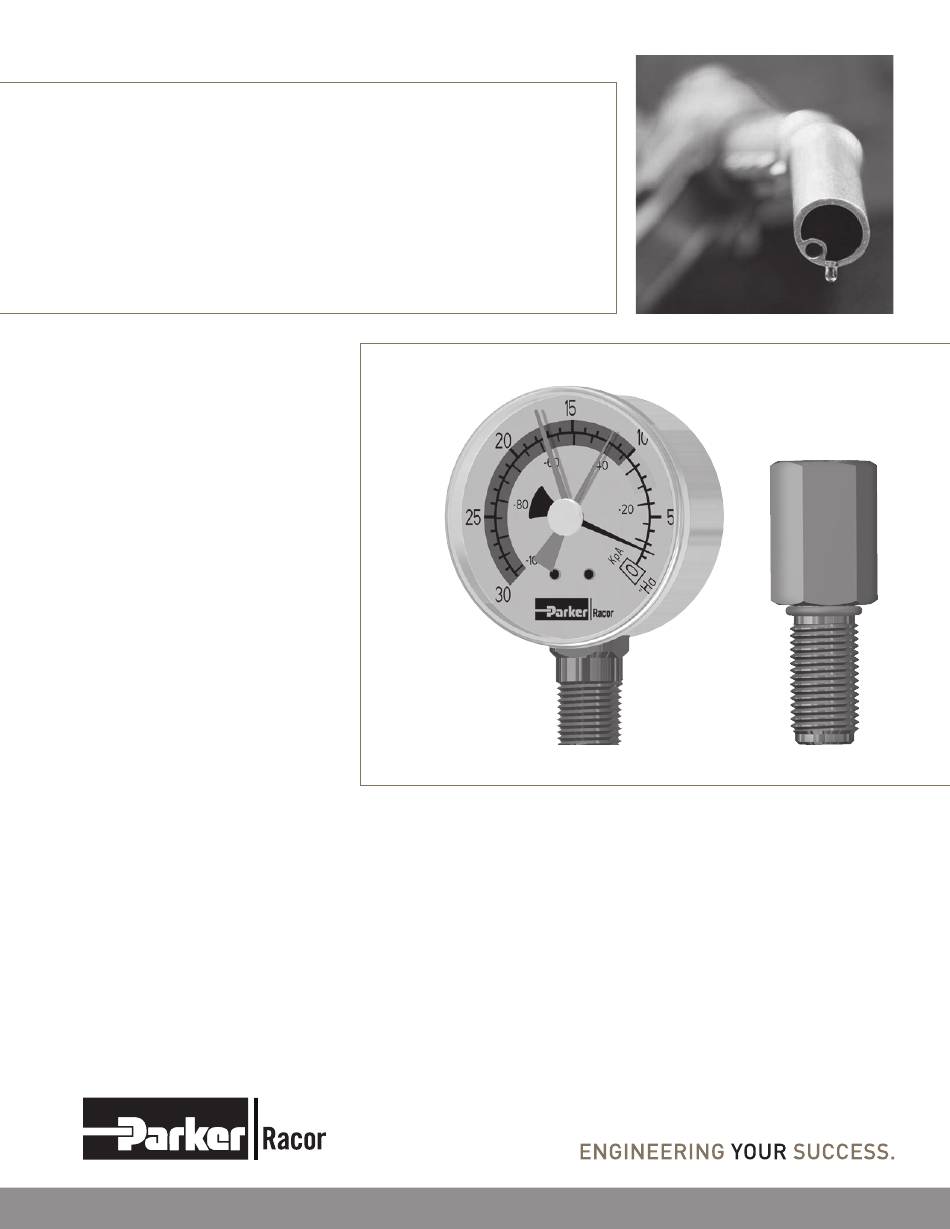

Product Features:
• Rotatable bezel ring to set
the change-out line.
• 1/4" NPT threads.
• 9/16"-18 UNF fitting
included.
• Red tell-tale pointer follows
black restriction pointer
to highest reading. Reset,
using center knob.
• Black restriction pointer.
