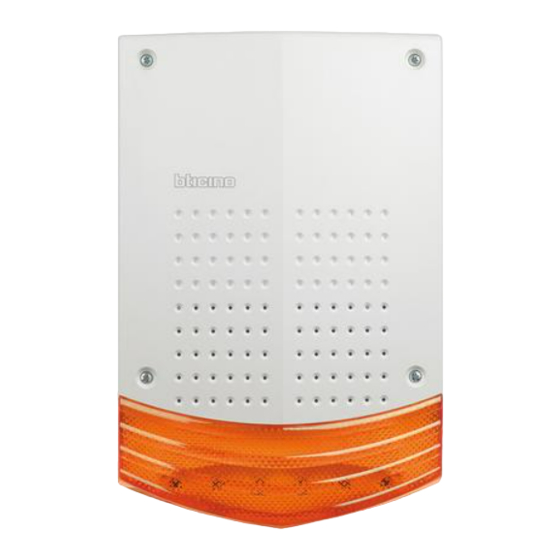

LEGRAND 4073 Quick Start Manual

Outdoor siren
Description
External siren designed for easy installation, sabotage prevention and weather
resistance.
The siren was designed to work both with E46ADCN or E49 power supply and with
buffered E47ADCN power supply; the siren is tamper-proof against breaking/opening.
The siren is also protected by an anti-foaming device installed on the electronic board.
It is equipped with a patented anti-tampering anchorage system.
Technical data
- Input clamps maximum absorption:
normal operation
alarm
battery recharge with E47ADCN
battery recharge with E46ADCN/E49
- Input / output and power supply:
- Battery slot:
- Alarm operating time:
- Alarm sound intensity:
- Frequency:
- Flashing:
- Flashes per minute:
- Weight (without battery):
- IP protection index:
- Operating ambient temperature:
- Self-protected against removal and opening
- Strength degree IK IK08 - Protection degree:
- Self-protected against removal and opening
- Maximum system consumption for 1 or 2 sirens
(the buffer time increases with 2 sirens)
20 mA
20 mA
50 mA
250 mA
Two-wire
12V 2.0 – 7.2Ah
15 min
105 dB(A) at 1 m
1500Hz
flash
60
2.1Kg
IP44
Siren without external cover
(-25) – (+55) °C
IP34

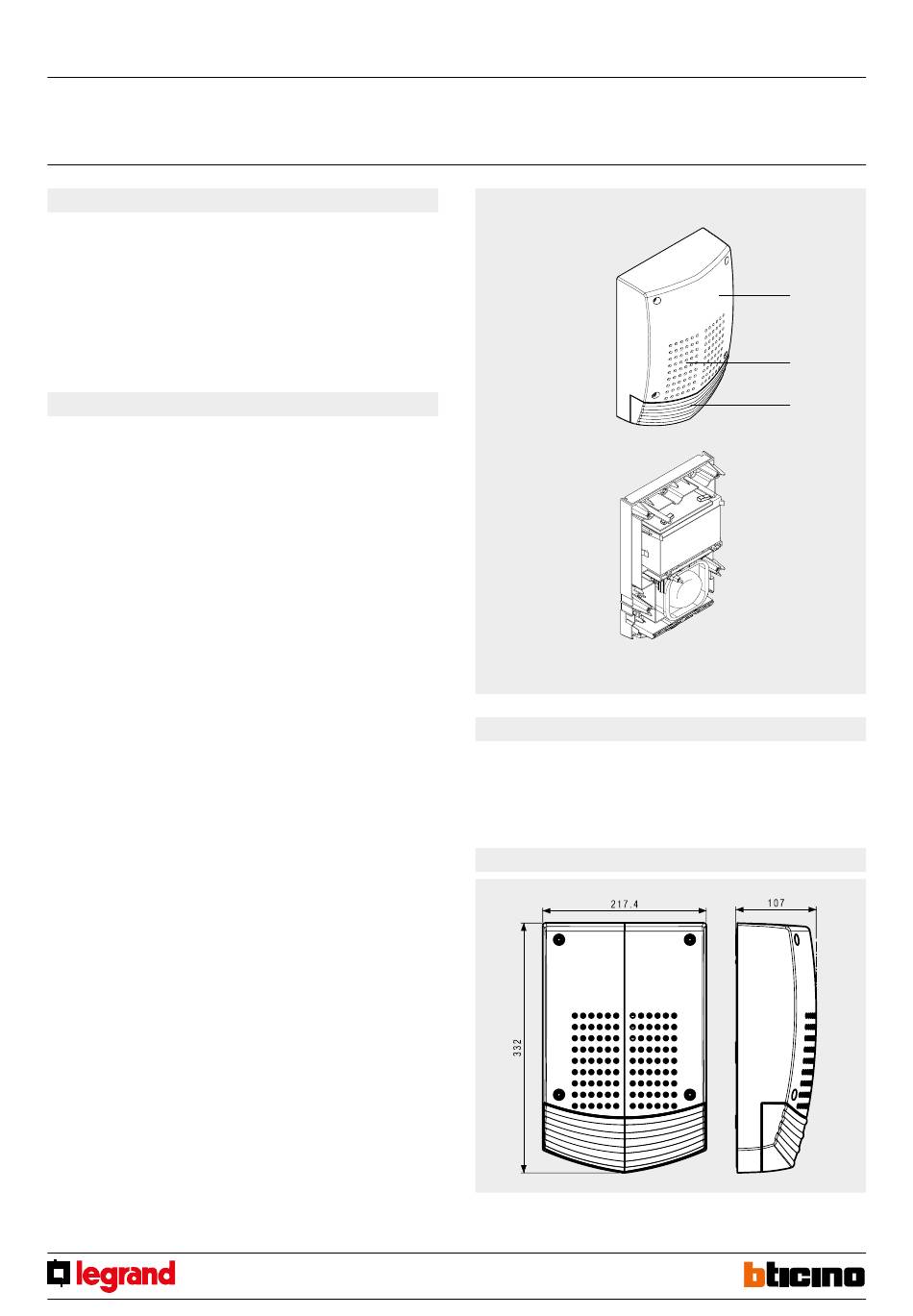

Legend
300 mA
1 - External plastic cover
2 - Acoustic indicator
3 - Light indicator
Dimensions
MQ01017-a-EN 16/03/2015
4073
1
2
3
1
