LEGRAND tynetec ZXT821 Quick Start Manual

869MHz

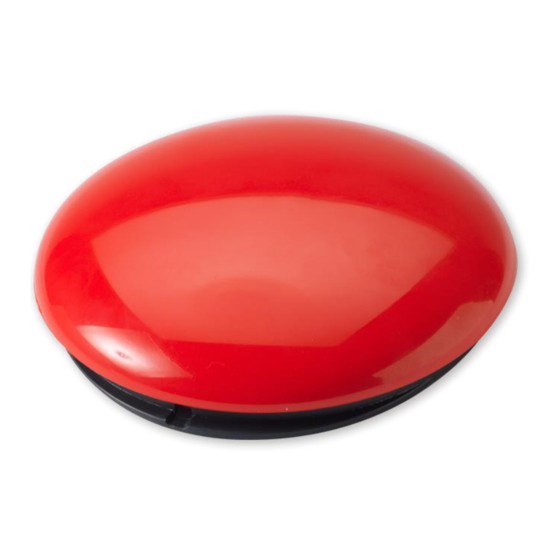

Big Button Alarm
_________________________________________________________________________
•
Manually activated trigger device
•
Compatible with Reach IP, Advent XT2, Carer Response
and Touchsafe Pro V4.01 onward
•
Free standing momentary action switch
•
Non-slip, non-marking Polyurethane feet
•
Easily operated across whole surface area
•
Actuation force: 180 grams nominal
•
Ultra-low profile: 10mm at lowest point
•
Splash proof
•
5 year Lithium battery (typical)
•
Low battery warning
•
Operating Temperature: +5
•
Telecare Transceiver: 869.2125MHz Class 1.5
•
Digital Heartbeat
•
Weight: 110 grams
•
Dimensions: 125mm diameter x 26mm depth
•
Product Code: ZXT821
Positioning
The big button is a wireless free-standing device which
can be placed on any flat surface within close reach of
the user. It's easy-to-press large surface area means it is
especially suited for persons with mobility or dexterity
difficulties to activate an emergency alarm call.
The big button is not suitable for wall mounting or use in
damp/humid conditions.
________________________________________________________________
Tynetec, a business unit of Legrand Electric Ltd
Cowley Road, Blyth Riverside Business Park, Blyth, Northumberland, NE24 5TF.
Tel: +44 (0) 1670 352371 www.tynetec.co.uk
o o
C to +40 C
Trusted Technology
Caring for People
Emergency Alarm Call
An emergency alarm call can be made by simply pressing
the big button once – no further action is required.
Low Battery Condition
A low battery condition will be reported automatically to
the Alarm Receiving Centre (ARC) or the local Manager.
The big button should be replaced as soon as possible
within 30 days. Big buttons can be returned to Tynetec for
battery replacement.
Out of Range Notification (Reach IP)
The Reach IP can monitor all radio peripheral devices to
determine whether they have been damaged or removed
from an installation. Should the Reach IP be unable to
detect a device's heartbeat it will automatically generate a
"radio out of range" notification. Firstly, investigate if
there's a genuine reason for the alert, if not, arrange for
the peripheral device to be replaced immediately.
The "Radio out of range timer" can be set from 30 hours to
99999 hours in Pulse CMP. "Radio supervision" can be
disabled by unchecking the tick box associated with each
peripheral device in Pulse CMP.
Maintenance
Test the big button once every month.
Clean with a damp cloth, do not use solvents or cleaners
on the big button.
Do not submerge in water.
Disposal
Waste electrical products should not be disposed
of with normal household waste. The big button
is ideally suited for disposal within the waste
electronic and electrical equipment (WEEE)
recycling scheme. Please recycle where facilities exist.
Check with your local authority or contact your supplier for
recycling/disposal advice.
Warning
The big button contains a Lithium battery. If tampered
with the battery may be damaged and create a fire hazard.
No attempt should be made to remove or replace the
battery. Do not incinerate.
Doc No. FM0829 V1.03 Page 1
