Faber e-MatriX 800/500 I Installation Manual
Hide thumbs
Also See for e-MatriX 800/500 I:
- Installation instructions manual (44 pages) ,
- Installation manual (44 pages) ,
- User manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for Faber e-MatriX 800/500 I
Summary of Contents for Faber e-MatriX 800/500 I

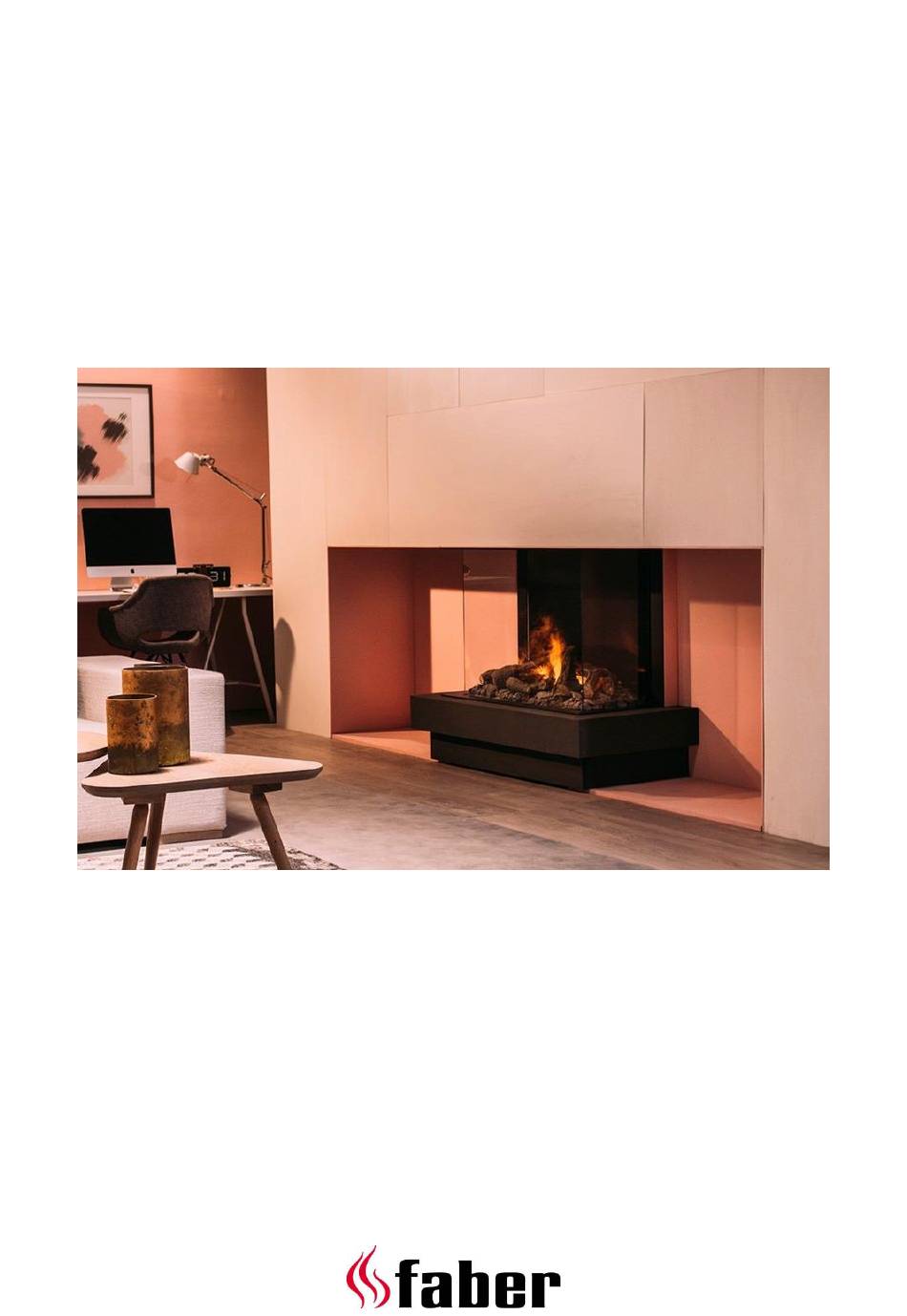

- Page 1 Installation manual e-MatriX 800/500 I,II,III e-MatriX 800/650 I,II,III 40011677-2004...
- Page 2 Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III 2 < < < <...
- Page 3 Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III 2.0a 2.0b 3 < < < <...
- Page 4 Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III 2.0c 2.1a 2.1b 2.1c 4 < < < <...
- Page 5 Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III 5 < < < <...
- Page 6 Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III 6 < < < <...
-
Page 7: Installation Requirements
Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III Dear user the essential requirements of EEC Directives 2014/35/EU and 2014/30/EU. Congratulations on your purchase of a Faber fire! A quality product from which you will experience Product: electric fire Opti-myst warmth and atmosphere for many years. - Page 8 Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III Placing the fire Connect the supplied mains lead, see fig. 4.0-C. Please note! If desired, an extension set of 2m is available! Always the fire must be fitted with back to (The existing cable length will be extended by 2m, a wall.
-
Page 9: Maintenance
Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III Side glass Maintenance For cleaning only it’s not necessary to remove the side glass. Maintenance frequency First remove the front glass see chapter 5. Cleaning water sump, air filter and replac- ... -
Page 10: Technical Data
Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III Reverse the steps above to reassemble. Replacing in-line filter Cleaning air filter Turn off the water supply. Gently slide the air filter upwards out of Close the ball valves. its plastic holder, see fig. 8.0. -
Page 11: Troubleshooting Guide
Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III 11 Troubleshooting guide Symptom Cause Action The flame effect will not No power supply. Check if power supply is connected to wall socket cor- start. rectly and the mains switch of the Control box is in the ON (I) position. - Page 12 Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III 12 Dimensional drawings 12.1 e-MatriX 800/500-650 I 12 < < < <...
- Page 13 Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III 12.2 e-MatriX 800/500-650 IIL 13 < < < <...
- Page 14 Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III 12.3 e-MatriX 800/500-650 IIR 14 < < < <...
- Page 15 Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III 12.4 e-MatriX 800/500-650 III 15 < < < <...
- Page 16 Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III 12.5 Control box 16 < < < <...
- Page 17 Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III 12.6 Wall brackets e-MatriX 800/500 I,II,III(Article number A9325196) e-MatriX 800/650 I,II,III (Article number A9324596) 17 < < < <...
- Page 18 Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III 12.7 Remote access door (Article number A9299463) 18 < < < <...
- Page 19 Installation manual e-MatriX 800/500 I,II,III and e-MatriX 800/650 I,II,III 19 < < < <...
- Page 20 www.faberfires.com contact@faberfires.com Saturnus 8 NL 8448 CC Heerenveen Postbus 219 NL 8440 AE Heerenveen...
