BAG C
INPUT SHAFT COMPONENTS
DRIVE PINON
x 2

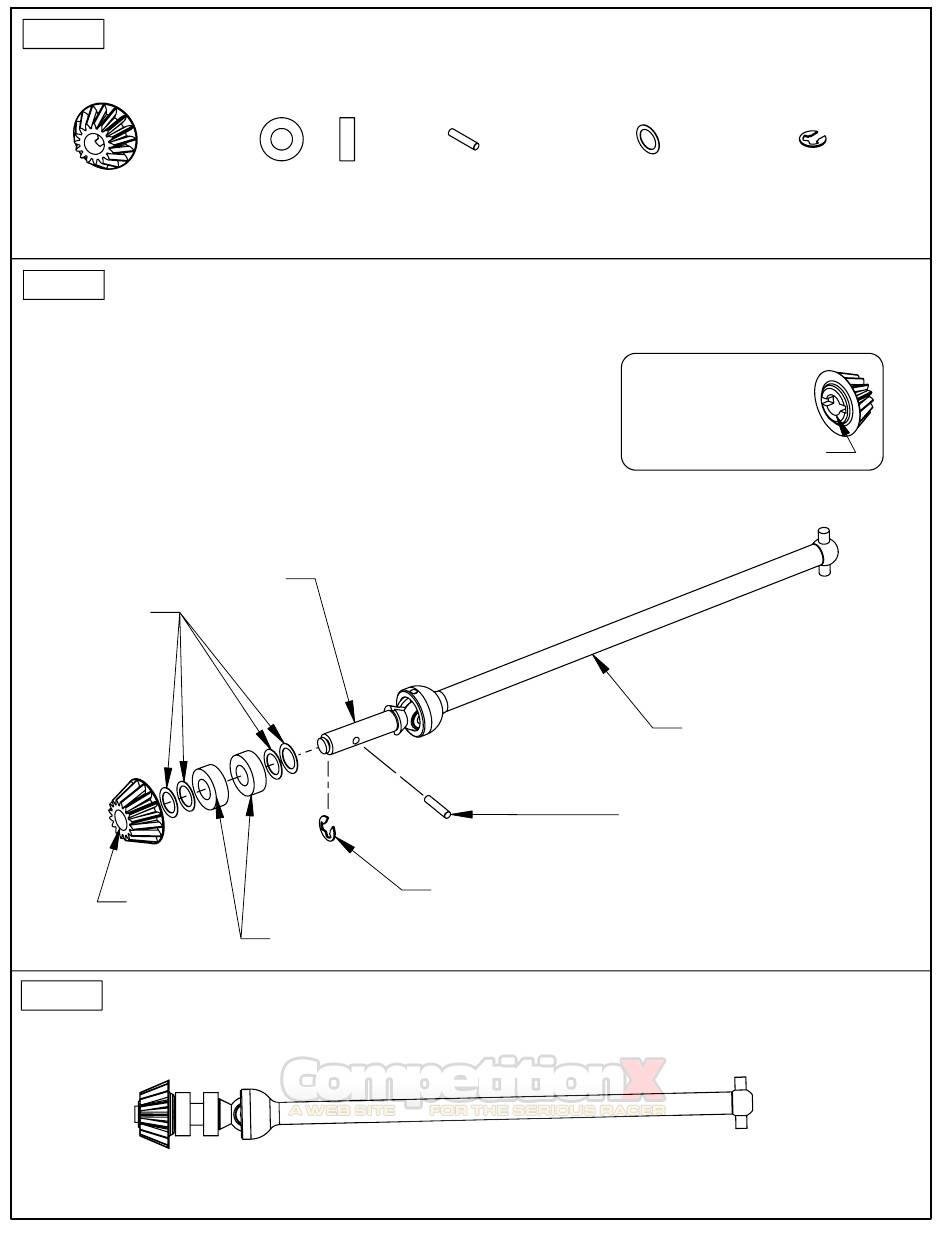

STEP 8

INPUT SHAFT ASSEMBLY:

1. SLIDE TWO INPUT SHAFT SHIMS AND TWO 3/16 X 3/8 BEARINGS ONTO
THE INPUT SHAFT.
2. SLIDE TWO INPUT SHAFT SHIMS ONTO THE INPUT SHAFT.
3. INSTALL AND CENTER THE DOWEL PIN INTO THE INPUT SHAFT.
4. TRIM BURRS FROM THE DRIVE PINION EDGE WHERE SHOWN.
SLIDE THE DRIVE PINION ON TO THE INPUT SHAFT. MAKE SURE THE
DOWEL PIN ALIGNS PERFECTLY WITH THE SLOT IN THE PINION.
5. ADD THE SMALL E-CLIP.
6. REPEAT THIS PROCEDURE FOR THE OTHER INPUT SHAFT.
INPUT SHAFT
INPUT SHAFT SHIM
x 4
DRIVE PINON
x 1
STEP 9
COMPARE ASSEMBLY:
3/16 x 3/8
DOWEL PIN
BEARING
x 2
x 4
E-CLIP
3/16" x 3/8" BEARING
x 2
CENTER CVD BONE "FRONT" (SHOWN)
* (E-CLIPS ARE LOCATED IN THE SHOCK BAG)
INPUT SHAFT SHIM
x 8
ATTENTION!
CAREFULLY TRIM ANY BURRS
FROM THIS EDGE OF THE DRIVE
PINION WITH A HOBBY KNIFE.
DOWEL PIN
1. COMPARE YOUR ASSEMBLY CAREFULLY!
2. COMPLETE OTHER INPUT SHAFT ASSEMBLY TO MATCH.
SMALL E-CLIP*
x 2
CENTER CVD BONE "FRONT"
(SHOWN)
PAGE 8
