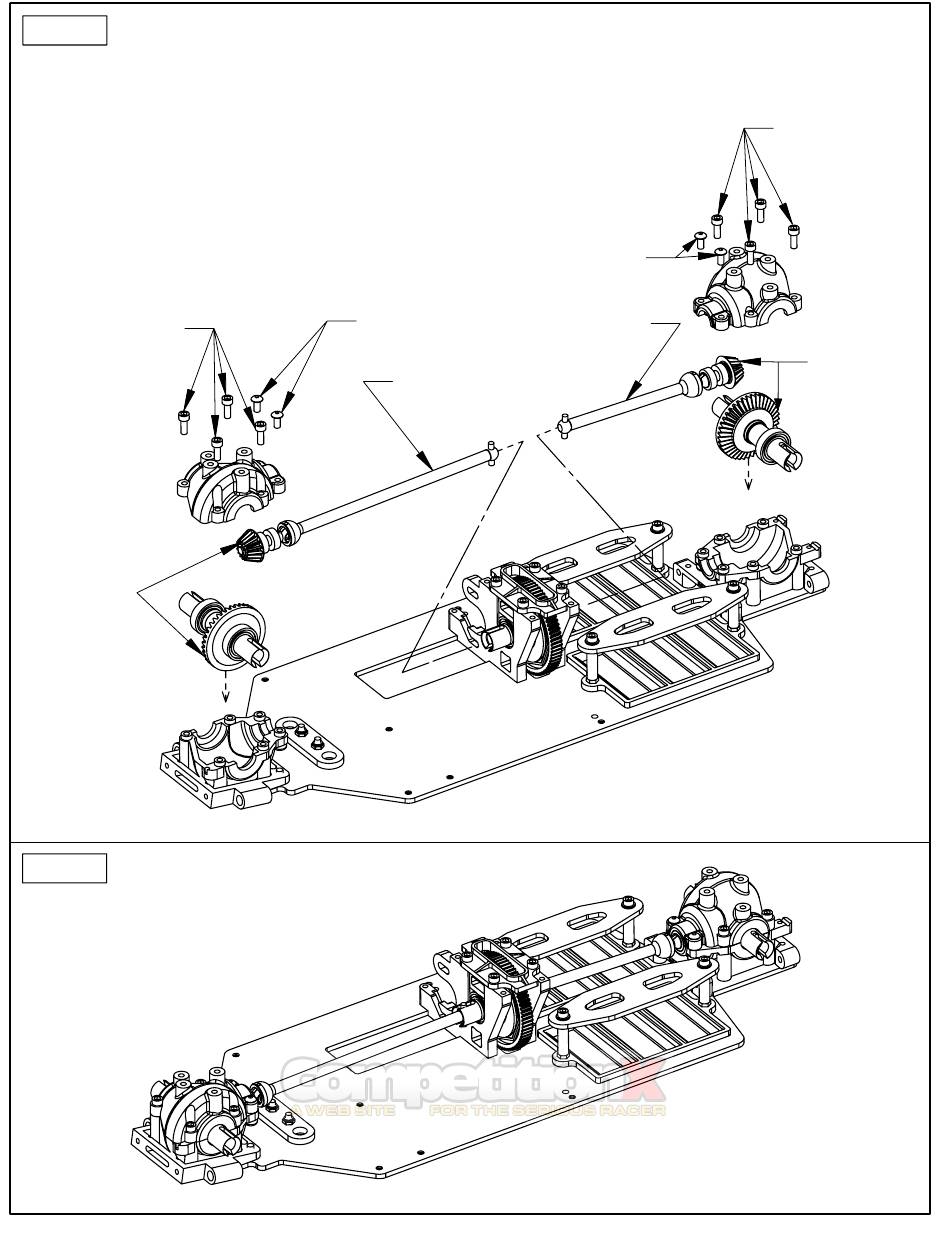

STEP 11
TRANSMISSION ASSEMBLY:
1. INSTALL THE FRONT AND REAR DIFF ASSEMBLIES IN THE LOWER
TRANSMISSION CASES AS SHOWN BELOW.
2. INSTALL THE FRONT AND REAR INPUT SHAFT ASSEMBLIES AS
SHOWN BELOW. BE SURE TO INSERT THE DOGBONE END OF
EACH CVD ASSEMBLY INTO THE CENTER SLIPPER OUTDRIVE.
3. ADD A SMALL AMOUNT OF STEALTH LUBE TO THE FRONT SIDE
OF THE RING GEAR AND PINON GEAR ON BOTH ASSEMBLIES.
4. ATTACH EACH UPPER TRANSMISSION CASE WITH FOUR
4-40 x 3/8" SOCKET HEAD SCREWS AND TWO 4-40 x 3/8"
BUTTON HEAD SCREWS.
4-40 x 3/8"
SOCKET HEAD
x 4
APPLY A SMALL
AMOUNT OF
STEALTH LUBE
STEP 12
COMPARE DRIVETRAIN ASSEMBLY:
CENTER CVD INPUT SHAFT
4-40 x 3/8"
"REAR"
BUTTON HEAD
x 2
CENTER CVD INPUT SHAFT
"FRONT"
4-40 x 3/8"
BUTTON HEAD
x 2
4-40 x 3/8"
SOCKET HEAD
x 4
APPLY A SMALL
AMOUNT OF
STEALTH LUBE
PAGE 10
