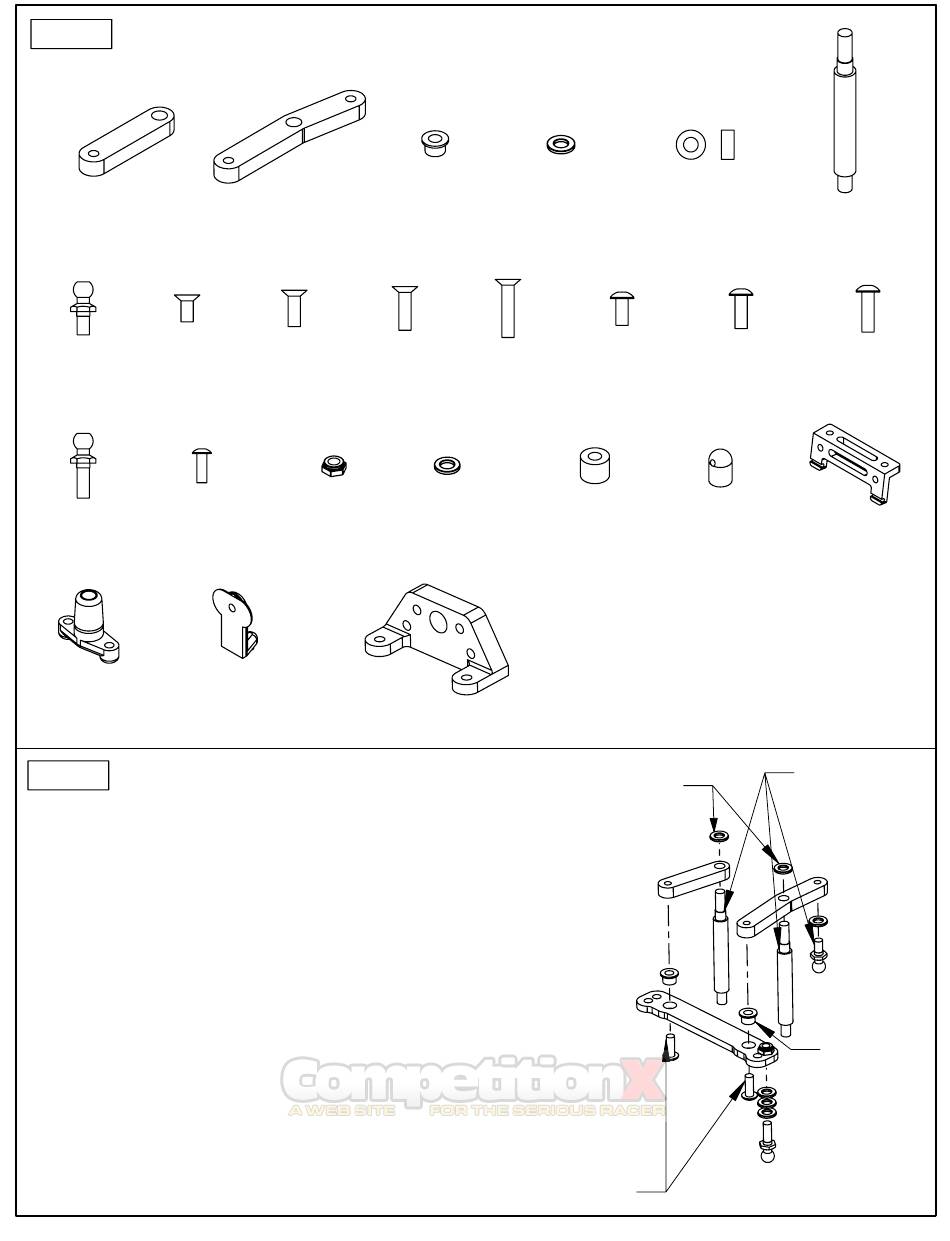

BAG D
STEERING AND TOP DECK COMPONENTS
SHORT STEERING
BELLCRANK
x 1
SHORT 4-40 x 1/4"
BALL END FLAT HEAD
x 1 x 4
LONG 2-56 x 5/16"
BALL END BUTTON HEAD
x 2
x 6
ANTENNA BODY MOUNT
MOUNT PAD
x 1 x 2
STEP 1
STEERING ASSEMBLY:
1. THREAD BOTH STEERING POSTS INTO THE STEERING BELLCRANKS AS SHOWN.
PAY ATTENTION TO THE ANGLE ON THE LONG BELLCRANK. THE LONG SIDE OF
THE BELLCRANK SHOULD ANGLE AWAY FROM THE CENTER OF THE ASSEMBLY.
(APPLY A SMALL AMOUNT OF THREAD LOCKING COMPOUND)
2. SLIDE ONE .030" NYLON WASHER ONTO THE TOP OF EACH STEERING POST.
3. SLIDE ONE .030" ALUMINUM WASHER ON TO A SHORT BALL END AND
FASTEN IT TO THE LONG BELLCRANK AS SHOWN.
(APPLY A SMALL AMOUNT OF THREAD LOCKING COMPOUND)
4. SLIDE THREE .030" ALUMINUM WASHERS ONTO A LONG BALL END.
INSERT THE BALL END WITH THE THREE WASHERS INTO THE BACK
HOLE OF THE GRAPHITE STEERING RACK (THE FLAT EDGE OF
THE STEERING RACK IS THE BACK EDGE). SECURE THE BALL
END WITH ONE 4-40 MINI LOCKNUT. REPEAT FOR OTHER SIDE.
5. INSERT A STEERING BUSHING INTO THE GRAPHITE STEERING RACK
(NOTE DIRECTION). SLIDE ONE 4-40 x 5/16" BUTTON HEAD SCREW
UP THROUGH THE BOTTOM OF THE RACK AND TIGHTEN THE SCREW
INTO THE BELLCRANK. REPEAT FOR OTHER SIDE.
(APPLY A SMALL AMOUNT OF THREAD LOCKING COMPOUND)
LONG STEERING STEERING
BELLCRANK BUSHING
x 1 x 2
4-40 x 5/16" 4-40 x 3/8"
FLAT HEAD FLAT HEAD
x 4 x 9
4-40 MINI
LOCKNUT
x 8
REAR TOWER
MOUNT
x 1
.030" NYLON
WASHER
x 2
4-40 x 1/4"
4-40 x 1/2"
BUTTON HEAD
FLAT HEAD
x 4
x 2
.030" ALUMINUM TRANSMISSION
WASHER SPACER
x 11 x 2
APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND
1/8 x 1/4
STEERING POST
BEARING
x 2
x 4
4-40 x 5/16"
BUTTON HEAD
x 2
FRONT TOWER
FRONT BODY
MOUNT MOUNT
x 2 x 1
APPLY A SMALL
NYLON AMOUNT OF
THREAD LOCKING
COMPOUND
4-40 x 3/8"
BUTTON HEAD
x 1
NOTE DIRECTION
PAGE 11
