CHASSIS COMPONENTS
BAG B
5-40 x 5/16"
FLAT HEAD
x 2
FRONT BULKHEAD
x 1
REAR SUSPENSION MOUNT (FRONT) x 1
NOTE MOUNTING DIRECTION IN
ASSEMBLY BELOW

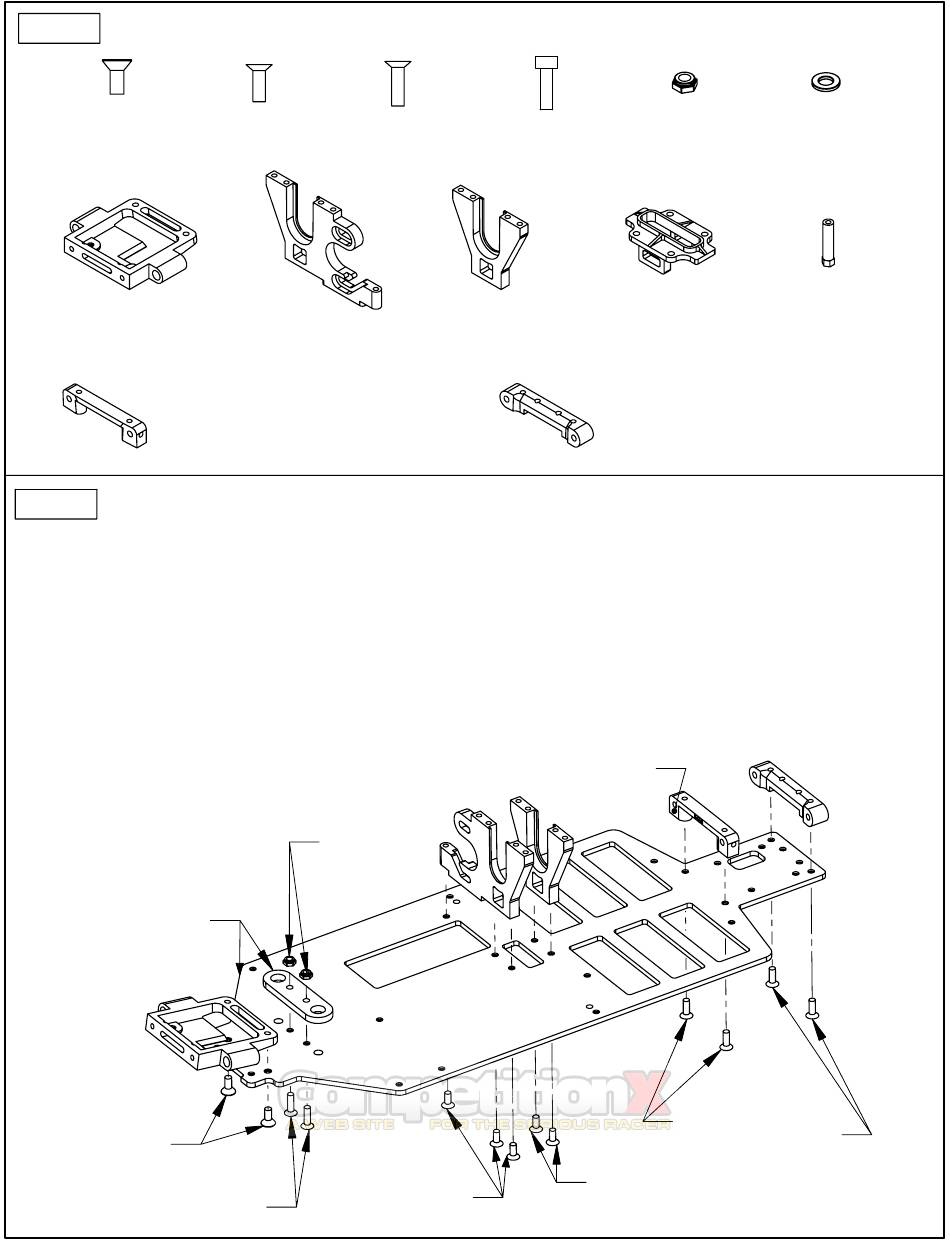

STEP 1
ASSEMBLING CHASSIS COMPONENTS:
1. ATTACH FRONT BULKHEAD TO CHASSIS WITH TWO 5-40 x 5/16" FLAT HEAD SCREWS.
2. ATTACH BEARING BLOCK WITH TWO 4-40 x 3/8" FLAT HEAD SCREWS. SECURE WITH TWO 4-40 LOCKNUTS.
3. ATTACH CENTER MOTOR MOUNT TO CHASSIS WITH THREE 4-40 x 5/16" FLAT HEAD SCREWS.
4. ATTACH CENTER BULKHEAD TO CHASSIS WITH TWO 4-40 x 5/16" FLAT HEAD SCREWS.
5. ATTACH REAR SUSPENSION MOUNT (FRONT) WITH TWO 4-40 x 5/16" FLAT HEAD SCREWS. NOTE DIRECTION
6. ATTACH REAR SUSPENSION MOUNT (BACK) WITH TWO 4-40 x 5/16" FLAT HEAD SCREWS. NOTE DIRECTION
APPLY BLUE THREAD LOCKING
COMPOUND WHERE NOTED.
(JUST A SMALL AMOUNT)
BEARING BLOCK AND
CHASSIS FROM BAG "A"
FRONT BULKHEAD
5-40 x 5/16" x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
BEARING BLOCK
4-40 x 3/8" x 2
4-40 x 5/16"
4-40 x 3/8"
FLAT HEAD
FLAT HEAD
x 9
x 6
CENTER MOTOR
MOUNT x 1
4-40 MINI
LOCKNUTS
x 2
CENTER MOTOR MOUNT
4-40 x 5/16" x 3
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
4-40 x 5/16"
SOCKET HEAD
x 8
CENTER BULKHEAD
CENTER BULKHEAD
x 1
CAP x 1
FLAT EDGE OF FRONT MOUNT
SHOULD FACE FORWARD
CENTER BULKHEAD
4-40 x 5/16" x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
#4 WASHER,
4-40 MINI
ALUMINUM
LOCKNUT
x 2
x 4
BATTERY POST
x 4
REAR SUSPENSION MOUNT (BACK) x 1
NOTE MOUNTING DIRECTION IN
ASSEMBLY BELOW
REAR SUSPENSION MOUNT
4-40 x 5/16" x 4
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
PAGE 2
