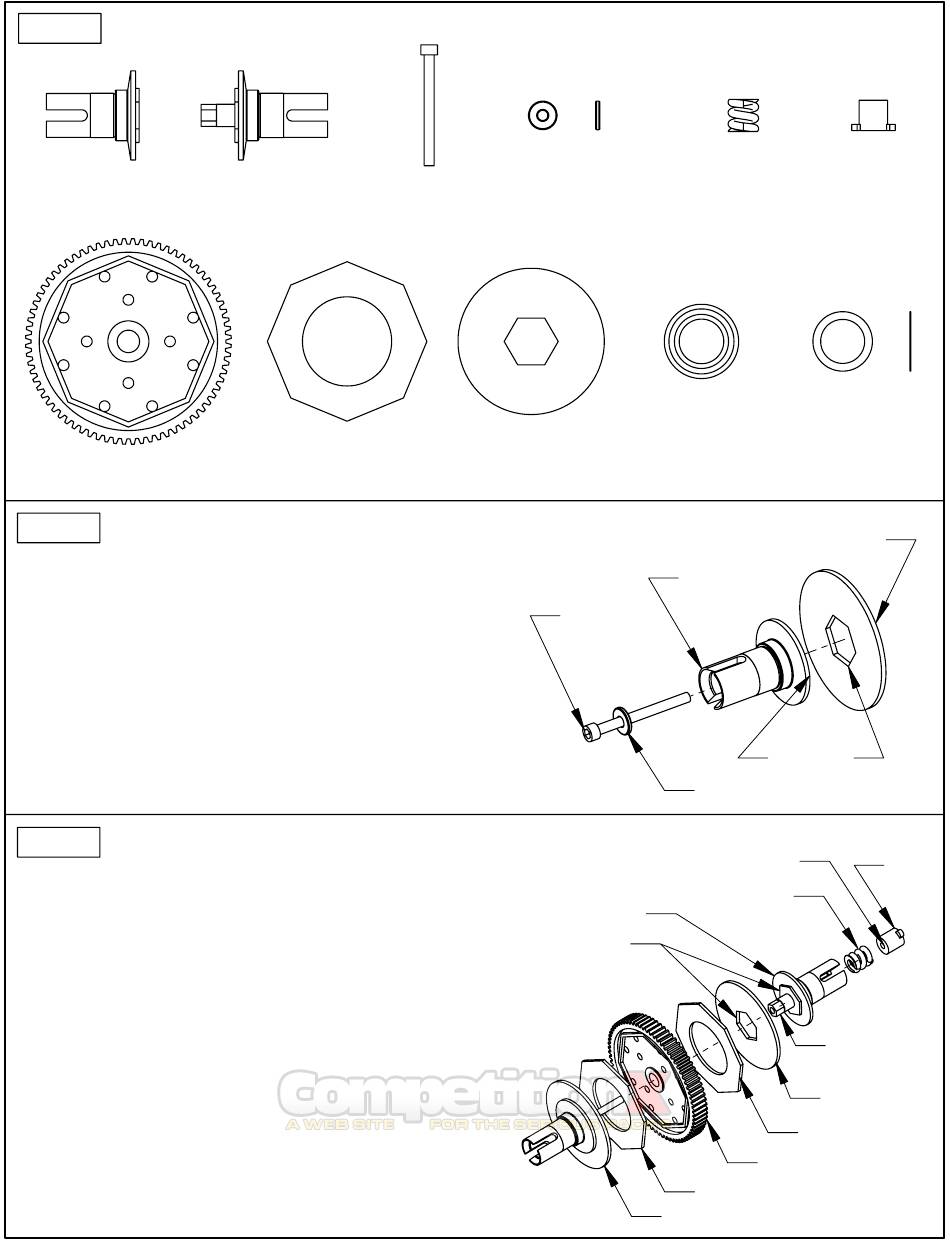

BAG B CENTER SLIPPER PARTS
SLIPPER OUTDRIVE
SLIPPER OUTDRIVE
FEMALE x 1
MALE x 1
78 TOOTH SPUR GEAR
x 1
STEP 1

SLIPPER ASSEMBLY:

1. HOLD THE DIFF BOLT WITH A 5/64" ALLEN WRENCH.
2. SLIDE ONE THRUST WASHER ONTO THE DIFF BOLT.
3. SLIDE THE DIFF BOLT WITH THRUST WASHER INTO
THE FEMALE SLIPPER OUTDRIVE.
4. WHILE ALIGNING THE HEXES ON EACH PART, SLIDE
THE SLIPPER PLATE ONTO THE FEMALE SLIPPER OUTDRIVE.
5. HOLD THE PARTIAL ASSEMBLY WITH THE 5/64" ALLEN
WRENCH SO THAT THE SLIPPER PLATE IS FACING UP.
STEP 2
SLIPPER ADJUSTMENT:
1. STACK THE FOLLOWING PARTS ONTO THE PARTIAL
ASSEMBLY IN THIS ORDER:
A. SLIPPER PAD
B. 78 TOOTH SPUR GEAR (ALIGN WITH SLIPPER PAD)
C. SLIPPER PAD (ALIGN WITH SPUR GEAR)
D. SLIPPER PLATE
E. MALE SLIPPER OUTDRIVE (ALIGN WITH SLIPPER PLATE)
2. CAREFULLY ALIGN ALL THE HEX SHAPED PARTS WHILE THE
SLIPPER PADS REST IN THE SPUR GEAR.
3. INSERT THE SLIPPER SPRING INTO THE MALE SLIPPER OUTDRIVE.
4. INSERT THE T-NUT INTO THE MALE SLIPPER OUTDRIVE UNTIL IT
TOUCHES THE DIFF SPRING. (APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND WHERE SHOWN)
5. TIGHTEN THE SLIPPER USING THE 5/64" ALLEN WRENCH,
BUT NOT COMPLETELY. JUST TIGHT ENOUGH TO HOLD
THE COMPONENTS IN PLACE.
DIFF BOLT
x 1
SLIPPER PAD
x 2
DIFF THRUST WASHER
x 1
SLIPPER PLATE 3/8 X 5/8 BEARING
x 2 x 2
DIFF BOLT
APPLY A SMALL AMOUNT OF THREAD LOCKING
COMPOUND TO THE THREADED, ALUMIUM PORTION
MALE SLIPPER
OUTDRIVE
ALIGN HEXES
SLIPPER SPRING DIFF T-NUT
x 1
x 1
OUTDRIVE SHIM
x 2
SLIPPER PLATE
FEMALE SLIPPER
OUTDRIVE
ALIGN HEXES
THRUST WASHER
SLIPPER SPRING
ALIGN HEX
WITH FEMALE
OUTDRIVE HEX
SLIPPER PLATE
SLIPPER PAD
SPUR GEAR
SLIPPER PAD
PARTIAL ASSEMBLY
T-NUT
PAGE 3
