Transmission Components; Transmission Case Assembly - Jconcepts BJ4 Worlds Edition Manual

BAG C

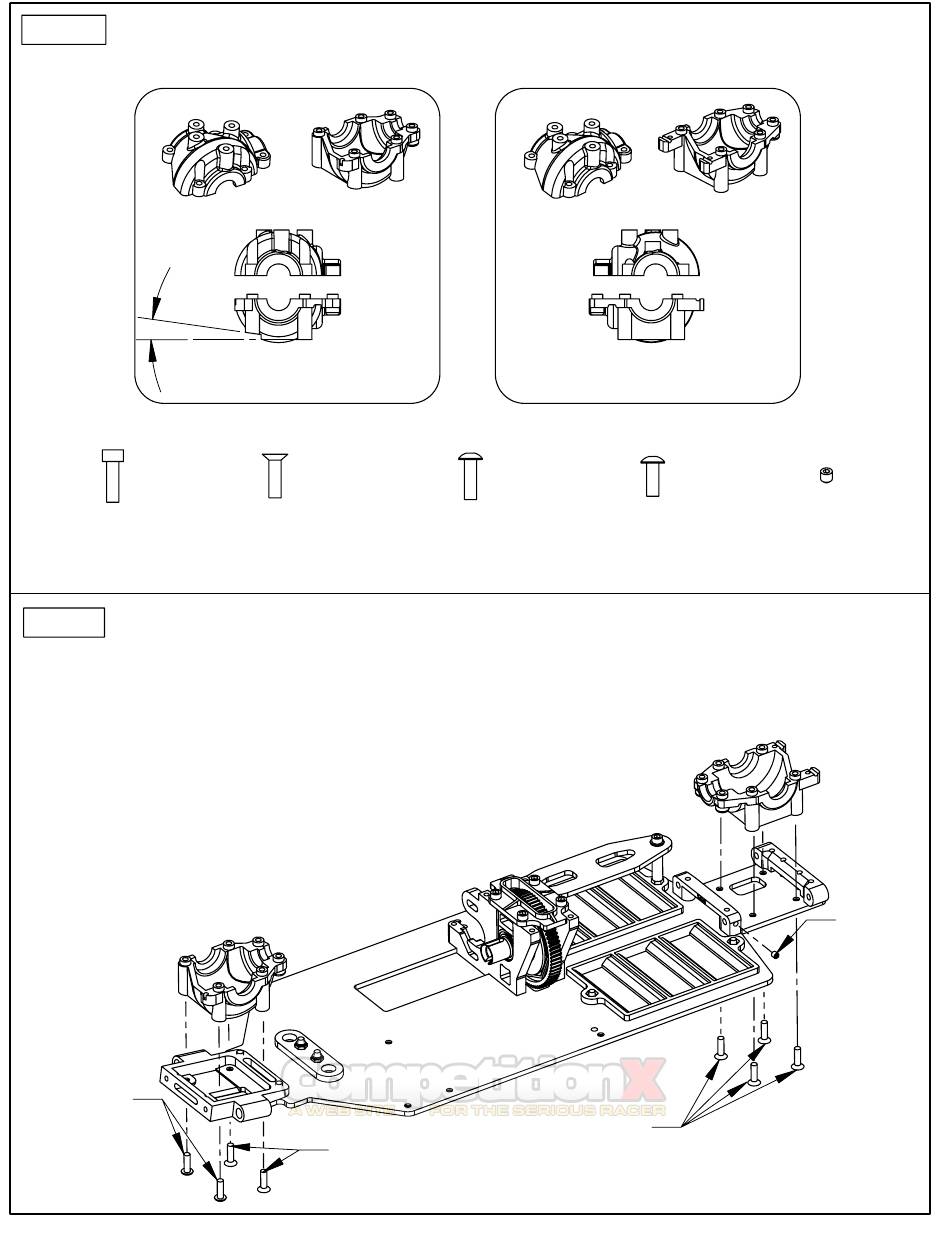

TRANSMISSION COMPONENTS

8°
FRONT TRANSMISSION HOUSING
4-40 x 3/8"
SOCKET HEAD
x 8
STEP 10

TRANSMISSION CASE ASSEMBLY:

1. ATTACH THE FRONT, LOWER TRANSMISSION HOUSING TO THE CHASSIS
AND FRONT BULKHEAD USING TWO 4-40 x 5/16" BUTTON HEAD SCREWS
IN THE FRONT AND TWO 4-40 x 3/8" FLAT HEAD SCREWS IN THE BACK.
2. ATTACH THE REAR, LOWER TRANSMISSION HOUSING
TO THE REAR OF THE CHASSIS USING FOUR 4-40 x 3/8"
FLAT HEAD SCREWS.
3. TEMPORARILY SCREW A 4-40 x 1/8" SET SCREWS INTO
EACH SIDE OF THE REAR SUSPENSION MOUNT (FRONT).
LATER IN THE ASSEMBLY, IT WILL BE NECESSARY TO TIGHTEN
THESE SET SCREWS AGAINST THE REAR HINGE PINS.
A SMALL AMOUNT OF THREAD LOCKING COMPOUND
WILL BE ADDED AT THAT TIME.
4-40 x 5/16"
BUTTON HEAD
x 2
4-40 x 3/8" 4-40 x 3/8"
FLAT HEAD BUTTON HEAD
x 6 x 4
4-40 x 3/8"
FLAT HEAD
x 2
REAR TRANSMISSION HOUSING
4-40 x 5/16"
BUTTON HEAD
x 2
4-40 x 3/8"
FLAT HEAD
x 4
4-40 x 1/8"
SET SCREW
x 2
4-40 x 1/8"
SET SCREW
x 2
PAGE 9
