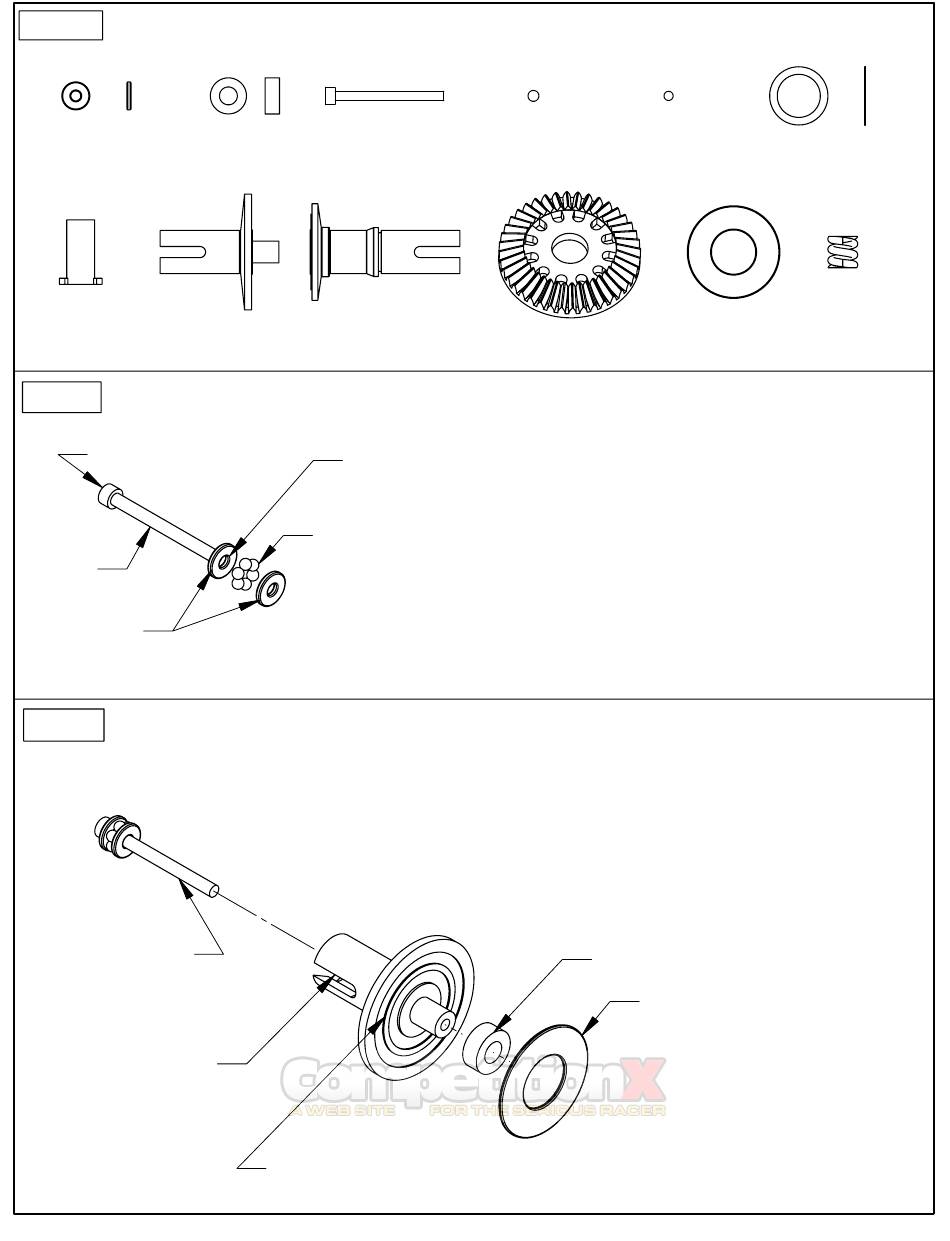

BAG C
DRIVETRAIN COMPONETS (DIFF x 2)
DIFF THRUST WASHER 3/16 X 5/16
x 2 DIFF BEARING
x 2
DIFF T-NUT
SHORT OUTDRIVE HUB
x 1
x 1
THRUST BALL ASSEMBLY:
STEP 1
HOLD WITH 5/64" ALLEN
WRENCH
DIFF BOLT
THRUST WASHERS
SHORT HUB ASSEMBLY:
STEP 2
THRUST ASSEMBLY
SHORT OUTDRIVE HUB
DIFF BOLT
x 1
LONG OUTDRIVE HUB
x 1
APPLY GENEROUS AMOUNT OF BLACK GREASE
1. HOLD THE DIFF BOLT WITH THE 5/64" ALLEN WRENCH
AND SLIDE ONE THRUST WASHER ONTO THE DIFF BOLT.
5/64
THRUST
2. APPLY A GENEROUS AMOUNT OF BLACK GREASE TO THE
BALLS
WASHER ON THE SIDE FACING AWAY FROM THE BOLT HEAD.
x 6
3. PLACE SIX THRUST BALLS INTO THE GREASE AGAINST THE BOLT
AND WASHER. ADD THE OTHER THRUST WASHER. THE GREASE
WILL HOLD THE BALLS IN PLACE DURING ASSEMBLY,
SANDWICHED BETWEEN THE WASHERS.
1. INSERT THE THRUST ASSEMBLY INTO THE SHORT OUTDRIVE HUB.
2. ADD A LIGHT COAT OF STEALTH LUBE TO THE SHORT HUB FACE
WHERE SHOWN.
3. PLACE A DIFF DRIVE RING ONTO THE FACE OF THE SHORT HUB.
4. SLIDE A DIFF BEARING ONTO THE PROTRUSION OF THE SHORT HUB.
SMEAR A SMALL AMOUNT OF STEALTH LUBE
HERE TO HOLD THE DIFF DRIVE RING IN PLACE
3/32 DIFF BALL
5/64 THRUST BALL
x 12
x 6
DIFFERENTIAL RING GEAR
x 1
3/16 x 5/16 DIFF BEARING
DIFF DRIVE RING
NOTE: REMOVE ANY OIL RESIDUE FROM OUTDRIVE
HUB THOROUGHLY BEFORE APPLYING STEALTH LUBE
OUTDRIVE SHIM
x 1
DIFF SPRING
DRIVE RING
x 1
x 2
