MikroTik Cube 60G ac Quick Start Manual

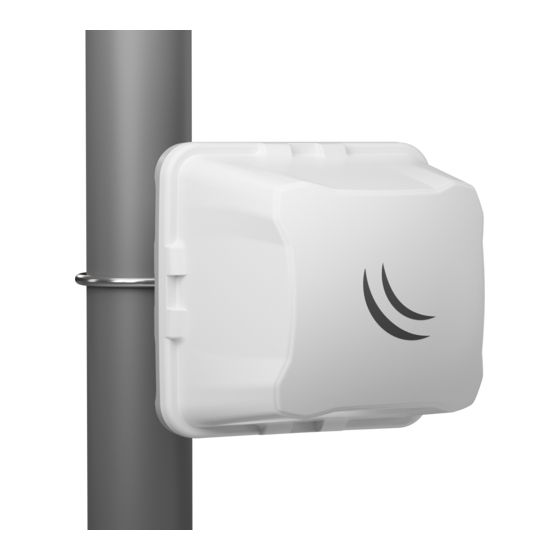

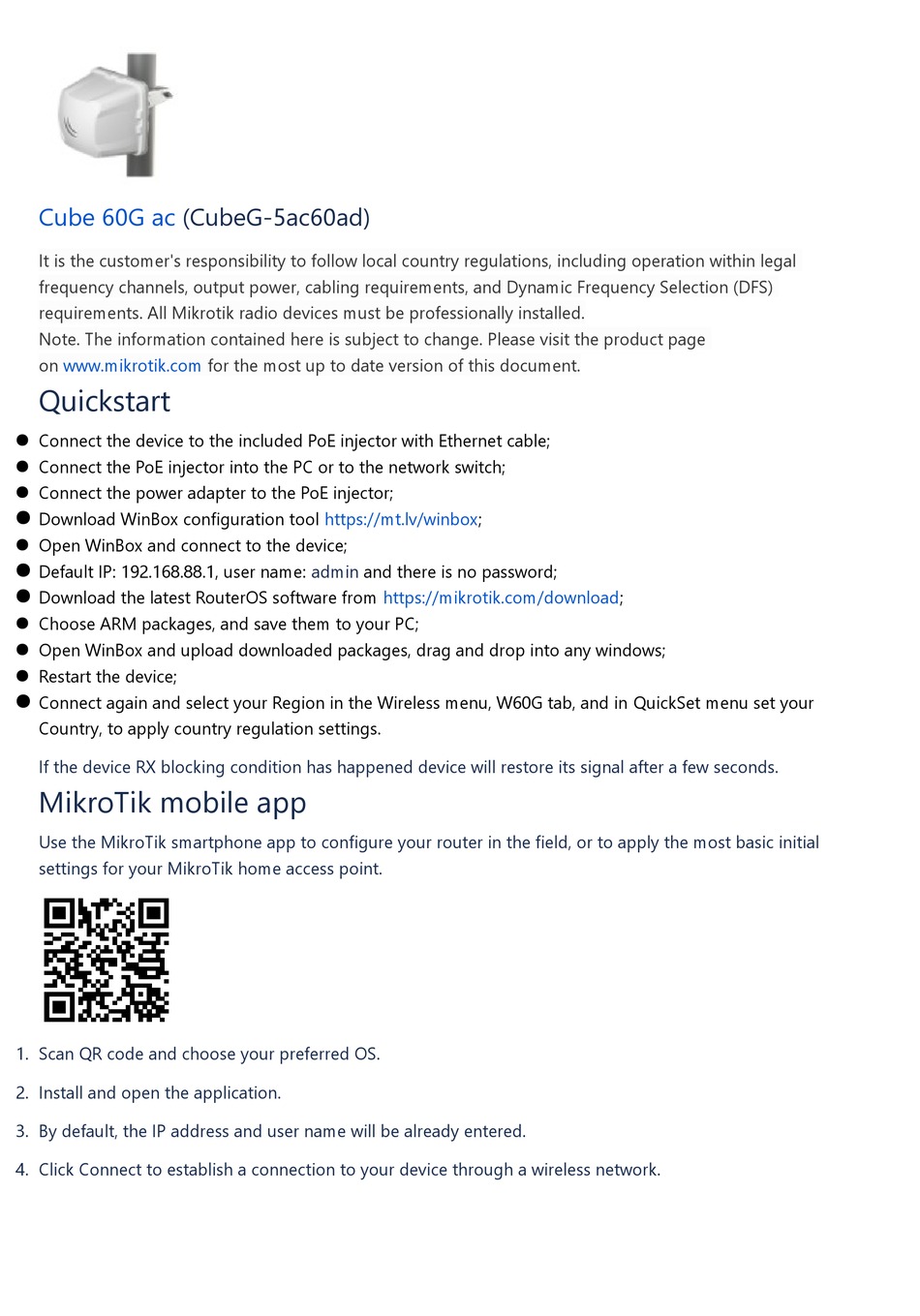

Cube 60G ac (CubeG-5ac60ad)
It is the customer's responsibility to follow local country regulations, including operation within legal
frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS)
requirements. All Mikrotik radio devices must be professionally installed.
Note. The information contained here is subject to change. Please visit the product page
on www.mikrotik.com for the most up to date version of this document.
Quickstart
 Connect the device to the included PoE injector with Ethernet cable;
 Connect the PoE injector into the PC or to the network switch;
 Connect the power adapter to the PoE injector;
Download WinBox configuration tool https://mt.lv/winbox;

 Open WinBox and connect to the device;
 Default IP: 192.168.88.1, user name: admin and there is no password;
 Download the latest RouterOS software from https://mikrotik.com/download;
 Choose ARM packages, and save them to your PC;
 Open WinBox and upload downloaded packages, drag and drop into any windows;
 Restart the device;
Connect again and select your Region in the Wireless menu, W60G tab, and in QuickSet menu set your

Country, to apply country regulation settings.
If the device RX blocking condition has happened device will restore its signal after a few seconds.
MikroTik mobile app
Use the MikroTik smartphone app to configure your router in the field, or to apply the most basic initial
settings for your MikroTik home access point.
1. Scan QR code and choose your preferred OS.
2. Install and open the application.
3. By default, the IP address and user name will be already entered.
4. Click Connect to establish a connection to your device through a wireless network.
