8. Support linkage assembly (A) with a forklift.
IMPORTANT:
Make sure forks (B) of the forklift do not lift against the
cylinder fitting.
9. Align the DWA linkage with the four bolts in the
windrower frame.
• For R Series header: Mount the linkage in most forward
position (A).
• For A Series or D Series header: Mount the linkage in
most rearward position (B).
215626
SETUP INSTRUCTIONS

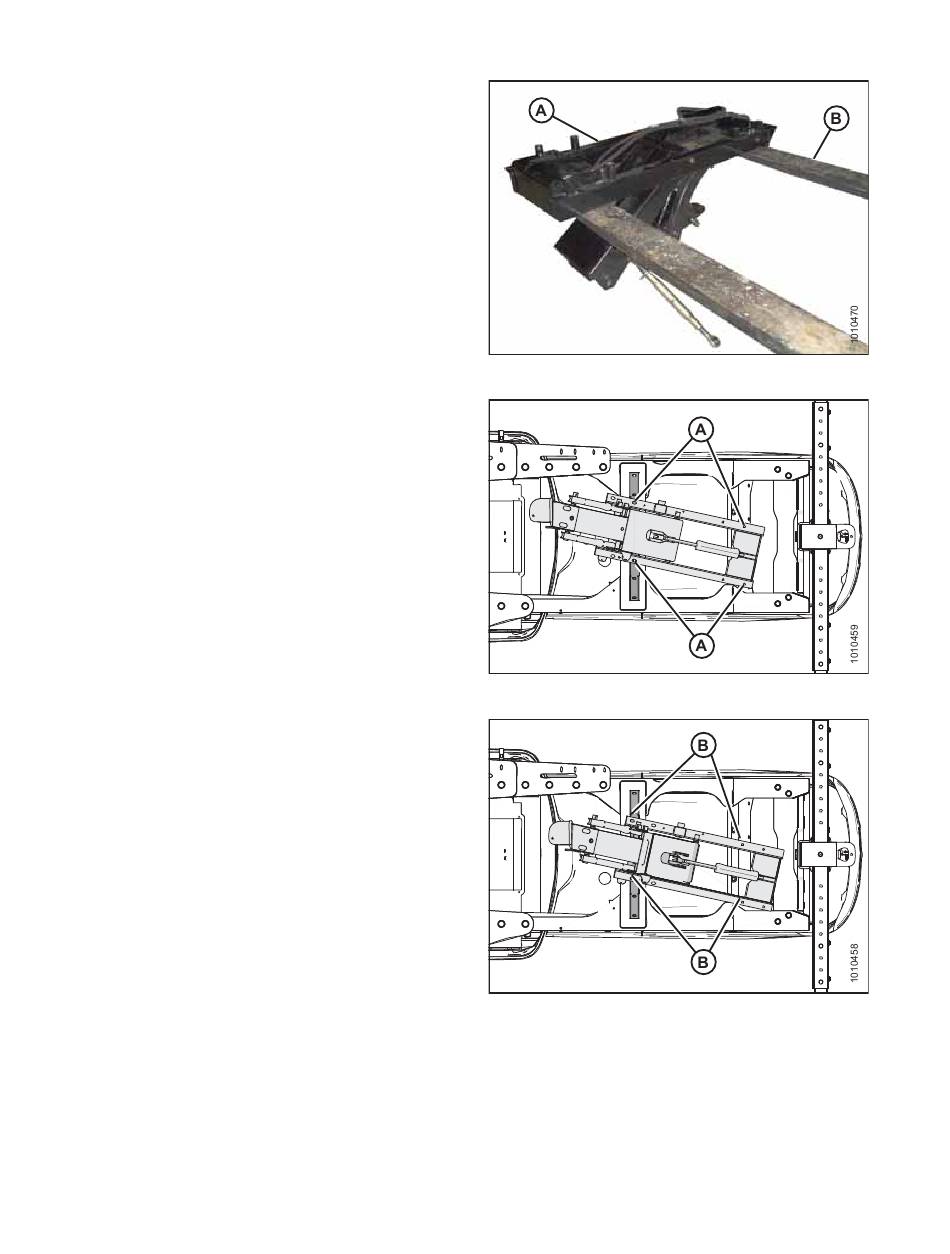

Figure 2.30: DWA Linkage
Figure 2.31: Linkage Forward
Figure 2.32: Linkage Rearward
24
Revision A
