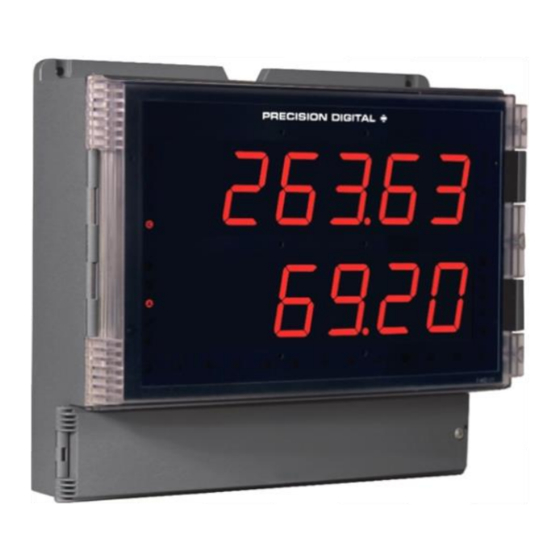

Helios PD2-6363 Dual Pulse Input Rate/Totalizer
Instruction Manual
Large Display NEMA 4X, IP65 Wall Mounted Flow Rate/Totalizer
Dual Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave (Coil), Square Wave Inputs
Large Dual-Line 6-Digit Display, 1.8" (46 mm) Readable from 100 Feet (30 Meters) Away
Isolated 5, 10 or 24 VDC Flowmeter Power Supply
4 Relays with Interlocking Capability + Isolated 4-20 mA Output Option
Free PC-Based, On-Board, MeterView Pro USB Programming Software
SunBright Display Standard Feature; Great for Outdoor Applications
Rate, Total, and Grand Total for Each Input Channel
Gate Function for Display of Slow Pulse Rates
K-Factor, Internal Scaling, or External Calibration
Operating Temperature Range: -40 to 65°C (-40 to 149°F)
Conformal Coated PCBs for Dust and Humidity Protection
UL & C-UL Listed. E160849; 508 Industrial Control Equipment
Input Power Options: 85-265 VAC / 90-265 VDC or 12-24 VDC / 12-24 VAC
Programmable Display, Function Keys & Digital Input
On-Board USB & RS-485 Serial Communications
Modbus RTU Communication Protocol Standard
5 Digital Inputs & 4 Digital Outputs Standard
Password Protection
Light / Horn & Button Accessory
Control Station Accessory for Remote Operation
3-Year Warranty
