Front Light Group - PIAGGIO MP3 300 hpe 2020 Manual

Front light group (03_32, 03_33, 03_34, 03_35, 03_36, 03_37,

03_38, 03_39, 03_40, 03_41, 03_42, 03_43)

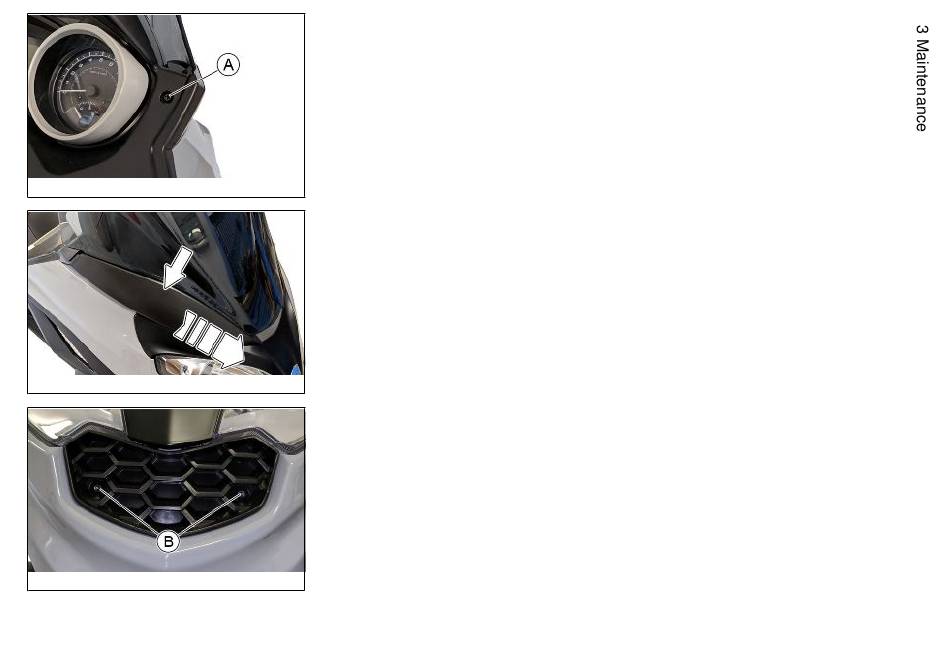

To remove the front light assembly, proceed as follows:
- Unscrew the screw "A" on both sides of the vehicle;
03_32
- Remove the cover shown in the image from both sides, pulling it downward, paying
attention to the plastic couplings;
03_33
- Unscrew the two screws "B" and remove the grid;
03_34
91
