7. Assembly of Optional Parts

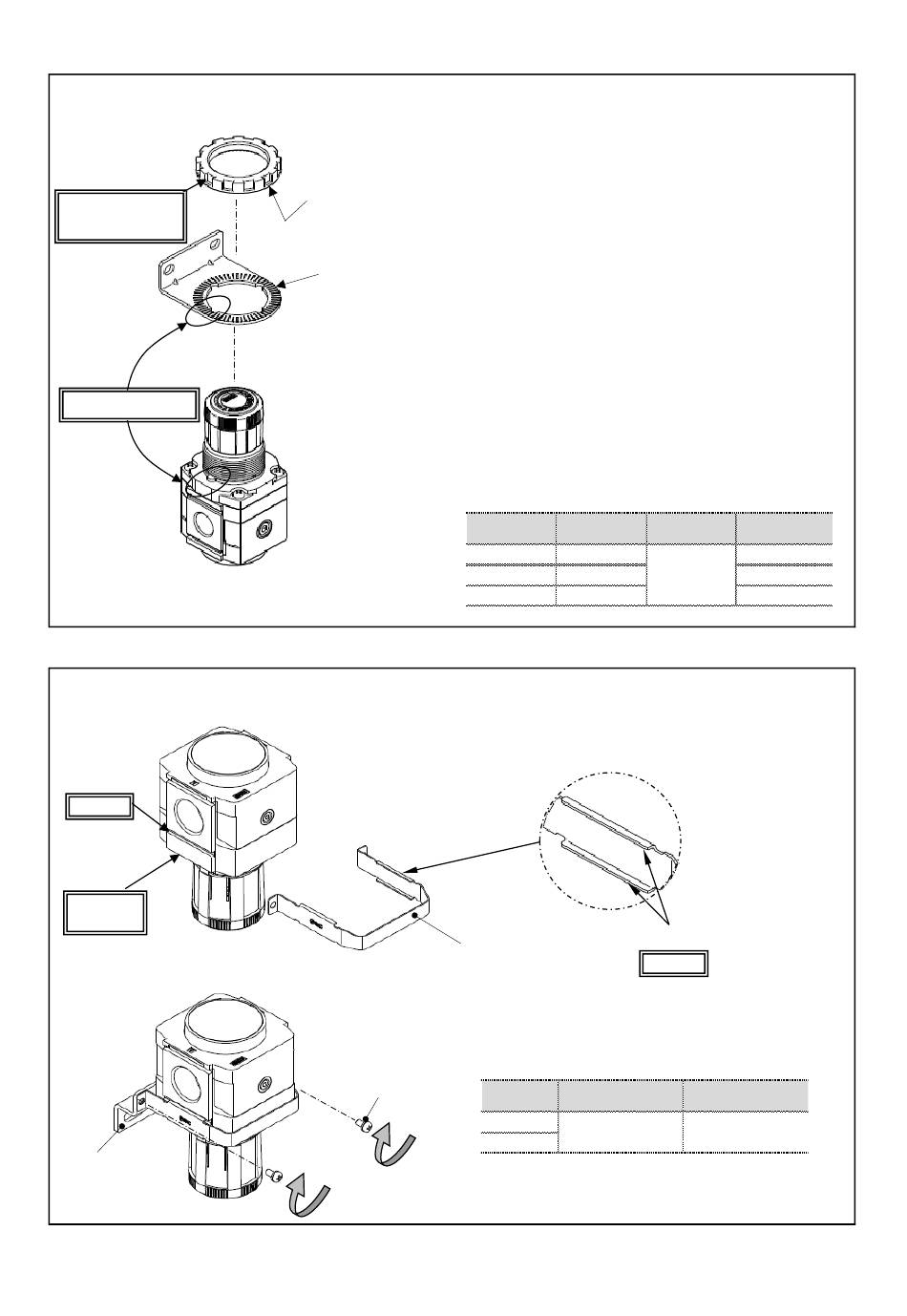

7-1. AR20-D/ AR30-D/ AR40-D Bracket (Panel mount)
Grooves for
applying wrench
Rotation stopper
7-2. AR50-D/ AR60-D Bracket
Groove
Bottom of
the body
Bracket B
1)
Set nut
(Knurled face)
2)
Bracket
(Knurled face)
3)
* When retightening
Regulator
Regulator
Set screw
(2 pcs.)
-11-
Bracket mounting
Mount the bracket to the regulator as shown in the picture.
Assemble so that the rotation stopper of the regulator and
the bracket are engaged properly.
Secure with the set nut
Ensure that the knurled faces of the bracket and the set
nut are facing each other.
Tightening
Turn the set nut while the regulator is aligned correctly
with the bracket. The knurling of the bracket and set nut
stops loosening of the screw. Usually, these can be
tightened adequately by hand. (Extra tightening is
recommended for panel mounting).
Please use a hook wrench on the grooves of the set nut.
After hand tightening, follow the values in the table below
for retightening.
Model Tool size
AR20-D 34/38
AR30-D 52/55
AR40-D 52/55
1) Mounting of bracket A
Insert bracket A from the front of the regulator so that the
fingers of the bracket A hold the regulator at the groove
and the bottom of the body.
Bracket A
2) Mounting of bracket B
Fix the bracket B with the set screw (2 pcs.) included in
the package. Refer to the table below for the tightening
torque.
Model Tool
AR50-D
Phillips screwdriver
AR60-D
Amount of
Reference torque
retightening
2.0+/-0.2 N m
2 to 5 notch
3.5+/-0.3 N m
4.0+/-0.4 N m
Fingers
Reference torque
1.5+/-0.2 N m
